PVS14 бинокулярный мост устройство ночного видения мост HK24-0231
US $85.26-$142.11

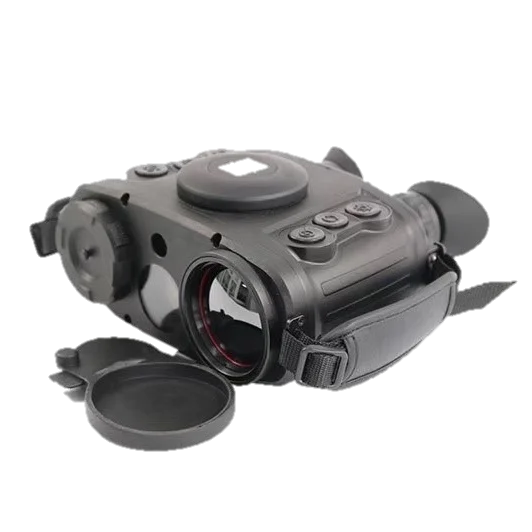

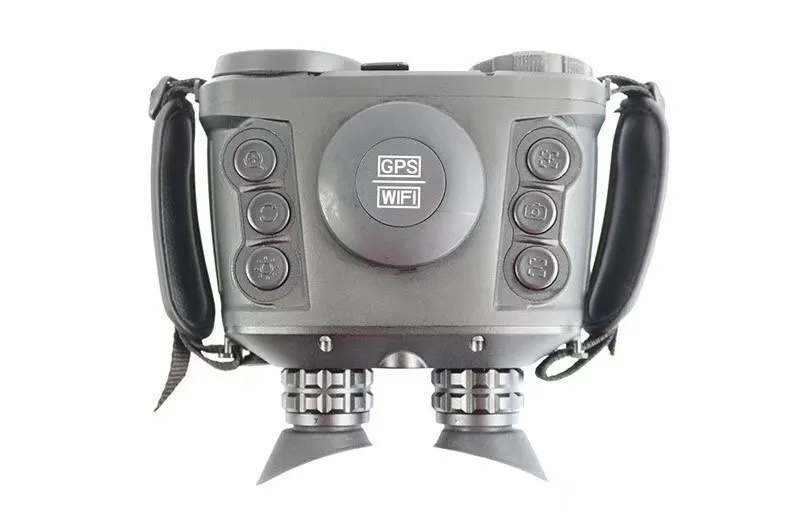

Многофункциональный бинокль с компасом GPS ночным
- Категория: Scopes & Accessories >>>
- Поставщик: Shanghai,Yuelei,Photoelectric,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.46 $* | 0.10 $* |
| Aug-17-2025 | 0.77 $* | 0.94 $* |
| Jul-17-2025 | 0.2 $* | 0.38 $* |
| Jun-17-2025 | 0.39 $* | 0.17 $* |
| May-17-2025 | 0.33 $* | 0.68 $* |
| Apr-17-2025 | 0.86 $* | 0.76 $* |
| Mar-17-2025 | 0.56 $* | 0.75 $* |
| Feb-17-2025 | 0.7 $* | 0.75 $* |
| Jan-17-2025 | 0.53 $* | 0.69 $* |
Характеристики
specifications
| Sensor type | CMOS sensor | ||
Low light detector | type | 6um | ||
Pixels | 1280x720 | |||
Dynamic Range | 76DB | |||
Frequency | 50Hz | |||
Signal to noise ratio | Illuminance 10-1 lx | Illuminance 10-2 lx | Illuminance 10-3 lx | |
60db | 55db | 45db | ||
Compass | Compass | Azimuth accuracy 1° Pitch angle accuracy 1° (0.5°Compass optional) | ||
GPS | Accuracy | ±5m | ||
WIFI | Built-in | |||
Image display | Mode | OLED HD binocular display | ||
Resolution | 1024x768 | |||
Colors | White heat / black heat / low light / fusion picture-in-picture display / fusion color / fusion gray / fusion black and white | |||
Storage | Built-in storage | 16G /32G | ||
Video format | AVI | |||
Physical characteristics | Continuous working time | 5 hours | ||
Total weight | 1.3kg(without battery) | |||
Size | 178.4mmX180.2mmX85.4mm(LxWxH) Contains eye mask | |||
Interface | Power in | DC12V | ||
Video output | PAL | |||
Data interface | USB2.0 | |||
Control interface | RS232 | |||
Environmental indicators | Work Temperature | -40℃~+60℃ | ||
Storage temperature | -50℃~+70℃ | |||
humidity | ≤90% | |||
Seal | IP67 | |||
Item | Main technical data | |
Infrared lens | Focus | 50mm/75mm |
Fov | 12.4°×7°/8.3°×6.6° | |
Infrared sensors | Detector type | Vox |
Resolutions | 640x512 | |
Wave | 8 - 14 µm | |
NETD | ≤35Mk @F1.0,300K | |
Frequency | 50Hz | |
Signal to noise ratio | 56DB | |
Non-uniformity correction | Manual/Auto | |
Image Processing | DDE | |
Zoom | 1~8X | |
Low light lens | Focus | 35mm |
FOV | 12.4°×7°/8.7°×5° | |
Size
Size Drawing
User Manual
Working principle

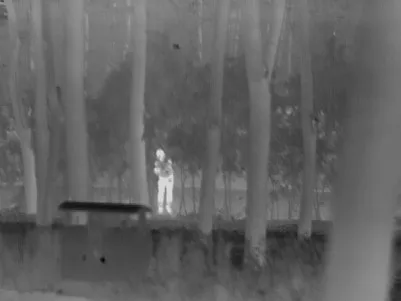

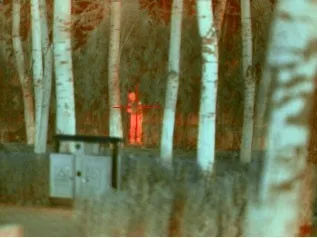

The multi-function fusion binocular processes the images of infrared thermal imaging, laser ranging and low-light sensors through algorithms, and combines the images of the three in a certain proportion to highlight the hot targets. By observing the merged image, the user can not only see the hot target, but also the outline of the environment background, and can quickly and accurately obtain the observation target.
This product is suitable for special forces such as public security, armed police, military, etc., to achieve effective observation of specific areas or targets around the clock, to quickly identify, identify and track the target of concern; also applicable to the fire, power and petroleum industries, to achieve specific areas or Day and night monitoring of the equipment.
