Экструдер Sino-Tech винтовой и стрейч-пленочный станок цилиндрический винт цилиндр из сплава с высокой
- Категория: Plastic & Rubber Machinery Parts >>>
- Поставщик: Zhangjiagang,Sino-Tech,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 595.27 $* | 625.76 $* |
| Aug-15-2025 | 590.24 $* | 620.91 $* |
| Jul-15-2025 | 495.63 $* | 520.33 $* |
| Jun-15-2025 | 580.40 $* | 609.73 $* |
| May-15-2025 | 505.98 $* | 530.59 $* |
| Apr-15-2025 | 570.25 $* | 599.74 $* |
| Mar-15-2025 | 565.79 $* | 593.28 $* |
| Feb-15-2025 | 560.75 $* | 588.81 $* |
| Jan-15-2025 | 555.32 $* | 583.25 $* |
Характеристики
Product Description

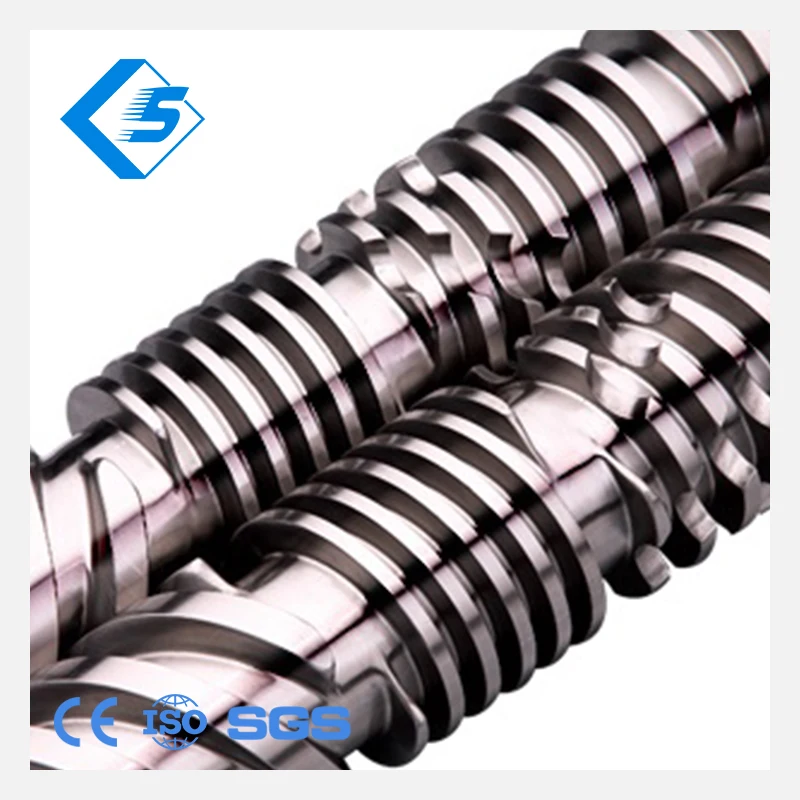

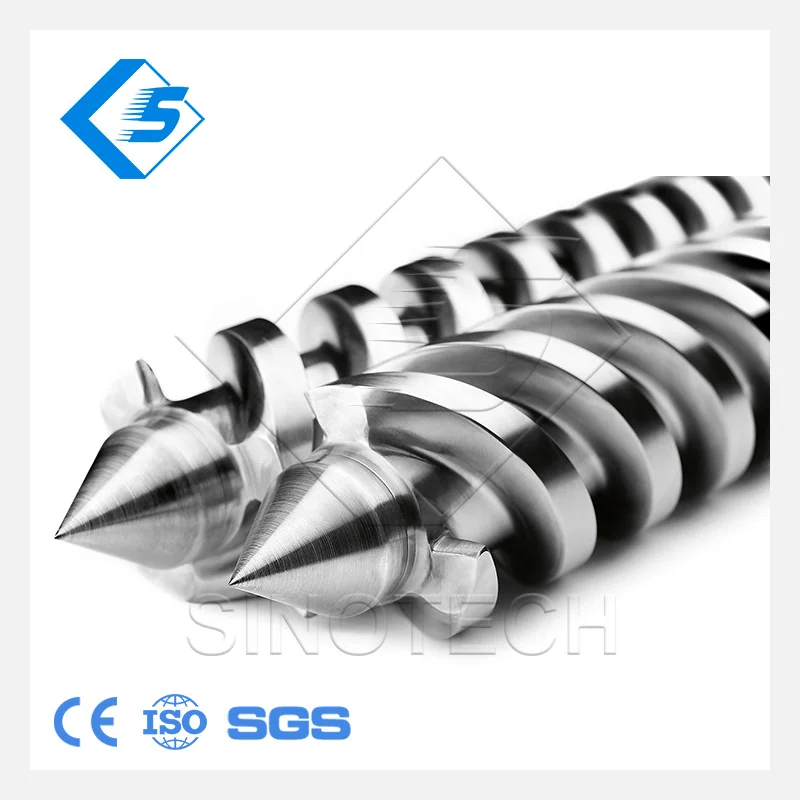

Twin Screw and Barrel
PVC powder granulation, do products(pvc pipe, profile,etc)
Some flat twin screws, according to the design can also do other plastic materials, such as: pe, pp
Some flat twin screws, according to the design can also do other plastic materials, such as: pe, pp
Product Design Plan
Application

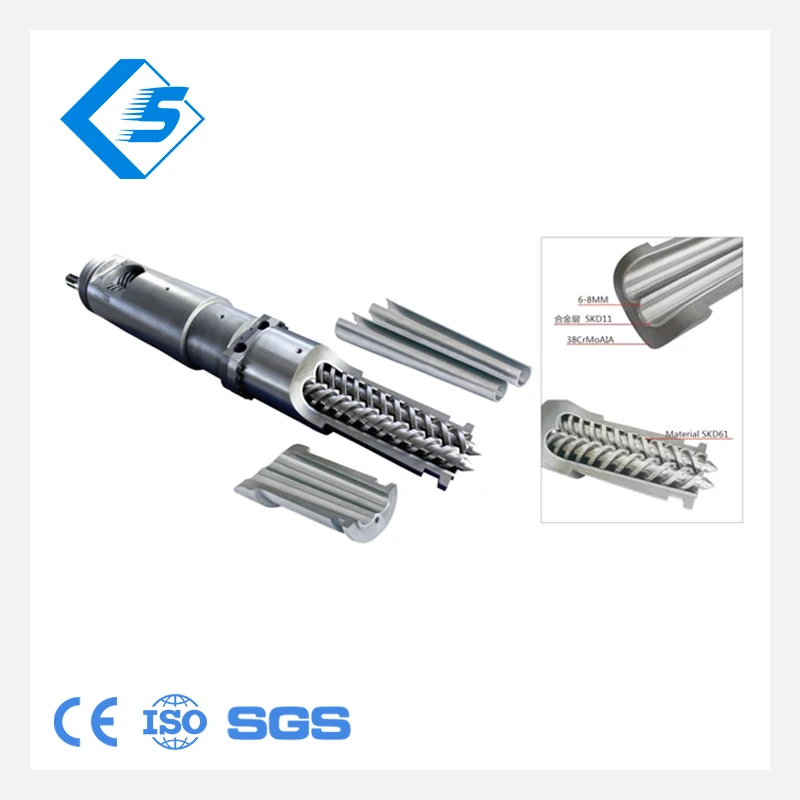

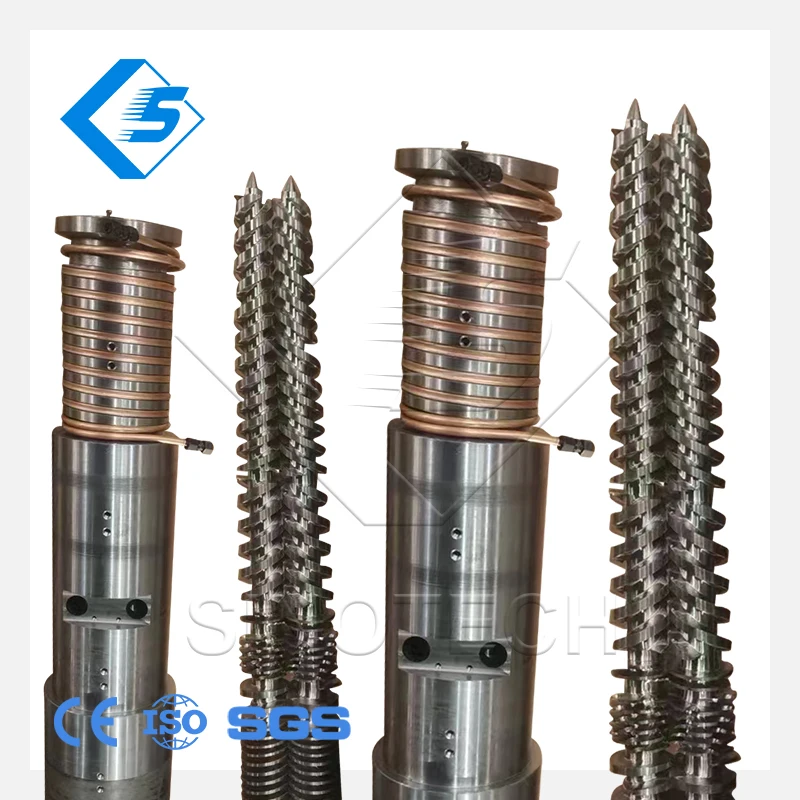

01 Conical Twin Screw and Barrel
1. Nitrided screw and barrel:
Material: | 38CrMoAIA |
Surface hardness: | ≥HV900 |
Nitriding depth: | 0.5-0.8mm |
Imported high-strength alloy steel material, the vulnerable parts of the screw are plasma surfacing, the thickness of the shackle base and the Ragi alloy is 1-1.5 mm, and the service life is increased by more than 1.5 times.
3.Conical twin screw and barrel types:
φ45/97、φ51/105、φ55/110、φ60/125、φ80/156、φ92/188、φ95/191、φ105/216
The material used for screw and barrel are subject to the demand of customers.
We can design the twin screw and barrel according to the customer's requirement
We can design the twin screw and barrel according to the customer's requirement

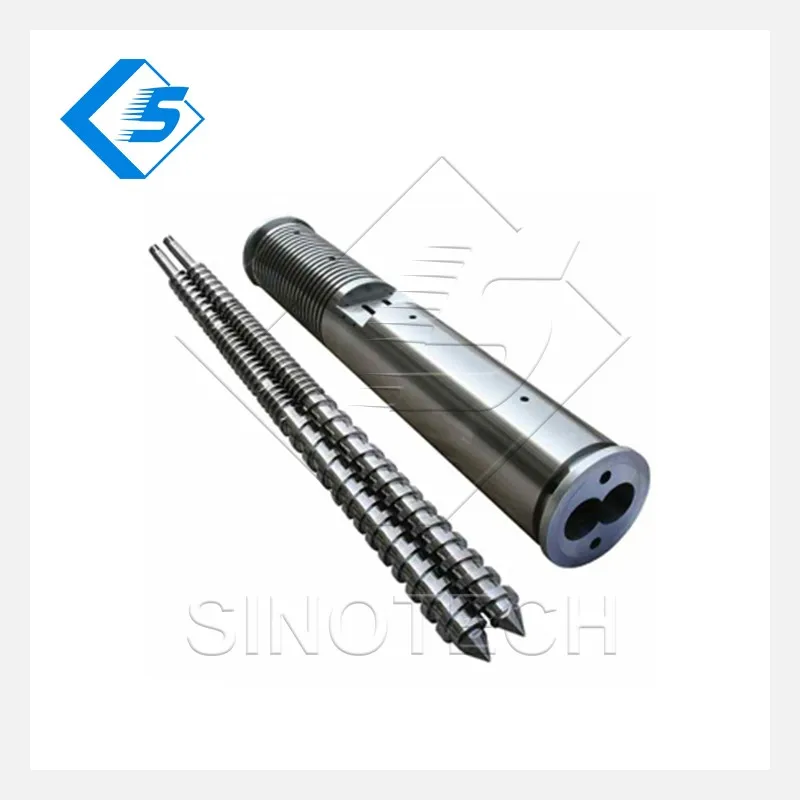

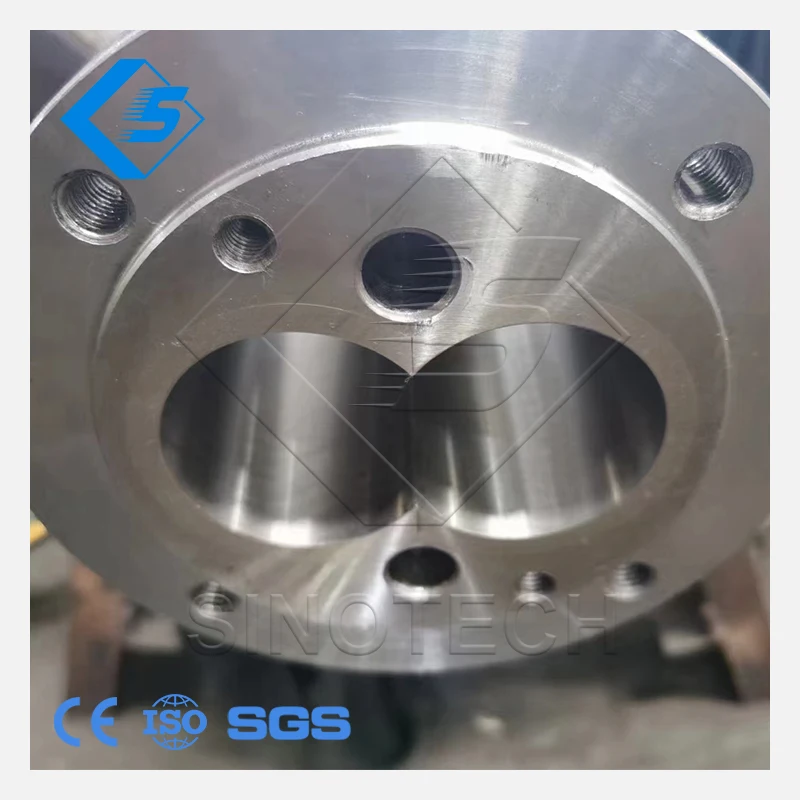

02 Parallel Twin Screw and Barrel
1. Nitrided screw and barrel:
Material | 38CrMoAIA |
Surface hardness: | ≥HV900 |
Nitriding depth: | 0.5-0.8mm |
Screw Diameter: | φ45/2 —φ250/2 |
L/D ratio: | 16/40 |
2.Screw alloy material：
Basic material is 38CrMoAIA,bimetallic is welded on the screw flight, prolonging the life of the screw.
We Can Design The Twin Screw And Barrel According To The Customer's Requirements.
03 Bimetallic Screw and Barrel
Bimetallic Alloy Material:
1. Ni-based alloy
2. Fe-based alloy
3. Co-based alloy
4. NiCo-based alloy
5. Tungsten carbide
2. Fe-based alloy
3. Co-based alloy
4. NiCo-based alloy
5. Tungsten carbide
Specification: | |
Screw diameter | φ10mm-φ350mm |
Screw maximal length | 8000mm |
Barrel inner diameter | φ10mm-φ350mm |
Barrel maximal length | 7000mm |
Bimetallic alloy centrifugal casting
HP-HVOF Alloy Coating Machine
PTA Alloy Welding Machine
Advantages of bimetallic screw and barrel:
Wear-resisting,extending lifetime of screw and barrel.especially aiming at recycle material,raw material compound high percents calcium powder, 30% glass fiber,the effects are perfect.Different bimetallic alloy materials are available for different raw material.
Production Workshop
Company Profile
After-sale Service
1.Providing on the spot technical assistance in installation, commissioning and training
2.Filing in detail customer's information
3.Providing long-term maintenance service and spare parts
4.Giving technical support to customer for developing new product
5.Providing free maintenance for a year
2.Filing in detail customer's information
3.Providing long-term maintenance service and spare parts
4.Giving technical support to customer for developing new product
5.Providing free maintenance for a year
FAQ
Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2:TT,L/C at sight or Alibaba trade assurance.
A2:TT,L/C at sight or Alibaba trade assurance.
Q3:If you can extend the guarantee time?
A3:Yes.Our guarantee time is 24 months.Double times of other factory because we have strong confidence for our product.
A3:Yes.Our guarantee time is 24 months.Double times of other factory because we have strong confidence for our product.
Q4:If you will send engineer coming to our factory to install and test the machines?
A4:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
A4:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q5:If you have CE,SGS,ISO certificate?
A5:Yes,except these,if you also need other certificates,we also can help to apply.
A5:Yes,except these,if you also need other certificates,we also can help to apply.
Q6:If we buy your machines, can you offer us wear-out spare pats?
A6:Yes,We provide our high quality machine 2 years’ guarantee,and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
A6:Yes,We provide our high quality machine 2 years’ guarantee,and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q7:The voltage,if you can design according to our request?
A7:Yes.
A7:Yes.
Q8:If you support Alibaba trade assurance pay?
A8:Yes.100% support.
A8:Yes.100% support.
Contact US
To make you an accurate quote, we need your kindly support to provide drawings,
quantity, material, heat treatment requirements, destination, etc.
1.Please send us message online now.
2.Please contact us by E-mail.
If you have any need, please feel free to contact me.
quantity, material, heat treatment requirements, destination, etc.
1.Please send us message online now.
2.Please contact us by E-mail.
If you have any need, please feel free to contact me.
