Четырёхканальные ПИД-температурные приборы YUDIAN AI-7048
US $65.00-$110.00
Цифровой ПИД-регулятор температуры REX-C100 термостат + 40DA SSR реле K регулятор с термопарным 1m
- Категория: Temperature Instruments >>>
- Поставщик: Zhejiang,Fengxiangbiao,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.59 $* | 0.65 $* |
| Aug-19-2025 | 0.72 $* | 0.55 $* |
| Jul-19-2025 | 0.0 $* | 0.54 $* |
| Jun-19-2025 | 0.48 $* | 0.43 $* |
| May-19-2025 | 0.7 $* | 0.36 $* |
| Apr-19-2025 | 0.77 $* | 0.36 $* |
| Mar-19-2025 | 0.99 $* | 0.87 $* |
| Feb-19-2025 | 0.84 $* | 0.30 $* |
| Jan-19-2025 | 0.71 $* | 0.23 $* |
Характеристики

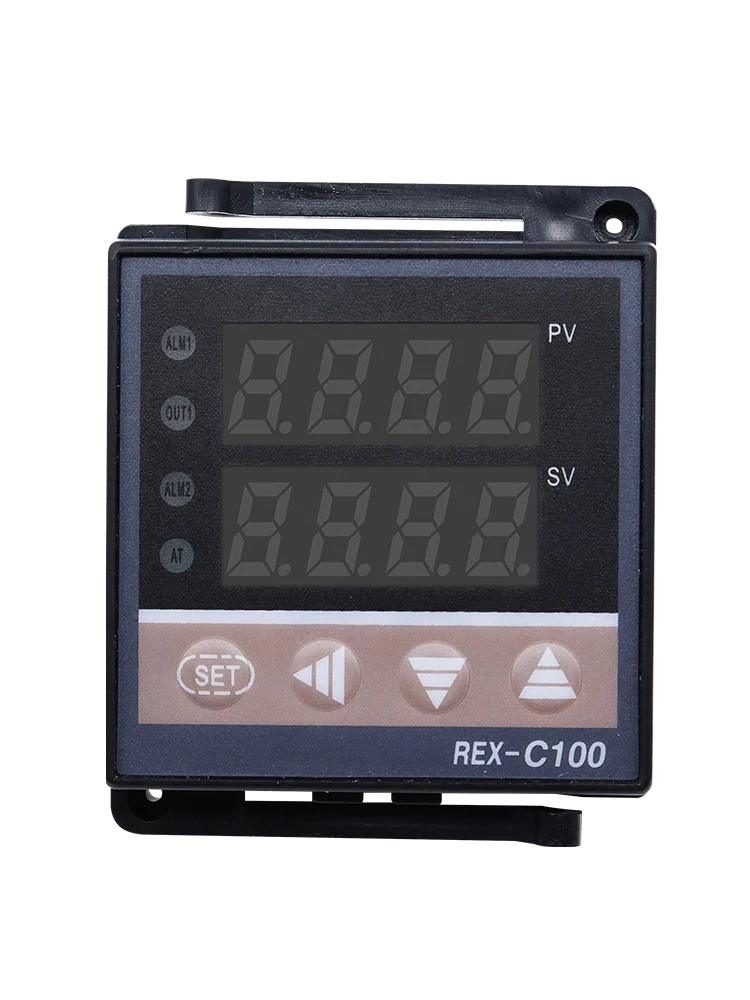

Digital PID Temperature Controller REX-C100 REX C100 thermostat + 40DA SSR Relay+ K Thermocouple 1m Probe RKC
Product Parameter:
| Model number | External dimensions | Perforation dimensions | Output type | Input type | ||
| REX-C100 | 48x48 | 45 x45 mm | Electromagnetic relay, SSR | Thermocouple | ||
|
|
|
|
|
| ||
| REX-C400 | 48x96 | 45 x92 mm | Electromagnetic relay, SSR | Thermocouple | ||
| REX-C410 |
|
|
|
| ||
| REX-C700 | 72x72 | 68 x68 mm | Electromagnetic relay, SSR | Thermocouple | ||
|
|
|
|
|
| ||
| REX-C900 | 96x96 | 92 x92 mm | Electromagnetic relay, SSR | Thermocouple |
| Model number | REX-C series |
| Accuracy | ±0.5% of full scale |
| Supply voltage | 100-240Vac, 50/60 Hz |
| Input types-Thermocouple | K,J,E, Default K |
| Voltage | 0-5V, 1-5V |
| Current | 0-20mA, 4-20mA |
| Output types | Electromagnetic relay, SSR, current, SCR |
| Power consumption | Less than 5 VA |
| Control method | PID Control (with auto-tuning) or Self-tuning, or ON/OFF |
| Setting method | Touch switch |
| Indication method | 8-segment 4-digital display and LED indication |
| Alarms | Deviation High, Low, High/Low, Band,Process High, Low Set value High, Low |
| Sampling period | 0.5s |
| Electromagnetic compatibility | IEC61000-4-4 (Electrical fast transient burst), 4KV/5KHz; IEC61000-4-5 (Surge), 4kv |
| Isolation voltage | >=2300v among the terminal of power, relay contact and signal; >=600v between two isolated weak signal terminal |
| Temperature Measurement Range | 0 to 999℃(32 to 1830.2℉) |
| Operating temperature | 0 to 50 ℃ (32 to 122 ℉) |
| Operating humidity | 30-85% RH max, non-condensing |
| Alias name | REX-C pid temperature controller, intelligent temperature controller |
Product Feature: High-precision temperature control, stable performance, compact design, easy installation

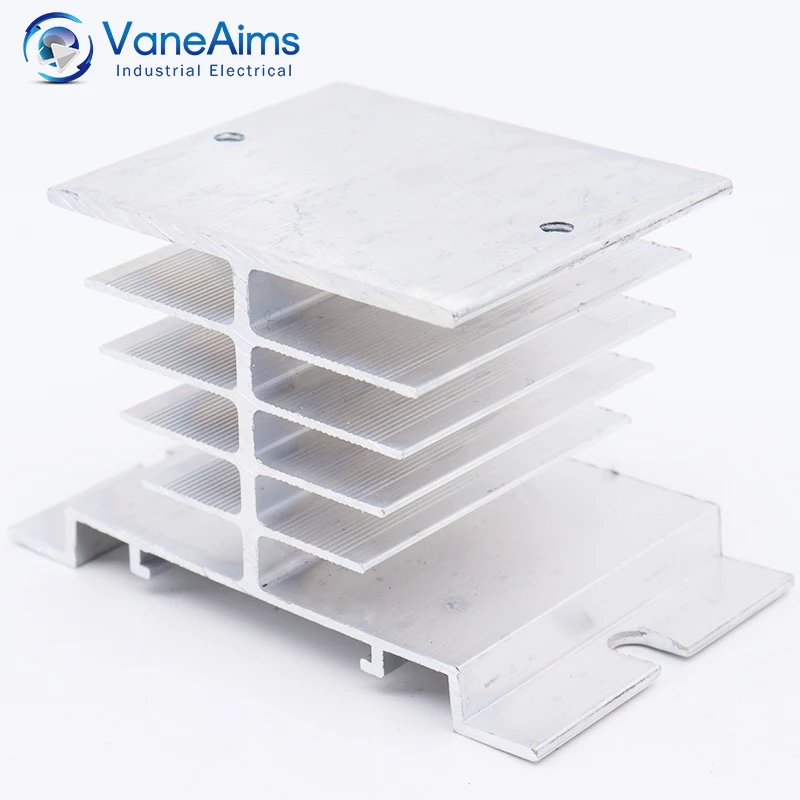

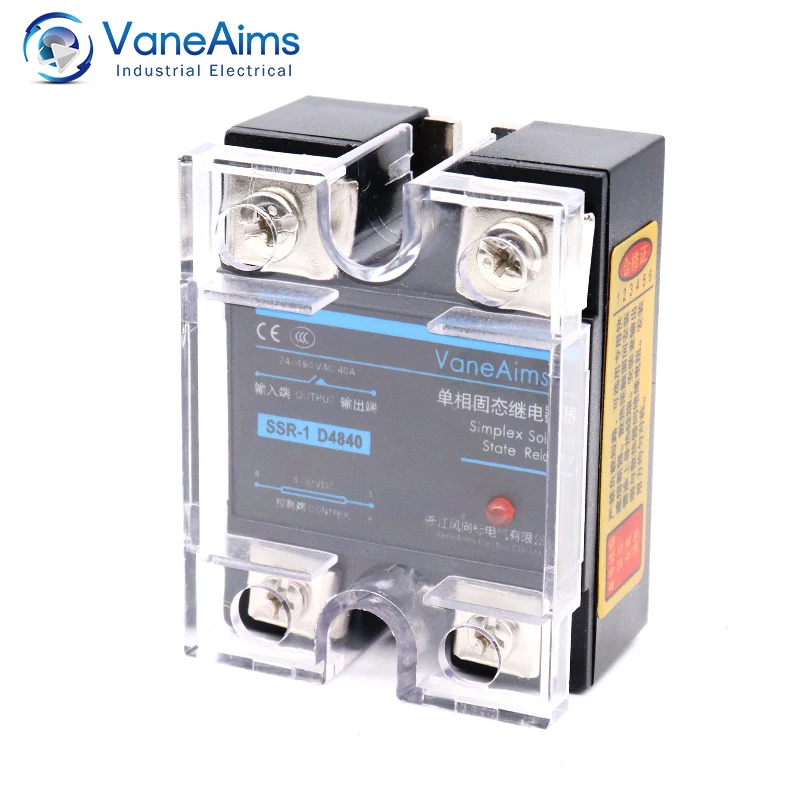

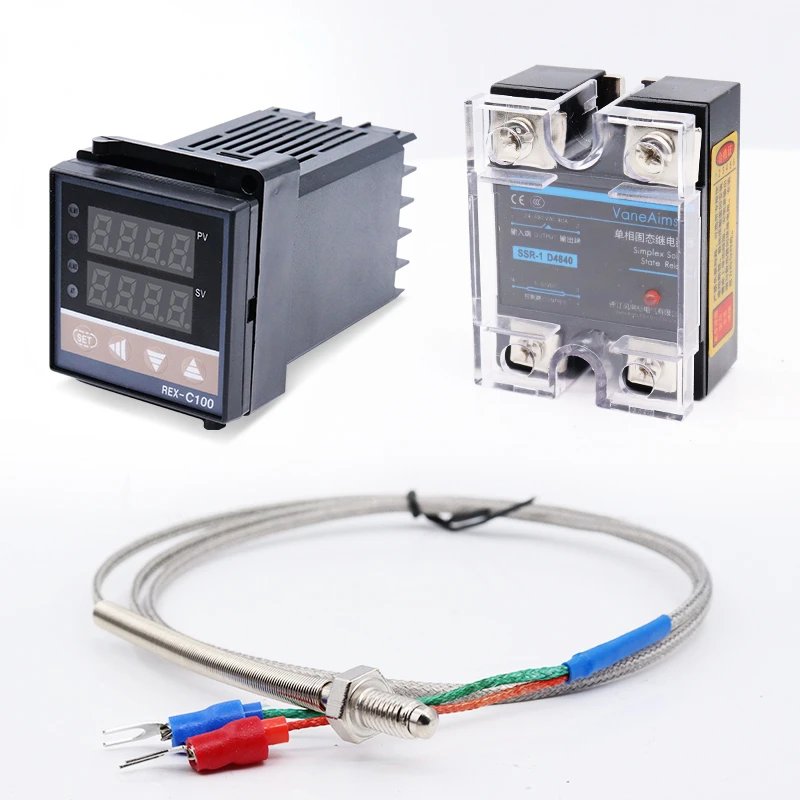

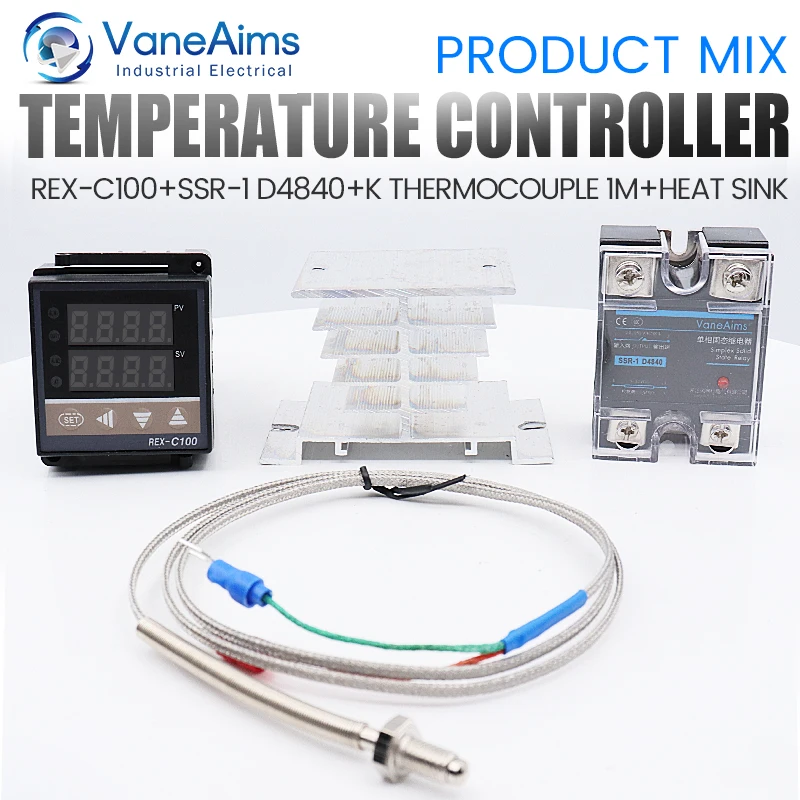

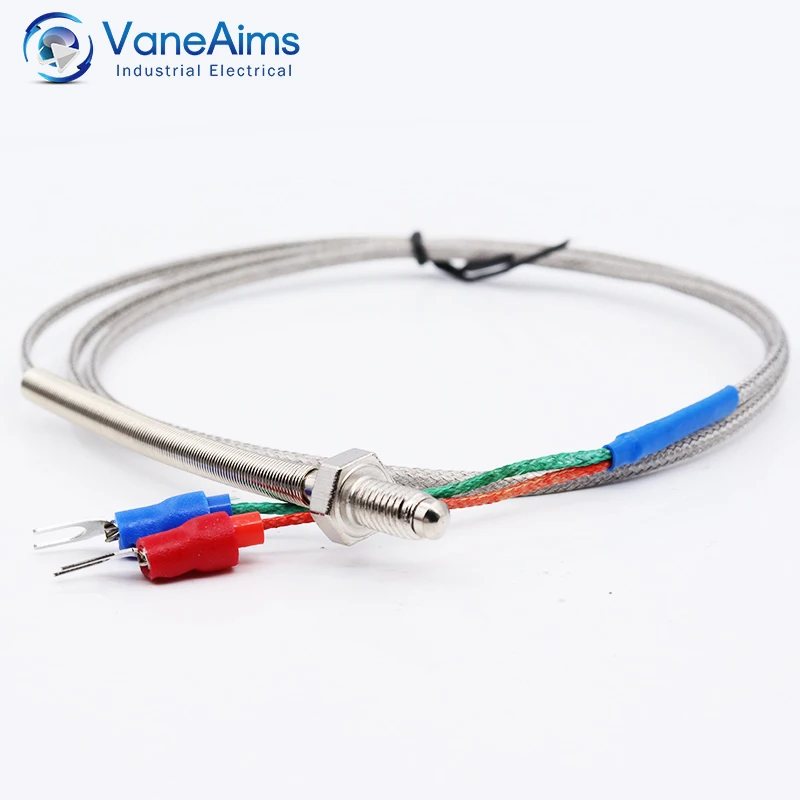

Package Include: 1 kit with heat sink includes 1pcs rex-c100 pid temperature controller + 1pcs SSR-1 D4840 + 1pcs K Thermocouple 1m+ 1pcs heat sink
