Многофункциональная пила для электроинструментов 1800 Вт
US $23.00-$28.00
Профессиональный гранитный многоалмазный провод Prowire для резки гранитных
- Категория: Saw >>>
- Поставщик: Xiamen,Bestlink,Factory,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 24.2 $* | 25.59 $* |
| Aug-16-2025 | 24.36 $* | 25.16 $* |
| Jul-16-2025 | 20.3 $* | 21.30 $* |
| Jun-16-2025 | 23.78 $* | 24.55 $* |
| May-16-2025 | 20.46 $* | 21.37 $* |
| Apr-16-2025 | 23.63 $* | 24.90 $* |
| Mar-16-2025 | 23.88 $* | 24.17 $* |
| Feb-16-2025 | 22.26 $* | 23.41 $* |
| Jan-16-2025 | 22.80 $* | 23.79 $* |
Характеристики
Product Description
Prowire Professional Granite Multi Diamond Wire for Granite Block Cutting

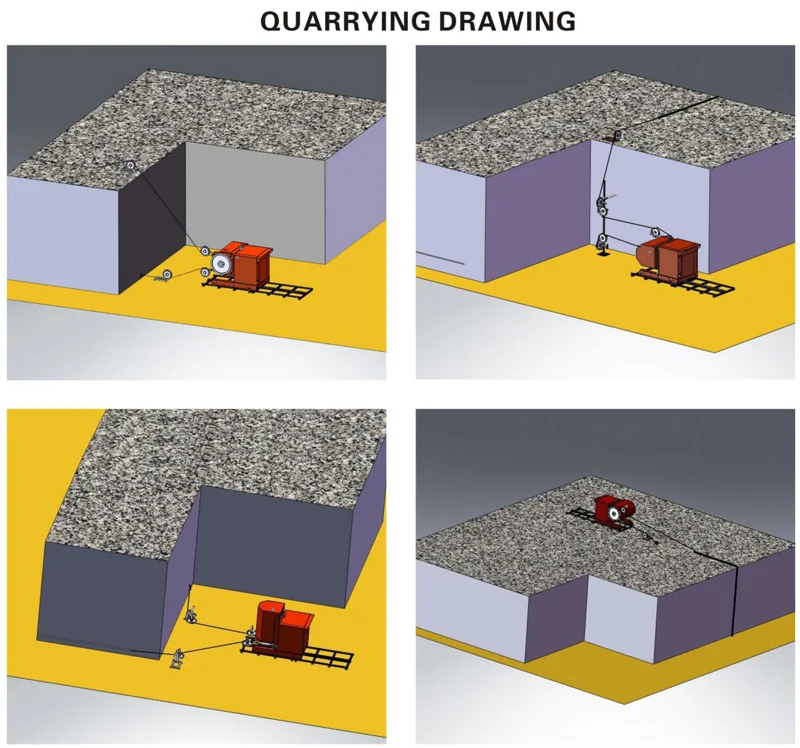

The wire saw can apply horizontal,bertical and acclivitous and other direction cutting in the quarry.Diamond wire saw can exploit large specification and regular blocks,the cutting fact is smooth and less hurt to the block, the thin crack of the stone operation can improve the working condition,and increase the safety factor.
We designed a series of BLD-W products after fully study the cutting condition and technique of diamond wire saw, it used high quality transducer and PLCto realize automatically, reasonably,timely to adjust the cutting techniques.
| Tachnical Parameter of Diamond Wire Saw Machine | ||
|
| BLD-75G | BLD-55G |
| Total power | 78.75Kw | 58KW |
| Main motor power | 75Kw | 55KW |
| Travel motor power | 0.75Kw | 0.75KW |
| Rotary cutting head motor power | 1.5Kw | 0.75KW |
| Shifting cutting head motor power | 1.5Kw | 0.75KW |
| Power supply requirement | AC380±10%@ 50Hz | AC380±10%@ 50Hz |
| Cutting head rotation | 360° | 360° |
| Shifting distance of cutting head | 480mm | 480mm |
| Lateral movement of cutting head | 2000mm | 800mm |
| Length of rails | 2m or 3m | 2m or 3m |
| Main motor rotate speed | 0~980r/min(bu inverter | 0~980r/min(bu inverter |
| Linear speed of drive flywheel | 0~40m/s | 0~40m/s |
| Speed of machine traveling | 0~120m/h | 0~120m/h |
| Available working temperature | -150°C~+400°C | -150°C~+400°C |
| Dimension of the machine(mm) | L=1940,W=1440,H=1485 | L=1925,W=1440,H=1485 |
| Weight | 2.5T | 2.2T |
| Use for | granite or marble quarry | granite or marble quarry |
| BLD-37M | BLD-37G | BLD-W11Q |
| 40KW | 40KW |
|
| 37KW | 37KW | 11KW |
| 0.75KW | 0.75KW | 0.37KW |
| 0.75KW | 0.75KW |
|
| 0.75KW | 0.75KW |
|
| AC380±10%@ 50Hz | AC380±10%@ 50Hz | AC380±10%@ 50Hz |
| 360° | 360° | 360°(by band) |
| 480mm | 480mm |
|
| 1800mm | 1800mm |
|
| 2m or 3m | 2m or 3m | 2m |
| 0~980r/min(bu inverter | 0~980r/min(bu inverter |
|
| 0~40m/s | 0~40m/s | 0~40m/s |
| 0~90m/h | 0~120m/h | 0~30m/h(by inverter |
| -15°C~+40°C | -15°C~+40°C | -15°C~+40°C |
| L=1925,W=1240,H=1430 | L=1925,W=1240,H=1430 | L=12200,W=550,H=640 |
| 2.1T | 2.1T 0.368T |
|
| marble quarrying | granite & marble quarry | block squaring |

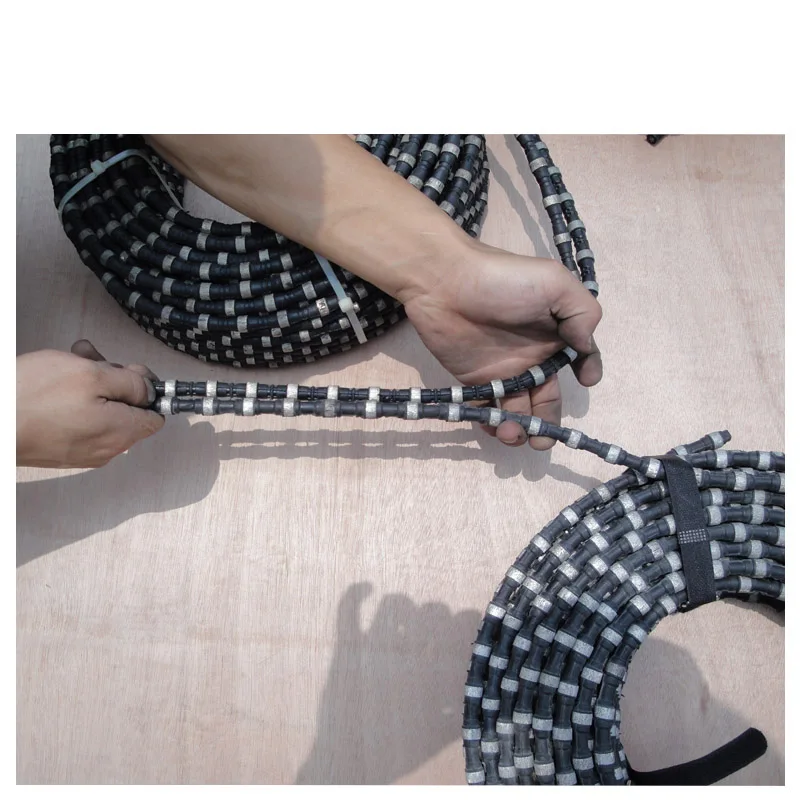

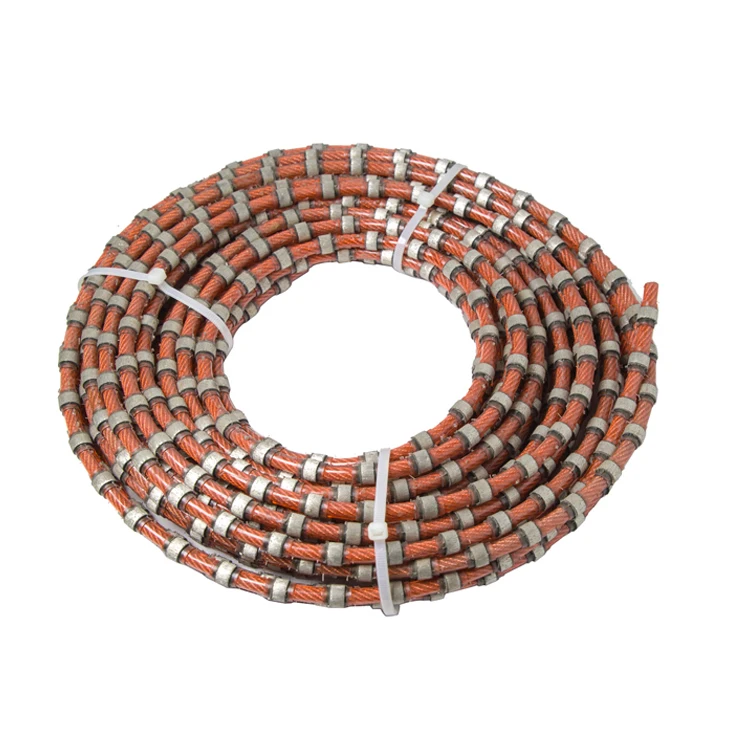

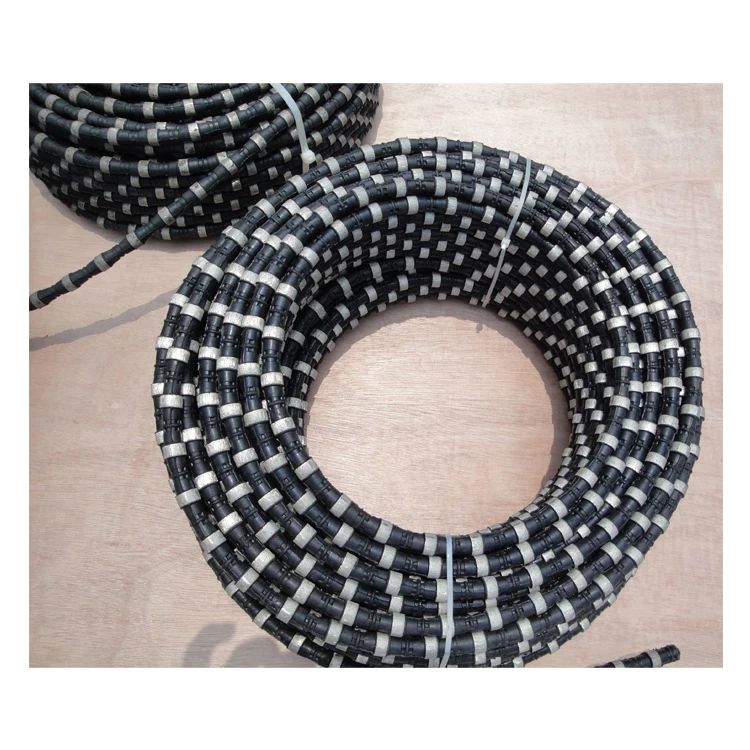

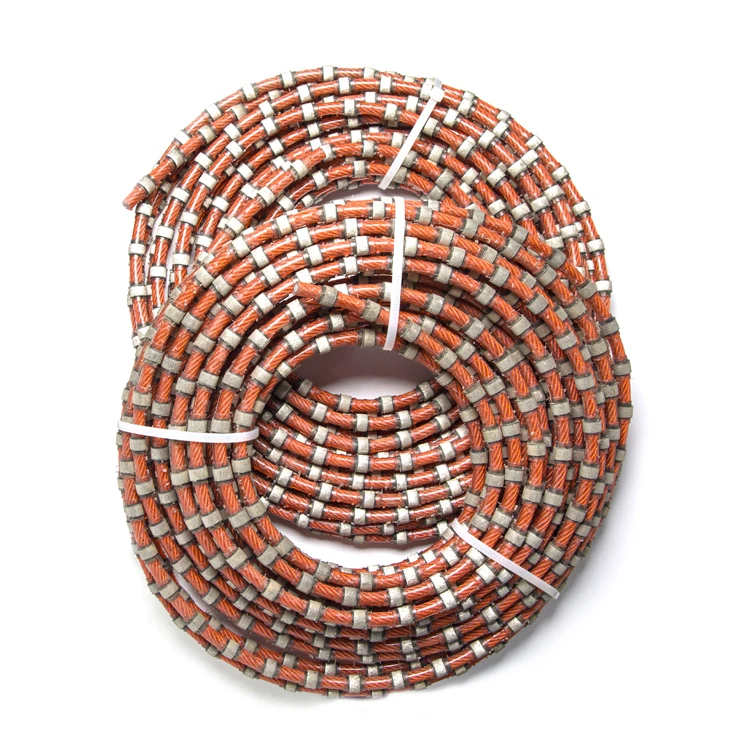

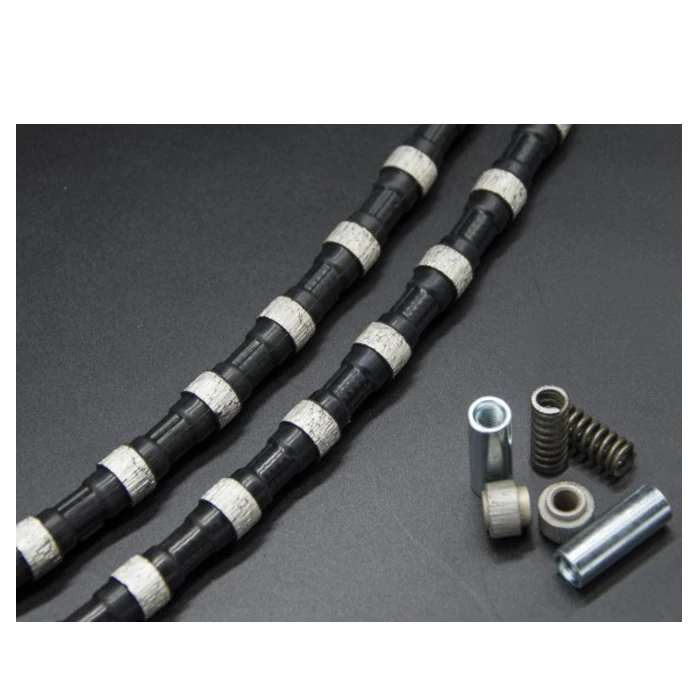

Diamond wire rope
Our Diamond Wire Rope has the variety diamond wire, which is for reinforce concrete cutting,granite,sand stone and marble quarring,blocks squaring,profiling,multi-wire slabs cutting.
1) Diamond Wire Saw is one of the most advanced tools for quarrying,block squaring & profiling and concrete cutting. Good cutting result with small slot and high efficiency, is very less breakage ratio when using therefore increase the working lifetime.
2) Compared with traditional way,quarrying by diamond (coated) wire has the advantages of less waste of material,safety,low noice, eco-firendly etc. It is safety when operation and benefit in environmental protection.
3) The diamond wire rope is available to supply different hardness of beads and other length of beads.
| Diameter | Model No. | Fixing Type | Beads/m | Sawing speed | Lifetime | Line speed | Aplication |
| (mm) | (m2/h) | (m2/m) | (m/s) | ||||
| 11.4 | GQR11.4 | Rubber | 40 | 2-5 | 8-15 | 22-26 | granite quarry |
| 11 | MQS11B | Spring | 30 | 8-16 | 15-35 | 33-38 | marble quarry |
| 10.5 | GCP10.5 | Plastic | 40 | 5-10 | 8-13 | 24-28 | block squaring |
| 8.8 | GPP8.8 | Rubber | 37 | 5-10 | 7-11 | 24-28 | profile cutting |
| 7.2 | GMP7.2 | Plastic | 37 | 5-8 | 8-12 | 22-24 | Multi-wire for slab cutting |
