Дискретная видеокарта H81 LGA 1150 i3 i5 i7 4-го поколения игровая материнская плата
- Категория: Motherboards >>>
- Поставщик: Guangdong,High,Praise,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 55.31 $* | 58.43 $* |
| Aug-16-2025 | 54.54 $* | 57.5 $* |
| Jul-16-2025 | 46.37 $* | 48.42 $* |
| Jun-16-2025 | 53.15 $* | 56.54 $* |
| May-16-2025 | 46.88 $* | 48.37 $* |
| Apr-16-2025 | 52.11 $* | 55.17 $* |
| Mar-16-2025 | 52.16 $* | 55.54 $* |
| Feb-16-2025 | 52.78 $* | 55.81 $* |
| Jan-16-2025 | 51.66 $* | 54.9 $* |

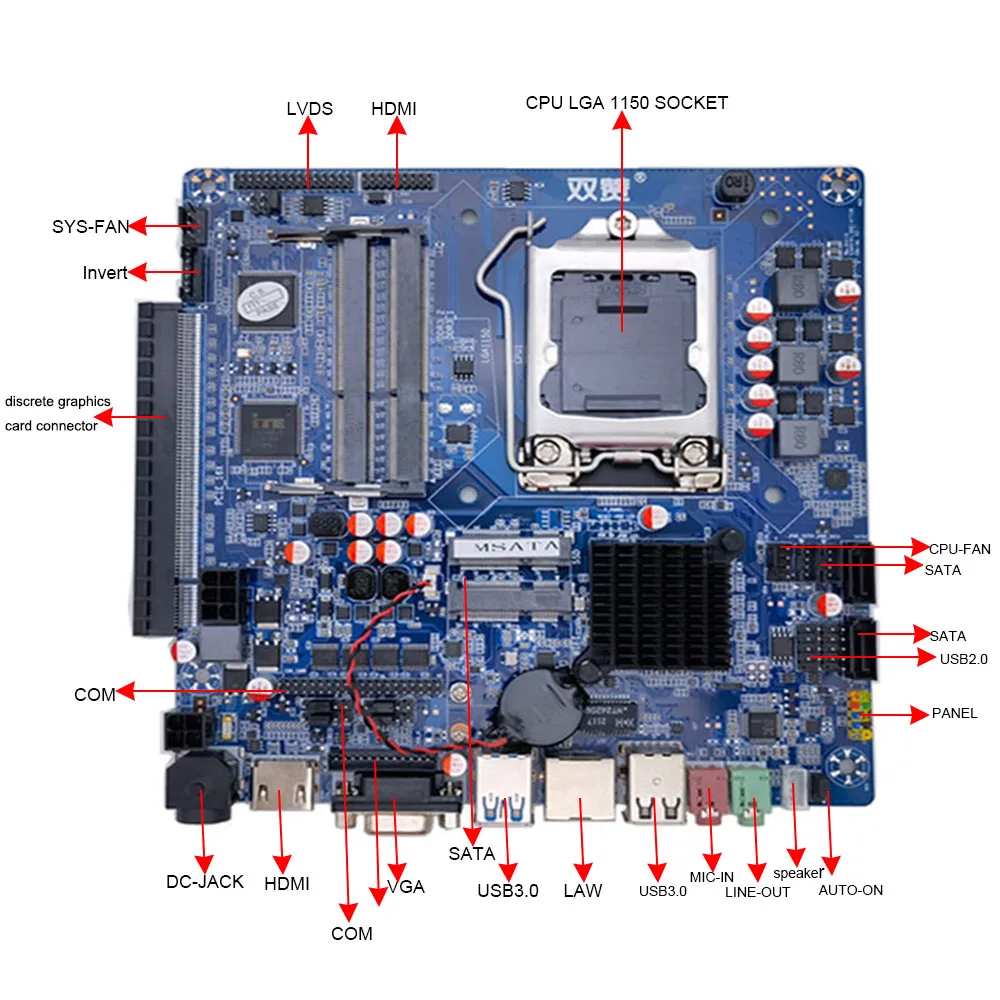

Характеристики
Product Features
170Size | 170mm×170mm | ||||||
CPU | Support Intel LGA1150(Haswell) Processor | ||||||
GPU | Intel CPU Intergrated Graphics Support Side Plug independent detachable Graphics card | ||||||
System Memory | 2 SO-DIMM , DDR3 1333/1066MHz Memory Maximum Suppor 2*16G | ||||||
Display Connector | HD-MI LVDS VGA | ||||||
On board LAN | 1 Realtek 8106E,100M Ethernet controllers(1000M optional) Support PXE Guidance,and Remote Wakening | ||||||
On board Audio chip | Realtek ALC662 HD Audio Decode Controller | ||||||
Storage | 2*SATA III | ||||||
Expand Socket | 2*MINI-PCIE(forM-SATA/WIFI) | ||||||
USB | 2*USB3.0 2*USB2.0(2*USB Pin can expand to 4*USB Port) | ||||||
COM | 4*COM(need to expand, support 485 optional) | ||||||
Power Supply | Built-In 4 Pin ATX, and DC 12V Jack | ||||||
Front I/O Interface | 2×USB3.0 Ports 2×USB2.0 Ports 1×HDMI Port 1×LAN Port 1×MIC-IN Port 1×VGA Port 1×LINE-OUT 1×12V DC | ||||||
Rear I/O Interface | 1×30Pin J_LVDS 1×LVDS_PWR 1×J_HDMI Pin 1×SPEAKER Pin 4×COM Pin 4×COM-SET 2×USB Pin (can expand to 4×USB Port) 1×8PIN AUDIO Pin 1×F-Panel Pin 2×SATA 2×SATA-PWR 1×AUTO-ON PWR Jump Cap Pin 1×CLR_CMO clear CMOS jump cap 1×LVDS-PWR jump cap 1×SYS-FAN Connect Pin 1×CPU-FAN Connect Pin 1×Speaker connector socket | ||||||
BIOS | AMI BIOS | ||||||
Form Factor | Built-in RTC real-time clock，support timing turn-on/off | ||||||
System Cooling | User buy CPU and fan by itself | ||||||
Working Humidity | 0% ~ 95% (relative humidity, non-condensing) | ||||||
Operating Temperature | -15°C ~ 60°C | ||||||
Product Category
Production Process
Packing Details : 20pcs/carton
Carton Size: 50*49*20 CM
Carton Size: 50*49*20 CM
Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample, but need to pay the cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Skype: yoyoliao1983
Phone No.:0086 20 39150578
