Smartgen оригинальный генератор ATS контроллер HGM 6110 6120 Авто старт панель управления модуль HGM6110
- Категория: Generator Parts & Accessories >>>
- Поставщик: Guangzhou,Jiuan,Mechanical,And,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 159.79 $* | 162.79 $* |
| Jul-19-2025 | 129.1 $* | 132.70 $* |
| Jun-19-2025 | 156.28 $* | 159.15 $* |
| May-19-2025 | 155.46 $* | 158.97 $* |
| Apr-19-2025 | 124.13 $* | 126.45 $* |
| Mar-19-2025 | 153.56 $* | 156.29 $* |
| Feb-19-2025 | 151.48 $* | 154.46 $* |
| Jan-19-2025 | 150.64 $* | 153.77 $* |
Характеристики

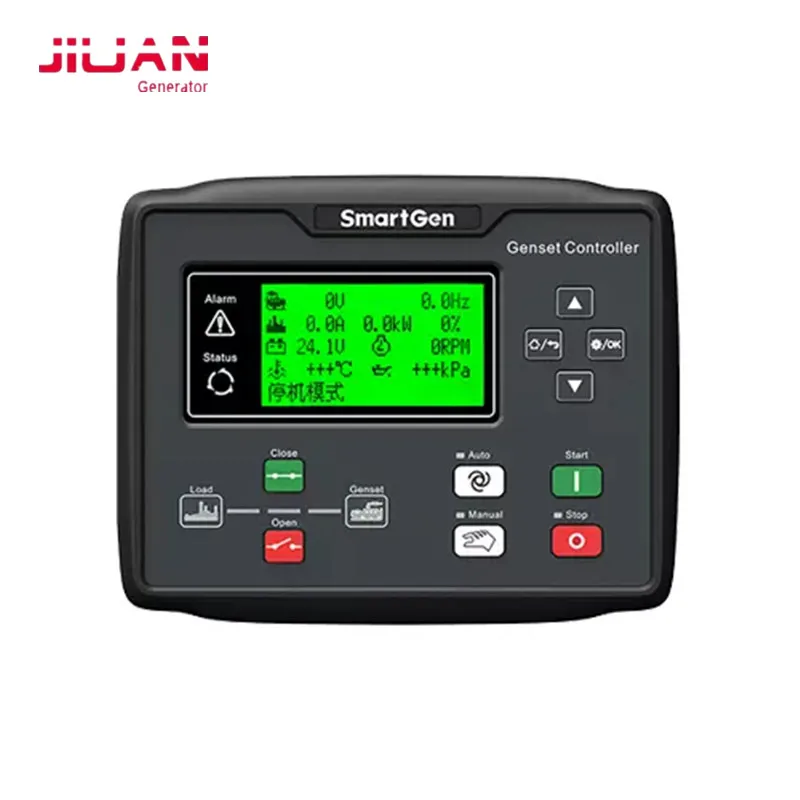

Smartgen Controller HGM6110N
HGM6100N series automatic controller, integrating digital, intelligent and network techniques, is used for automatic control and
monitoring system of genset. It can carry out functions of automatic start/stop, data measurement, alarm protection and three
“remote” (remote control, remote measure and remote communication). The controller uses LCD display, optional display interface
including Chinese, English, Spanish, Russian, Portuguese, Turkey, Polish and French with easy and reliable operation.
HGM6100N controller has six variants:
HGM6110N/6110NC/6110CAN: Automatic Start Module, it controls generator to start/stop by remote start signal;

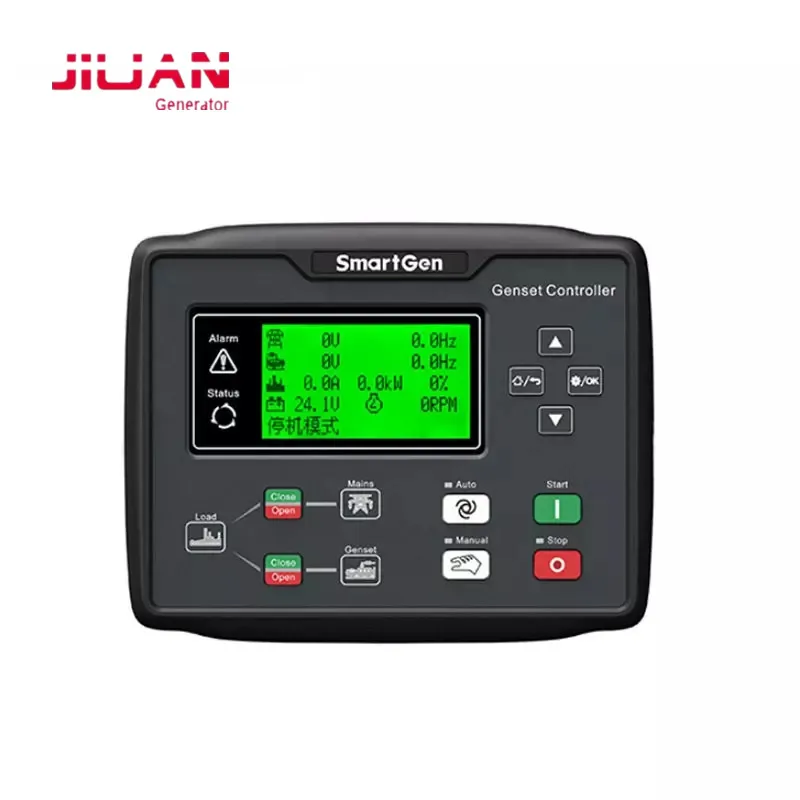

HGM6120N/6120NC/6120CAN: Based on HGM6110N/6110NC/6110CAN, it adds mains AC monitoring and mains/generator automatic switching control (AMF), especially suitable for the automation system composed by mains and genset.
Note1: HGM6110NC/6120NC has RS485 port, HGM6110N/6120N without. HGM6110CAN/6120CAN has CAN port, HGM6110N/6120N and HGM6110NC/6120NC without.
Note2: HGM6110/6120 is taken as an example to describe in this manual.
Note3:HGM6120N Price:+USD 30/PC
Please contact customer service for others controller prices.
HGM6110N Function Item | Parameter |
Display | LCD(132*64) |
Operation Panel | Silicon Rubber |
Language | Chinese& English& others |
Digital Input | 5 |
Relay Output | 6 |
Analogue Input | 3 |
AC System | 1P2W/2P3W/3P3W/3P4W |
Alternator Voltage | (15-360)V(ph-N) |
Alternator Frequency | 50/60HZ |
Programmable Interface | USB |
DC Supply | DC(8-35)V |
Case Dimensions(mm) | 209*166*44 |
Panel Cutout(mm) | 186*141 |
Operating Temp. | (-25~+70)℃ |
The above are the parameters of HGM6110N item, other smartgen controller items data can consult customer service | |
Paralleled Controller |
| Low Temperature Controller |
Grid-connected Controller |
| Remote Monitoring Controller |
AMF |
| Gas Genset Controller |
Single Unit Self-start |
| Small Genset Controller |
Lighting Tower Controller |
| Communication Base Station Controller |
SGQ ATS |
|
|
HGM6110N | HGM6110U | HAT520N |
HGM6120N | HGM6120U | HAT560N |
HGM4010N | HGM6310D | HAT220 |
HGM6510 | HGM9510 | HAT260 |
HGM9520 | HGM9560 | HAT60OB |
HGM4010N | HGM4020N | HAT530N |
HGM4020N | HGM410 | HAT560NB |
HGM170 | HGM420 | HAT220A |
|
| HAT270 |
