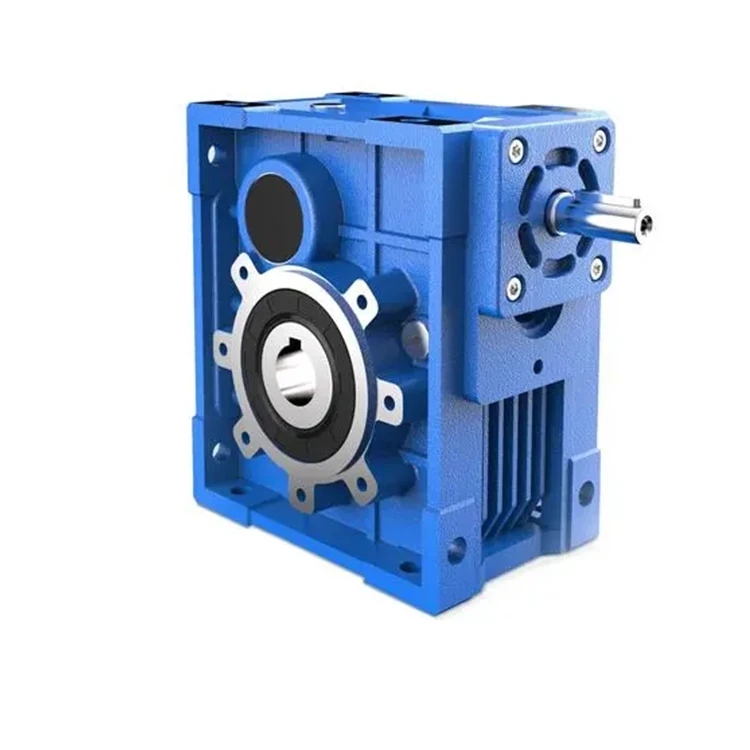

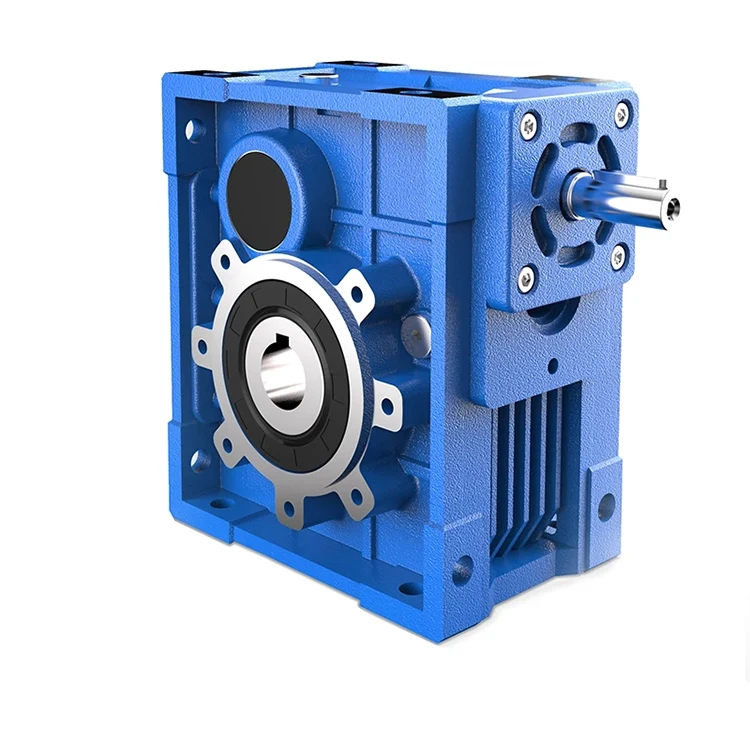

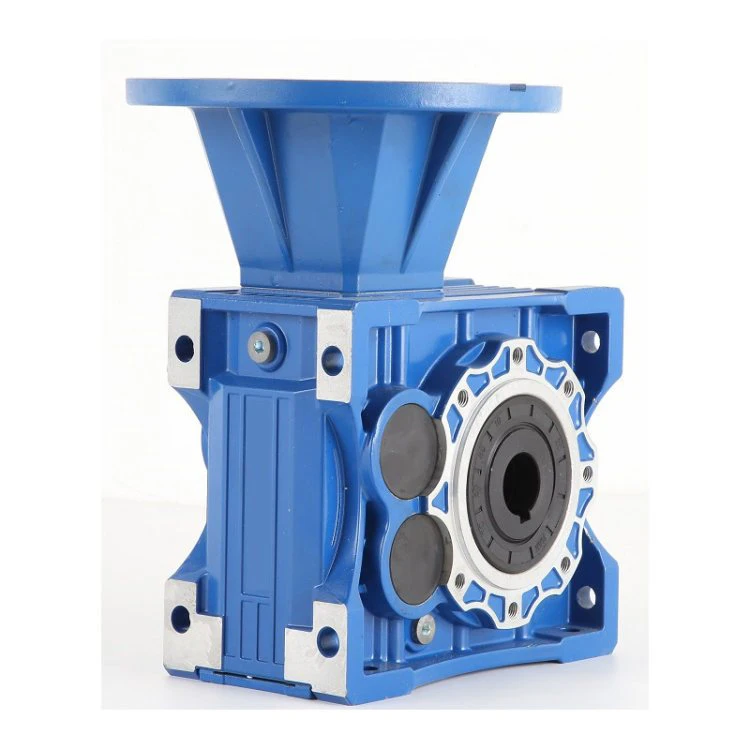

Низкий уровень шума хорошо продаваемый Китайский Морской грузовик SKM58C skm гипоидный редуктор мотора с заказом
- Категория: Speed Reducers >>>
- Поставщик: Qingdao,Chinese,Science,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 238.66 $* | 250.13 $* |
| Aug-20-2025 | 236.40 $* | 248.66 $* |
| Jul-20-2025 | 198.45 $* | 208.39 $* |
| Jun-20-2025 | 232.44 $* | 244.74 $* |
| May-20-2025 | 202.18 $* | 212.48 $* |
| Apr-20-2025 | 228.82 $* | 239.3 $* |
| Mar-20-2025 | 226.7 $* | 237.70 $* |
| Feb-20-2025 | 224.37 $* | 235.95 $* |
| Jan-20-2025 | 222.76 $* | 233.86 $* |
Характеристики
Technical features

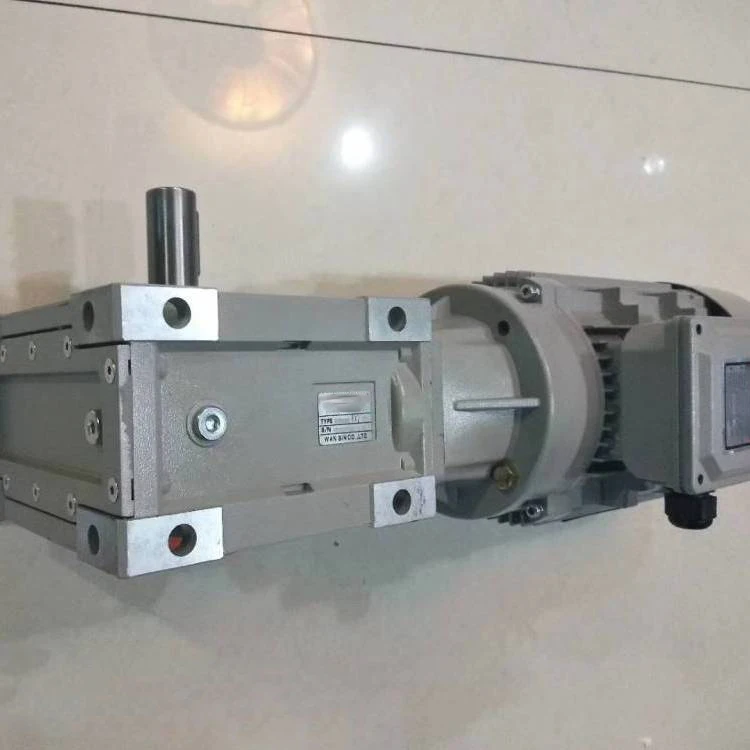

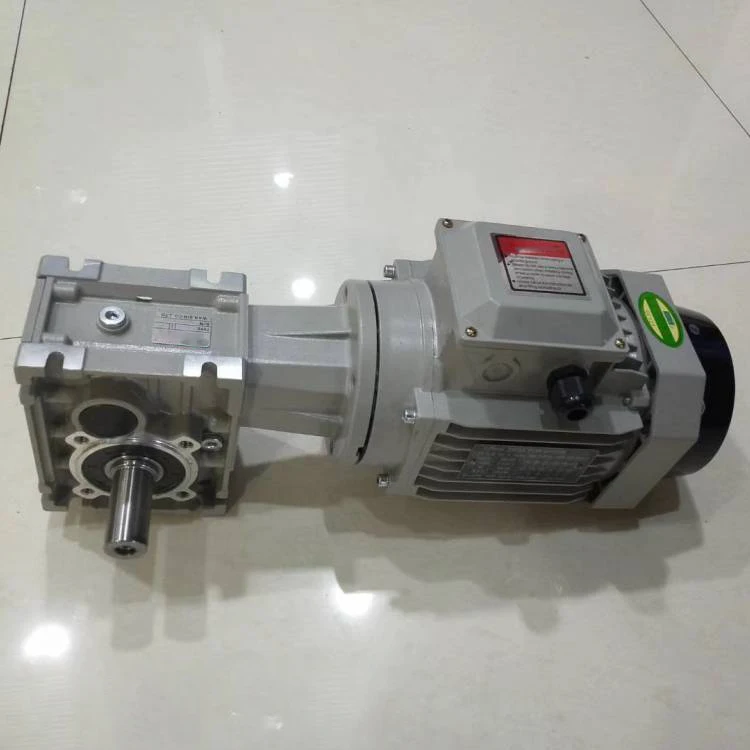

The high degree of modularity is a design feature of SKM.SKB series helical-hypoid gear unit. It can be connected respectively with motors such as normal motor, brake motor, explosion-proof motor, frequency conversion motor, servo motor, IEC motor and so on. This kind of product is widely used in drive fields such as textile, footstuff, ceramice packing, logistic, plastics and so on
The high degree of modularity is a design feature of SKM.SKB series helical-hypoid gear unit. It can be connected respectively with motors such as normal motor, brake motor, explosion-proof motor, frequency conversion motor, servo motor, IEC motor and so on. This kind of product is widely used in drive fields such as textile, footstuff, ceramice packing, logistic, plastics and so on
Applicable Industries | Garment Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory |
Gearing Arrangement | Hypoid |
Output Torque | 100~500NM |
Input Speed | 1400rpm |
Output Speed | 5~187 |
Place of Origin | China |
Brand Name | HUAKE |
Product name | Hypoid gear reducer |
Color | Blue |
Ratio | 5-400 |
Certificate | ISO9001 CCC CE |
Products characteristics
SKM SKB Series helical gear units has more than 4 types, power 0.12-4kw, ratio 7.73-302.5, torque max 100-500NM, Modulaw and multistructure can meet the demands of various conditions.
(1) Ground-hardened helical gears.
(2) Modularity, can be combined in many forms
(3) Made of high-quality aluminum alloy, light in weight and nonrusting
(4)Large in output torque, high efficiencym energy saving and environmental protection
(5) The mounting dimension of SKM series are compatible with SMRV series worm gear unit
(A part of SMRV050 dimensions are different from SKM28)
(6) The mounting dimension of SKB series are compatible with W series worm gear unit.
(1) Ground-hardened helical gears.
(2) Modularity, can be combined in many forms
(3) Made of high-quality aluminum alloy, light in weight and nonrusting
(4)Large in output torque, high efficiencym energy saving and environmental protection
(5) The mounting dimension of SKM series are compatible with SMRV series worm gear unit
(A part of SMRV050 dimensions are different from SKM28)
(6) The mounting dimension of SKB series are compatible with W series worm gear unit.
Features&Specification
SKM28B~SKM58B:2-Stage hypoid helical gear units. Speed ratio range7.48~60.5
SKM28C~SKM58C:3-Stage hypoid helical gear units. Speed ratio range:4918~302.5
One of the features of the hypoid gear speed reducer is that the shafts intersect at two mutually parallel planes,providing greater torque in the same construction space than an ordinary helical gear reducer.
And its strength is much higher than that of worm gear reducer.
1.Omnidirectional mounting
2.Housing made of high-quality aluminum alloydie-casting，light weight good rust resistance
3.Low back clearance
4.Smooth transmission and low noise
5.Customized products available
SKM28C~SKM58C:3-Stage hypoid helical gear units. Speed ratio range:4918~302.5
One of the features of the hypoid gear speed reducer is that the shafts intersect at two mutually parallel planes,providing greater torque in the same construction space than an ordinary helical gear reducer.
And its strength is much higher than that of worm gear reducer.
1.Omnidirectional mounting
2.Housing made of high-quality aluminum alloydie-casting，light weight good rust resistance
3.Low back clearance
4.Smooth transmission and low noise
5.Customized products available
