Разборная офисная мебель акустическая настенная перегородка
- Категория: Office Partitions >>>
- Поставщик: Halumm,Construction,Technology,Co.,Ltd.Halumm,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.66 $* | 0.65 $* |
| Aug-19-2025 | 0.26 $* | 0.54 $* |
| Jul-19-2025 | 0.95 $* | 0.72 $* |
| Jun-19-2025 | 0.6 $* | 0.69 $* |
| May-19-2025 | 0.89 $* | 0.25 $* |
| Apr-19-2025 | 0.79 $* | 0.41 $* |
| Mar-19-2025 | 0.99 $* | 0.51 $* |
| Feb-19-2025 | 0.96 $* | 0.96 $* |
| Jan-19-2025 | 0.9 $* | 0.17 $* |
Характеристики
About Us
Certifications
Product Paramenters

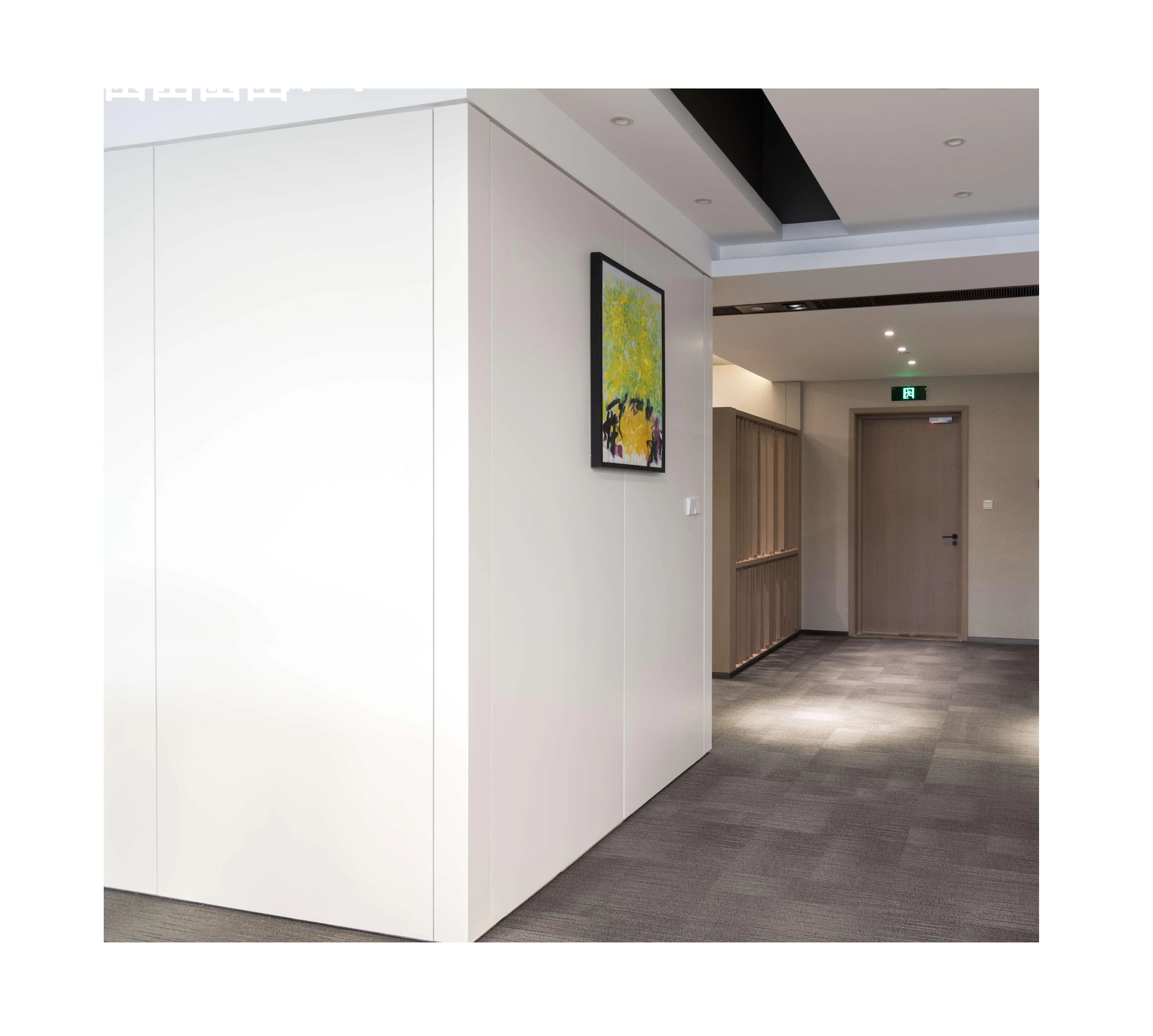

STEEL PANEL WALL CLADDING
Steel panel
Steel panel with wood pattern
System Type | Steeple steel partition _ Seamed/ Seamless |
Size | Wall thickness:104mm； Maximum Screen Size:1100*3000mm |
Panel Parts | 0.8mm Galvanized steel panel combined with 12mm gypsum board ， Polyester lacquer finish, painting thickness: ≥20μm |
Metal Components | Galvanized steel panel，1.0mm thickness ，Stronger corrosion resistance；Galvanized quantity:≥80g/m；Main Keel Tensile Strength ≥400Mpa Vertical keel and horizontal keel are jointed together with patented design of keychain type Lock, which is repeatable disassembly, high connection strength and reliable connection |
Module assembly | The seal gap is 5mm, and 3mm PE form tape is be used to connect the dry wall and partition, inside the partition wall is filled with 50mm thick rockwool of 45kg/m3 Bulk density |
Soun Insulation | 42dB （ GB/T 50121-2005 ） |
Combustion property | A （ASTM E 84orUL 723）B1（GB 8624-2012) |
fireproof ability | 40min（GB/T 9978.1-2008、GB/T 9978.8-2008） |

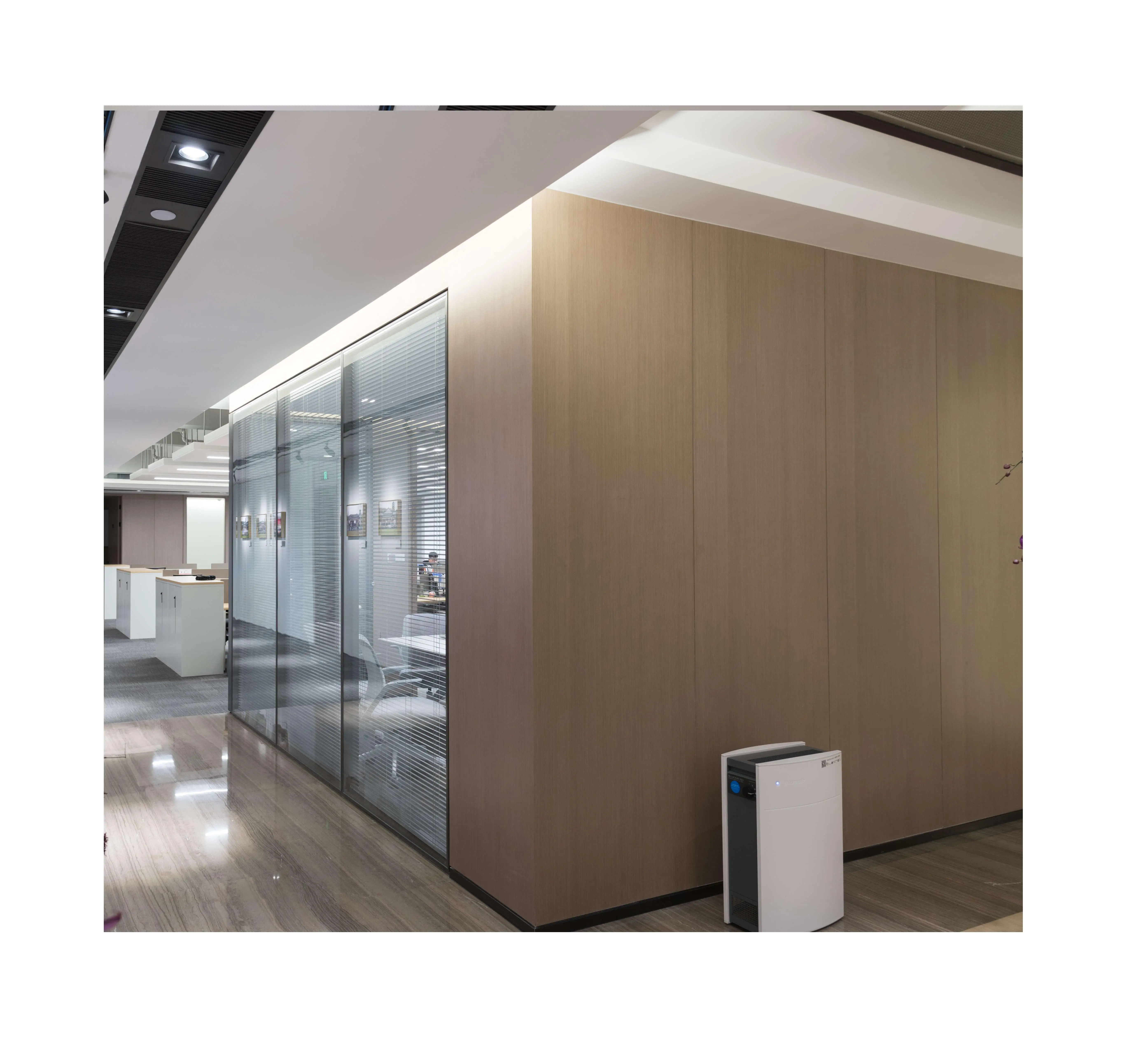

GLASS PANEL WALL PARTITIONS
Glass panel with thin frame
Glass panel frameless
System Type | Framed Partition/Frameless Partition |
Size | Wall thickness:104mm； Maximum Screen Size: 1100 x 3000mm(W x H) |
Glass Thickness | 6+6/6+8/8+8/8.7+8.7mm |
Metal Components | Galvanized steel panel，1.0mm thickness，Stronger corrosion resistance ， Galvanized quantity:≥80g/m ；Aluminum Profile Painting:Powder Coated, painting thickness: ≥30μm Main Keel Tensile Strength ≥ 400Mpa；Vertical keel and horizontal keel are jointed together with patented design of keychain type Lock, which is repeatable disassembly, high connection strength and reliable connection. |
Soun Insulation | 42-46dB（GB/T 9978.1-2008、GB/T 9978.8-2008） |
Combustion property | A（GB 8624-2012) |
other functions | 25mm Electric/manual louvers, optional as required |
Project Case
Product Description
NIB BANK SQ Addis Ababa Ethiopia
Shanghai Tower
Office interior decoration project
Medical interior decoration project
51dB Acoustic Insulation
Steeple Installation
Our Workshop
Packing & Delivery
Profile Packing
All profile in same size in a pallet to easy unload on site
Detailed lable on each package
Our Service
Engineer onsite to help you solve problem
halumm engineer installation guidance service
Good aftersales follow up
