Термостойкий и окислительный пленочный резистор из оксида металла сделано в
- Категория: Resistors >>>
- Поставщик: HONG,KONG,RESISTORS,MANUFACTORY,INTERNATIONAL,LIMITED
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.6 $* | 0.48 $* |
| Aug-17-2025 | 0.71 $* | 0.32 $* |
| Jul-17-2025 | 0.79 $* | 0.52 $* |
| Jun-17-2025 | 0.61 $* | 0.25 $* |
| May-17-2025 | 0.11 $* | 0.4 $* |
| Apr-17-2025 | 0.5 $* | 0.44 $* |
| Mar-17-2025 | 0.62 $* | 0.98 $* |
| Feb-17-2025 | 0.16 $* | 0.85 $* |
| Jan-17-2025 | 0.31 $* | 0.42 $* |
Характеристики
Product Description

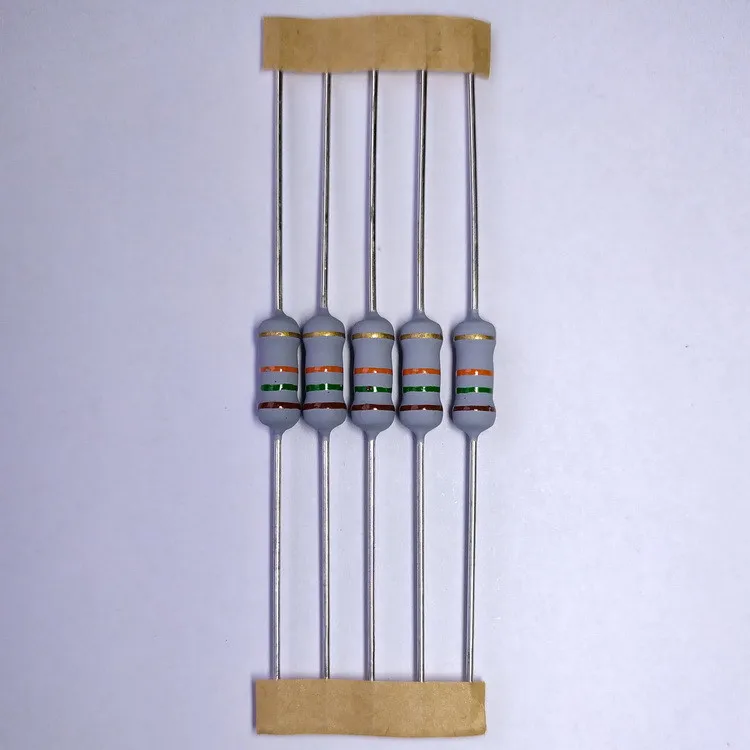

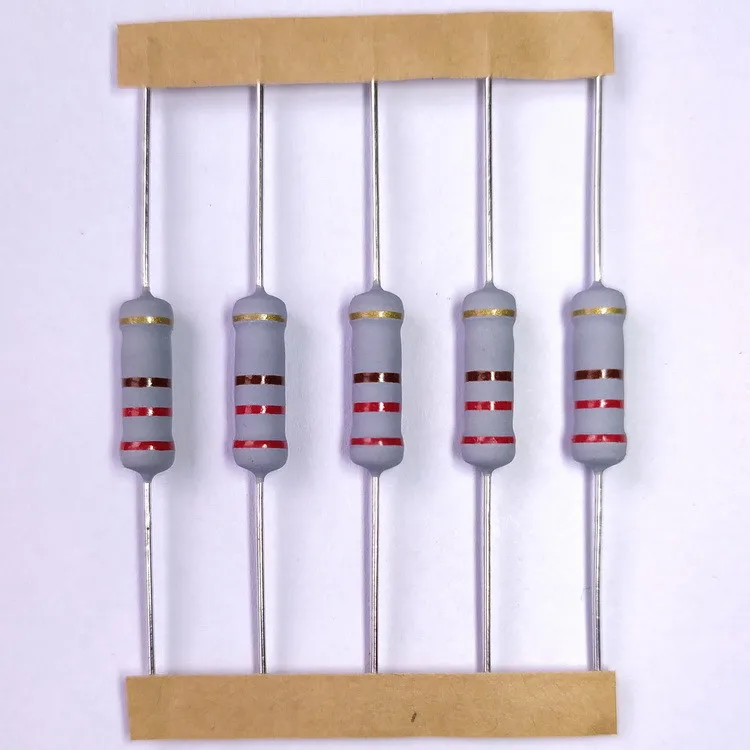

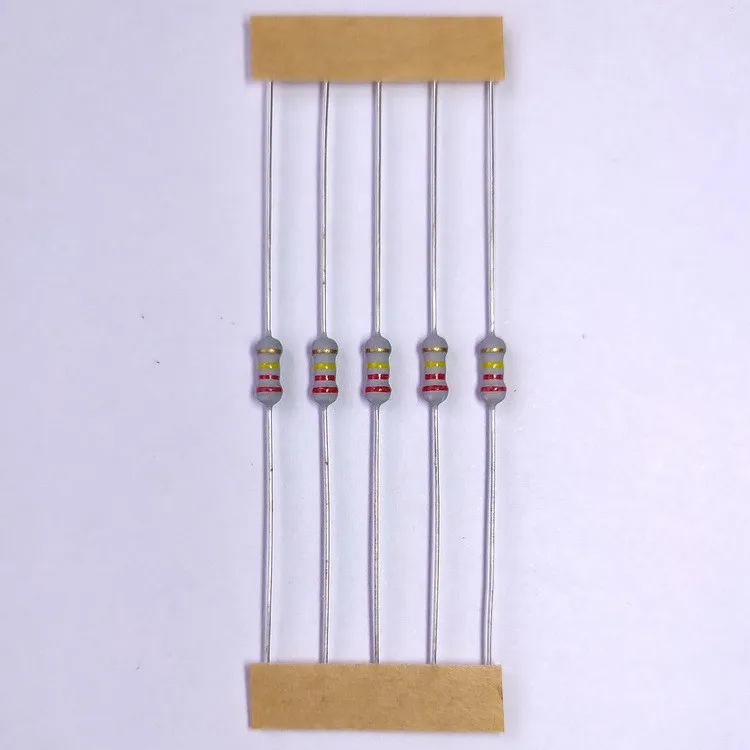

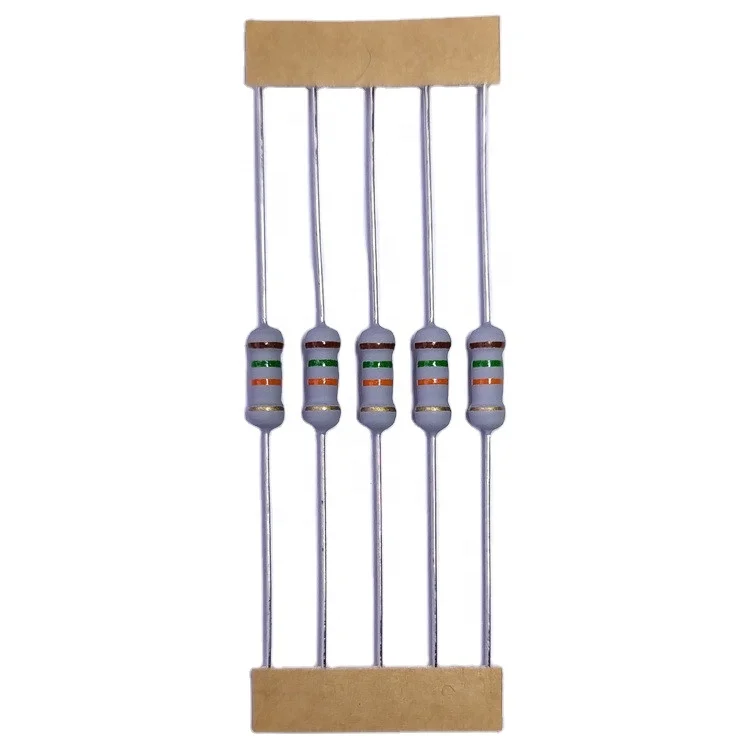

Metal oxide film resistor (MOF).
Metal oxide film fixed resistor: high reliability, bad environment can work stably, non-combustible coating, can provide a variety of molding, suitable for automatic plug-in.
1. Temperature resistance, oxidation resistance, good thermal stability, non-combustibility and overload stability
2. The ambient temperature is -55℃ to +155℃
3. The surface shall be coated with non-combustible topcoat. The body shall be gray and the miniature shall be pink
4, power: 1/8w, 1/6w, 1/4ws, 1/4w, 1/2ws, 1/2w, 1WS, 1W, 2WS, 2W, 3WS, 3W, 5WS
5.Precision: ±2%,±5%
6. Resistance range: 0R1-820K
1. Temperature resistance, oxidation resistance, good thermal stability, non-combustibility and overload stability
2. The ambient temperature is -55℃ to +155℃
3. The surface shall be coated with non-combustible topcoat. The body shall be gray and the miniature shall be pink
4, power: 1/8w, 1/6w, 1/4ws, 1/4w, 1/2ws, 1/2w, 1WS, 1W, 2WS, 2W, 3WS, 3W, 5WS
5.Precision: ±2%,±5%
6. Resistance range: 0R1-820K
TYPE | Power | Dimension(mm) | Limit Voltage (V) | Insulation Voltage (V) | Tape Type | Resistance Range | ||||||
D | L | ι±2 | d±0.05 | |||||||||
RT-1/8 W | 1/8W | 1.7±0.3 | 3.5±0.6 | 26 | 0.40 | 200 | 250 | T52 | 10Ω—1MΩ | |||
RT-1/4 W | 1/4W | 2.3±0.5 | 6.3±0.8 | 26 | 0.45 | 250 | 350 | T52 | 1Ω—2MΩ | |||
RT-1/2 W | 1/2W | 3.2±0.5 | 9.0±1.0 | 26 | 0.60 | 350 | 350 | T52 | 1Ω—3MΩ | |||
RT-1 W | 1W | 4.5±0.5 | 11.0±1.0 | 28 | 0.70 | 350 | 350 | T58 | 0.1Ω—5.1MΩ | |||
RT-2 W | 2W | 5.0±0.5 | 15.0±1.0 | 30 | 0.75 | 500 | 500 | T66 | 0.1Ω—10MΩ | |||
