Оптоволоконный лазерный источник макс. 3 кВт для лазерной сварки
- Категория: Industry Laser Equipment >>>
- Поставщик: Wuhan,Xionghao,Electronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 1428.18 $* | 1499.17 $* |
| Aug-18-2025 | 1416.94 $* | 1487.0 $* |
| Jul-18-2025 | 1188.20 $* | 1247.25 $* |
| Jun-18-2025 | 1392.5 $* | 1462.16 $* |
| May-18-2025 | 1212.8 $* | 1273.0 $* |
| Apr-18-2025 | 1368.86 $* | 1436.73 $* |
| Mar-18-2025 | 1356.62 $* | 1424.28 $* |
| Feb-18-2025 | 1344.17 $* | 1411.1 $* |
| Jan-18-2025 | 1332.49 $* | 1399.14 $* |
Характеристики
Product Description

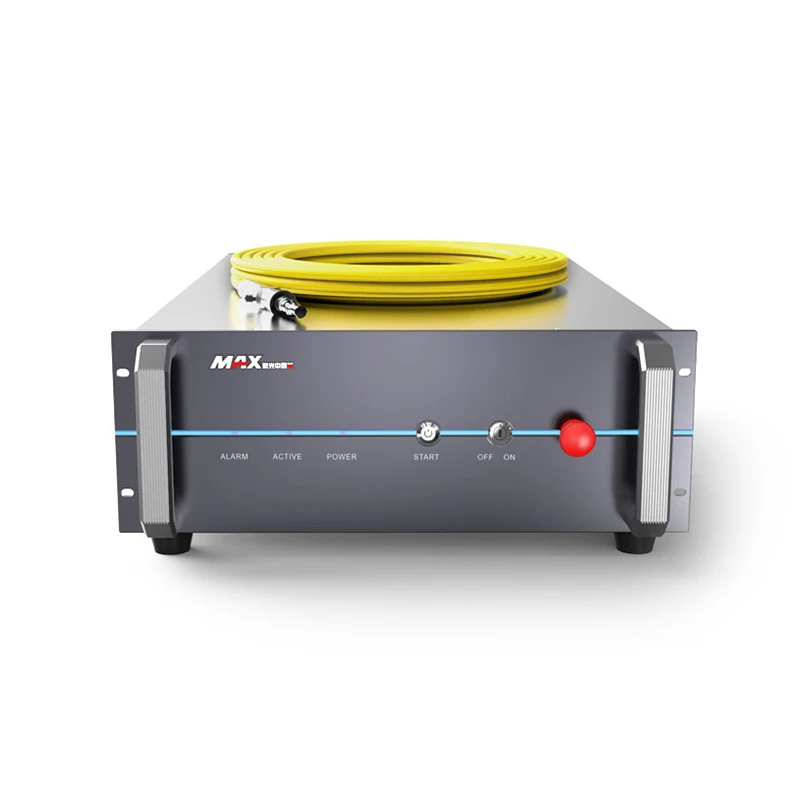

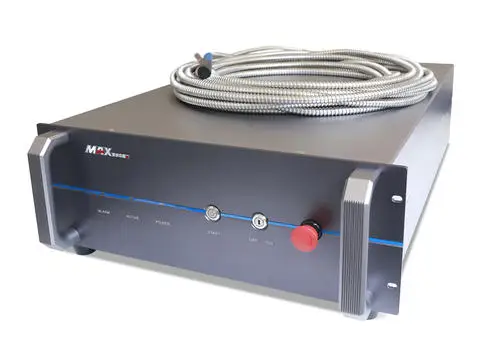

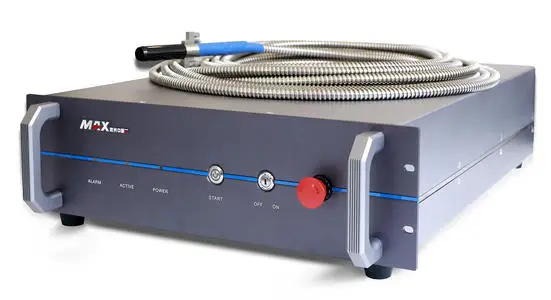

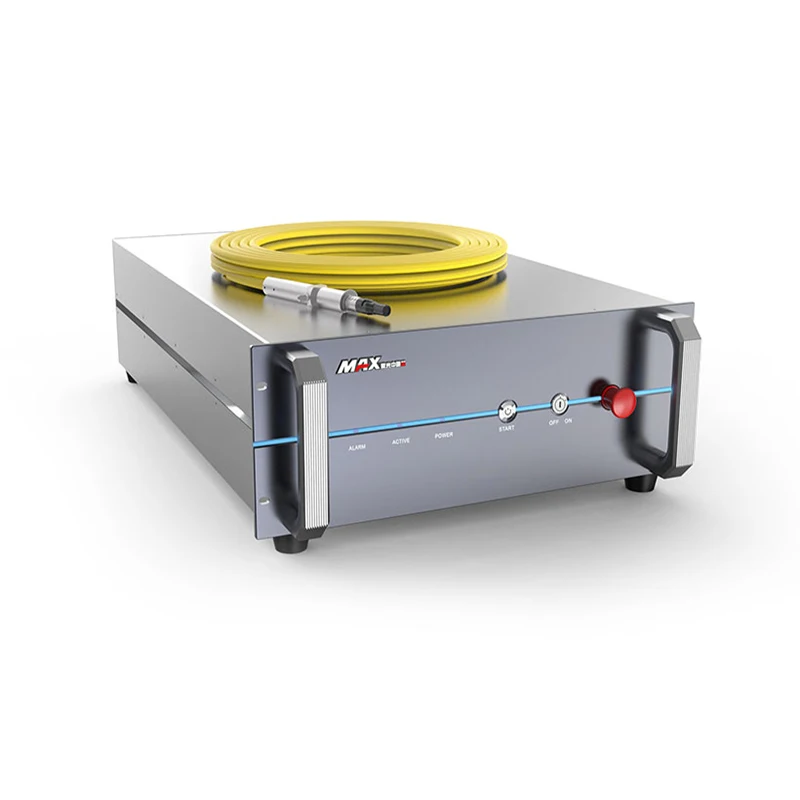

Single Module CW Fiber Lasers
The third-generation single module CW fiber laser series developed by MAX ranges from 300W to 3,000W, the new lasers have
higher electro-optical conversion efficiency, higher and more stable optical quality, stronger altitude stress-resisting capacity
and they apply optimized second-generation fiber transmission system to ensure more stable and more sophisticated cutting effect

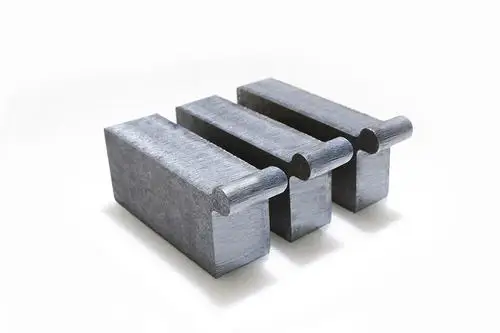

in thick sheet cutting. This series of lasers apply to many application scenarios: cutting, welding, holing, medical device processing, etc., with a narrow seam of the cut sheet and bright section.
higher electro-optical conversion efficiency, higher and more stable optical quality, stronger altitude stress-resisting capacity
and they apply optimized second-generation fiber transmission system to ensure more stable and more sophisticated cutting effect
in thick sheet cutting. This series of lasers apply to many application scenarios: cutting, welding, holing, medical device processing, etc., with a narrow seam of the cut sheet and bright section.
Product Parameters
Model | MFSC-2000 | MFSC-3000 | ||
Optica Properties | ||||
Average Output Power (W) | 2000 | 3000 | ||
Cetral Wavelength (nm) | 1080±5 | |||
Max Modulation Frequency (kHz) | 5 | |||
Output Power Stability | ±1.5% | |||
Red Laser | Yes | |||
Output Characteristics | ||||
Output Connector | QBH (customizable) | |||
Beam Quality | 5-7(50um) | |||
Polarization State | random | |||
Output fiber length (m) | 20 (customizable) | |||
Electronic Control Characteristics | ||||
Input Power (V AC) | 380±10%, three phase-four wire connet | |||
Control Mode | RS232, AD | |||
Power Adjustment Range (%) | 10-100 | |||
Other Characteristics | ||||
Cooling method | Water Cooling | |||
Working Temperature (℃) | 10-40 | |||
For more details
Applications
MAX Laser Source For Cutting
MAX cutting laser is mainly used for cutting, widely used in fiber laser cutting machine. The higher the power of the laser, the
higher the energy produced, and the thicker the metal is cut.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certifications
Company Profile
FAQ
Q: How can I choose the most suitable machine?
A: In order to recommend you the most suitable machine model, please let us know the following details:
1.What is your material?
2.The size of material?
3.The thickness of material?
Q:When I got this machine,but I don’t know how to use it. What should I do?
A:We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q:If some problems happen to this machine, what should I do?
A:We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q:What is the payment terms?
A:The payment terms we accept include:Western Union,T/T,VISA,Onlina Bank Payment.
Q:How about the shipping ways?
A:Transport by sea is the normal way;If special requirement,need to be final confirmed on both sides.
1.What is your material?
2.The size of material?
3.The thickness of material?
Q:When I got this machine,but I don’t know how to use it. What should I do?
A:We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q:If some problems happen to this machine, what should I do?
A:We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q:What is the payment terms?
A:The payment terms we accept include:Western Union,T/T,VISA,Onlina Bank Payment.
Q:How about the shipping ways?
A:Transport by sea is the normal way;If special requirement,need to be final confirmed on both sides.
