1100 Вт Источник питания переменного тока запасные 1100W блок
- Категория: PC Power Supplies >>>
- Поставщик: Shanghai,Shuaiqi,Network,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 476.84 $* | 500.67 $* |
| Aug-19-2025 | 472.50 $* | 496.5 $* |
| Jul-19-2025 | 396.37 $* | 416.60 $* |
| Jun-19-2025 | 464.6 $* | 487.44 $* |
| May-19-2025 | 404.51 $* | 424.97 $* |
| Apr-19-2025 | 456.1 $* | 479.30 $* |
| Mar-19-2025 | 452.35 $* | 475.6 $* |
| Feb-19-2025 | 448.6 $* | 470.38 $* |
| Jan-19-2025 | 444.67 $* | 466.19 $* |
Характеристики
Product Specification
PWR-C1100WAC

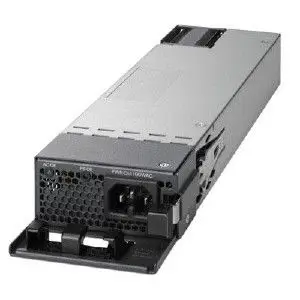

Cisco 3850 Series Power Supply PWR-C1-1100WAC 1100W AC Config 1 Power Supply
Brand Cisco
Output power1100
WattsWattage1100
Dimensions29.8 x 8.3 x 4
centimetersproduct weight3 pounds
Product Code | PWR-C1-1100WAC |
Power supply rated maximum | 1100W |
Total output BTU (Note: 1000 BTU/hr = 293W) | 3793 BTU/hr, 1100W |
Input-voltage range and frequency | 115-240VAC, 50-60 Hz |
Input current | 12-6A |
Output ratings | -56V at 19.64A |
Output holdup time | 10 ms minimum at 102.5VAC |
Power-supply input receptacles | IEC 320-C16 (IEC60320-C16) |
Power cord rating | 13A |
Physical specifications | (H x W x D): 1.58 X 3.25 X 13.7 in Weight: 3 lb (1.4 kg) |

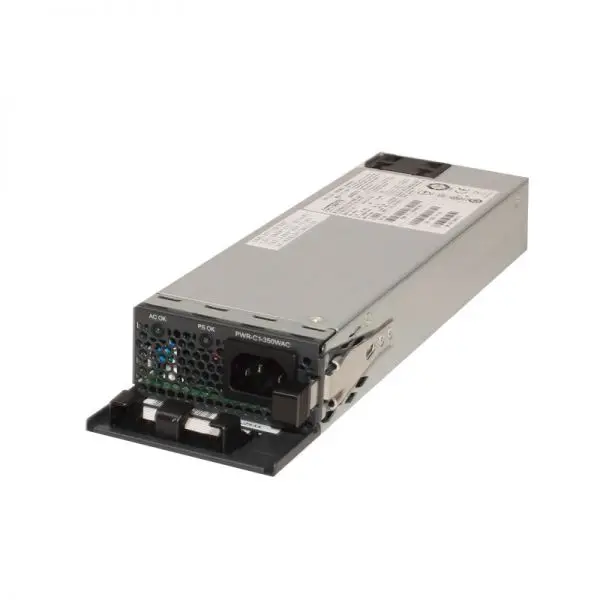

Product Code | PWR-C1-350WAC | PWR-C1-440WDC | PWR-C1-715WAC= | PWR-C1-1100WAC |
Power supply rated maximum | 350W | 440W | 715W | 1100W |
Total output BTU (Note: 1000 BTU/hr = 293W) | 1207BTU/hr, 350W | 1517BTU/hr, 440W | 2465 BTU/hr, 715W | 3793 BTU/hr, 1100W |
Input-voltage range and frequency | 100-240VAC, 50-60 Hz | -36VDC to -72VDC | 100-240VAC, 50-60 Hz | 115-240VAC, 50-60 Hz |
Input current | 4-2A | <8A at -72VDC <16A at -36VDC | 10-5A | 12-6A |
Output ratings | -56V at 6.25A | -56V at 7.86A | -56V at 12.8A | -56V at 19.64A |
Output holdup time | 16.7 ms minimum at 100VAC | > 2ms at -48VDC | 16.7 ms minimum at 100VAC | 10 ms minimum at 102.5VAC |
Power-supply input receptacles | IEC 320-C16 (IEC60320-C16) | Terminal strip | IEC 320-C16 (IEC60320-C16) | IEC 320-C16 (IEC60320-C16) |
Power cord rating | 10A | 20A at 100VDC | 13A | 13A |
