Двойной батарейный блок переключатель параллельных батарей для увеличения емкости двойной

100A Dual Battery Pack Switch Parallel Batteries to Increase Capacity Double Battery Connector

Double Battery Balance Discharger can manage two battery packs which fixed on your bike. low power, Consumption design Real-time detect the voltage of both two battery packs Battery on-line check.

This module can make both two batteries to discharge together to power the ebike, it will auto compare the voltage of each battery and adjust the current output for each battery.

it can be an Uart port or Battery Charging port its depend on user’s wants(currently default)

Maximum output current: 100A

Voltage:20V-72V(MAX) / 40V-84V(MAX)

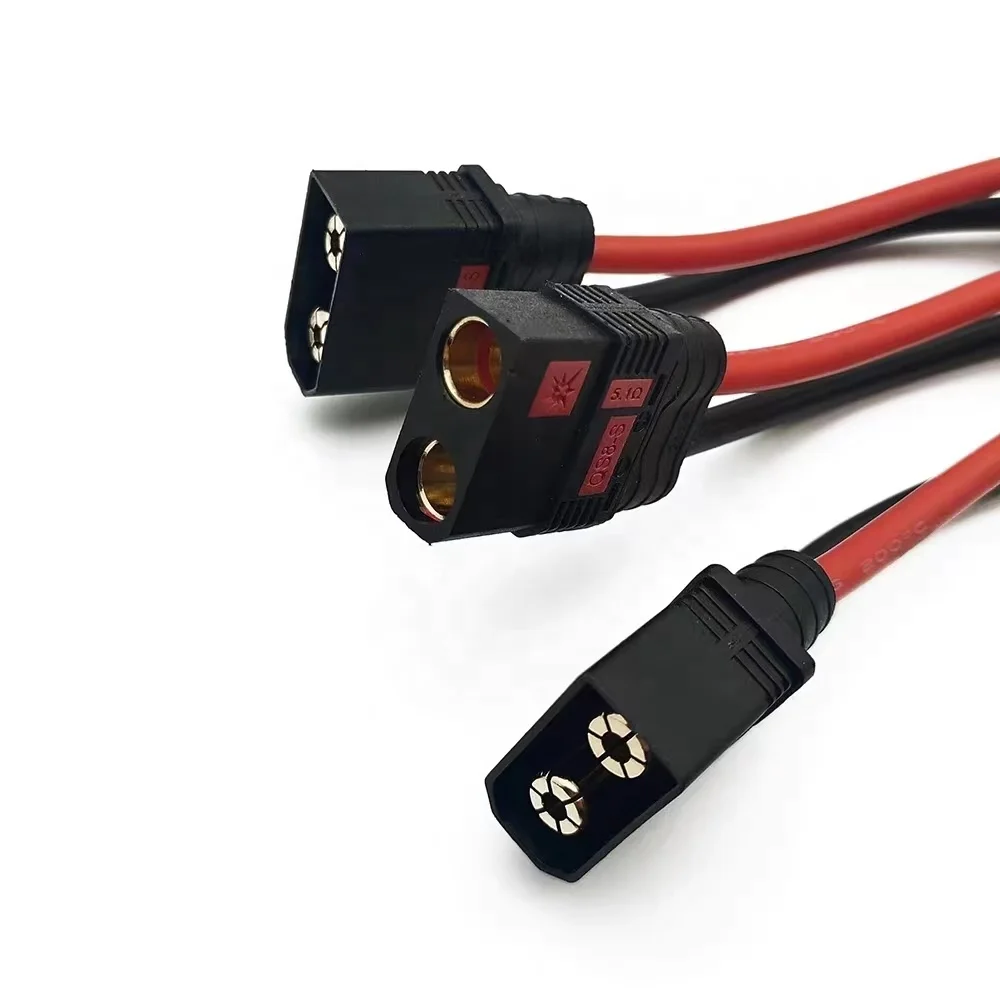

Connector:XT90/QS8S

10AWG Silicone Wire

Cable length:117mm

Net weight:60V100A=225G

72V100A=310G72V100A/84V100A

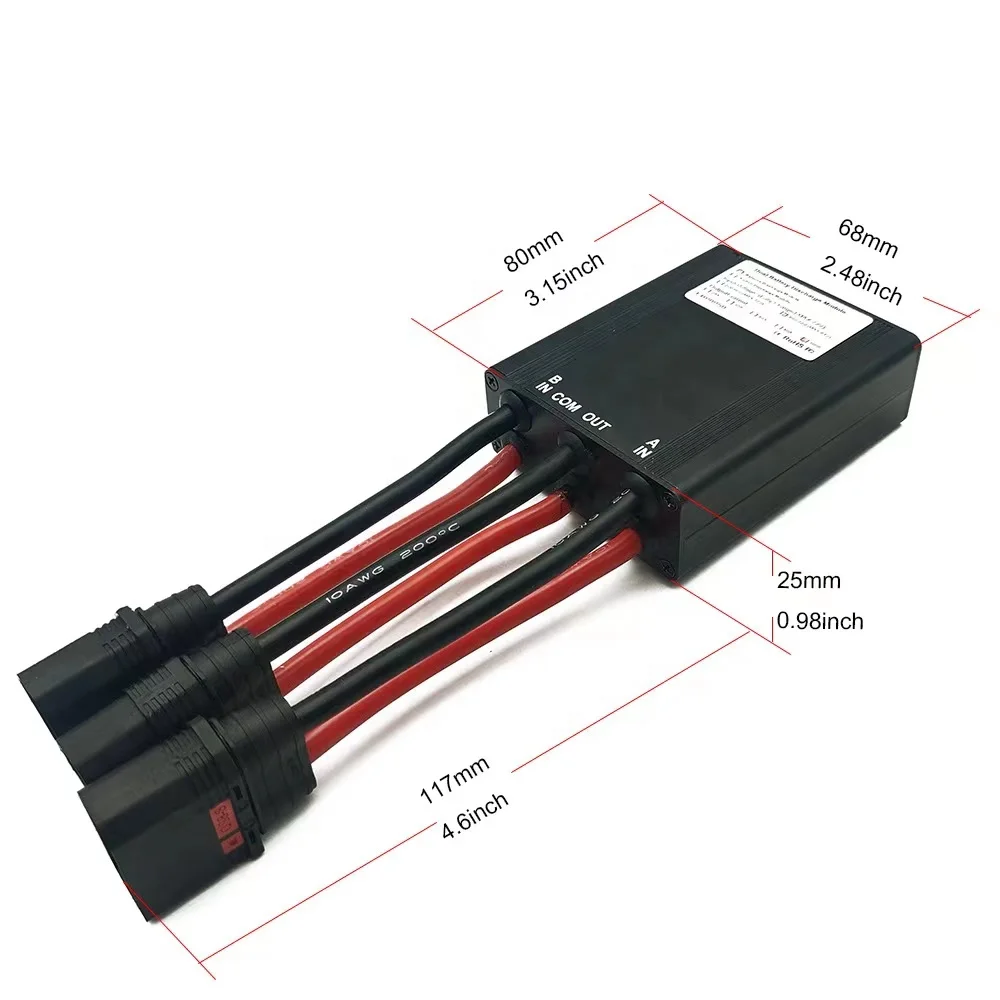

Model Size:8*6.8*2.5cm

Used For: 2 Battery in Parallel/Double Capacity

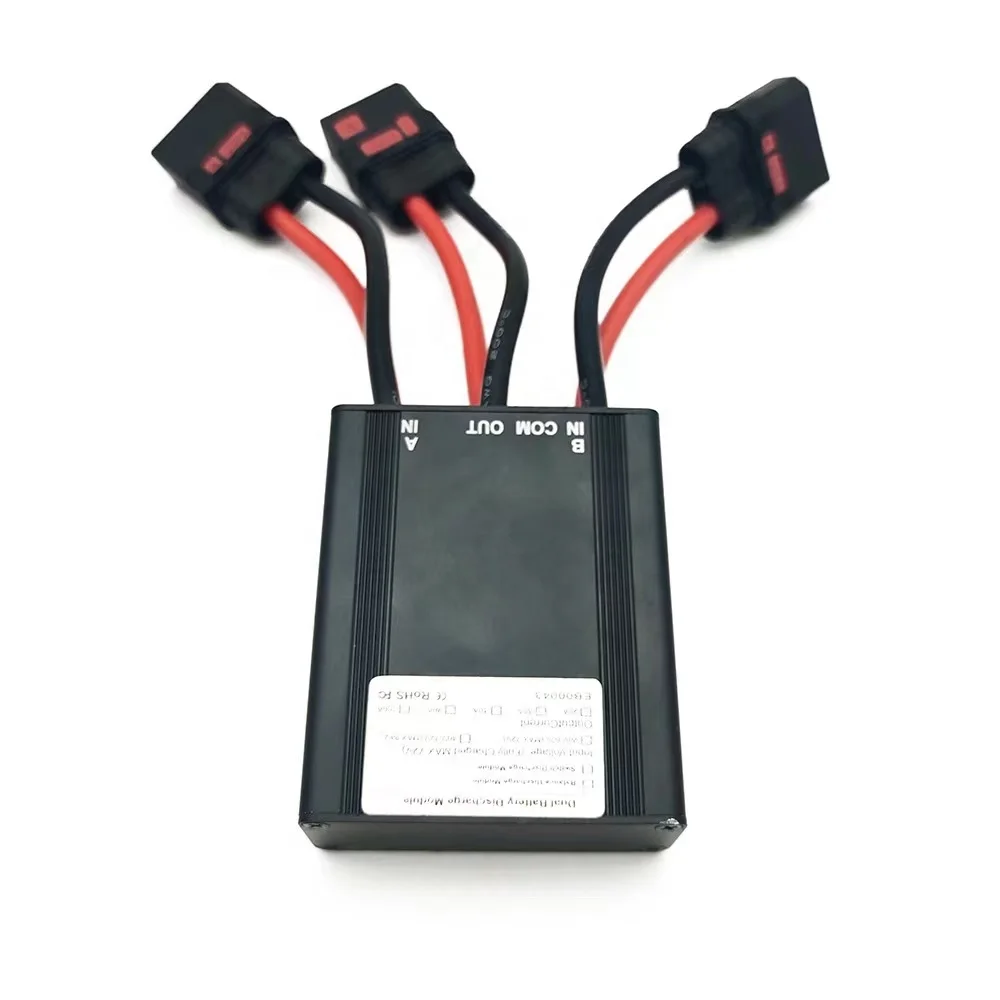

Connection definition:

OUT:Connect with controller

COM:ART interface(Default None)

IN-A:Connect with Battery Pack A

N-B:Connect with Battery Pack B

Working Process

1. MCU monitor voltage of both batteries in real time and send the voltage value by UART if UART interface is available.

2. Auto Battery on-line detecting.Switch to the battery and make power output if only one battery was connected with this module

3.Switch to BAT-B automatically when the voltage of BAT-A is low than switch point

4. Stop power output when the voltage of both batteries are low than low-cut point.

Related Products

What is Balanced Discharge?
Balanced discharge means that when the voltages of the two sets of batteries are used to the same extent, the system will automatically use the two sets of batteries at the same time and increase a certain current.

What is switch discharge?
Switch discharge means that among the two sets of batteries, the system will give priority to the battery with the highest voltage until the battery is exhausted, and then automatically switch to the second set of batteries to continue working. The current will not increase in this state.
At present, all we sell are balanced discharge versions, if you need bulk purchases, we can customize them.

Important hint:

lThank you for Purchasing our Double Battery Pack Switcher, Read this manual carefully, Contact your supplier if you can not understand this instruction well.
lMake sure battery pack which connected with module has the same technical parameters you provided for us . unpredictable results can occur if you use the incompatible Double Battery Pack Switcher with your battery pack.
lWarning: Do not touch it by your hand directly. it will become more hotter during discharging .

lNotice: You have to provide the technical parameters related with your battery as details before ordering.
