Сверлильный станок для бурения скважин/для бурения скважин
US $888.00-$1050
Гусеничный Топ молоток отдельная камнедробилка оборудование для бурения
- Категория: Mining Machinery >>>
- Поставщик: Shandong,Hengwang,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 2380.65 $* | 2499.25 $* |
| Aug-17-2025 | 2360.80 $* | 2478.61 $* |
| Jul-17-2025 | 1980.62 $* | 2079.89 $* |
| Jun-17-2025 | 2320.89 $* | 2436.65 $* |
| May-17-2025 | 2020.12 $* | 2121.5 $* |
| Apr-17-2025 | 2280.0 $* | 2394.26 $* |
| Mar-17-2025 | 2260.72 $* | 2373.72 $* |
| Feb-17-2025 | 2240.39 $* | 2352.82 $* |
| Jan-17-2025 | 2220.13 $* | 2331.17 $* |
Характеристики
Products Description

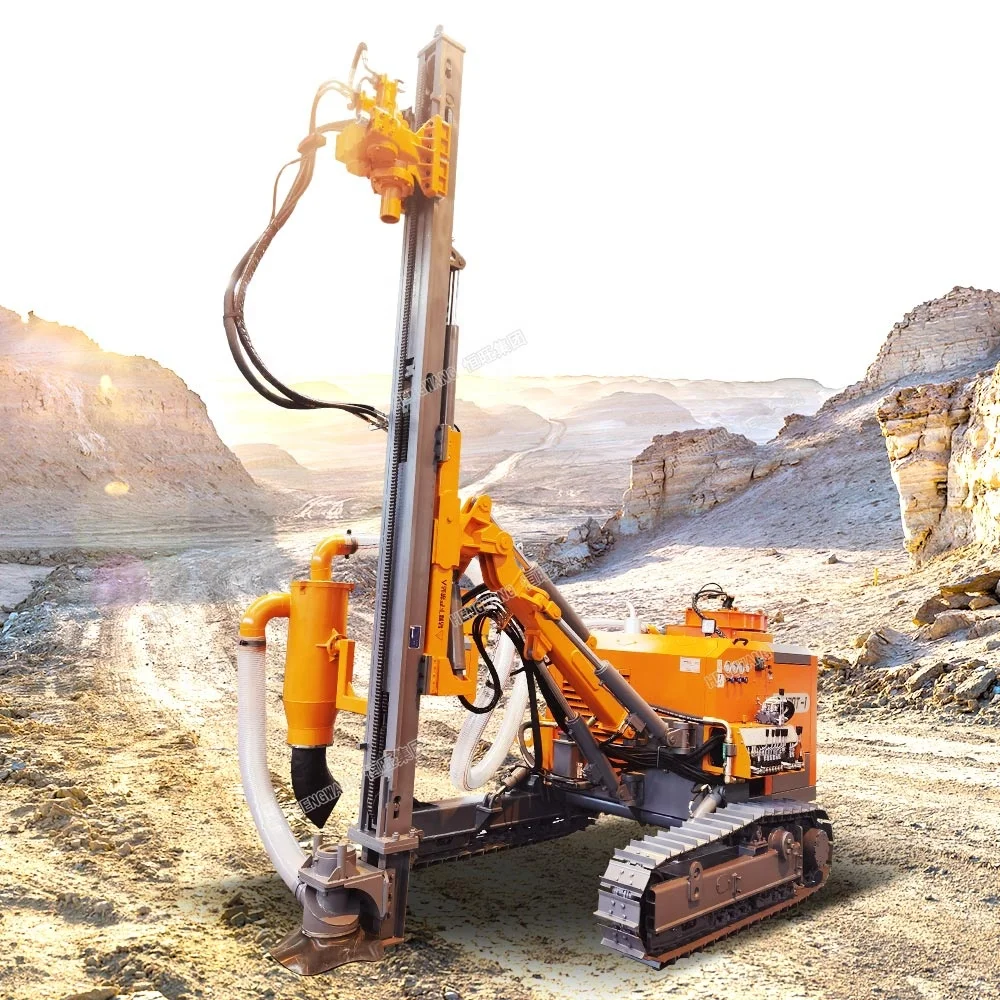

HW912 Separated DTH Surface Drill Rig
HW912A/HW912A-1 is based on the original 910F machine, which has been upgraded and optimized by Hengwang to maximize the function of lifting the rig. The plunger motor is used in the moving parts, which greatly prolongs the running life of the drill. In particular, the improvement of the operating platform, from the original two-person operation to one-person operation, improve the work efficiency while reducing the cost, for customers to consider more thoughtful.crawler top hammer separated rock blasting DTH surface mine drilling rig machines
HW912A/HW912A-1 is based on the original 910F machine, which has been upgraded and optimized by Hengwang to maximize the function of lifting the rig. The plunger motor is used in the moving parts, which greatly prolongs the running life of the drill. In particular, the improvement of the operating platform, from the original two-person operation to one-person operation, improve the work efficiency while reducing the cost, for customers to consider more thoughtful.crawler top hammer separated rock blasting DTH surface mine drilling rig machines
Technical Parameter
Drill Pipe Sizes | 60*2000 mm | ||
Hole range | 90-110 mm | ||
Rotation torque (Max.) | 1,650 N.m | ||
Rotation Speed | 70-150 rpm | ||
Feed Force | 15 kN | ||
Pull Up Force | 25 kN | ||
Feed Type | Chain / cylinder | ||
Tramming Speed (Max.) | 2.5 km/h | ||
Gradient | 25° | ||
Total Weight | 3,350Kg/ 3,760 kg | ||
Transportation Dimensions | 4900*2000*2200 mm | ||

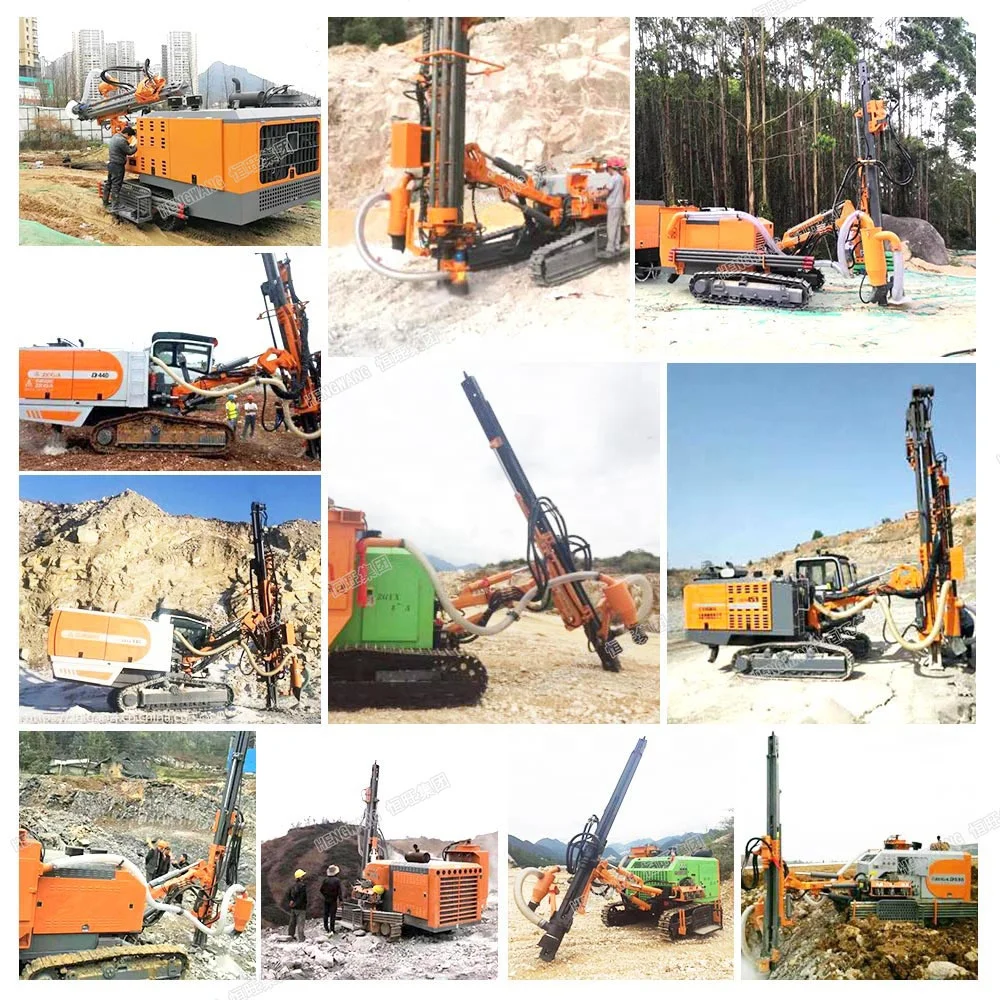

Application
Before the coal mining, coal mines drilled gas drainage (discharge) holes, grouting fire prevention holes, coal seam water
injection holes, anti-burst pressure relief holes, water exploration holes, geological exploration holes and coal mine underground drilling.crawler top hammer separated rock blasting DTH surface mine drilling rig machines30 meters surface top hammer down the hole blasting hole vertical hole drilling rig
injection holes, anti-burst pressure relief holes, water exploration holes, geological exploration holes and coal mine underground drilling.crawler top hammer separated rock blasting DTH surface mine drilling rig machines30 meters surface top hammer down the hole blasting hole vertical hole drilling rig

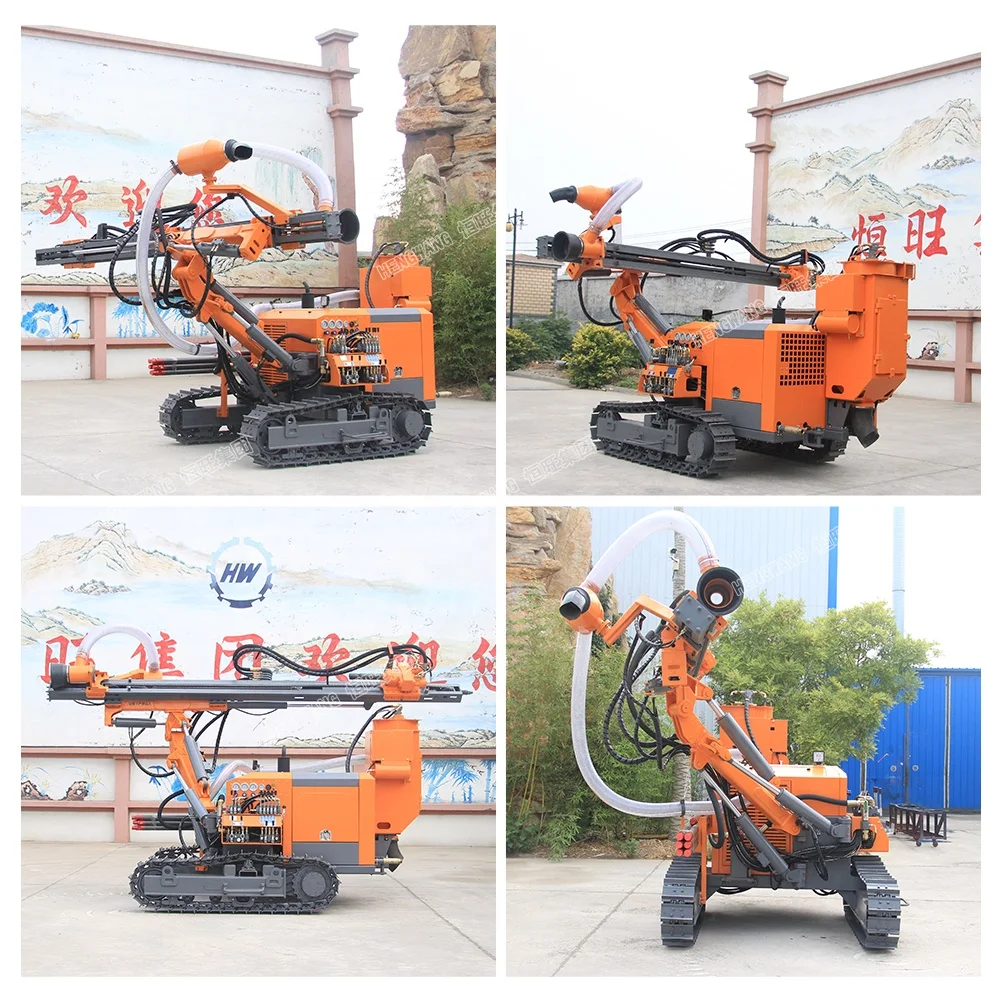

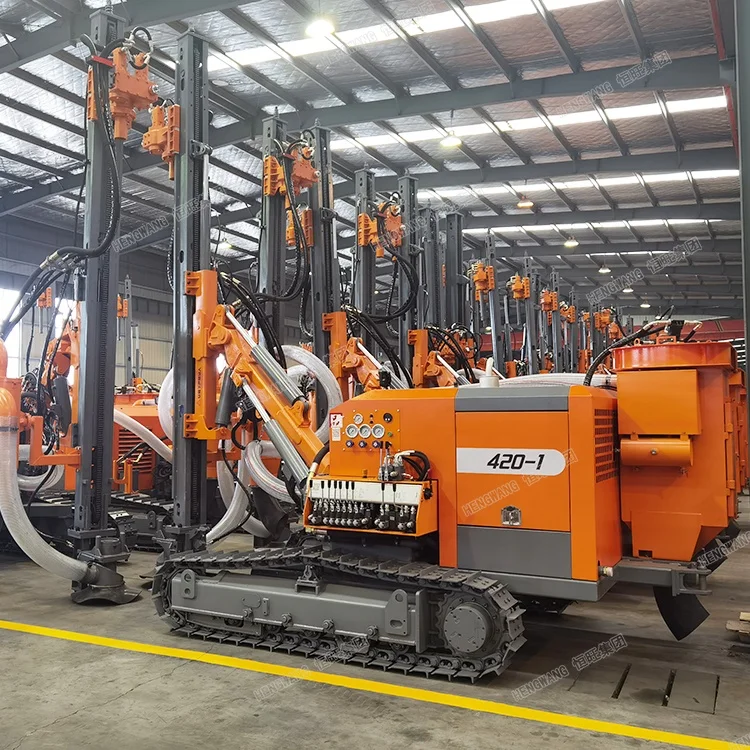

Detailed Image
Exhibition
Our down-the-hole drilling rigs have participated in the Shanghai Bauma Exhibition, and we are also committed to looking for agents. If you have this intention, you can contact me, and we can discuss the details.

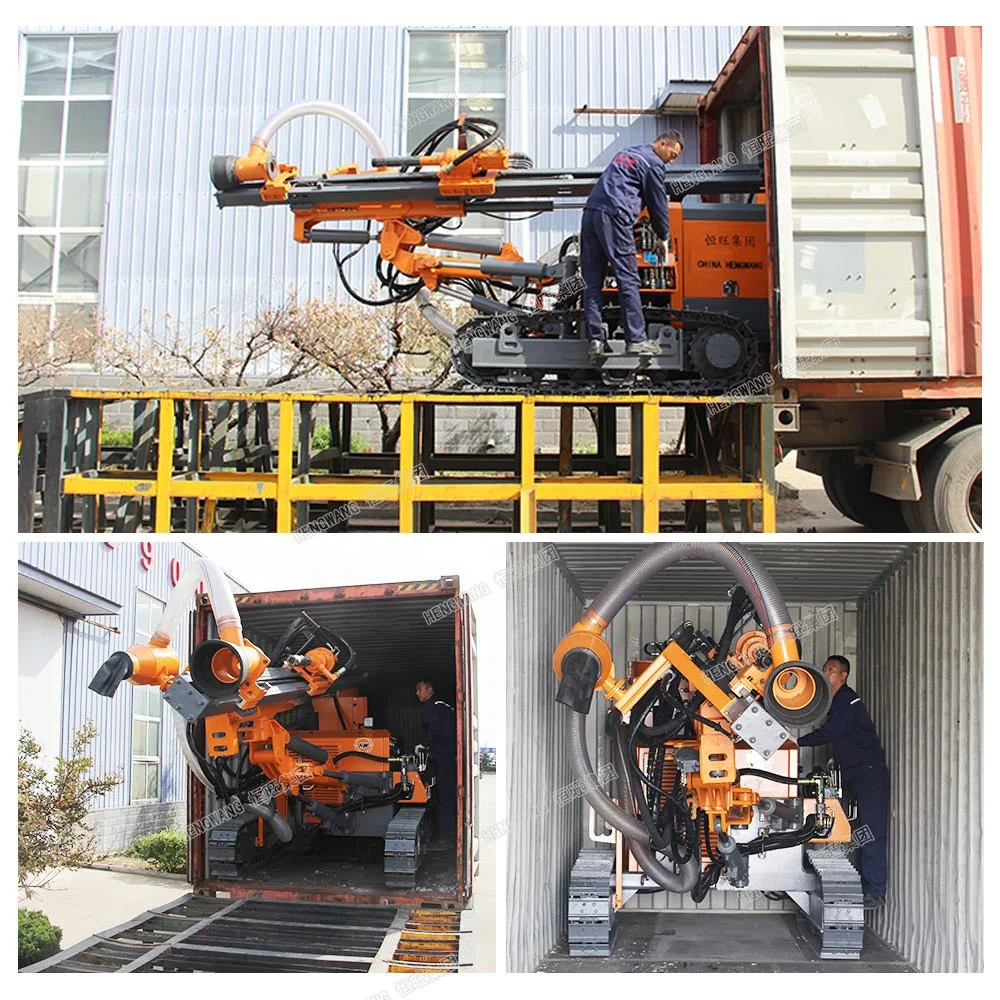

Packaging & Shipping
One set of This separated DTH Surface Drill Rig without air compressor can be loaded into one 20 feet container,one set with air compressor can be loaded into one 40HQ container.We export this drilling rig to many countries,so please rest to cooperate with us.We have enough experience for export.crawler top hammer separated rock blasting DTH surface mine drilling rig machines

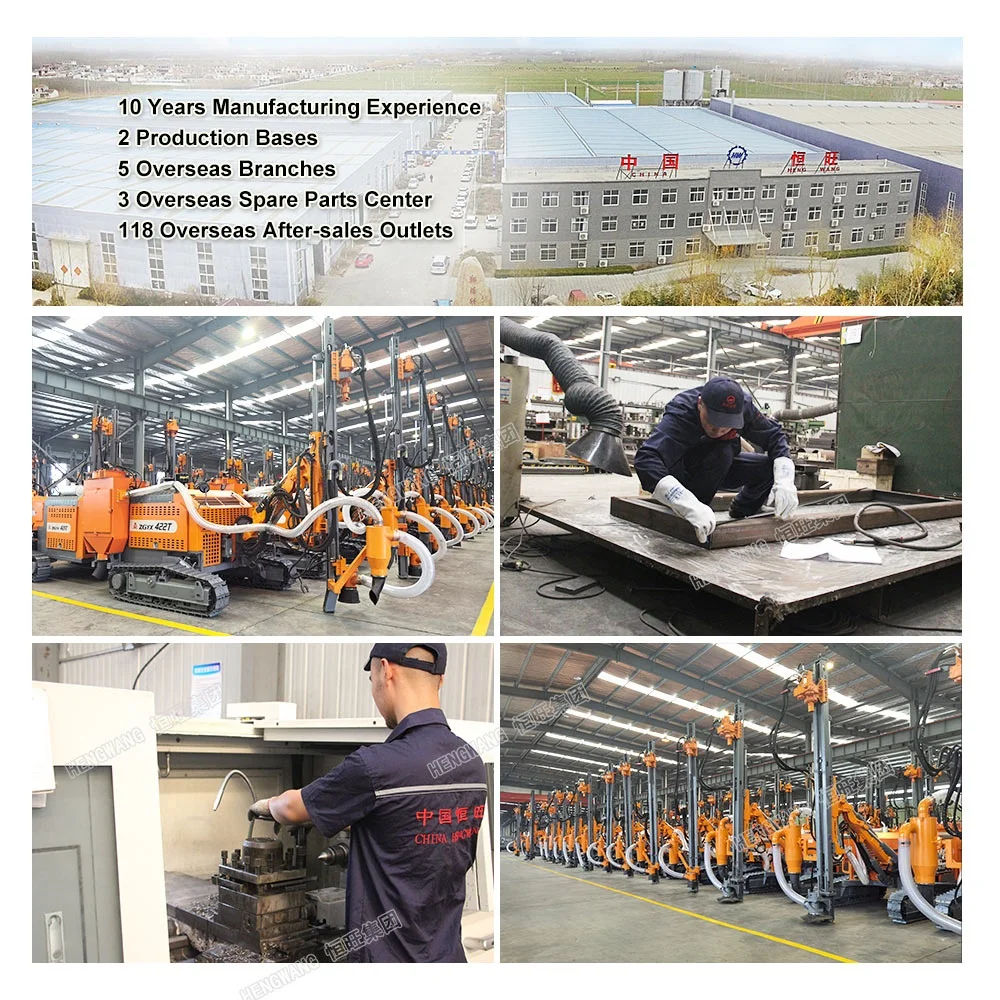

Company Profile
Contact Us
If you have any questions for this drilling rig ,please contact me as below,i will stand by 24 hours.Thanks
