Высокоэффективный Многофункциональный электродный бор BDD Diamond
- Категория: Abrasives >>>
- Поставщик: Chenguang,Machinery,&,Electric,Equipment,Co.,Ltd.Chenguang,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 32.15 $* | 33.43 $* |
| Jul-16-2025 | 26.92 $* | 27.13 $* |
| Jun-16-2025 | 31.86 $* | 32.7 $* |
| May-16-2025 | 31.27 $* | 32.80 $* |
| Apr-16-2025 | 25.34 $* | 26.50 $* |
| Mar-16-2025 | 31.99 $* | 32.60 $* |
| Feb-16-2025 | 30.50 $* | 31.96 $* |
| Jan-16-2025 | 30.65 $* | 31.12 $* |
Характеристики
Product Description
BDD (Boron-doped diamond) electrode is a new type of high-efficient multifunctional electrode. The special SP3 bond structure of diamond and its conductivity after doping give BDD electrode excellent electrochemical characteristics.
Boron-doped diamond coating (BDD) electrode is mainly composed of heavily doped silicon or metal as the substrate, and then a layer of boron-doped diamond film is deposited on it by chemical vapor phase. Silicon as a diamond and the group and the structure of semiconductor materials, physical and chemical properties similar to diamond, used as a BDD coating of the surface of the substrate can ensure that grow boron diamond film are of good quality, forming the composite electrode good mechanical properties, chemical properties of the integrity and consistency, and stable and reliable when using, electrode life is long and the cost is low.
Size of BDD diamond seeds:
5mm , 10mm ,20mm , 30mm , 40mm , 50mm, 60mm , 70mm ,80mm ,100mm ,200mm
Shape of diamond plates: round shape, square shape, rectangle shapes etc
Customized shape and size are available!
Application
BDD electrode electrochemical water treatment equipment as matching consumables, bear the indispensable role, has been widely used in sewage treatment, electrolysis and electrochemical synthesis, and based on the principle of electrochemical detectors, sensors, etc., involved in pesticide, leather, paper making, textile, food, cosmetics, medicine and other application fields.
Advantages
1.wide electrochemical potential window (> 3.5 vvsnhe)
2.high oxygen evolution overpotential
3.good chemical inertia of diamond
4.at room temperature does not react with any acid and alkali medium
5.not easy to scale and other characteristics
6.small background current
7.strong resistance to pollution poisoning

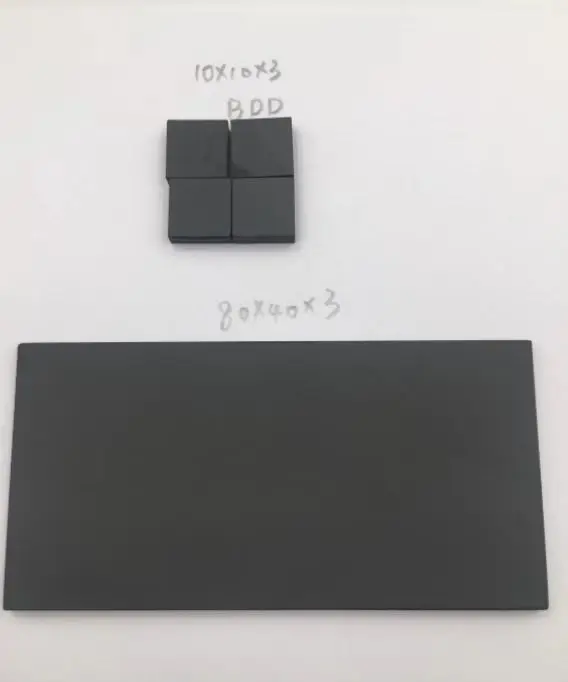

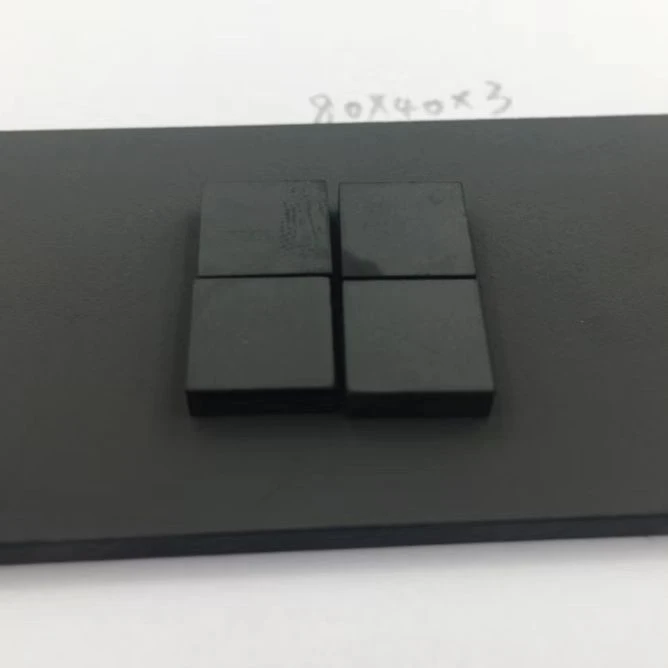

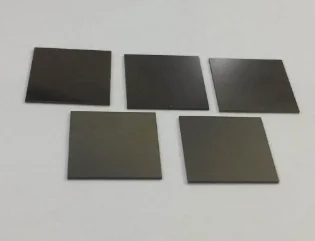

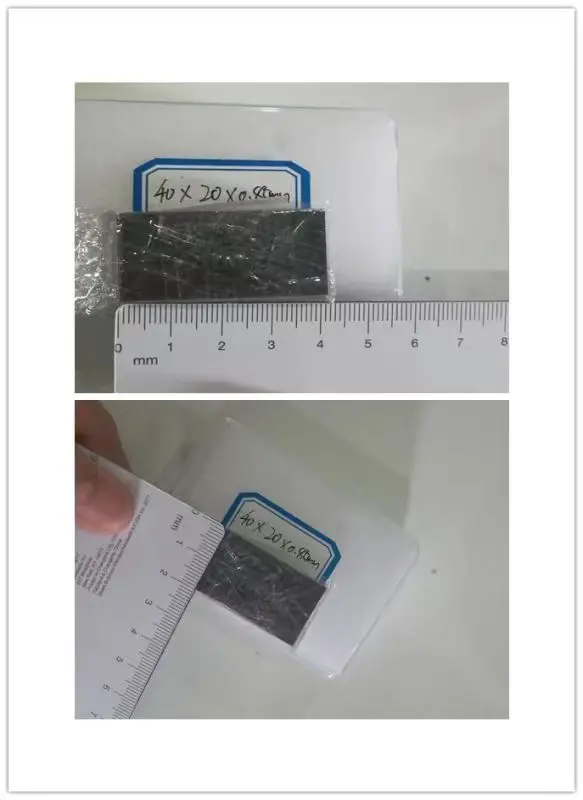

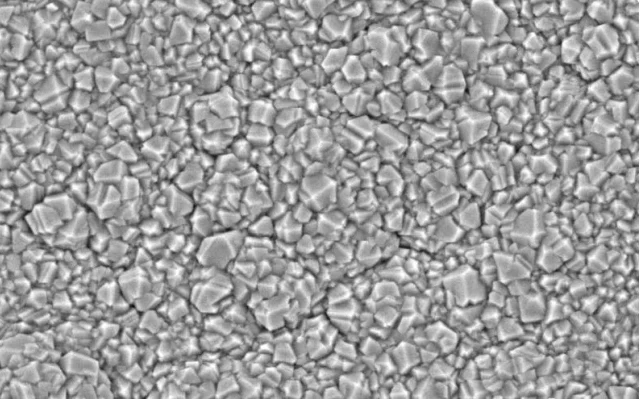

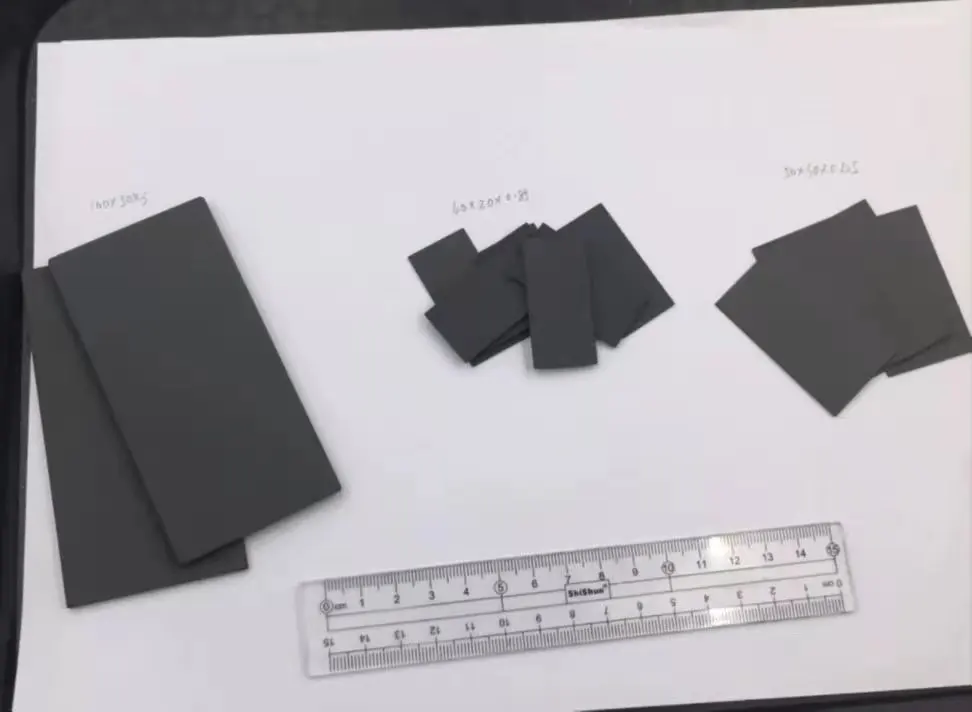

Detailed Images
Packing & Delivery
Package: small plastic box and carton
Delivery time: usually 3-7 working days after the confirmation of the deposit
Transportation: DHL, TNT, Fedex, UPS or as per your request.
MOQ: 1 pieces
Our Lab
Company Profile
Chenguang machinery &Electric Equipmemt Co.,Ltd is comprehensive enterprise specialized in development, production, and marketing of ultra-hard materials. In the year of 2018, we have two workshops, nearly 50 cubic press are used for growing HPHT diamond, One workshop, 7 sets CVD growth chamber , dedicated to the growth of CVD, Advanced laser cutting machines, polishing and grinding machines are fully equipped , running day and night, so we can provide you with complete growth, cutting, polishing and grinding services for HPHT diamond and CVD diamond. For quality inspection, we are equipped with complete and advanced testing instruments, such as particle size analyzer, static pressure analyzer, magnetic susceptibility analyzer, 200-1000 times electron microscope, infrared spectrometer, etc ,they are specially used to control the quality of diamond. We are the only designated testing center of Jilin University in Hunan Province.As a diamond supplier, We started to provide a wide range of diamond products and solutions for many well-known Chinese diamond tools enterprises since 1993. We grow together with China's diamond industry.Since 2009, we have started to sell superior diamonds all over the world, including famous tool manufacturers, laboratories in olleges and universities , Diamond institute, Diamond dealers etc. Our products are widely used in mechanical processing, oil and gas drilling, coal mining, construction , transportation, and some others are used in stone, automobile, cast iron, ceramic, hard alloy, fiber, semiconductor .magnetic materials cutting and grinding area.
