Автоматическая вертикальная линия по производству изоляционного стекла с легким обслуживанием и газовым наполнением аргона для обработки
- Категория: Glass Production Machinery >>>
- Поставщик: Jinan,Wondec,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 23800.46 $* | 24990.65 $* |
| Aug-16-2025 | 23600.11 $* | 24780.73 $* |
| Jul-16-2025 | 19800.8 $* | 20790.6 $* |
| Jun-16-2025 | 23200.14 $* | 24360.34 $* |
| May-16-2025 | 20200.56 $* | 21210.88 $* |
| Apr-16-2025 | 22800.49 $* | 23940.7 $* |
| Mar-16-2025 | 22600.89 $* | 23730.57 $* |
| Feb-16-2025 | 22400.39 $* | 23520.87 $* |
| Jan-16-2025 | 22200.67 $* | 23310.24 $* |
Характеристики
*This machine is conventional type,
the specific price is subject to the actual configuration and negotiation.
FOR CUSTOMIZATION, PLEASE CONTACT US.
Products Description

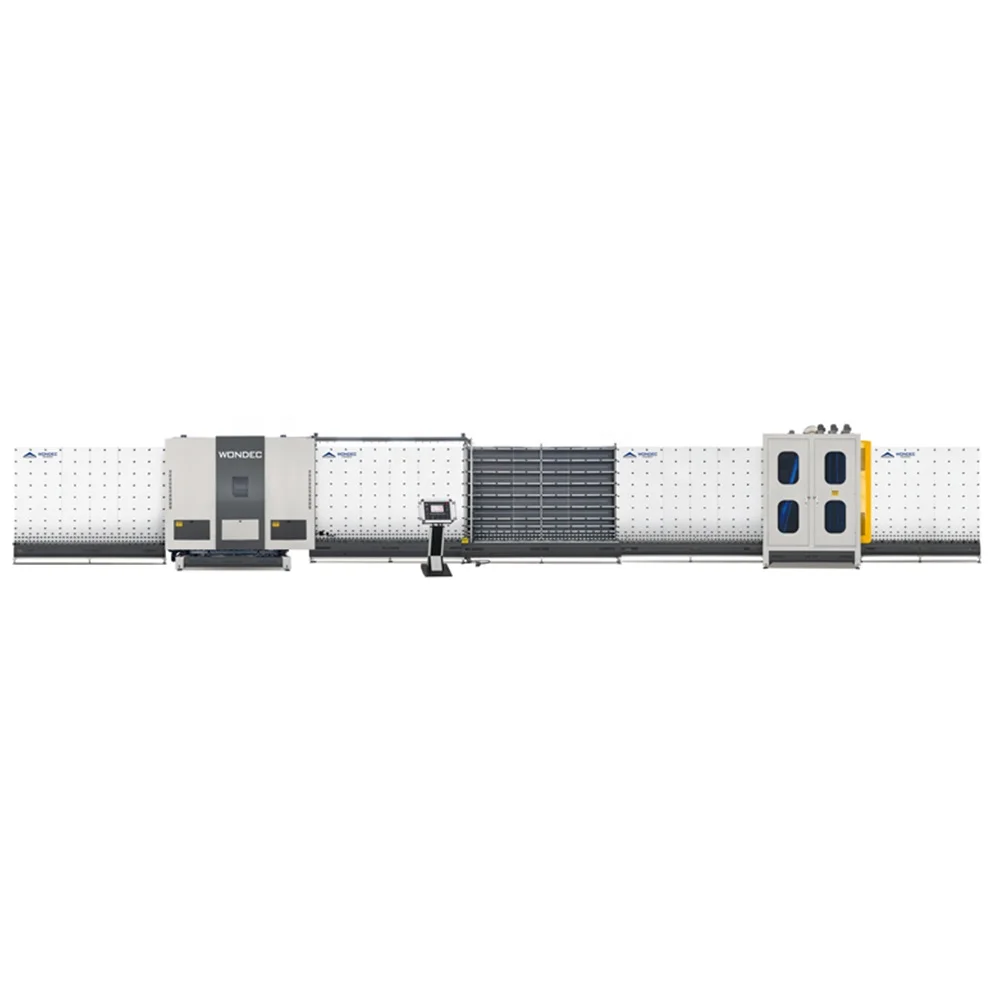

Easy Maintenance Automatic Vertical Insulating Glass Argon Gas Filling Production Line For Double Glazing Glass Processing
It can be upgraded and expanded according to user's requirements.
Section 01: Input conveyor
This section is mainly to transmit the glass into the washing and drying section. Carbon fiber conductive brushes are used for coating glass and Low-e glass detection.

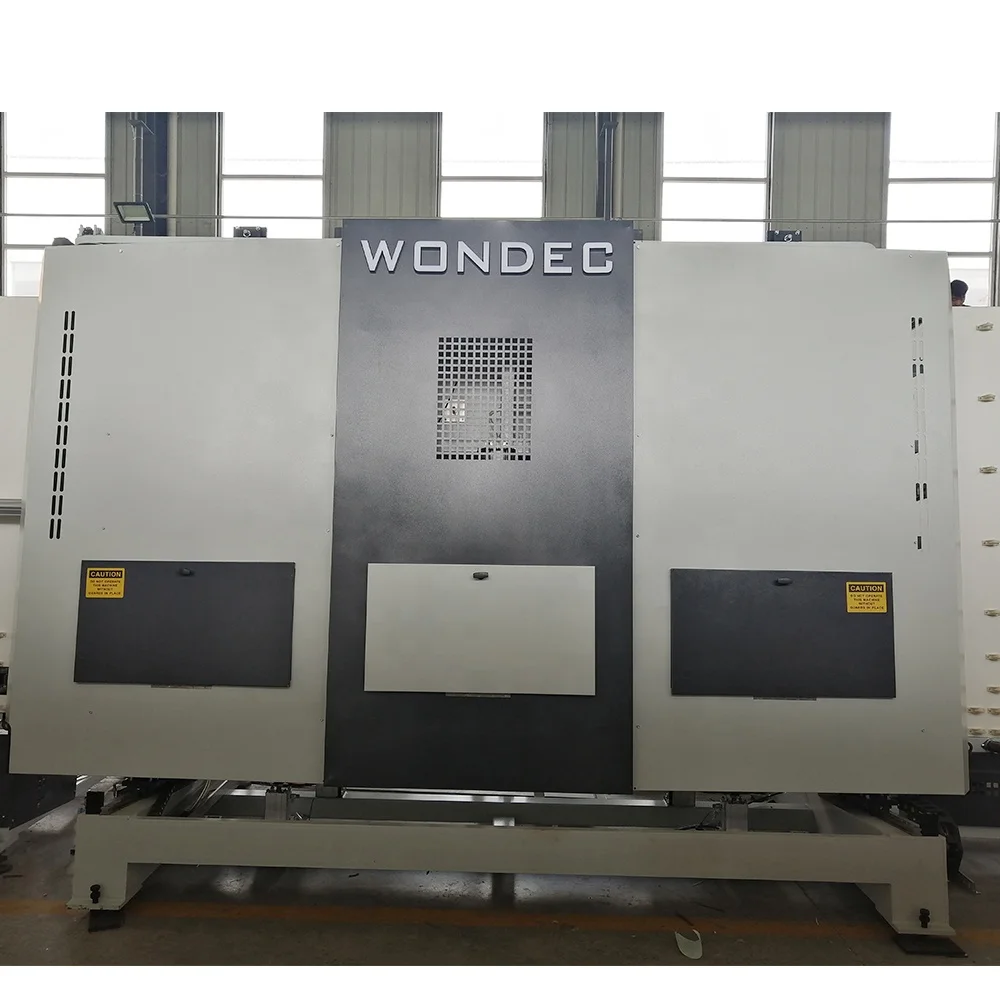

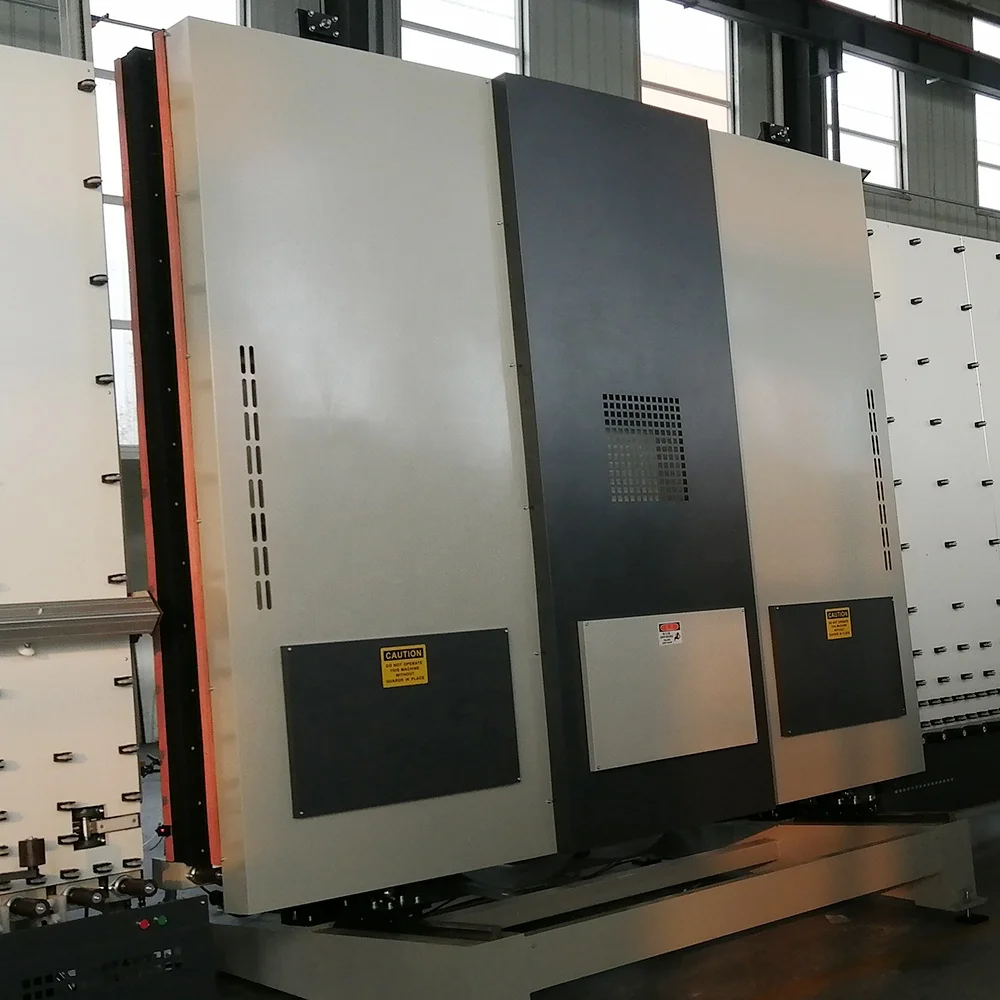

Section 02: Glass washing and drying section
✦ Stainless steel material and corrosion-resistant material adopted for all washing area, water tank, and waterway system.
✦ The 6 brushes are driven by 6 motors independently, which will not affect the other motors working when any of them has problems.
✦ The connection mode of brush and motor is coupling, the brush motor and brush are directly connected, and there will be no slip or motor idling phenomenon.
✦ The front 3 brushes are soft brushes with diameter 0.1 mm, which are suitable for Low-E glass washing, to prevent the film damage, the back 3 brushes are hard brushes with diameter 0.2 mm, which are suitable for washing ordinary glass.
Section 03: Transition section
Adopts dual motors to drive the transmission section. Two small glasses can be parked at the same time to improve work efficiency.
Section 04: Lights Inspection & Aluminum spacer placement
✦ Be made of aluminum-alloy profiles, with beautiful appearance.
✦The back plate is equipped with a movable door (with lock), which is convenient for workers to enter and check the cleaning condition of the glass back side.
✦The back plate is equipped with a movable door (with lock), which is convenient for workers to enter and check the cleaning condition of the glass back side.
✦ High quality LED lamps be adopted for light inspection, energy saving.
5)Section 05: Outside assembly ( optional )
The advantages of the outside assembly are fast and efficient, and the failure rate is low.
The advantages of the outside assembly are fast and efficient, and the failure rate is low.
Section 06: Inside assembly & panel press with online argon gas inflation
✦ Denser steel frame for a stronger machine body.

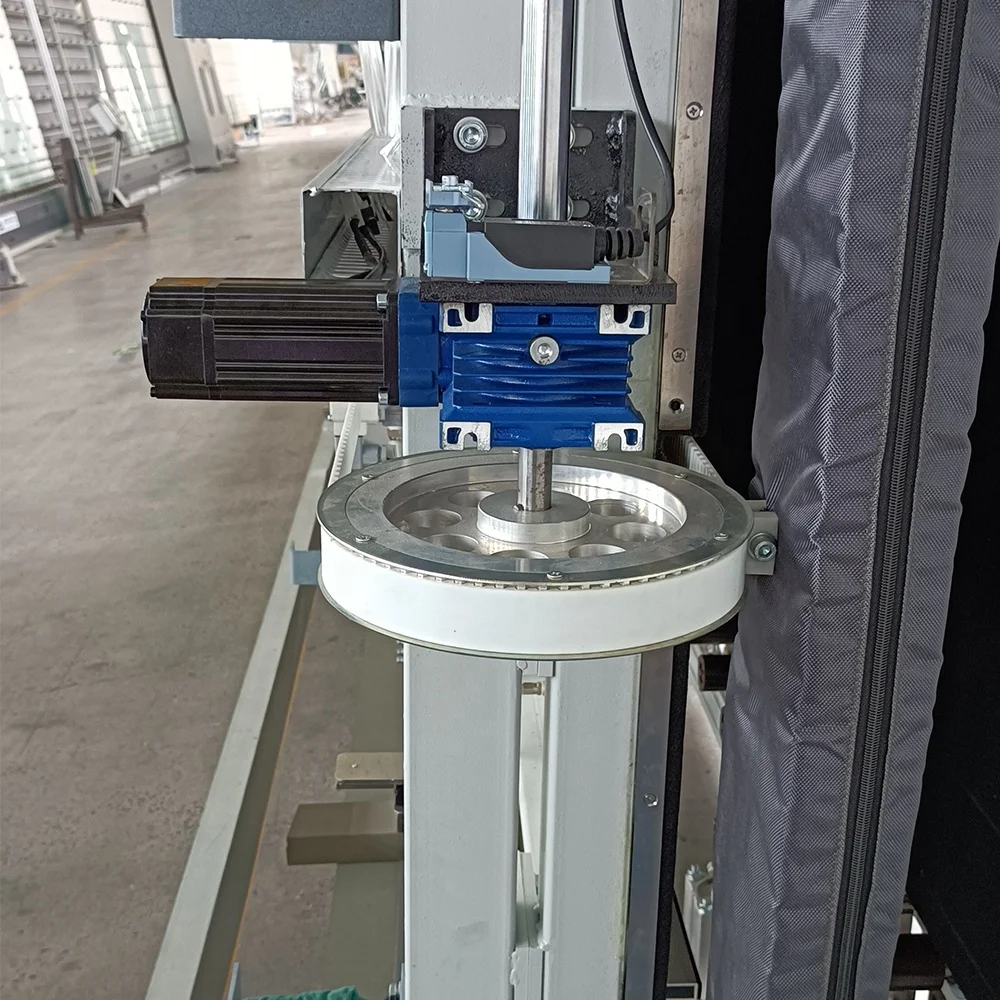

✦ The panel press is controlled by Servo motor.
✦ The front pressing plate steel frame is with two layers, the flatness can be adjusted. It ensures that the panel pressing achieve the best flatness after long-term use.

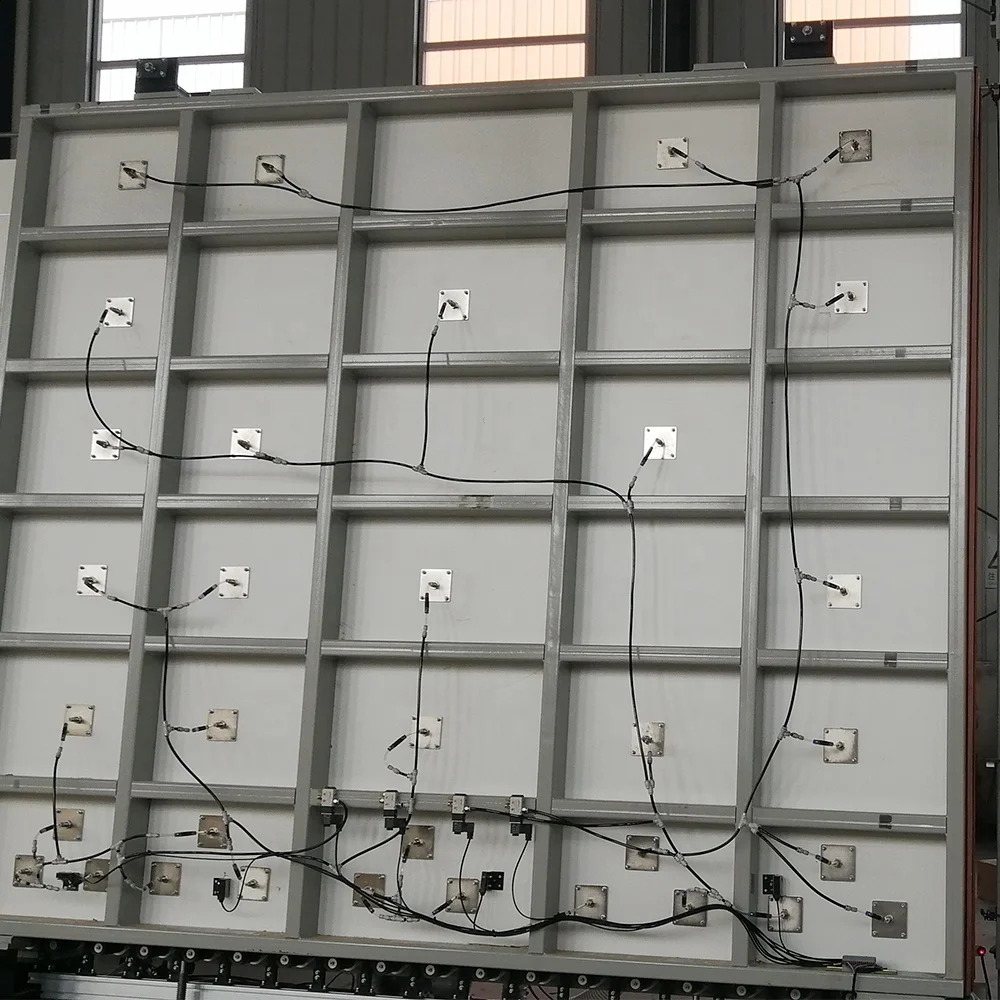

✦ Each suction cup in the panel press equipped with one separate logic valve, and the suction cups work partitioned according to the size of the glass.
✦ Automatic online gas filling: Suitable for double IGU & triple IGU; Argon inflation is from bottom side.
Section 07: Output conveyor.
This section is used to transmit and store the glass to improve the work efficiency.
When connect with sealing robot, this section can store glass units.
Technical Parameters
Input power | 31KW |
Max. glass size | 2000*3000mm |
Min. glass size | 500*300mm |
Pane glass thickness | 3-12mm |
Max. Insulating glass thickness | 12-80mm |
Glass washing speed | 3-12m/min |
Working speed | 2-48m/min |
Air pressure | 0.8m³/min |
Water electrical conductivity | ≤40µS/cm |
Overall dimension | 22400*2500*2900mm |
Weight | About 8000kgs |
Recommend Products
Packaging & Shipping
Packaging:
WONDEC always spray protective oil firstly, then plastic covering and stretch film package inside, to avoid rusting and dusting in long time sea voyage, and steel/wooden pallet or whole wooden box package outside.
Shipping:
Container loading in our factory, machines be fixed well in the container by our own workers, ensure machines be safe in each link.
Delivery time is about 15 days after down payment be received, and all details be confirmed well by both sides.
Why Choose Us
FAQ
✦Are you manufacturer?
Yes, we are the professional manufacturer with more than 10 years experience in this area.
✦Can the machine change to our voltage?
Yes, we can customize our machine to your local voltage.
✦What will be the process after I make the payment?
After we confirm the receipt of the deposit, we will arrange the production asap. When we finish the production and the test of the machine, we will take a video for you to show the performance of the machine and wait for your feedback. And after the confirmation of the finished products we will start to park the machine and wait for customer's requirement for shipment.
✦Can you help us to arrange the shipment?
Yes, we have our cooperated shipping partner who can provide fast delivery and good price. We can arrange the shipment for our clients based on customer's requirement.
✦How will you install our machine after we receive the machine?
We used to send technician to install machine for customer before. But now due to the COVID-19 virus, it's very difficult for us to go abroad. However, for all our machines, we have specific manuals and explanation videos to follow and install the machine. Every customer we also have one special wechat/whatsapp group chat with technician inside to offer all necessary help on line.
