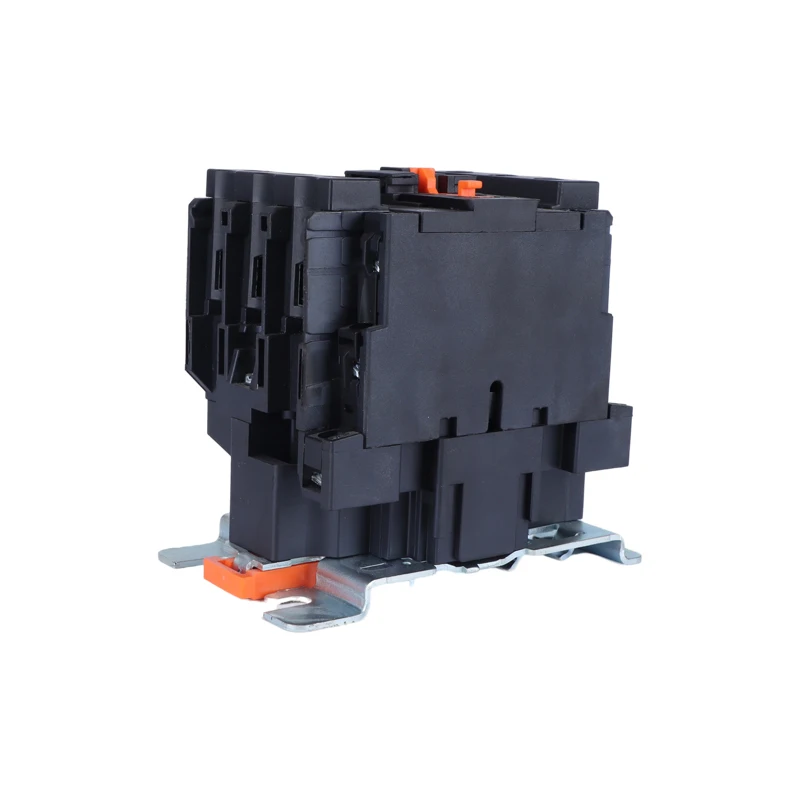

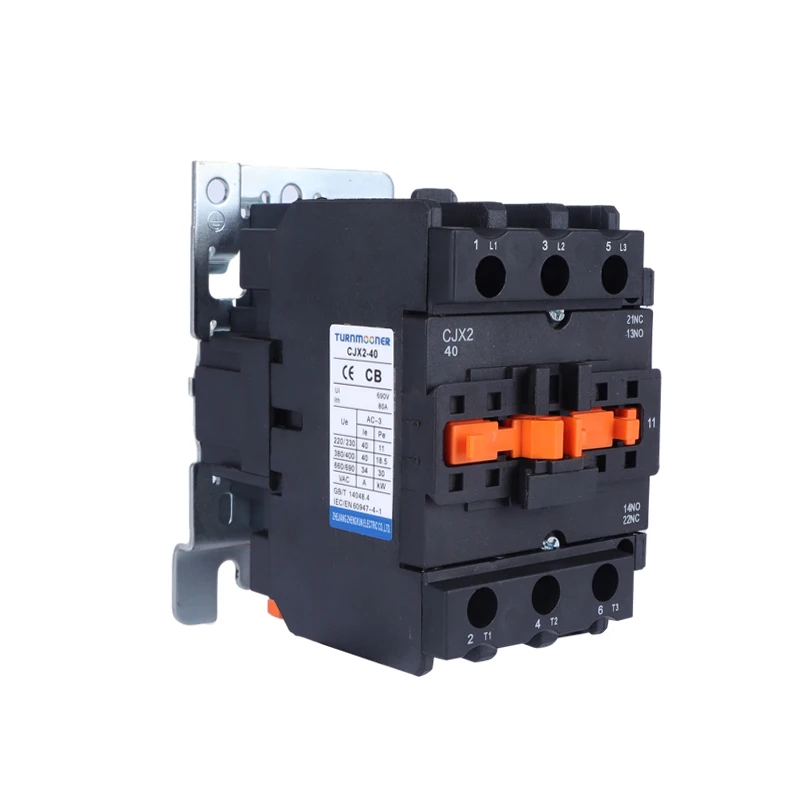

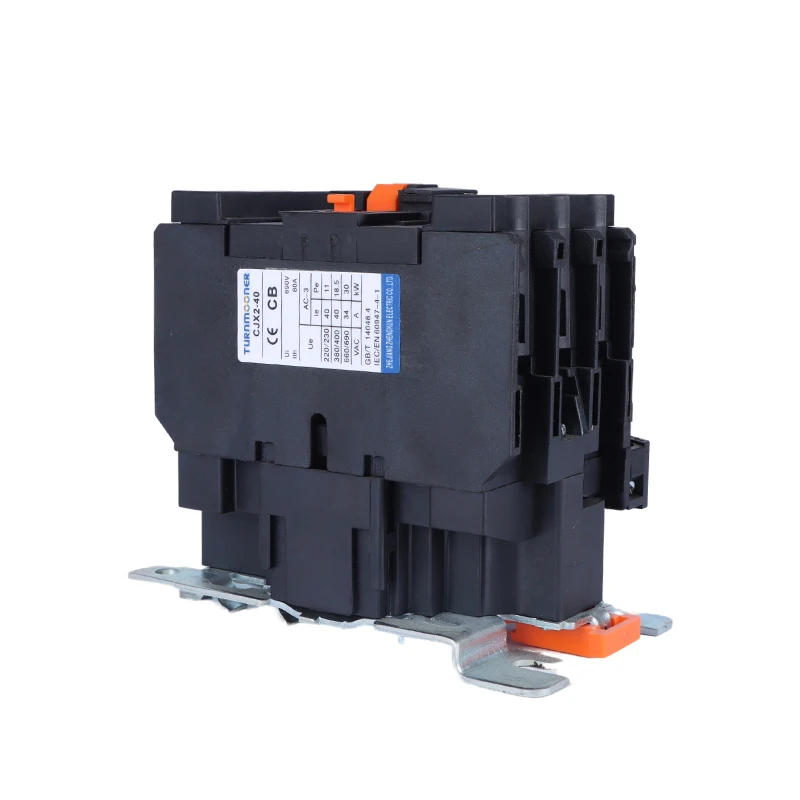

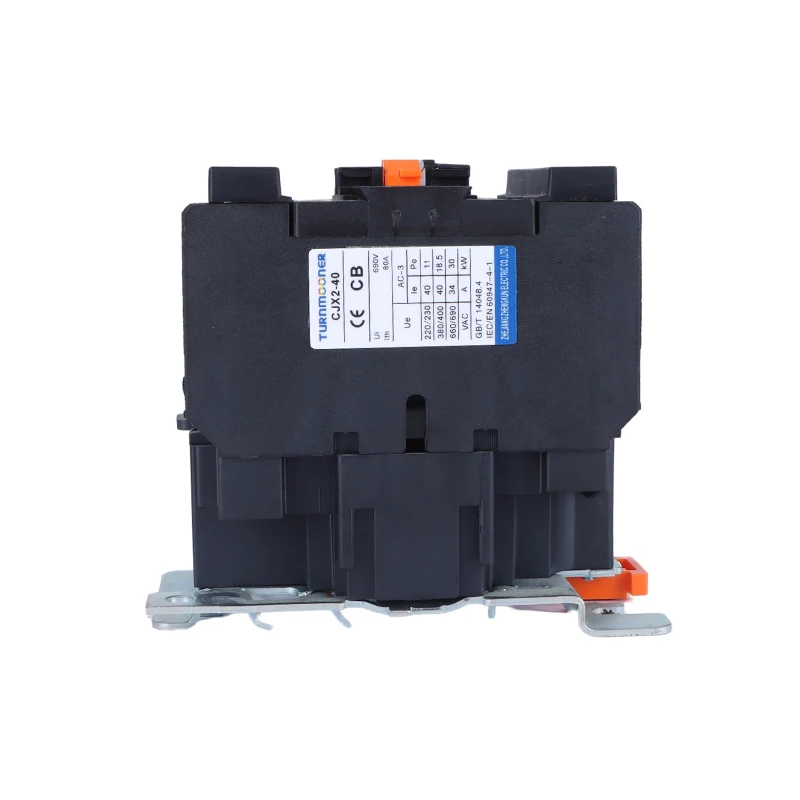

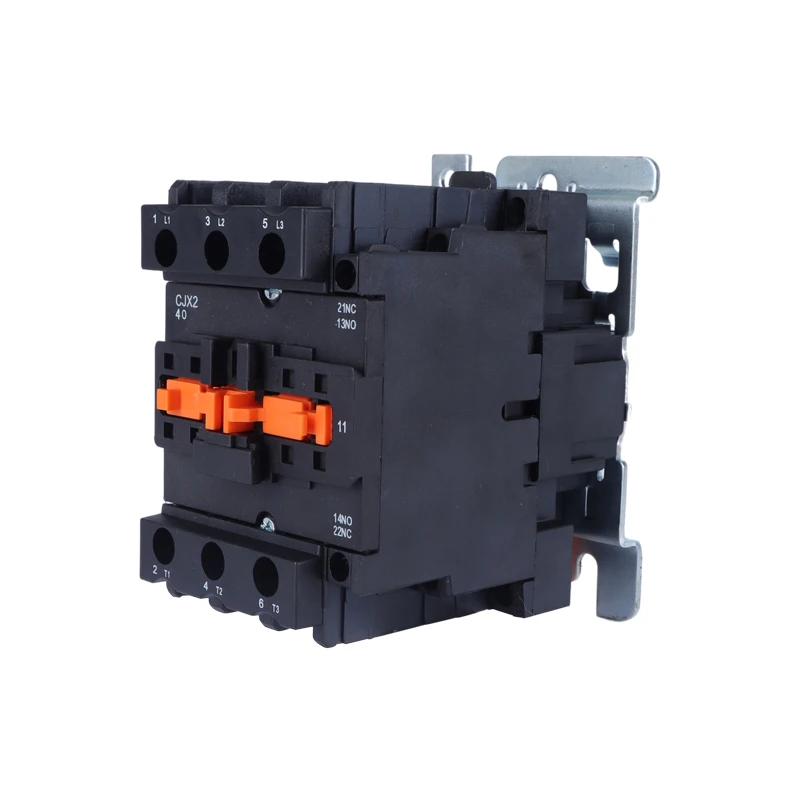

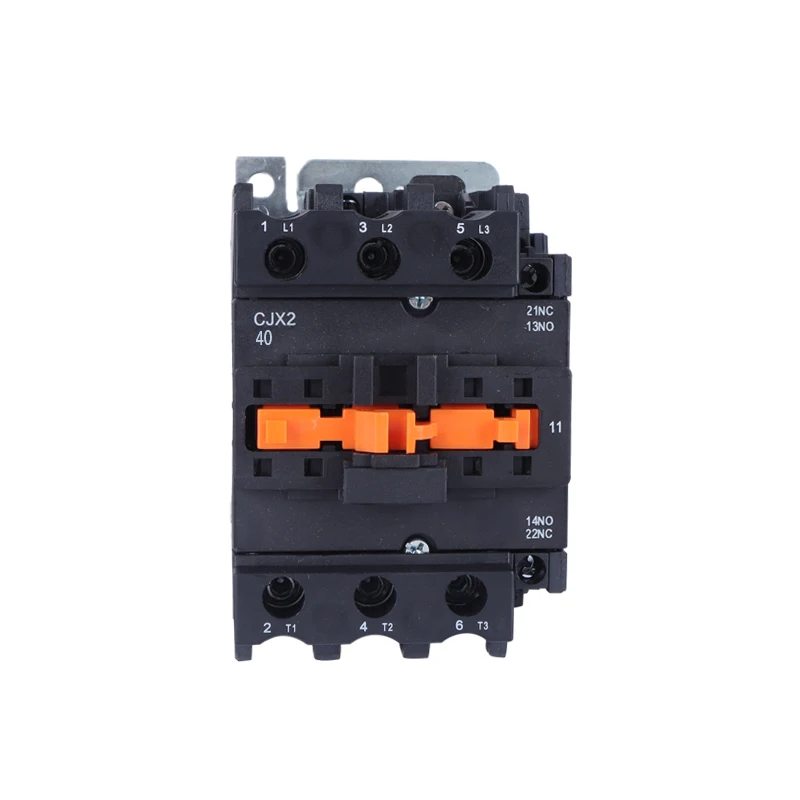

CJX2-40 высококачественный магнитный контактор переменного тока 50/60 Гц 220 В
- Категория: Contactors >>>
- Поставщик: Zhejiang,Zhengkun,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 9.76 $* | 9.85 $* |
| Jul-19-2025 | 7.13 $* | 7.5 $* |
| Jun-19-2025 | 9.99 $* | 9.31 $* |
| May-19-2025 | 9.89 $* | 9.18 $* |
| Apr-19-2025 | 7.42 $* | 7.4 $* |
| Mar-19-2025 | 9.60 $* | 9.83 $* |
| Feb-19-2025 | 8.22 $* | 8.13 $* |
| Jan-19-2025 | 8.81 $* | 8.31 $* |
Характеристики
Standard | IEC/EN60947-5-1 | ||||||||||
Model No. | CJX2-09 | CJX2-12 | CJX2-18 | CJX2-25 | CJX2-32 | ||||||
Rated Conventional Heating Current | Ith(A) | 20 | 20 | 32 | 40 | 50 | |||||
Rated Voltage UI(V) | Ui(V) | 690 | 690 | 690 | 690 | 690 | |||||
Rated Operation Current Ue=380/415V | AC-3 le(A) | 9 | 12 | 18 | 25 | 32 | |||||
AC-4 le(A) | 3.5 | 5 | 7.7 | 8.5 | 12 | ||||||
Power Controlled 3ph cage Motor AC-3 | 220/240V KW | 2.2 | 3 | 4 | 5.5 | 7.5 | |||||
380/415V KW | 4 | 5.5 | 7.5 | 11 | 15 | ||||||
660/690V KW | 5.5 | 7.5 | 10 | 15 | 18.5 | ||||||
Electrical life (×10³operations) | AC-3 | 1000 | 1000 | 1000 | 1000 | 800 | |||||
AC-4 | 200 | 200 | 200 | 200 | 200 | ||||||
Main circuit | 3P or4p | ||||||||||
Auxiliary circuit Cat.:AC-15,Ue=415V le=0.95A lth=10A | 1NO or 1NC | ||||||||||
Standard | IEC/EN60947-5-1 | ||||||||||
Model No. | CJX2-40 | CJX2-50 | CJX2-65 | CJX2-80 | CJX2-95 | ||||||
Rated Conventional Heating Current | Ith(A) | 60 | 80 | 80 | 100 | 125 | |||||
Rated Voltage UI(V) | Ui(V) | 690 | 690 | 690 | 690 | 690 | |||||
Rated Operation Current Ue=380/415V | AC-3 le(A) | 40 | 50 | 65 | 80 | 95 | |||||
AC-4 le(A) | 18.5 | 24 | 28 | 37 | 44 | ||||||
Power Controlled 3ph cage Motor AC-3 | 220/240V KW | 11 | 15 | 18.5 | 22 | 25 | |||||
380/415V KW | 18.5 | 22 | 30 | 37 | 45 | ||||||
660/690V KW | 30 | 33 | 37 | 45 | 45 | ||||||
Electrical life (×10³operations) | AC-3 | 800 | 600 | 600 | 600 | 600 | |||||
AC-4 | 150 | 150 | 150 | 100 | 100 | ||||||
Main circuit | 3P or4p | ||||||||||
Auxiliary circuit Cat.:AC-15,Ue=415V le=0.95A lth=10A | 1NO or 1NC | ||||||||||
Products Description
Similar recommendation
Company Profile
Our factory stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the managem ent and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
Our factory is in accordance with ISO 9000 International Quality System. All Products Have Certificate of Conformity for Electrical Equipment From Government and Have Won The Safety Approvals of CE ,CCC, CB,SGS...etc international Standard Test .
Our factory is in accordance with ISO 9000 International Quality System. All Products Have Certificate of Conformity for Electrical Equipment From Government and Have Won The Safety Approvals of CE ,CCC, CB,SGS...etc international Standard Test .
Logistics mode
FAQ
1.Could I put my own logo on it?
Sure, customers' logo can be made by laser, engraved, embossed, transfer printing etc.
2. Should I pay extra for logo printing ?
Normally usd 0.017/per color,according to the actual situation.
3.How about the quality ?
Acquire the CE ＆ SGS Certification.
100% QC in produce process and before package.
100% QC in produce process and before package.
4.Could I buy 1pc sample first and small order ?
Of course, support sample order and small order, especially for new customers under certain condition
5.How much for 1pc sample ?
Some cheap ones may free for 1pcs but need to see the actual stock.n
6.If I have my thoughts, do you have person to design according to my concept?
Certainly,our design team is willing to do for you.
7.How long to make a sample?
2-5 days which depends on the samples' complexity.
8.Is the sample fee refundable or not?
Sure, refundable once order confirmed.
