Горизонтальный скважинный многоступенчатый инструмент для проточных отверстий нефтяных месторождений Frac растворимый мостовой

Горизонтальный скважинный многоступенчатый инструмент для проточных отверстий нефтяных месторождений Frac растворимый мостовой

Категория: Packer >>>
Поставщик: Chongqing,Weiyun,Technology,Development,Co.,Ltd.Chongqing,Ltd.

Цена:1 500,00-1 900,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	1785.97 $*	1874.44 $*
Aug-17-2025	1770.64 $*	1859.98 $*
Jul-17-2025	1485.14 $*	1559.65 $*
Jun-17-2025	1740.83 $*	1827.23 $*
May-17-2025	1515.86 $*	1591.41 $*
Apr-17-2025	1710.32 $*	1796.79 $*
Mar-17-2025	1695.18 $*	1780.23 $*
Feb-17-2025	1680.45 $*	1764.4 $*
Jan-17-2025	1665.68 $*	1748.18 $*

Характеристики

Products Description

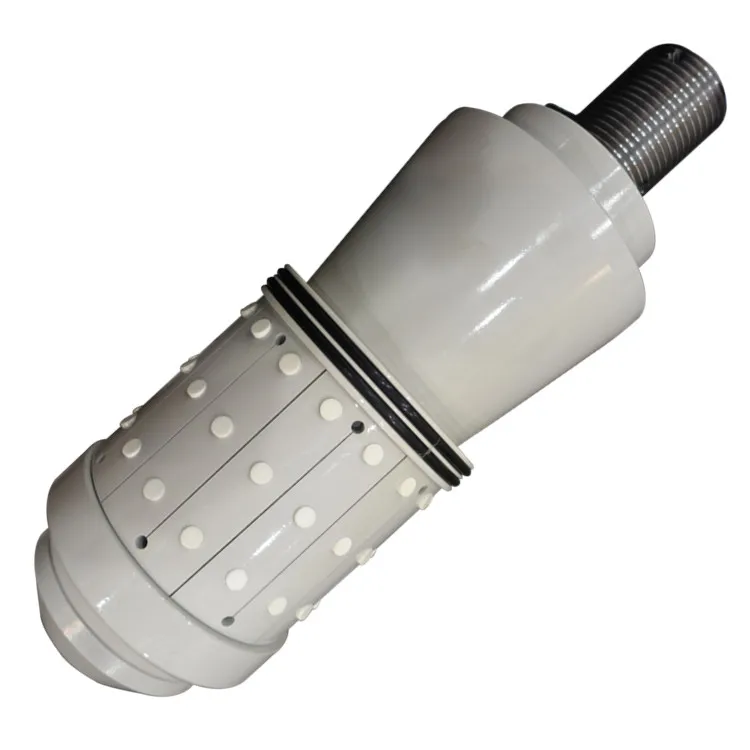

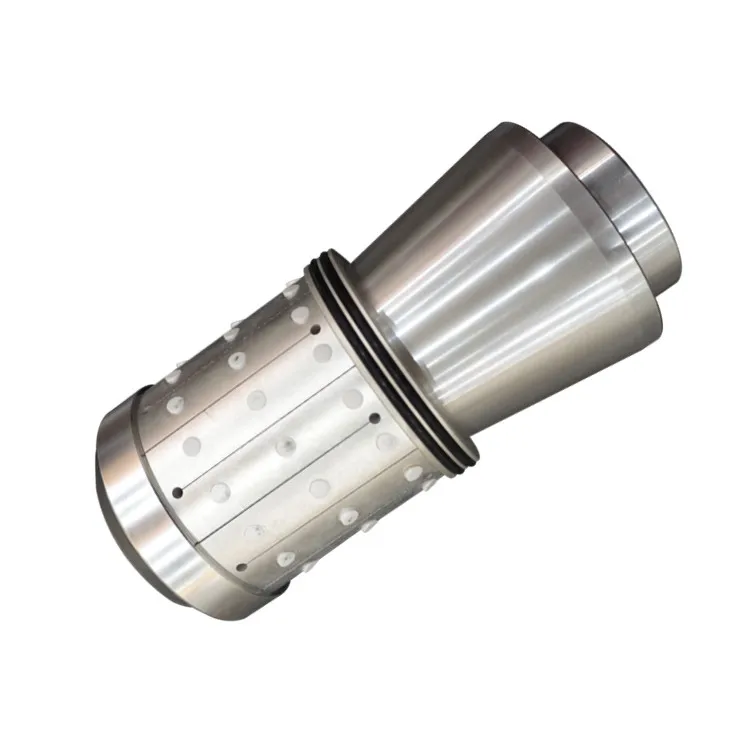

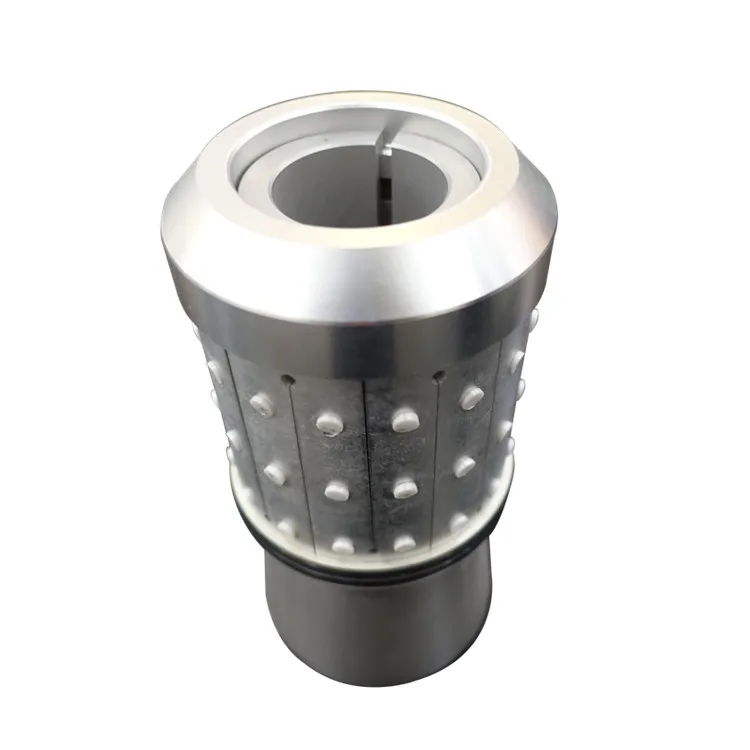

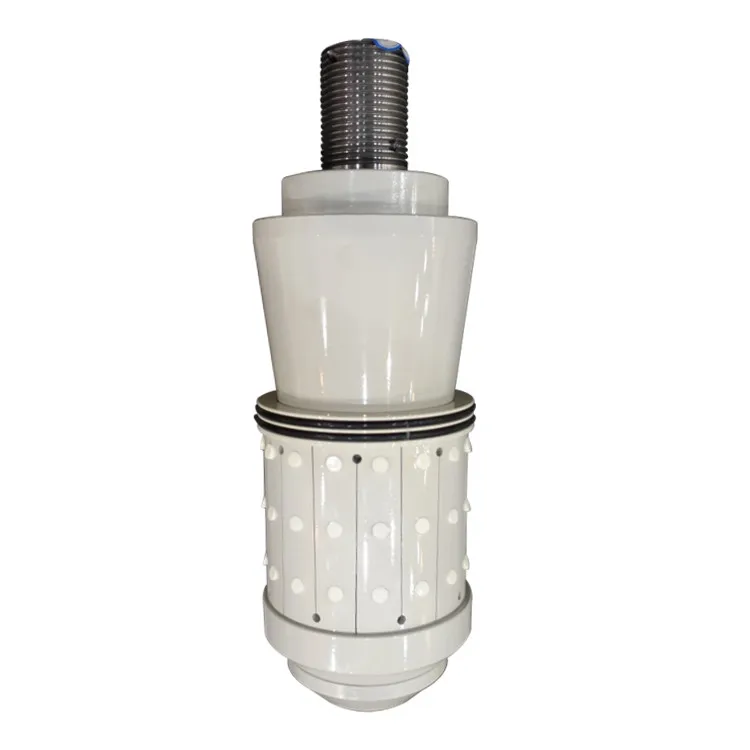

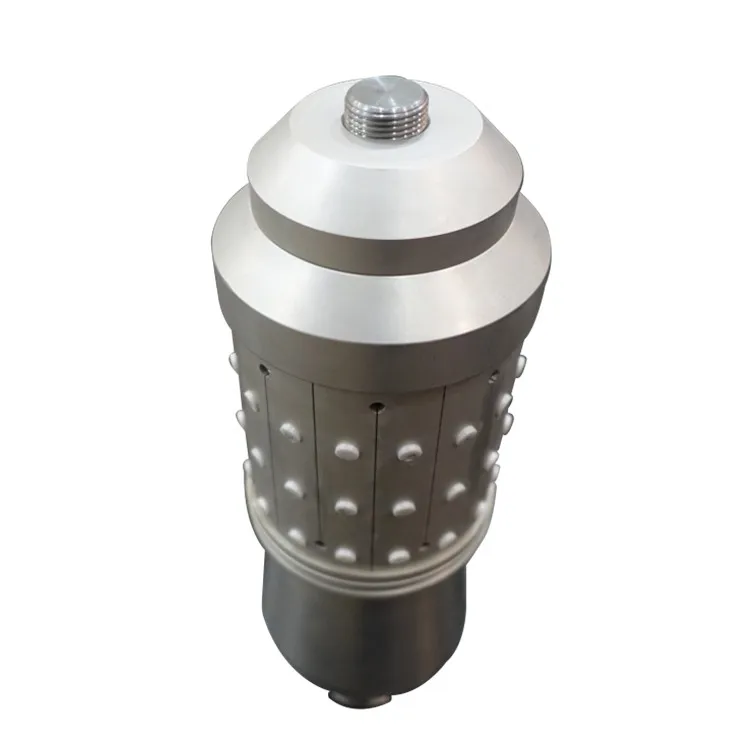

All-Metal Dissolvable Frac Plug
Horizontal well multi-stage efficient fracturing technology Unconventional oil and gas development tool

Mist Series-All-metal soluble bridge plug body is made of high-strength soluble magnesium alloy,and the sealing ring is made of soluble alloy material,the bridge plug can be completely dissolved after fracturing.
Purposes: Mainly used in vertical or horizontal well casing fracturing in layered sections,completion casing open hole layered sectioned fracturing construction or other temporary plugging operations.
Scope of application: suitable for high temperature or low temperature oil and gas wells,working temperature 20-180℃, sealing pressure performance over 90MPa,and dissolution rate after fracturing is controllable and adjustable.

Technical Features:

>Simple structure,easy to operate,with various specifications such as Φ72,Φ88,Φ98,Φ102,Φ108,Φ112,etc.,which can meet the needs of staged fracturing of different well diameters (customizable);
>Dissolution is only affected by stratum salinity;
>Compared with the rubber tube bridge plug,the body length is shorter,the inner diameter is larger,and it is easier to dissolve after fracturing;
>Adapt to Baker #10 & #20 setting tools,the length of the bridge plug body is short,and the displacement of the seat seal is short;
>Compared with the rubber-cylinder sealed type dissolvable bridge plug,it has "lower temperature resistance,higher high temperature resistance,20-160℃",dissolves more thoroughly after pressing,truly realizes "full soluble";
>Compared with similar foreign products,the advantage of "small diameter sealing large borehole" is obvious.

Model	Casing Inner Diameter (mm)	Body Length (mm)	Working Pressure (MPa)	Setting Tool	Working Temperature
HHY25R-85-70-M2	φ99.6 φ101.6	240	90	Brico#10	20-180℃
HHY25R-88-70-M2	φ104.8	255	90	Brico#10	20-180℃
HHY25R-98-70-M1	φ114.3	270	90	Brico#20	20-180℃
HHY25R-108-70-M1	φ121.4 φ124.3	310	90	Brico#20	20-180℃

Company Profile

Certifications

Recommend Products

Product packaging

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q6. Why do you choose us as your long term supplier?
A: Competitive price, excellent and stable quality, professional service team, fast delivery, good payment, big support for you to win more orders.
