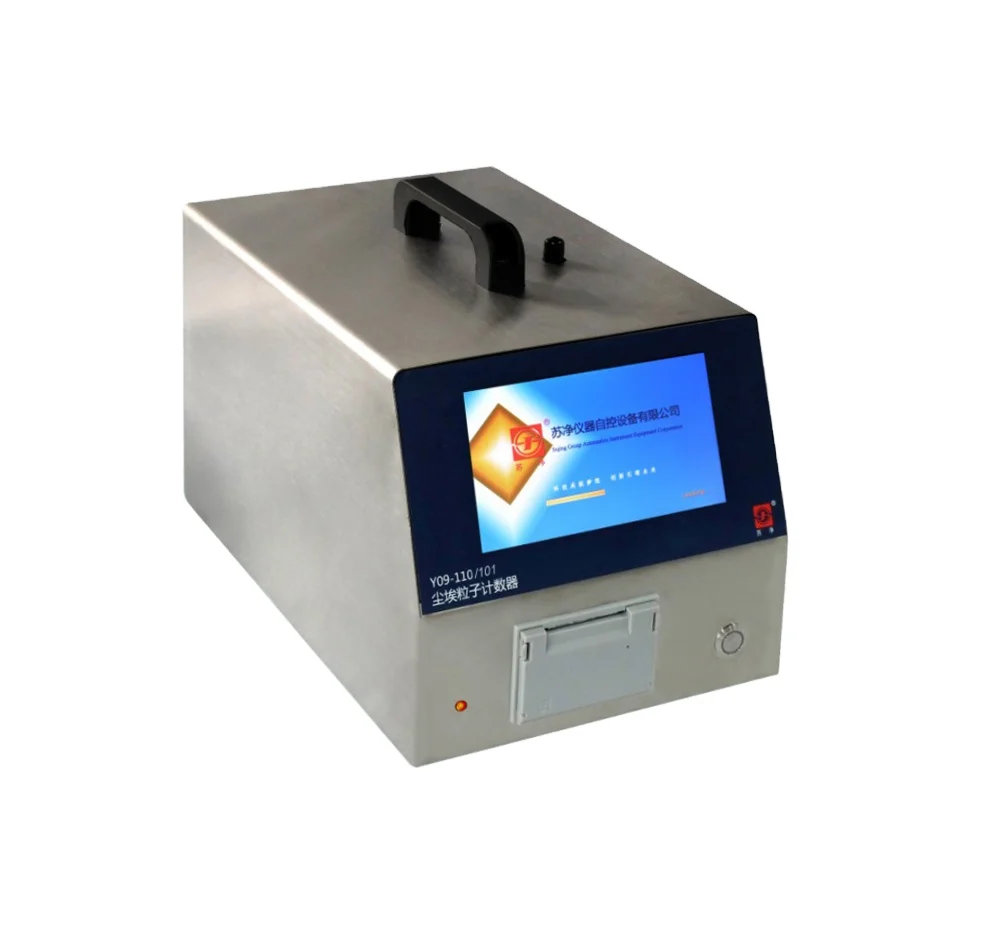

Y09-101/Y09-110 0.1uM Condensation Particle Counter In Cleanroom



The basic principle laser particle counter is the detection of optical sensor. After scattering by particles, the laser is received by photosensitive element and generates pulse signal. The pulse signal is output and amplified, and then digital signal processing is carried out. By comparing with standard particle signal, the comparison result is expressed with different parameters.



It is used to measure the number and size distribution of dust particles per unit volume in clean environment.



0.1μm Condensation Portable Air Particle Counter In Cleanroom is a laser diode-based true 0.1 micron (μm) particle counter with 1.00 CFM flow rate. It provides real-time measurement of yield-impacting particles with three configurations to meet your unique application needs.



The specification of Condensation Particle Counter



Specification	Y09-101 particle counter	Y09-110 particle counter
Outside Dim	300*360*126mm3 (width*length*high)
Display	7 inch color screen
Weight	6kg	7Kg
Max. Consumption	48W	80W
Power Source	AC 220V ± 10%
Size Channels	0.1, 0.2, 0.3, 0.5, 1.0 μm
Flow Rate	2.83L/min	28.3L/min
Zero Time	<=10min
Maximum Rated Particle Concentration	35000 particles/L
Environmental Temperature	Temperature :10 -35℃; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa



Features of Condensation Particle Counter

• 0.1 micron particle counters


• laser sensor


• Six size channels from 0.1 to 1.0 μm


• Saves up to 20,000 samples for review, sorting, data filtering and printing


• USB data download to flash memory key


• Built-in thermal printer


• Large, 7 inch touchscreen can be used when wearing gloves for simplified use


• Quiet blower/pump for portable applications


• Calculations and reports for ISO 14644-1

Application of Condensation Particle Counter

• Cleanroom and minienvironment airborne particle counting


• High-sensitivity applications


• Facility certification to ISO 14644-1 or FS 209E


• Troubleshooting/mobile applications


• Process gas monitoring (with High Pressure Diffuser)


• Ultraclean zones (ISO 1-2)









      Suzhou Sujing Automation Instrument Equipment Co., Ltd. (herein after referred to as Sujing Instrument) is boasting the largest market share in the particle measurement field in China, with complete integration of scientific research, development and production.

    Sujing Instrument is one subsidiary company of Sujing Group.(Sujing Group has 11 subsidiary companies)

    Sujing brand has been granted the honor of "China Famous Brand" since 1983. Sujing Group has been keeping the first place among competitors in the same industry for 35 years in a row.
    The mission of Sujing Instrument is to provide products and services accociated with particle measurement and monitoring, which are application driven.



Sujing instrument is an ISO 9001:2015 Registered Company
