110 В высокая прозрачная переключаемая смарт-пленка для окон автомобиля
US $90.00-$100.00
Pdlc пленка переключаемое стекло
- Категория: Decorative Films >>>
- Поставщик: Zhuhai,Singyes,New,Materials,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 70.34 $* | 71.88 $* |
| Jul-16-2025 | 57.6 $* | 58.87 $* |
| Jun-16-2025 | 69.56 $* | 70.73 $* |
| May-16-2025 | 68.65 $* | 69.13 $* |
| Apr-16-2025 | 54.20 $* | 55.81 $* |
| Mar-16-2025 | 67.2 $* | 68.36 $* |
| Feb-16-2025 | 67.27 $* | 68.68 $* |
| Jan-16-2025 | 66.9 $* | 67.57 $* |
Характеристики
Product Description

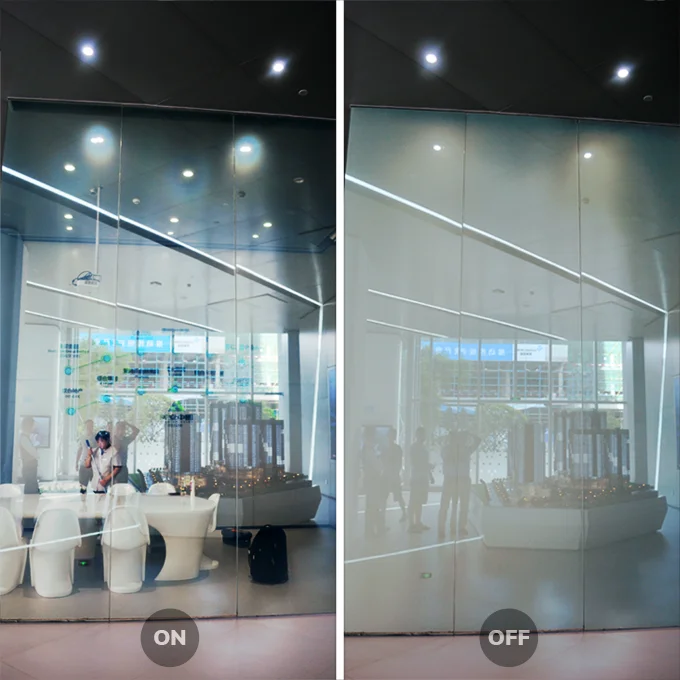

- OFF/Opaque, ON/Transparen
- High transparency with low haze
- Low energy consumption, 4W/SQM
- Water proof &Heat resistance
- Various of sizes for options
- Specification
| Item | Unit | Criteria | Test Method and Standard | |
| Rated Voltage | ON | V | 36 / 48 / 60 (AC50Hz) | Multimeter |
| Power Consumption | ON | w/sq.m | 1.5 / 2.5 / 4.0 | Multi - parameter Measuring Instrument |
| Visible Light Transmittance | ON | % | >80 | GB/T 2680-94 |
| OFF | % | >65 | ||
| Directional Light Transmittance | ON | % | >78 | GB5137.2-2002 |
| OFF | % | <3 | ||
| Haze | ON | % | <3 | GB/T 2410-2008 Spectrophotometer |
| OFF | % | >95 | ||
| Response Time | ON | ms | <45 | Liquid Crystal Multi - parameter Measuring Instrument |
| OFF | ms | <200 | ||
| Viewing Angle | ON | ° | >160 | Visual Inspection |
| UV Blocking Rate | ON | % | 99 | ISO 9050-2003 |
| OFF | % | 99 | ||
| Minimum Privacy Distance | OFF | cm | 3 | Visual Inspection |
| Appearance Quality | / | Passed | GB 15763.3-2009 | |
| Size Tolerance | mm | Passed | ||
| Heat Resistance | / | Passed | GB 15763.3-2009 | |
| Humidity Resistance | / | Passed | ||
| Radiation Resistance | / | Passed | ||
| Falling-ball Impact Peel Performance | / | Passed | ||
| Shotgun Bag Impact | / | II-1 | ||
| Sound Insulation | / | >35dB | GB 18910.1-2002 | |
| Heat Insulation | / | >class 2 | GB 8484-2008 | |
| Vibration Performance | / | Passed | GB 6382.1-1995 | |
| Lifespan | ON | h | >80 thousand | GB 18910.5-2008 |
| Switching Times | Times | >2million | GB 18910.5-2008 | |
Applications
- Hotel
Office
Hospital
Bank
- Windows
Skylight
- Auto
Projection System in the show
- Projection System in shopwindow
- Projection System in Subway
Company Information
- WHY US
- Class 100 dust-free workshop.
- All of our PVB glue and PDLC film raw material are imported from Japan
- Our group have institute for developing product.
- We not only produce ITO by ourselves,but also sell ITO film to customers
- Super large width smart film over 2M
