Машинка для выравнивания
- Категория: Body Repair Equipment >>>
- Поставщик: Shandong,UM,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 351476.74 $* | 369050.8 $* |
| Aug-16-2025 | 348522.53 $* | 365948.89 $* |
| Jul-16-2025 | 292404.47 $* | 307024.59 $* |
| Jun-16-2025 | 342615.11 $* | 359746.41 $* |
| May-16-2025 | 298312.96 $* | 313228.51 $* |
| Apr-16-2025 | 336708.77 $* | 353543.79 $* |
| Mar-16-2025 | 333755.48 $* | 350443.94 $* |
| Feb-16-2025 | 330801.88 $* | 347341.71 $* |
| Jan-16-2025 | 327847.95 $* | 344239.83 $* |
Характеристики
Product Description
The prices online are just for reference, the accurate price is determined by several factors, like the quantity, specification, and configuration of the products.
Please feel free to contact us, we will offer you a accurate price!!
Please feel free to contact us, we will offer you a accurate price!!
Product Paramenters | ||||
MEASUREMENT ITEMS | MEASUREMENT ACCURACY | MEASUREMENT RANGE | ||
TOTAL TOE-IN | ±0.01° | ±40° | ||
EXTERNAL BEVEL | ±0.01° | ±45° | ||
CASTER | ±0.02° | ±45° | ||
S.A.I | ±0.02° | ±45° | ||
THRUST ANGLE | ±0.01° | ±40° | ||
SET BACK | ±0.01° | ±40° | ||
MAX. STEERING ANGLE | ±0.02° | ±50° | ||
WHEEL TRACK | ±2MM | 1219MM-2438MM | ||
WHEEL BASE | ±2MM | 2006MM-4572MM | ||

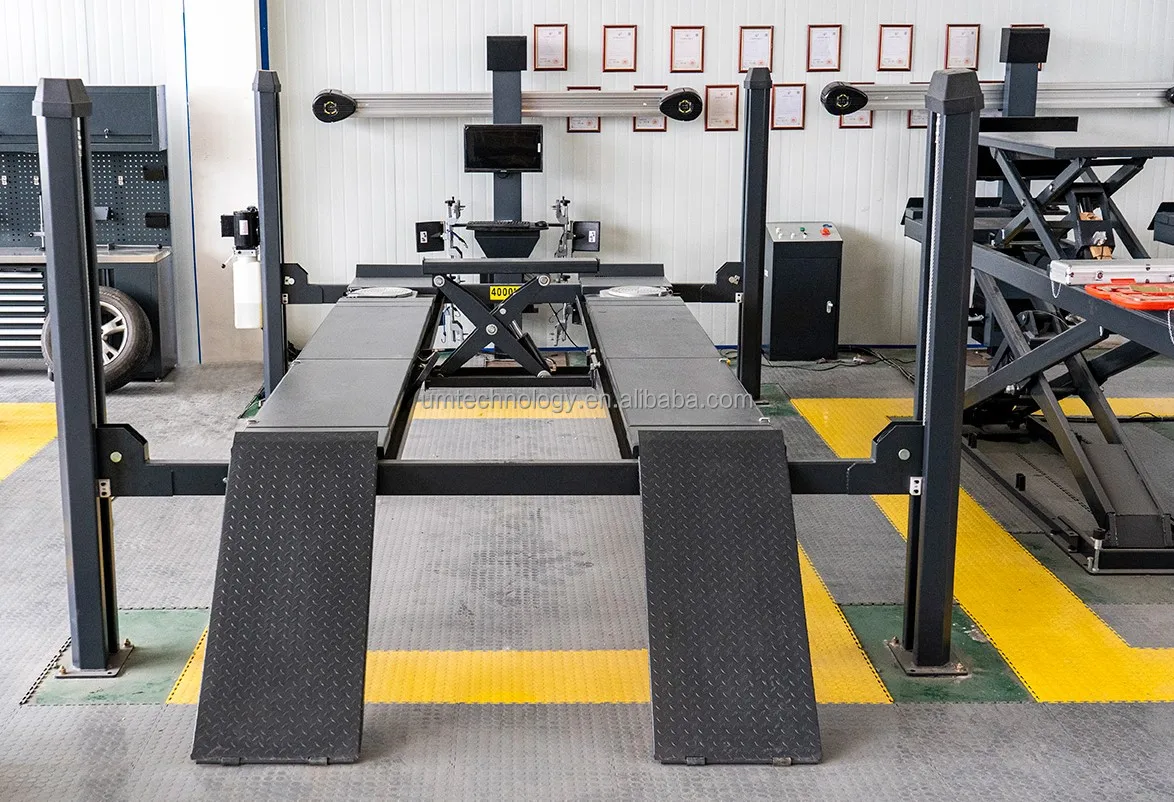

Lifting capacity | Lfting height | Second lifting height | Platform length | Platform Width | Power supply | MotorPower | Rated hydraulic pressure | Weight |
4000KG/5000KG | 1500mm | 450mm | 4200mm/4500mm/5000mm | 550mm | 220V-380V | 2.2KW | 18MPA | 1186KG/1210KG/1300KG |

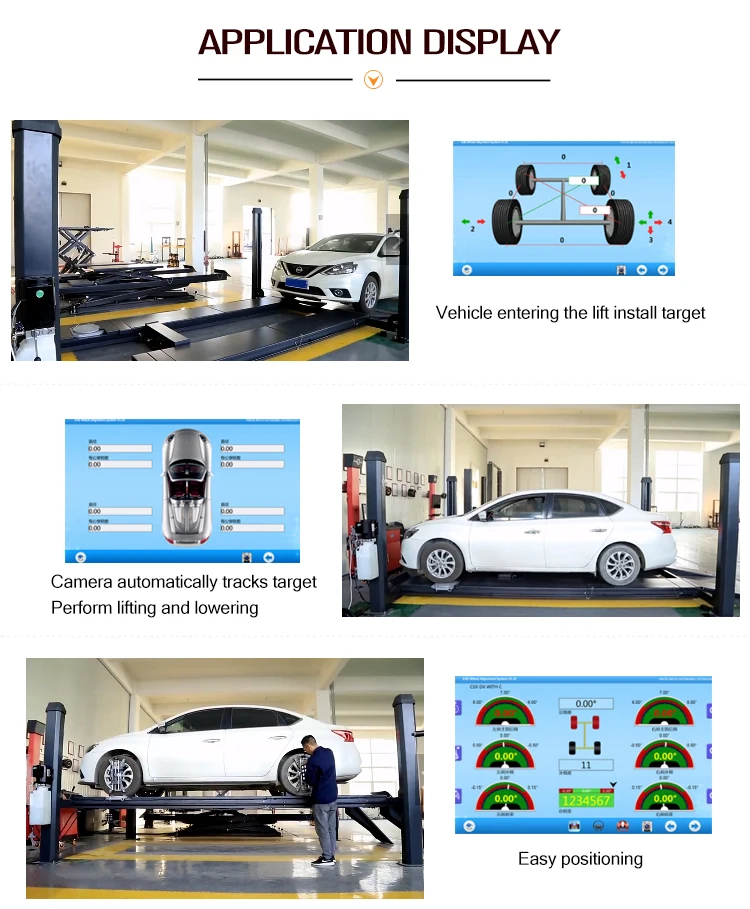

1. Global vehicle's original database: Owning more than 25,000 original vehicledatabase from different region around the world.
2. Data preview:Front , rear wheel's measurement resultcan be displayed in oneinterface.
3. Assistant 3D animationfor adjusting.
4. Alignment history : quick search for vehicle registration number and customer.
5. Special function detection & accident vehicle measurement system.
6. New material panel,which can reduce the interference of external light,make sure the data more accurate more stable.
7. Video speed camera technology for afaster and more responsive alignment system.
Please consult the product manager for more product functions and introductions!
2. Data preview:Front , rear wheel's measurement resultcan be displayed in oneinterface.
3. Assistant 3D animationfor adjusting.
4. Alignment history : quick search for vehicle registration number and customer.
5. Special function detection & accident vehicle measurement system.
6. New material panel,which can reduce the interference of external light,make sure the data more accurate more stable.
7. Video speed camera technology for afaster and more responsive alignment system.
Please consult the product manager for more product functions and introductions!

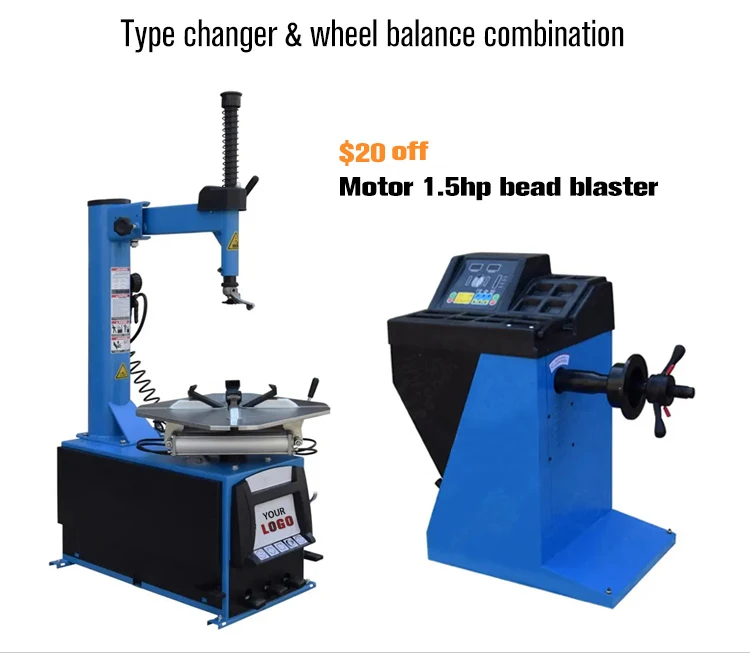

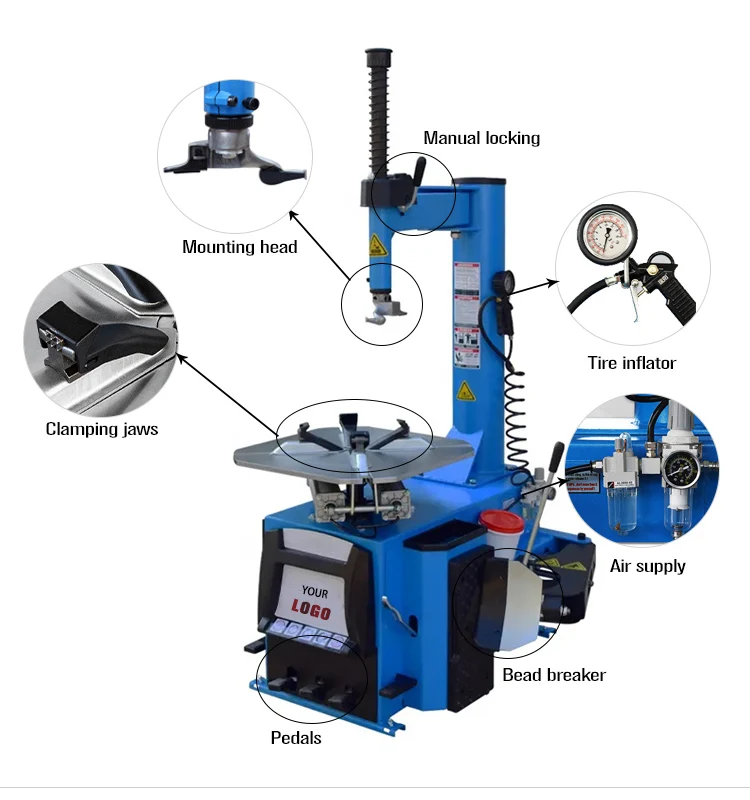

Tire Changer JT-600 | Wheel Balancer JW-100 | ||||
External Rim Size | 12"-22" | Rim Diameter | 12"-24" | ||
Internal Rim Size | 12"-24" | Max. Tire Diameter | 38.5"(980mm) | ||
Max. Wheel Diameter | 44.88"(1140mm) | Tire Width | 15" | ||
Tire Width | 4"-13"(101-330mm) | Max.Tire Weight | 70kg(154lbs) | ||
Bead Breaker Force | 2500kgs(5,500lbs) | Rotation Speed | 180rpm | ||
Working Pressure | 8-10bar | Balance | 7 s | ||
Motor Power | 1.1kw | Motor Power | 0.25kw | ||
Power Supply | 110V/120V/220V/240V | Power Supply | 110V/120V/220V/240V | ||
Machine Size | 1100X1200X1800mm | Machine Size | 1080X550X920mm | ||
Packing Size | 1120X900X1000mm | Packing Size | 1100X800X1100mm | ||
N.W/G.W | 225kg/260kg(496lb/573lb) | N.W/G.W | 98kg/125kg(216lb/275.6lb) | ||
Product packaging
Company Profile
Shandong UM Technology Co.,Ltd is a professional manufacture of auto body repair system, auto lift,
tire changer and other auto inspection instruments. Except the ISO9001, our products has also been approved with CE certificate.The auto body repair system made by UM has been widely exported all over the world and are widely used in all kinds of repair shops and 4S vehicle maintenance
stations.
stations.
Welcome choose us to customize what you need.Let us work together to create a new era of development of the industry.
FAQ
Q: How do you control your production quality?
A: We have an independent QC team. Our QC teams do sample inspection, part inspection during production and 100% final inspection before each shipment.
Q: May I know the Lead time?
A:The lead time of our machine is 7 to 20 days.
Q: What is your payment terms?
We accept Alibaba Trade Assurance, TT, LC, etc.
Q: Can you provide the whole workshop automotive equipment?
A: Yes. we have 8 series contains nearly all automotive equipment. Also we have helped many customers to open their body shop.
Q: How long is the warranty?
A: Our warranty is 12 months, we will send free parts for replacement in warranty, supply spare parts for lifetime.
A: We have an independent QC team. Our QC teams do sample inspection, part inspection during production and 100% final inspection before each shipment.
Q: May I know the Lead time?
A:The lead time of our machine is 7 to 20 days.
Q: What is your payment terms?
We accept Alibaba Trade Assurance, TT, LC, etc.
Q: Can you provide the whole workshop automotive equipment?
A: Yes. we have 8 series contains nearly all automotive equipment. Also we have helped many customers to open their body shop.
Q: How long is the warranty?
A: Our warranty is 12 months, we will send free parts for replacement in warranty, supply spare parts for lifetime.
