Product Overview

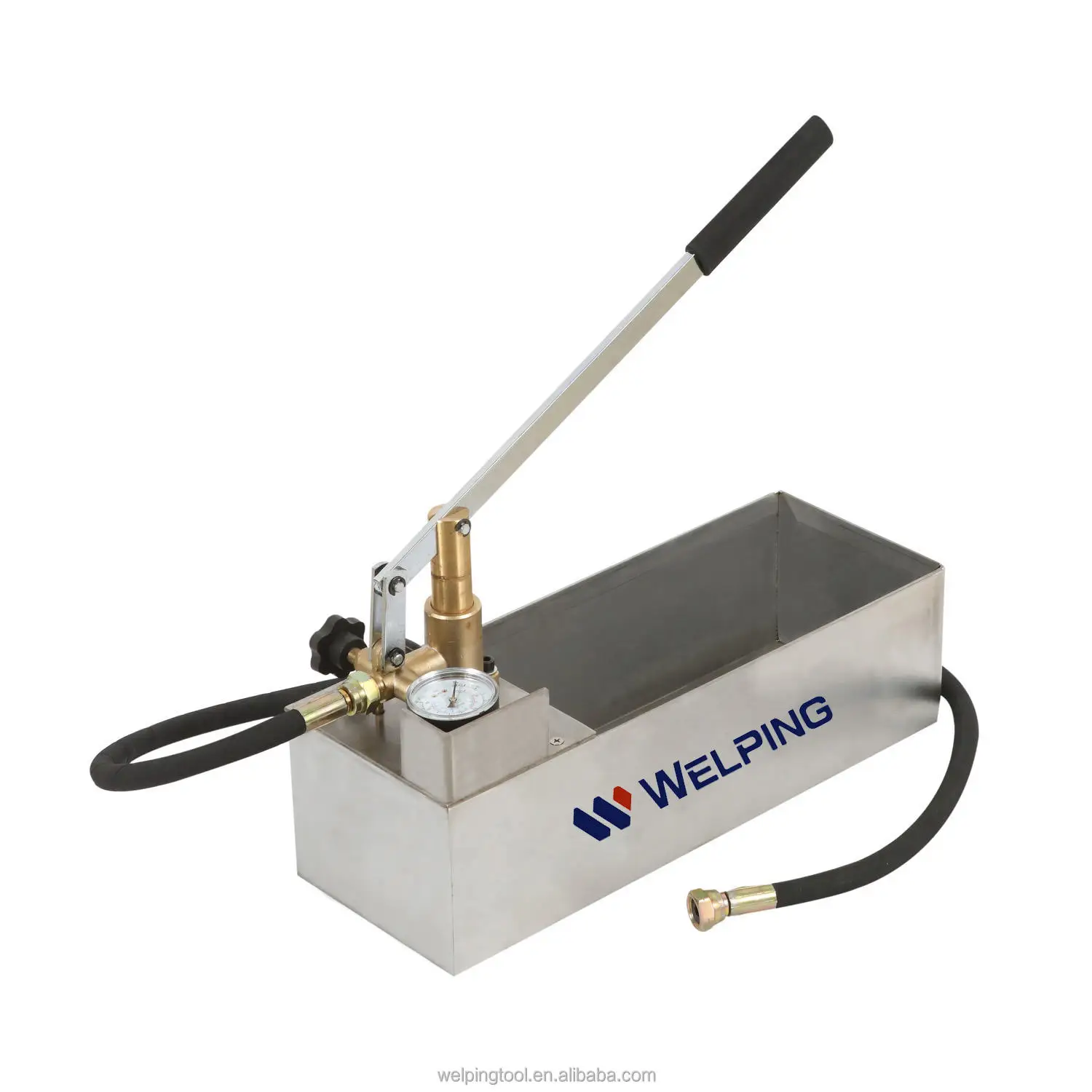

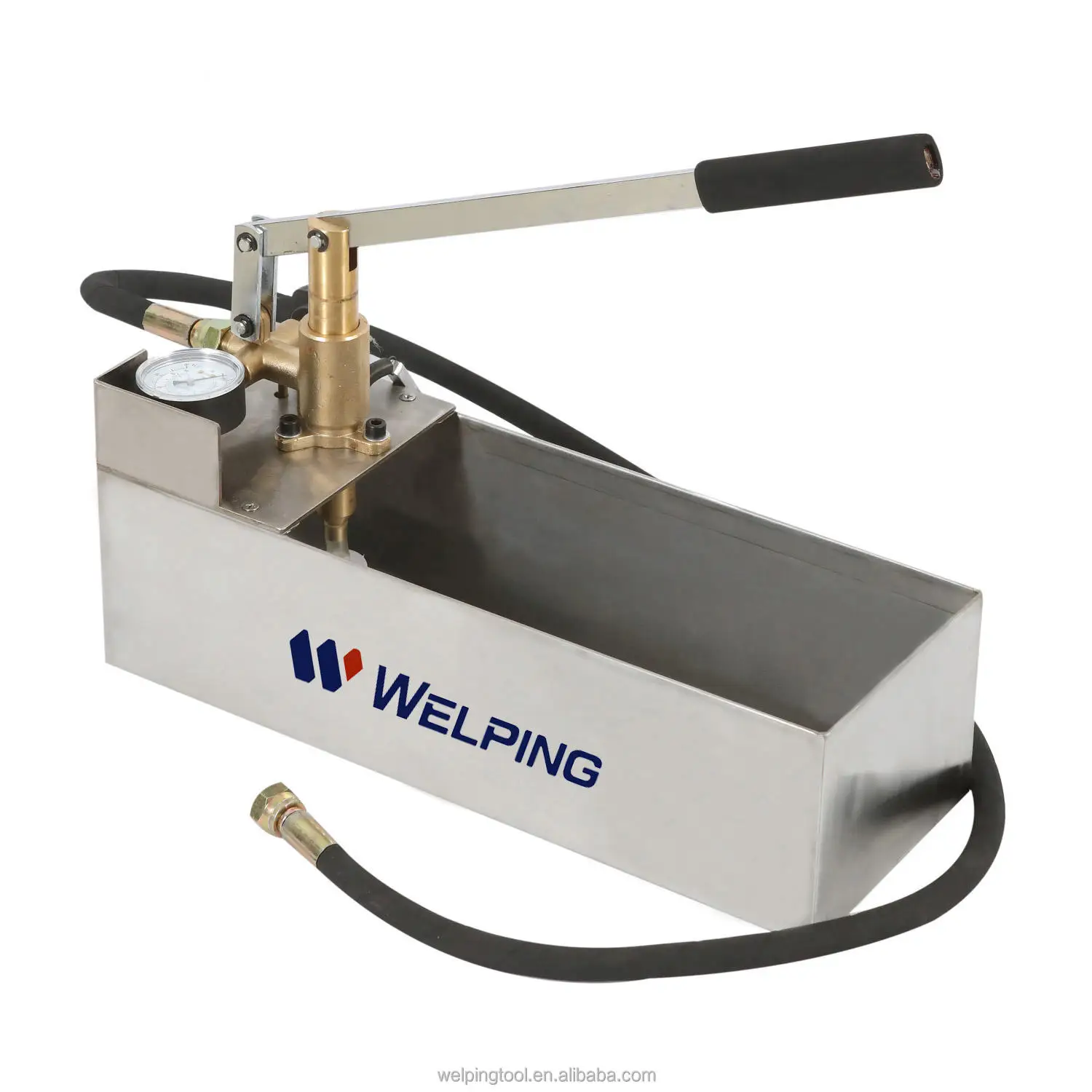

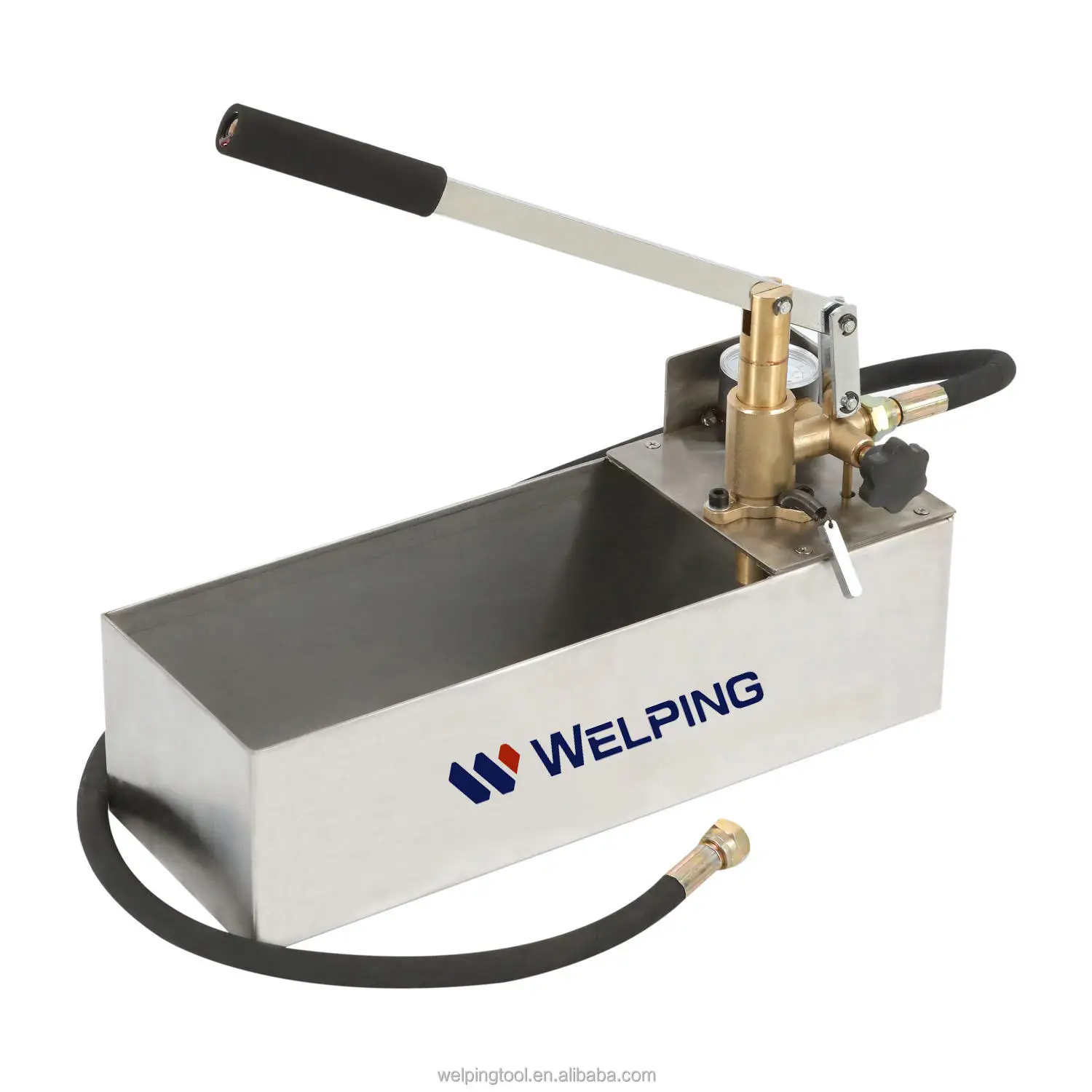

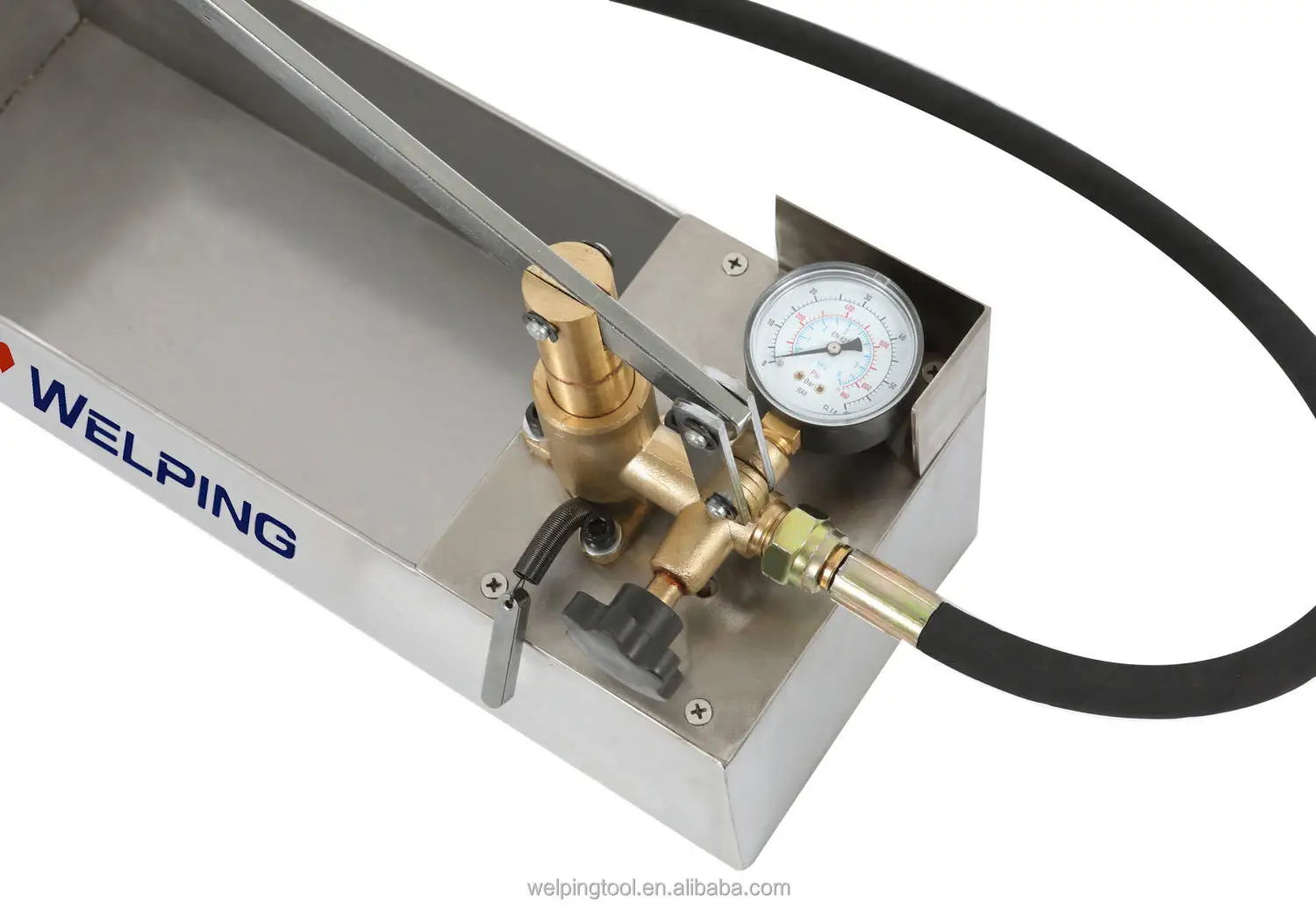

Stainless Steel Pressure Test Pumps 0-60 bar
The hand pressure test pump is usd for verification and testing of leaks in installations, especially for use in heating, compressed air, refrigeration systems, oil inslallations, sprinkler systems, plumbing, sanitary and hydraulic systems and other small bore pipe applications
in compliance with the technical regulations in force, up to 60 bar and can be customized, equipped with stainless steel tank capacity (12 L), horizontal.
Can also be used for small transfer, fillings, and pressurisation of the closed systems.

- Large capacity tank: 12 L
- Finely scaled (scaling 0.1 bar) pressure gauge is optional.
- A drag indicators displays the preset pressure so that a loss of pressure in the system can be detected easier.
- Robust precision testing pump for pressure testing of water lines and containers up to 60 bar.
- Test Pump with high compression hose. No measuring errors which will be caused by expansion of the hose.
- Reliable and precise measurement results: Test pump with double valve system (twin valve) allows self-testing of the pump, as well as a precise fine adjustment of the pressure.
- Can pump water and non acids liquids, i.e. antifreeze solutions


Productiion Specifications





HSY30-5S pressure test pump

0-60 bar with with stainless steel bucket

HSY30-5SS test pump in light wight and compact design. Easy to carry. Will be your good tool to test in confined spaces.


Production Specification
Model:
HSY30-5S
Testing range:
0-60 bar( 860 psi,6 MPa )
Tank capacity:
12 L
Connections:
1/2" BSPP
Water tank:
Stainless Steel
Volume/stroke:
≈45 ml
Piston
aluminum / brass
lift of pump
5m
Weight
8 kgs
Packing size (cm)
52*18*31




Product Features







12 L Water Tank
Reinforced stainless steel water tank:
resistant to rusk
Can pump water and non acids liquids, i.e. antifreeze solutions

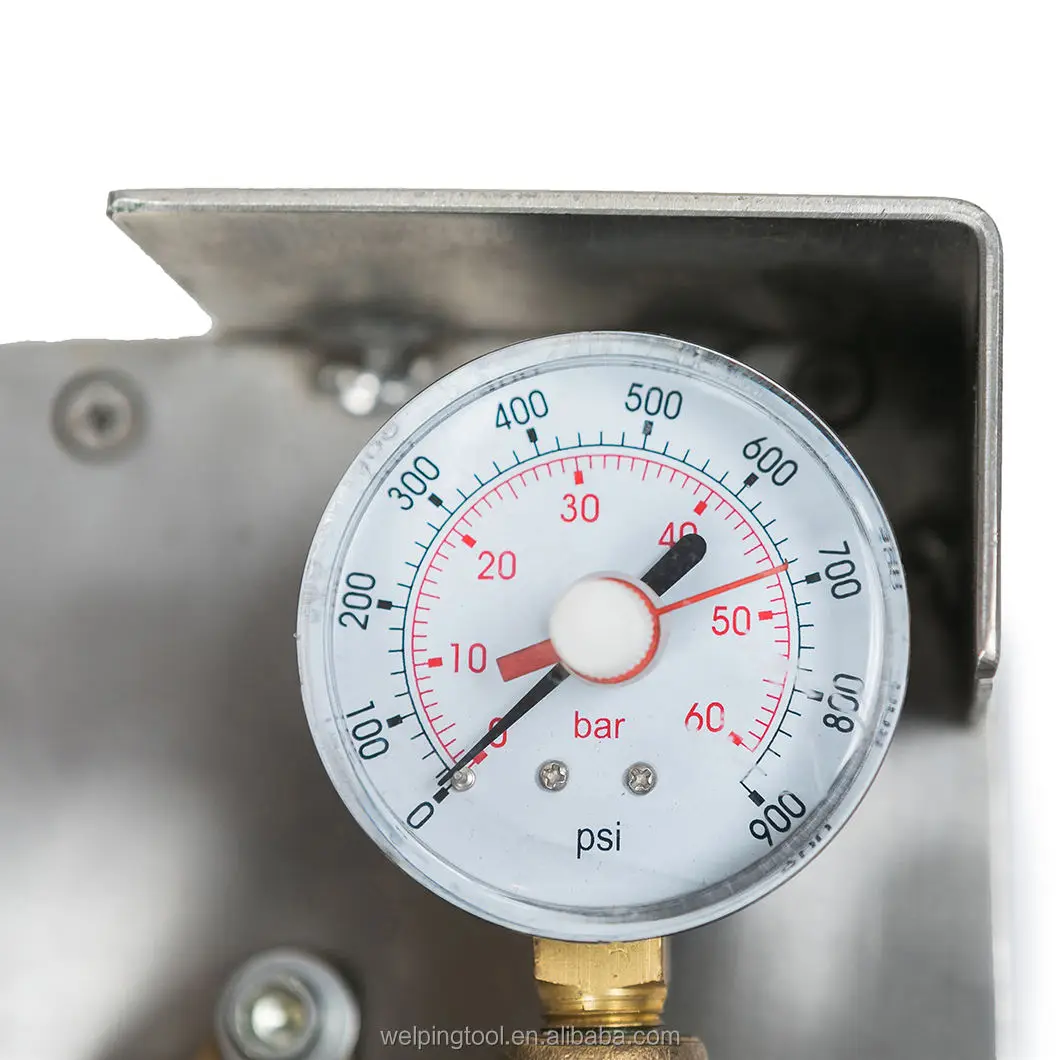

Pressure Gauge
Finely scaled (scaling 0.1 bar)
Economical, practical, safe and rest assured.
Newly upgraded dial with clear scale.
SImple and intuitive, accurate data display.
Not only shows in BAR but also PSI








High Compression hose
1. High compression resistance
2. Anti-aging
3. Not easy to crack
No measuring errors which will be caused by expansion of the hose.









Locking Pin
Easy to carry also on the job
thanks to lever locking system








Microfilter inlet protected against dirt,
to ensure a better functioning










Product packaging




Test Pumps
Length (cm)
Width (cm)
Height (cm)
N.W.(kg)
G.W.(kg)
HSY30-5S
52
18
31
8
9


Applications






Series Product


Manual Testing Pumps
Model No.
Catalog
No.
Testing range
Piston
Tank
capacity
Volume
/stroke
Connections
Water tank
RP50S
770010
0-60 bar( 860 psi,6 MPa)
aluminum
12L
≈45 ml
1/2″ BSPP
steel
RP50
770011
0-60 bar( 860 psi,6 MPa)
aluminum
12L
≈45 ml
1/2″ BSPP
steel
HSY30-5
770020
0-60 bar( 860 psi,6 MPa)
aluminum
12L
≈45 ml
1/2″ BSPP
steel
HSY30-5S
770022
0-60 bar( 860 psi,6 MPa)
aluminum
12L
≈45 ml
1/2″ BSPP
Stainless steel
Electric testing Pump
Model No.
Catalog
No.
Testing range
Power
Tank
capacity
Water flow
Connections
Water tank
WP-390E
770030
0-50 bar( 726 psi,5MPa )
1.6KW 220V
18L
10L/Min
1/2″ BSPP
steel
WP-390E
770031
0-50 bar( 726 psi,5MPa )
1.6KW 110V
18L
10L/Min
1/2″ BSPP
steel
WP-390ES
770032
0-50 bar( 726 psi,5MPa )
1.6KW 220V
18L
10L/Min
1/2″ BSPP
Stainless steel
WP-390ES
770033
0-50 bar( 726 psi,5MPa )
1.6KW 110V
18L
10L/Min
1/2″ BSPP
Stainless steel
WP-1800E
770034
0-60 bar( 860 psi,6MPa )
3KW 220V
32L
20L/Min
1/2″ BSPP
steel
WP-1800E
770035
0-60 bar( 860 psi,6MPa )
3KW 110V
32L
20L/Min
1/2″ BSPP
steel


RP50S
0-60 bar( 860 psi,6 MPa)
12L Steel Tank

RP50
0-60 bar( 860 psi,6 MPa)
12L Steel Tank
HSY30-5
0-60 bar( 860 psi,6 MPa)
12L Steel Tank






HSY30-5S
0-60 bar( 860 psi,6 MPa)
12L Stainless Steel Tank


WP-390E
0-50 bar( 726 psi,5MPa )
18L Steel Tank
Power: 1.6KW
Water flow: 10L/Min
WP-390ES
0-50 bar( 726 psi,5MPa )
18L Steel Tank
Power: 1.6KW
Water flow: 10L/Min
WP-1800E
0-60 bar( 860 psi,6MPa )
32L Steel Tank
Power: 3KW
Water flow: 32L/Min
