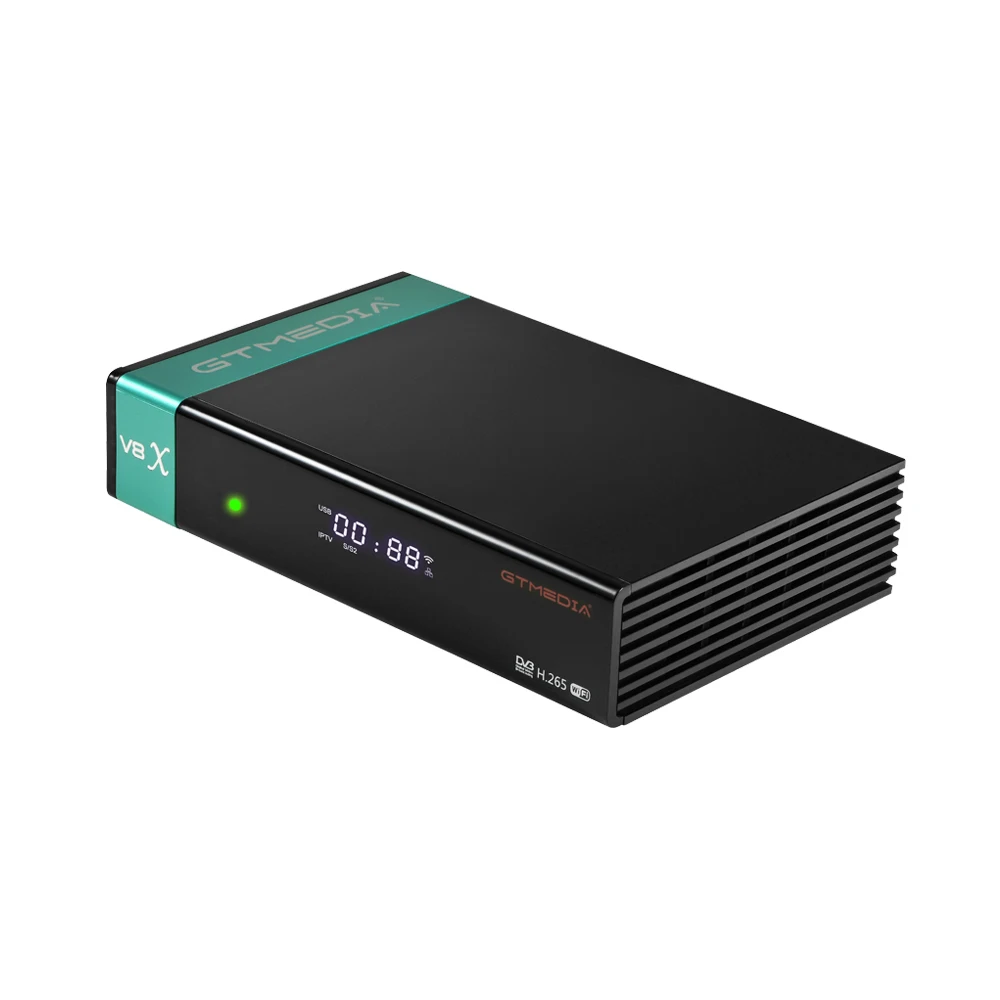

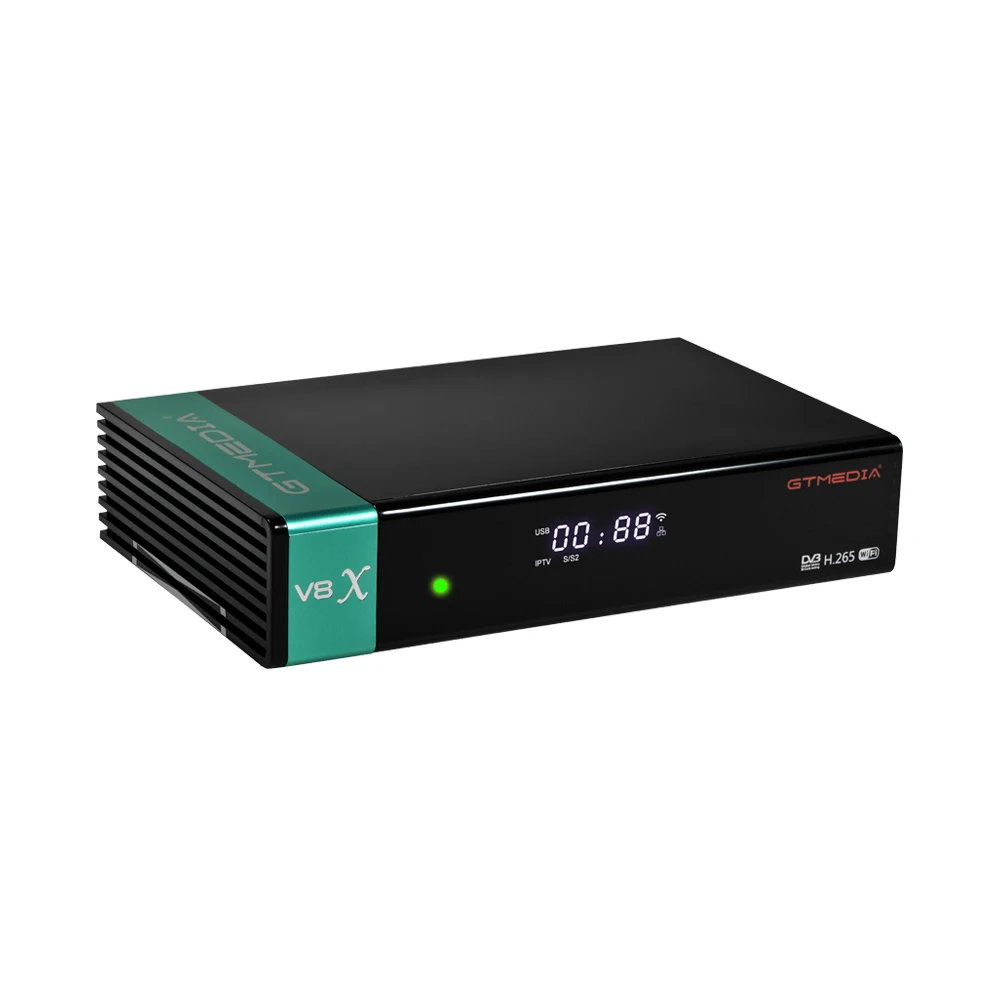

Спутниковый ТВ-приемник GTmedia V8X DVB S2/S2X H.265 встроенный модуль Wi-Fi 2 4 ГГц со слотом для карты
- Категория: Satellite TV Receivers >>>
- Поставщик: Shenzhen,Bits,Information,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 37.77 $* | 38.43 $* |
| Jul-17-2025 | 30.34 $* | 31.44 $* |
| Jun-17-2025 | 36.52 $* | 37.29 $* |
| May-17-2025 | 36.51 $* | 37.88 $* |
| Apr-17-2025 | 29.57 $* | 30.68 $* |
| Mar-17-2025 | 35.92 $* | 36.15 $* |
| Feb-17-2025 | 35.89 $* | 36.78 $* |
| Jan-17-2025 | 35.95 $* | 36.53 $* |
Характеристики
Products Description
Product Paramenters
Main Chip Sets | CPU | 770MHz Dual Core | ||||||||||
Flash Memory | 64MB SPI Flash | |||||||||||
DDR2 Memory | 1G RAM | |||||||||||
TS Demux | Demultiplexer | ISO/IEC 13818-1 | ||||||||||
Input Bit Rate | Max 100Mbit/s | |||||||||||
Video Decode | Video Decode | HEVC main profile@level 4.1 and main10 profile@L4.1,High tier MPEG-2 MP@ML H.264 BP,MP&HP@L3/L4.1/L4.2 AVS Jizhun profile and broadcast profile MPEG-4 SP profile, advanced simple profile@L5 VC1 SP@ML, MP@HL, AP@L0-3 H263 baseline profile JPEG decoder | ||||||||||
TV System | Automatic PAL/NTSC conversion | |||||||||||
Aspect Mode | Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box | |||||||||||
Video effects | Standard, Default, Vivid. | |||||||||||
Video Resolution | 1080P, 1080I, 720P, 576P, 480P, 576I, 480I | |||||||||||
HDMI Color Space | RGB, YUV422, YUV444, Auto | |||||||||||
Audio Decode | Audio Decode | MPEG-1/2 Layer 1/2/3, MPEG-2/4 LC-AAC, MPEG-4 HE-AAC, Dolby AC3/AC3+, DRA CH/5.1CH | ||||||||||
Sound Mode | LEFT/RIGHT/STEREO/MONO | |||||||||||
Sampling Frequency | 32KHz,44.1KHz,48KHz | |||||||||||
Audio Out | LPCM Out, BS Out | |||||||||||

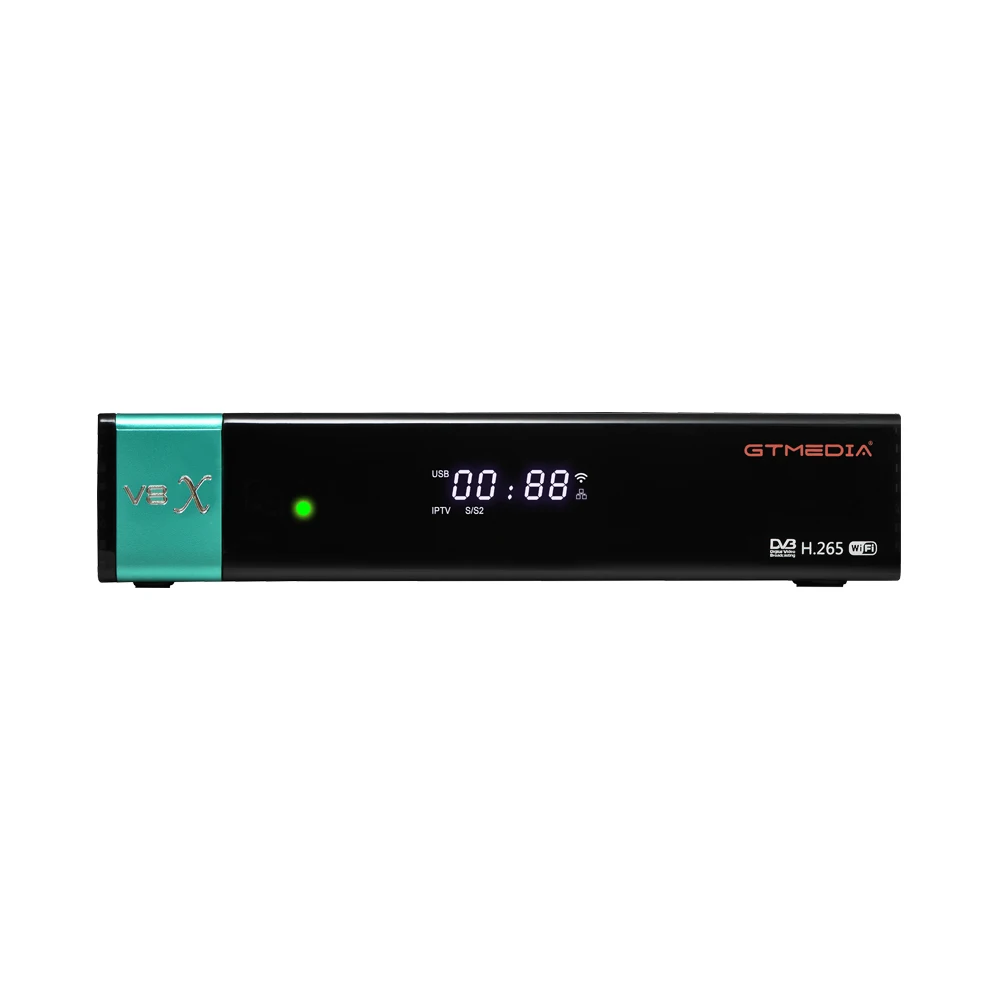

Hardware specifications | Panel display | 4-digit white LED display (Support function display) | ||||||||||
LED Indicator | Power ON :Green; Standby :Red | |||||||||||
Button | NOT | |||||||||||
Wifi | Built in 2.4G WiFi Support IEEE 802.1.1b/g/n | |||||||||||
IR | Exit IR for 38KHz,Infra Remote control | |||||||||||

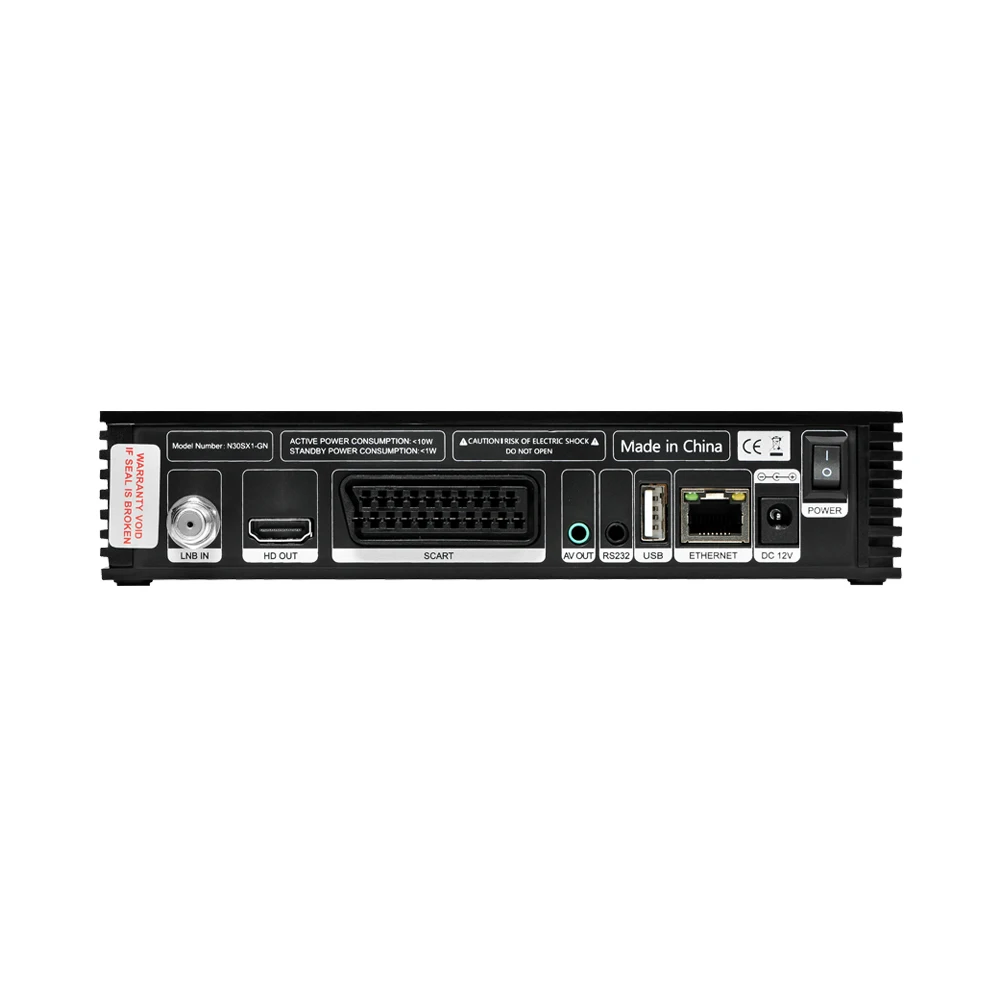

Rear Panel | LNB IN (Frequency Range950MHz to 2150MHz) | |||||||||||
HD OUT (up to 1080P) | ||||||||||||
SCART OUT | ||||||||||||
AV OUT (3.5MM*18MM Jack/4-Pin:Red-White-Yellow-GND) | ||||||||||||
1*CA card solt | ||||||||||||
1*USB HOST | ||||||||||||
1*RJ45 | ||||||||||||
1*RS232 (3-pin 3.5 mm jack) | ||||||||||||
DC IN (DC12V/1.5A) | ||||||||||||
DVB-S/S2 specificati-ons | System standard | ETS 302 307 | ||||||||||
Frequency Range | 950~2150MHz for DVB-S/S2/S2X baseband demodulator | |||||||||||
LNB Power and Polarization | DiSEqC1.0/1.1/1.2/USALS Motor fully support,Support Unicable, 13/18V DC @ 400mA MAX, 22KHz±0.4KHz(0.6V±0.2V)tone,Overload Protection | |||||||||||
Input Level Range | -80dBm ~ -20dBm (average power) | |||||||||||
Symbol Rates | DVB-S QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK, DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK | |||||||||||
Forward error correction rate | 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10 | |||||||||||
Carrier frequency acquisition range | ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates | |||||||||||
Symbol Rates | 2 ~ 90MSPS(Code Rate 1/2) | |||||||||||
Roll-off factors | Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35 | |||||||||||
Code Rates | 1/2,2/3,3/4,5/6,7/8 for DVB-S, 1/4,1/3,2/5,1/2,3/5,2/3,3/4,5/6 ,8/9,9/10 for DVB-S2, DVB-S2X Normal Frame and Short Frame FEC code rates | |||||||||||
ANT. Connector | Connector:IEC TYPE F Input Impedance:75 Ω | |||||||||||
Sortware Features | Standard | Fully comply with DVB-S/S2/S2X (SCPC and MCPC receivable from C/Ku band satellite), MPEG-2/4 and H.265 Standard | ||||||||||
Channel Search | Support automatic network search for new added transponders | |||||||||||
Channels Number | 6000+ channels TV and Radio programmable | |||||||||||
Channel | Recording one channel, can view another channel under the same TP,Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort) | |||||||||||
Favorites | 31 different favorite groups selection | |||||||||||
OSD Language | English,French,German,Italian,Spanish,Portuguese,Russian, Turkish,Polish,Arabic,Persian,Thai,Vietnam,Czech,Armenian, Georgian,Ukrainian,Albanian,Hungary,Malay,Indonesisch,Dansk, Greek,Serbian. | |||||||||||
OSD Color | 32-bits OSD with anti-flickering | |||||||||||
OSD Setting | Support OSD Timeout and Transparency, Subtitle Display, Channel list displays pages 1-3. | |||||||||||
Other Setting | Sets up multiple habitual operation Settings | |||||||||||
Parental Ctrl | Parental control for channels | |||||||||||
Easy Menu | Plug and Play installation, with an easy to use Menu System | |||||||||||
EPG | Fully support to 7 days Electronic Program Guide(EPG) | |||||||||||
Subtitle | support DVB EN300743 and EBU | |||||||||||
Teletext | support DVB ETS300472 by VBI | |||||||||||
SoftUpgrade | Software upgrades through USB port, or FTP upgrade. | |||||||||||
Time Set | Time set by GMT offset automatic and manual,Summer Time support | |||||||||||
Timer | 5 event timers,off/Once/Daily/Weekly Mode | |||||||||||
USB Decode | USB 2.0 | Support FAT/FAT32/NTFS big capacity hard disk | ||||||||||
PVR Option | USB 2.0 for PVR,TIMESHIFT,media files playback | |||||||||||
Media Codec | TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files | |||||||||||
Audio Codec | WMA,MP3 | |||||||||||
Photo Codec | JPG, BMP, PNG, GIF | |||||||||||
Packing | Product Dimension | 193*125*40MM（L*W*H） | ||||||||||
Packaged Size | 264*170*55MM | |||||||||||
Carton Size | 572*360*280MM (20pcs/ctn) | |||||||||||
Unit Weight | 0.68 Kg with gift box | |||||||||||
Carton Qty&Weight | 20 pcs/Carton, 14 kgs | |||||||||||

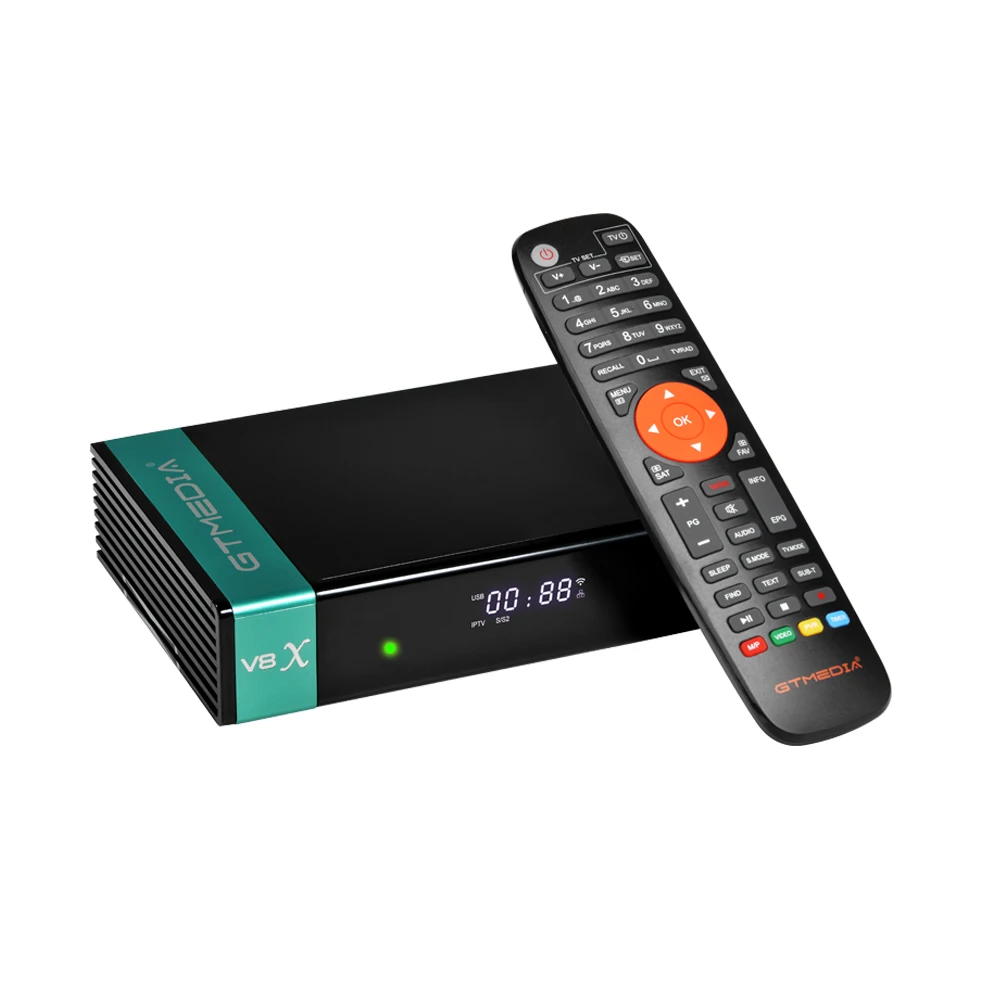

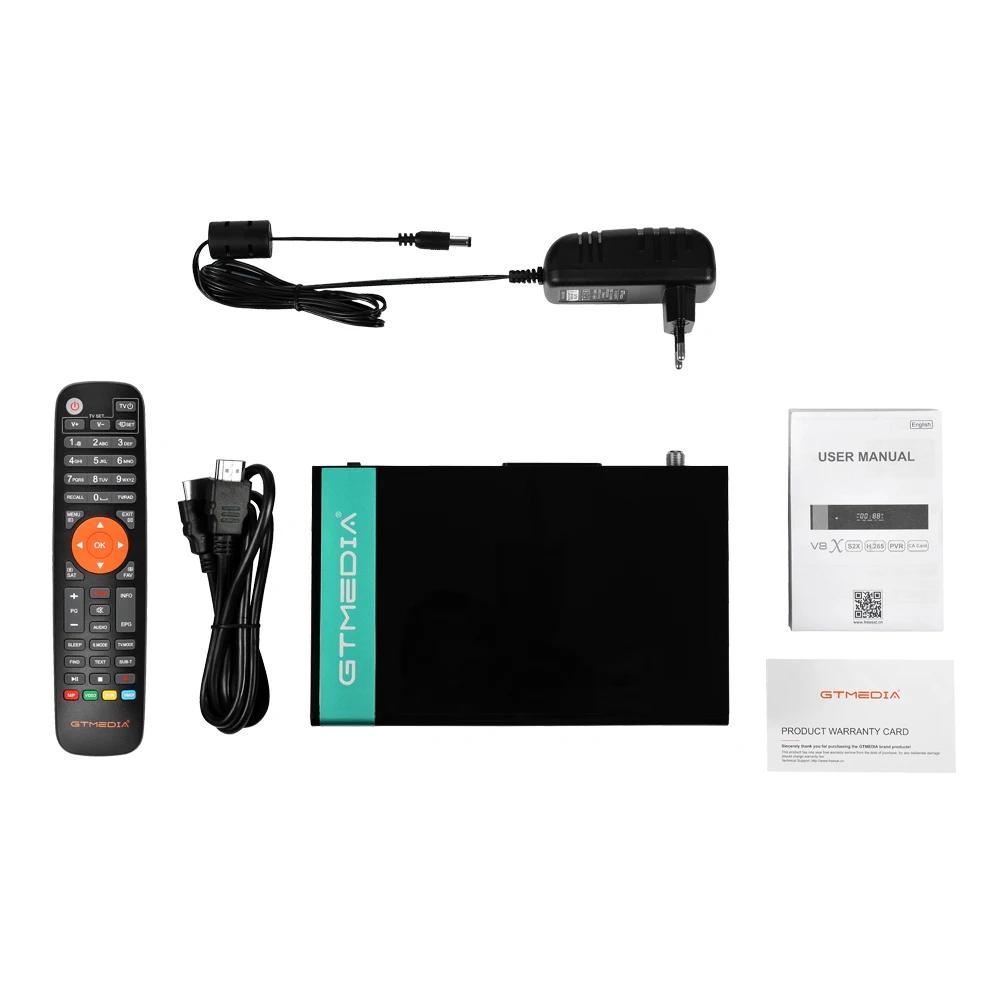

Accessories | Gift Box, Adapter, IR remote control, HDMI Cable, User Manual, Warranty card | |||||||||||
Physicals | Power Supply | AC 100V ～250V, 50/60Hz | ||||||||||
Power Consumption | 10W in operation ≦1 W Standby Power Mode | |||||||||||
Temperature | Operation 0～+45℃; Storage -10~+60℃ | |||||||||||
Humidity | 20~90%, non-condensed | |||||||||||
