Характеристики



Product Paramenters




Overview：
The large board of the intelligent industrial all-in-one machine adopts the Rockchip RK3568 quad-core chip solution.
Support Android 11 system. Enhanced power management circuit. Support commonly used external devices. Rich interfaces and stable performance. Suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machines, educational video terminals and other equipment.

Characteristic of mainboard：
- Support 7-inch to 84-inch various LVDS interface displays (point-to-point full HD display 1920*1080).
- Support EDP interface display screen.
- Support MIPI interface display screen.
- Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth, 4G. Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
- Multi-channel USB interface, serial port.
- Strong anti-electromagnetic interference and electromagnetic compatibility

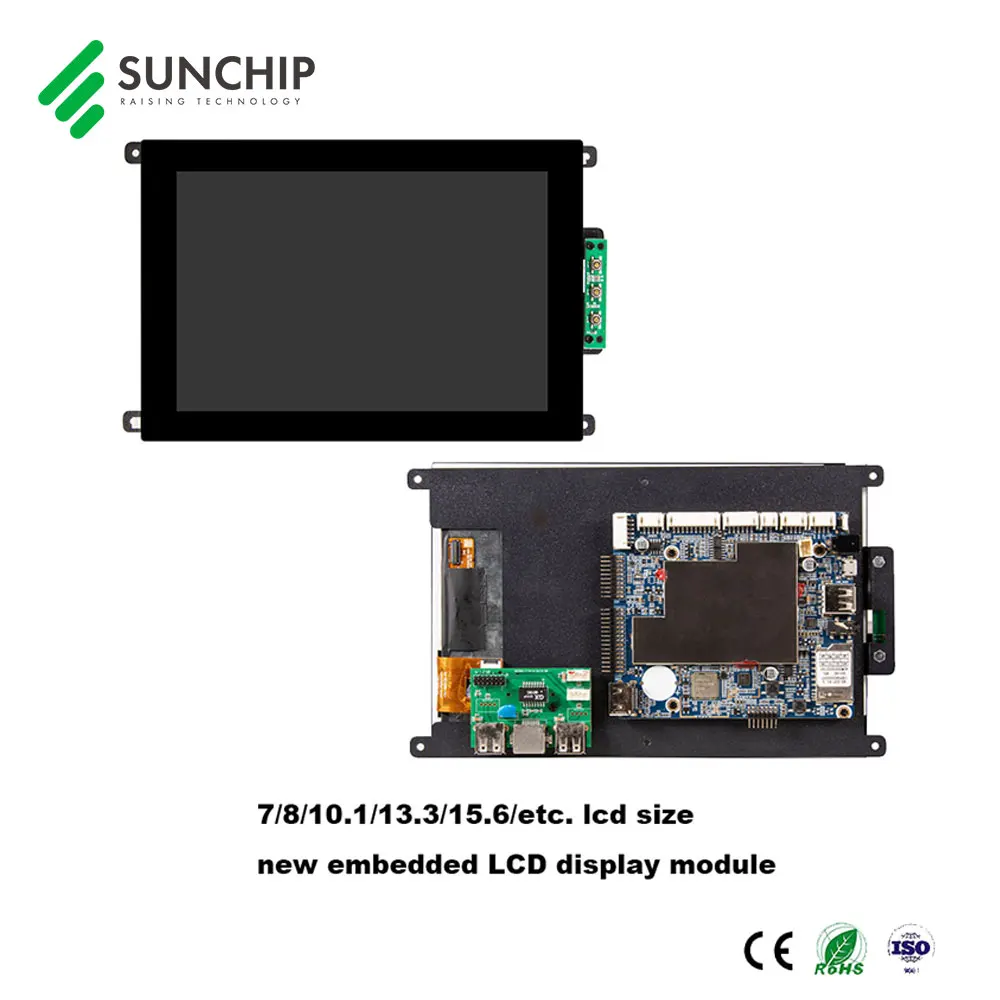

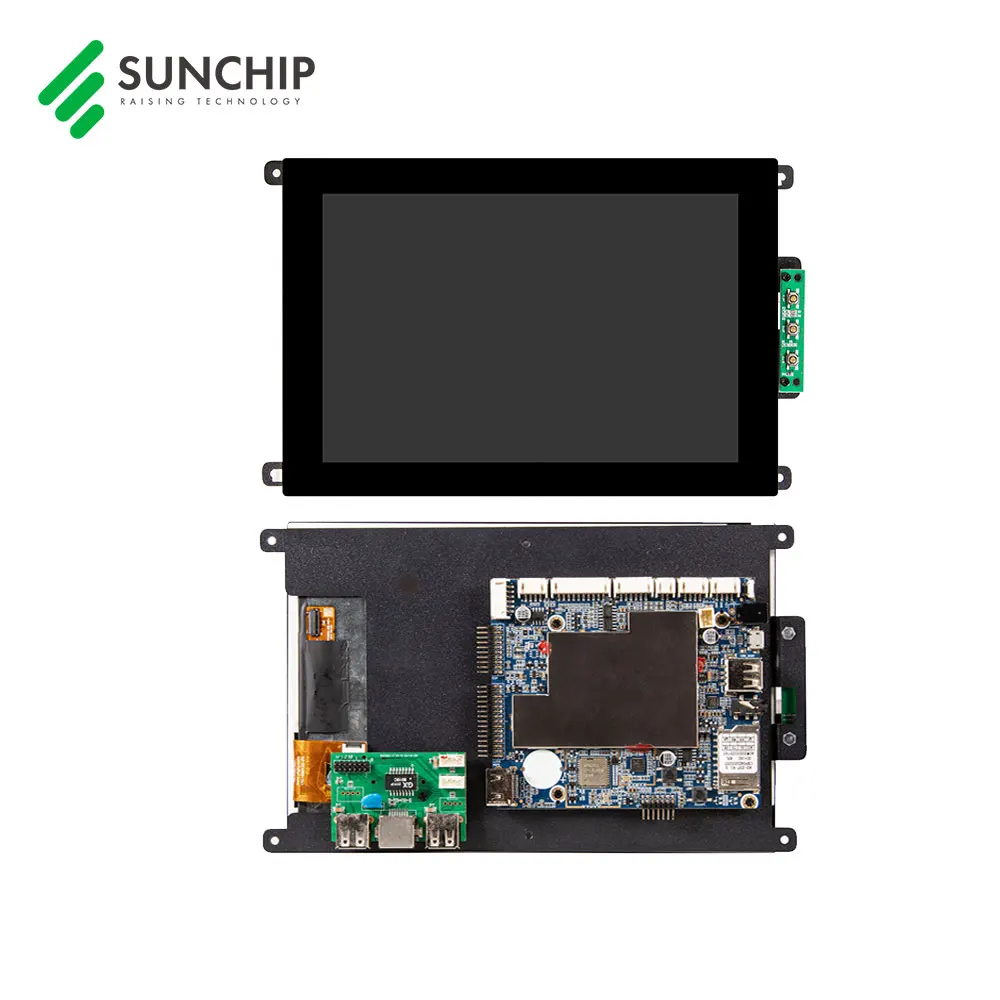

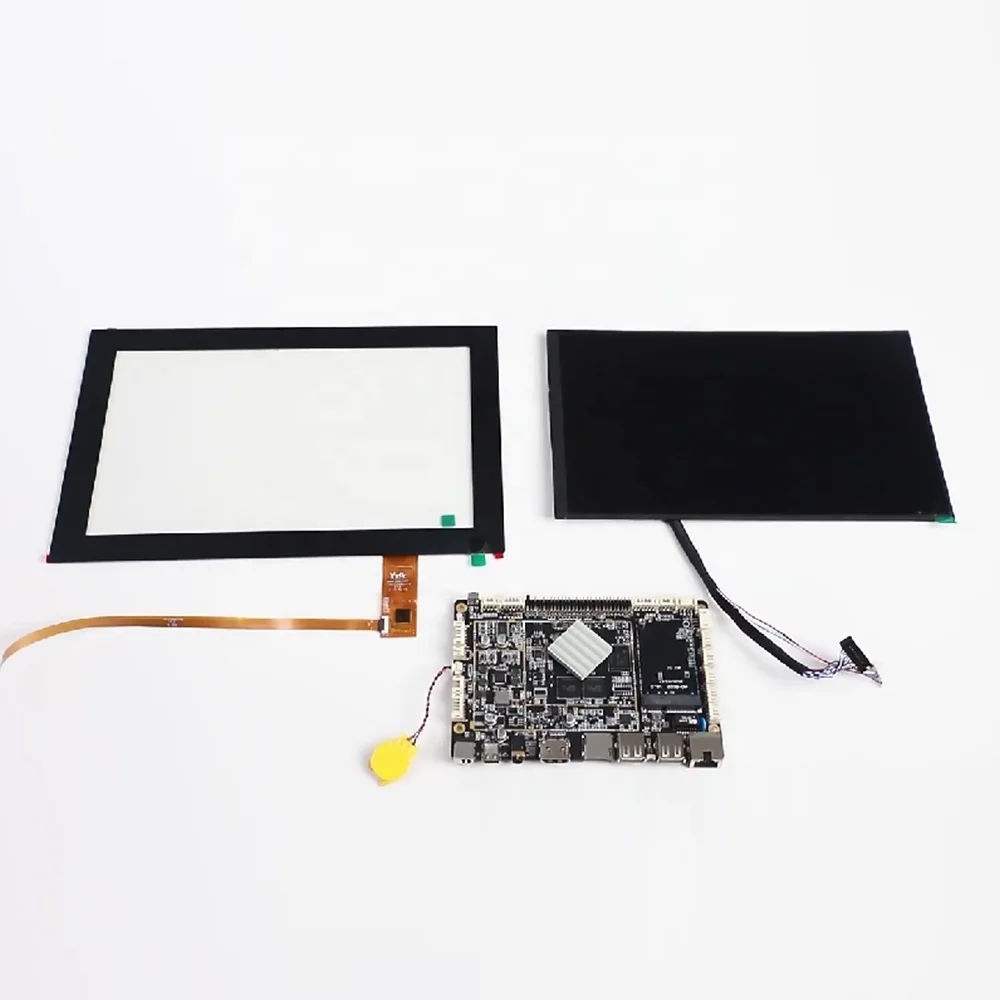

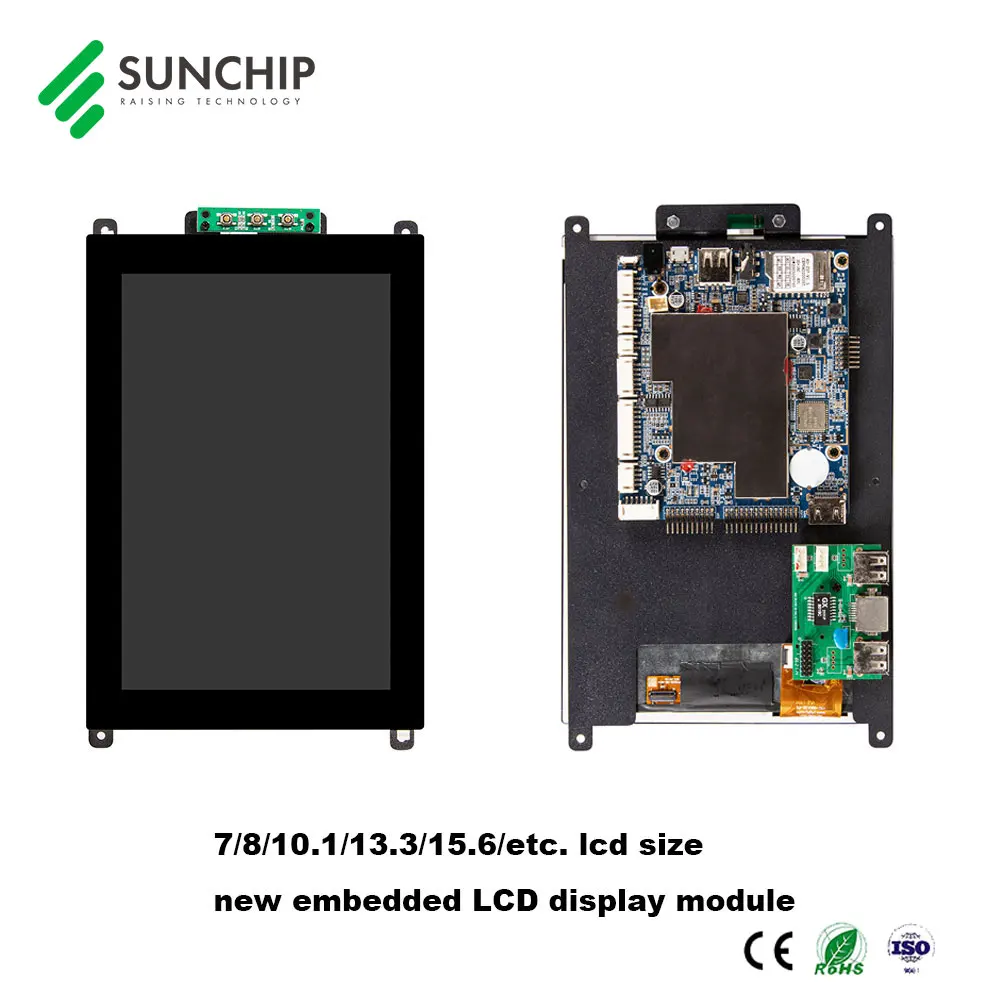

Options for LCD Display Module:
LCD size:7/8/10.1/13.3/15.6 Inch
LCD Style: MIPI/LVDS/EDP
Solution: PX30/RK3288/RK3566/RK3399/RK3328
RAM (DDR): 1/2/4GB
ROM(EMMC): 8/16/32/64GB
Touch: 10pt CTP/ None



System
CPU
Rockchip RK-PX30 Quad-core Cortex-A35 Mali-G31 MP2 GPU
Frequency
1.5GHZ
RAM
1GB(optional)
Internal Storage
8GB(optional)
Operating System
Android 8.0
Interaction Method
Touch screen
10-point capacitive touch (optional)

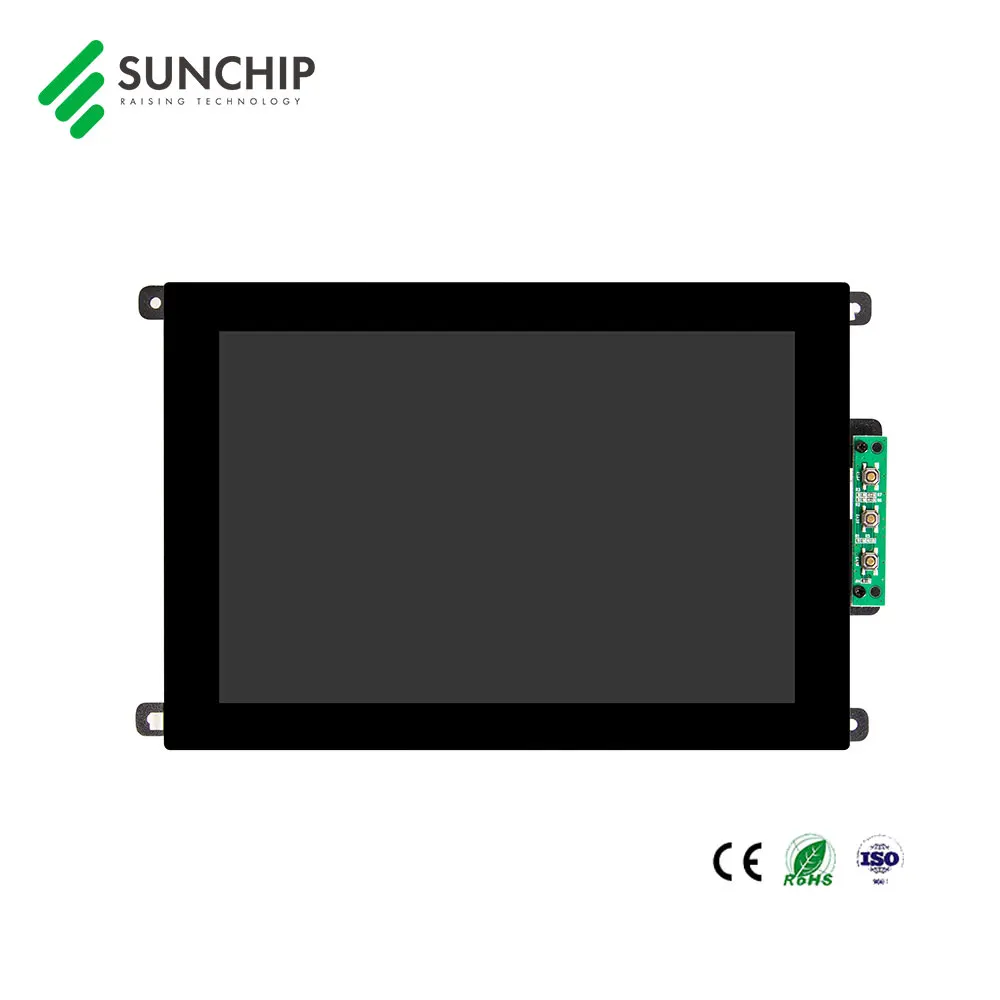

Display
LCD panel
10.1" HD IPS screen
Resoluton
1280*800
Viewable Area
216.58(H)x135.36mm(V)
Viewing Angle
89/89/89/89
Contrast Ratio
800
Luminance
300cd/m2(optional)
Aspect Ratio
16:10
Network
WiFi
802.11b/g/n
Bluetooth
Bluetooth 4.0
Ethernet
10M/100M network port
Interface
USB_A*3
USB host*3
Mini USB
Mini USB OTG
SD card
SD card port*1, support 64G
RJ45
Ethernet port
DC
DC power 12V input
Headphone
3.5mm stereo headphone output
Media play
Video format
MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 1920x1080p
Audio format
MP3/WMA/AAC etc.
Image format
jpeg
Other
UART
Support UART communication expansion port*3 groups
Speaker
Support 5W*2 dual channel speaker interface 1 group
Camera
Support MIPI camera interface a group of up to 8 million
MIC
Support a set of MIC interface
Battery
Built-in clock-powered battery
Operating temperature
0°C-50°C


Product Description








Why Choose Us




Company Profile


SHENZHEN SUNCHIP TECHNOLOGY CO.,LTD
Established in 2011, SUNCHIP is a high-tech engineering company specialized in designing and manufacturing Digital signage,
Embedded digital signage, ARM board and Andriod-based customized products, which are compliant with CE, FCC and RoHS standards.
Sunchip has a long histroy of OEM and ODM service to many branded customers. With the strong R&D team, intelligent robot
production line and strict QC and QA members, SUNCHIP is a technology-leading ODM factory.With more than 100 experienced R&D
engineers' hard working, SUNCHIP have mastered a whole set solution of high-definition video encoding&decoding developing and mass
production technology.

SUNCHIP is the strategic partner of Rochchip, Intel, Amlogic, Samsung and Allwinner, so we always have a steady supply of reliable
chipsets and unlimited technical support from the partners.


Certifications




Packing & Delivery




1.Packing: carton box or wood case

2.Payment methods: accept T/T,Western Union,Paypal and Cash.

3.RMA Policy: customer bear all the freight and duty charge to factory,and the factory afford return freight charge.

4.Warranty: 12 months warranty. Paid maintenance over 12 months.

5.Remark: ROHS, CE & FCC certificates in e-file format are available. 6.MOQ: 1pc, sample order are welcome for your evaluation.


FAQ


1. who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),North America(11.00%),Eastern Asia(6.00%),Southeast Asia(5.00%),South America(3.00%),Western Europe(3.00%),Eastern Europe(2.00%),Oceania(2.00%),Mid East(2.00%),Central America(2.00%),Africa(00.00%),Northern Europe(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Wireless charger,Digital Photo Frame,Advertising machine,Commercial media box,ARM board

4. why should you buy from us not from other suppliers?
- 15 years of R&D and production experience
- More than 100 R&D team
- Over 3000 square meters' factory space
- Pocessing fully automatic assembly lines and high request working team
- Owning CE/ROHS/FCC & national high-tech enterprise and patents

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW,FCA；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
