IPM50T Малый Высокоточный энергосберегающий пресс для литья под давлением высокопроизводительный пластиковый
- Категория: Injection Molding Machines >>>
- Поставщик: Ipretech,Machinery,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 16065.57 $* | 16868.89 $* |
| Aug-15-2025 | 15930.89 $* | 16727.55 $* |
| Jul-15-2025 | 13365.53 $* | 14033.60 $* |
| Jun-15-2025 | 15660.75 $* | 16443.73 $* |
| May-15-2025 | 13635.96 $* | 14317.45 $* |
| Apr-15-2025 | 15390.24 $* | 16160.99 $* |
| Mar-15-2025 | 15255.99 $* | 16018.92 $* |
| Feb-15-2025 | 15120.96 $* | 15876.16 $* |
| Jan-15-2025 | 14985.35 $* | 15734.95 $* |
Характеристики
Product Description

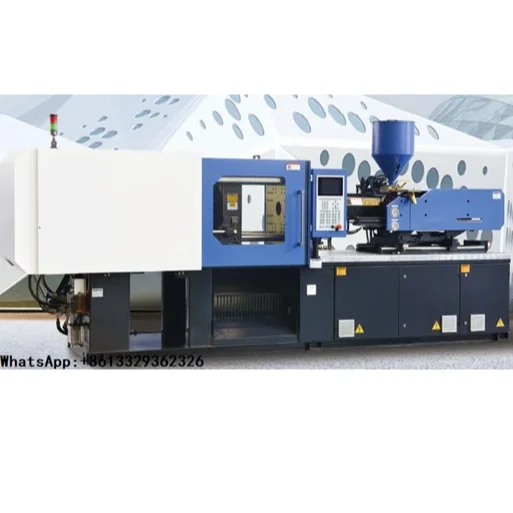

High-end precision servo energy-saving injection molding machine IPM50T
* Quick response to pressure, quick start to 0.05 seconds
* Compared with traditional injection molding machines, the system response speed is 2-3 times that of traditional machines.
* The running speed is fast and accurate, which greatly improves or improves the production environment and production efficiency.
* The accuracy of repeated products can be improved to more than five thousandths, meeting the requirements of ultra-precision injection molding
* The servo motor gets the signal, and then fills the hydraulic oil, which generates less heat, the temperature of the hydraulic oil is lower, and saves a lot of cooling water.
●The response speed is fast, the cycle time is short, and the production efficiency is improved.●Servo injection machine can save 50-80% of electricity.
* Compared with traditional injection molding machines, the system response speed is 2-3 times that of traditional machines.
* The running speed is fast and accurate, which greatly improves or improves the production environment and production efficiency.
* The accuracy of repeated products can be improved to more than five thousandths, meeting the requirements of ultra-precision injection molding
* The servo motor gets the signal, and then fills the hydraulic oil, which generates less heat, the temperature of the hydraulic oil is lower, and saves a lot of cooling water.
●The response speed is fast, the cycle time is short, and the production efficiency is improved.●Servo injection machine can save 50-80% of electricity.
Specification
Configuration | IPM50T |
Controller | EST( Japanese technology ) |
Servo Drivers | XINGTAI |
Contactor | Schneider |
Ceramic heating ring | Xinghui |
Linear transducer | Gefran |
Vane pump | Sunny |
Directional valve | Sunny/Yuken |
Hydraulic safety valve | Seven Ocean |
Hydraulic system pressure sensor | America ASHCROFT |
Five-Star Engine | Parkland |
Motor | XINGTAI |
Orbital motor | SHENGDA /ZOUCING |
Lubrication pump | SHENGDA |
Overtravel-Lmit switch | Schneider |
Airproof Piece | Japan Valqua |

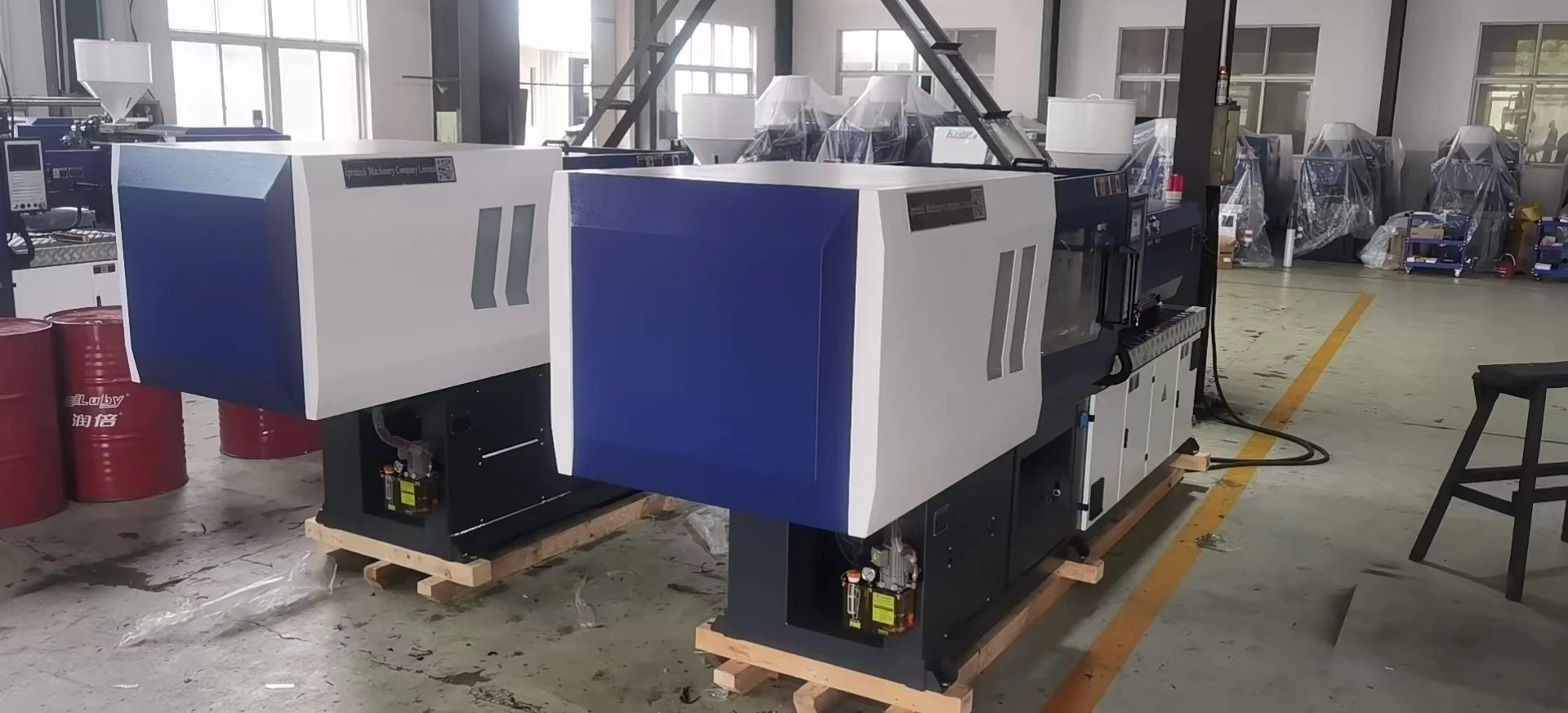

Packing & Delivery
Injection system：
The optimally designed injection unit provides higher precision and ensures higher stability. The screw length-diameter ratio is
more reasonable, and the plasticizing capacity is stronger. Special screw for special engineering plastics can be selected to
ensure the optimal product quality. The integral guide rod seat is novel and beautiful, strong and reliable, and the injection is
faster, more stable and tighter. The modular design fully meets the requirements of personalized processing technology and
provides customers with more choices.
more reasonable, and the plasticizing capacity is stronger. Special screw for special engineering plastics can be selected to
ensure the optimal product quality. The integral guide rod seat is novel and beautiful, strong and reliable, and the injection is
faster, more stable and tighter. The modular design fully meets the requirements of personalized processing technology and
provides customers with more choices.
Clamping system
Change the mechanical properties of the clamping mechanism, significantly reduce the deformation of the template, and effectively
improve the accuracy of the product. The inner spacing of the tie rod is larger, and the mold transfer stroke is longer. Large
ejection space, standard ejector pin forced reset mechanism, to meet the special mold forced reset requirements. The express mold
closing platform shortens the molding cycle and improves the production efficiency; a variety of hydraulic ejection modes; special
processing of the tie rod, the strength is reliable.
improve the accuracy of the product. The inner spacing of the tie rod is larger, and the mold transfer stroke is longer. Large
ejection space, standard ejector pin forced reset mechanism, to meet the special mold forced reset requirements. The express mold
closing platform shortens the molding cycle and improves the production efficiency; a variety of hydraulic ejection modes; special
processing of the tie rod, the strength is reliable.
Servo Hydraulic system
1. Standard equipped with servo energy-saving pump system, using high-performance servo motor and famous brand oil pump, with
high-quality and reliable drive, perfect realization of high energy saving, high precision, high response, low noise, low oil
temperature and other excellent characteristics, and has a compact structure, oil pump Good self-priming, less affected by
work, etc.;
2. Equipped with world-class brand hydraulic components, the oil circuit is arranged reasonably, the operation is smooth and
reliable, the efficiency is greatly improved, and the calorific value is controlled to a smaller value;
3. Equipped with a self-sealing oil suction filter, the machine is easy to maintain and repair;
4. Various special functions can be flexibly selected and installed according to customer needs.
high-quality and reliable drive, perfect realization of high energy saving, high precision, high response, low noise, low oil
temperature and other excellent characteristics, and has a compact structure, oil pump Good self-priming, less affected by
work, etc.;
2. Equipped with world-class brand hydraulic components, the oil circuit is arranged reasonably, the operation is smooth and
reliable, the efficiency is greatly improved, and the calorific value is controlled to a smaller value;
3. Equipped with a self-sealing oil suction filter, the machine is easy to maintain and repair;
4. Various special functions can be flexibly selected and installed according to customer needs.
Control System
Waterproof and dustproof sealed electrical box, safe and reliable; more powerful software functions, which can meet a variety of
mold forming processes; reserved Internet management system, which can realize remote real-time monitoring and maintenance
diagnosis of each injection molding machine, and rationally arrange advanced management such as production
mold forming processes; reserved Internet management system, which can realize remote real-time monitoring and maintenance
diagnosis of each injection molding machine, and rationally arrange advanced management such as production
Screw diameter | mm | 26 | 30 | |||||
Screw L / D ratio | L/D | 20.9 | 16.5 | |||||
Max.Theoretical injection capacity | cm³ | 55 | 68 | |||||
Shot Weigh PS | g | 50 | 62 | |||||
injection rate | g/s | 43 | 62 | |||||
Max pressure Injection | MPa | 190 | 142 | |||||
Max.Plasticizing capacity | G/s | 4.0 | 5.9 | |||||
Screw speed range | R.p.m | 0-230 | ||||||
Injection stroke | mm | 103 | ||||||
Max. Clamping force | ton | 50 | ||||||
Max. Opening stroke | mm | 260 | ||||||
Space between the bars "V * H" | mm | 285*285 | ||||||
Minimum-maximum mould thickness | mm | 100-285 | ||||||
Ejector force / stroke | Kn/mm | 20/65 | ||||||
Oil pump maximum pressure | MPa | 16 | ||||||
Ejector Number | PC | 1 | ||||||
Oil pump motor power | kw | 7.5 | ||||||
Oil Tank Capacity | L | 95 | ||||||
Heating Capacity | kw | 4.6 | ||||||
Machine size "L * W * H" | m | 3.40*1.10*1.60 | ||||||
Machine weight | ton | 1.5 | ||||||
Mold location RecessDiameters | mm | 100 | ||||||
Nozzle radius | mm | SR10 | ||||||
