Сверлильный станок для бурения скважин/для бурения скважин
US $888.00-$1050
Буровое долото PDC буровые долота
- Категория: Mining Machinery >>>
- Поставщик: Henan,Drills-King,Mining,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.78 $* | 0.32 $* |
| Aug-15-2025 | 0.16 $* | 0.82 $* |
| Jul-15-2025 | 0.84 $* | 0.63 $* |
| Jun-15-2025 | 0.13 $* | 0.79 $* |
| May-15-2025 | 0.98 $* | 0.13 $* |
| Apr-15-2025 | 0.94 $* | 0.15 $* |
| Mar-15-2025 | 0.52 $* | 0.52 $* |
| Feb-15-2025 | 0.87 $* | 0.18 $* |
| Jan-15-2025 | 0.68 $* | 0.80 $* |
Характеристики
Product Description
Introduction:

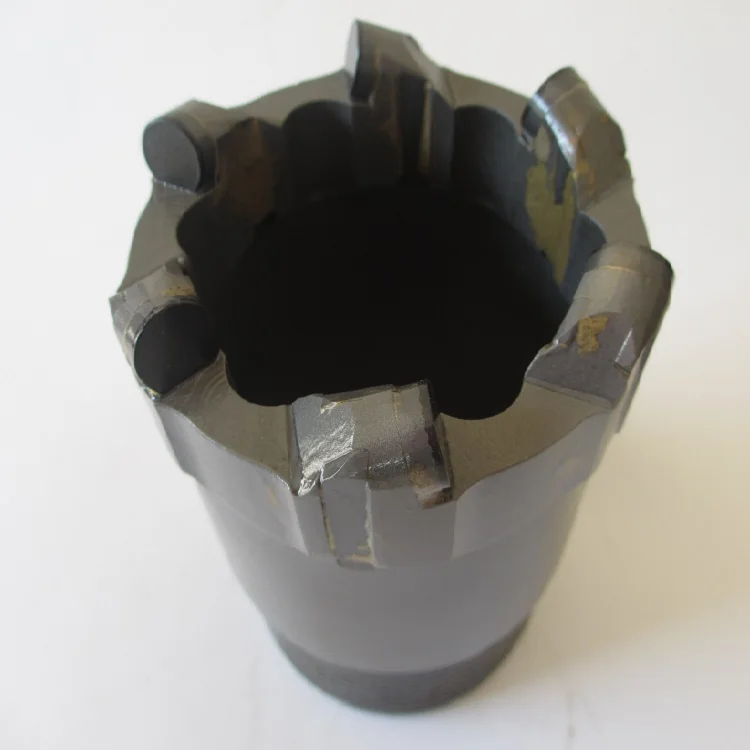

PDC bit is developed in a significant advanced technology of diamond drilling. The disc shaped polycrystalline diamond pads, or cutters, are set strategically in rows on the bit face. These cutters consist of a layer of polycrystalline diamond on a tungsten carbide substrate and it allows the bits to drill through formations which are too soft or too sticky for conventional diamond drill bits. The PDC bits are designed for vertical, slant or horizontal drilling and can be used for either non core, side track or recovery purpos.
Our Advantages:
1.Very erosion resistant matrix
2.Good gauge protection
3.Adopt high-grade metal powder
4.Advanced geometric design
5.Hot-pressure sintering matrix
6.High drilling efficiency and longer drilling life
7. Auger for earth drilling
8. Can make PDC drill bit according to customer's detail requirement
9.Original manufacturer and over 16 years professional technical experiences
10.Cost effective, high quality product, reasonable price with best servce
3.Adopt high-grade metal powder
4.Advanced geometric design
5.Hot-pressure sintering matrix
6.High drilling efficiency and longer drilling life
7. Auger for earth drilling
8. Can make PDC drill bit according to customer's detail requirement
9.Original manufacturer and over 16 years professional technical experiences
10.Cost effective, high quality product, reasonable price with best servce
Specification
Core Barrel Specification | Outside Set Diameter | lnside Set Diameter | ||||||||||||
Maximum | Minimum | Maximum | Minimum | |||||||||||
lnches | mm | lnches | mm | lnches | mm | lnches | mm | |||||||
AQ | 1.880 | 47.75 | 1.870 | 47.5 | 1.607 | 27.10 | 1.057 | 26.85 | ||||||
BQ | 2.350 | 59.69 | 2.340 | 59.44 | 1.438 | 1.428 | 36.52 | 36.27 | ||||||
NQ | 2.970 | 75.44 | 2.960 | 75.19 | 1.880 | 47.75 | 1.870 | 47.50 | ||||||
HQ | 3.770 | 95.76 | 3.755 | 95.38 | 2.505 | 63.63 | 2.495 | 63.38 | ||||||
PQ | 4.815 | 122.3 | 4.795 | 121.8 | 3.350 | 85.09 | 3.340 | 84.84 | ||||||
T2-101 | 3.981 | 101.12 | 3.971 | 100.8 | 3.300 | 83.82 | 3.290 | 83.57 | ||||||
T6-101 | 3.981 | 101.12 | 3.971 | 100.8 | 3.115 | 79.12 | 3.105 | 78.87 | ||||||

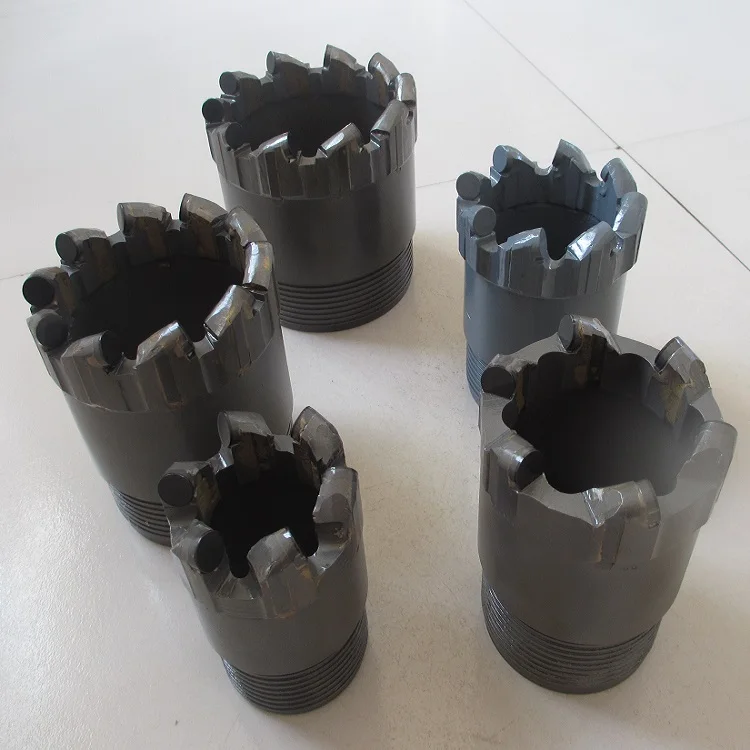

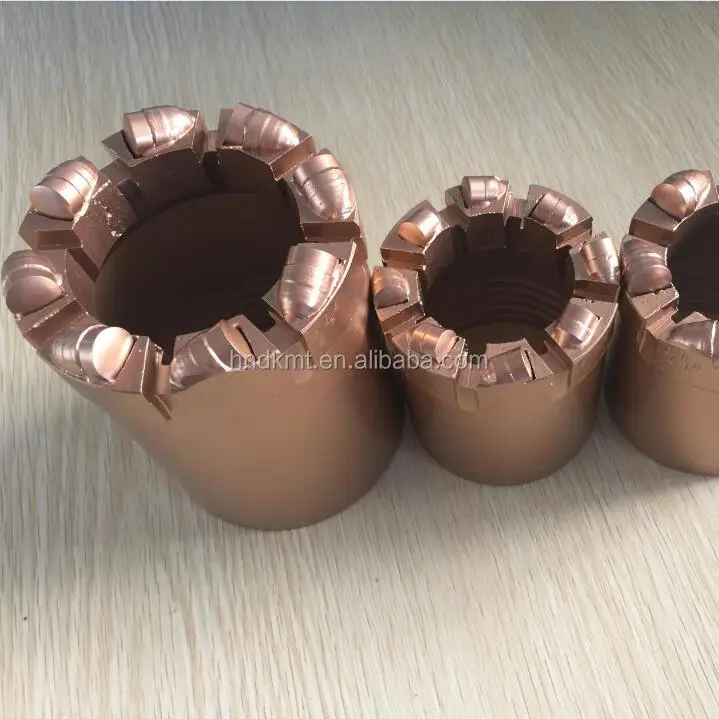

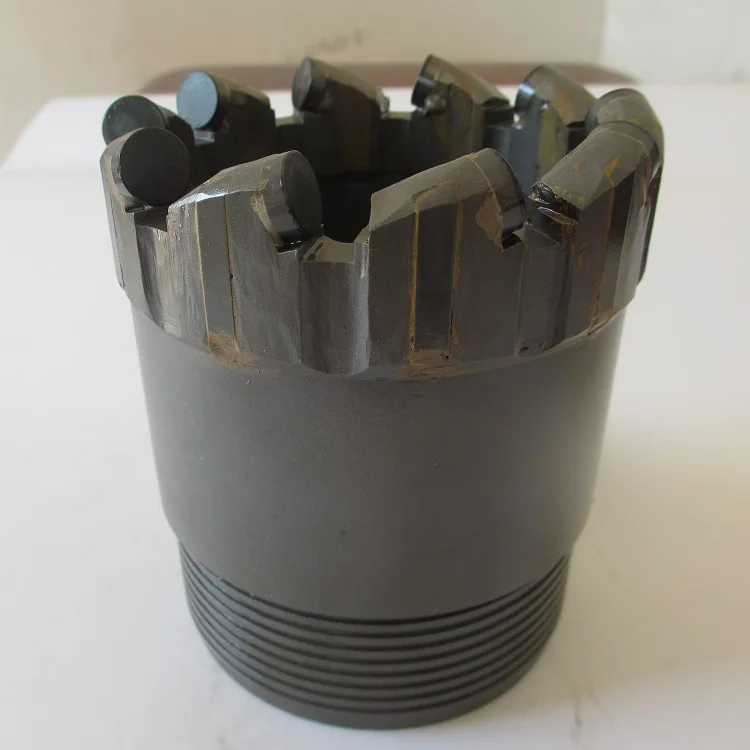

Product Display
Factory price 56mm 98mm 146mm 152 mm oil drilling tools diamond pdc drill bit
Used in geological exploration drilling holes, gas drainage hole, grouting hole drilling, suitable for easy soft rock and medium hard rock.
Available sizes :
50mm, 56mm, 60mm, 65mm, 75mm, 94mm, 98mm, 113mm, 120mm, 120.5mm, 124mm, 143mm, 149mm, 152mm, 173mm, 190.5mm, 203mm, 254mm.
Wireline core bit : A gauge, B guage, N gauge, H gauge , P gauge.
Available sizes :
50mm, 56mm, 60mm, 65mm, 75mm, 94mm, 98mm, 113mm, 120mm, 120.5mm, 124mm, 143mm, 149mm, 152mm, 173mm, 190.5mm, 203mm, 254mm.
Wireline core bit : A gauge, B guage, N gauge, H gauge , P gauge.
1.Suitable for soft, medium and hard formations.
2.Super strong material promotes gauge wear resistance to provide long bit life.
2.Super strong material promotes gauge wear resistance to provide long bit life.
3.The cutter's back rake has been unique design, reducing the bit torque and increasing aggressiveness.
4.Cuttings removal and bit cooling for bits are optimized by matching the volume of rock removed by the cutter on each blade with the proportional fluid flow.
Non-coring PDC drill bit uses PDC as main cutting components, with the excellent wear-ability and impact toughness of the PDC. It has a useful life, high-efficiency, and good performance cost ratio.
4.Cuttings removal and bit cooling for bits are optimized by matching the volume of rock removed by the cutter on each blade with the proportional fluid flow.
Non-coring PDC drill bit uses PDC as main cutting components, with the excellent wear-ability and impact toughness of the PDC. It has a useful life, high-efficiency, and good performance cost ratio.
Packing & Delivery
Company Profile
Henan Drills-King Mining Technology Co., Ltd., established in 2005, is a high-tech enterprise specialized in the design, development and production of diamond tools, and providing related technologies and services for the modernization of mining and drilling industries.
We produce a wide range of mining drill tools including PDC bits, PDC cutters, diamond core bits, TC bits, oil bits, tricone bits, etc. They are widely used in mining, geological exploration, oil drilling and other industries. All of our products comply with international quality standards and some of them have obtained national patents.
With several years' efforts, we have established good relationships with many foreign clients in the USA, Russia, India, Australia, the Mid East countries, Europe, etc. We always adhere to 'Striving for Further Development on the Basis of Credibility and Quality', and customer satisfaction is our eternal pursuit. Welcome your visits to our website and your inquiries. We are sincerely looking forward to working with you.
We produce a wide range of mining drill tools including PDC bits, PDC cutters, diamond core bits, TC bits, oil bits, tricone bits, etc. They are widely used in mining, geological exploration, oil drilling and other industries. All of our products comply with international quality standards and some of them have obtained national patents.
With several years' efforts, we have established good relationships with many foreign clients in the USA, Russia, India, Australia, the Mid East countries, Europe, etc. We always adhere to 'Striving for Further Development on the Basis of Credibility and Quality', and customer satisfaction is our eternal pursuit. Welcome your visits to our website and your inquiries. We are sincerely looking forward to working with you.
FAQ
1. who are we?
We are based in Henan, China, start from 2009,sell to Domestic Market(45.00%),North America(10.00%),Western Europe(7.00%),Southern Europe(6.00%),Oceania(5.00%),Eastern Europe(4.00%),South Asia(4.00%),South America(3.00%),Africa(3.00%),Eastern Asia(3.00%),Central America(3.00%),Northern Europe(3.00%),Southeast Asia(2.00%),Mid East(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Pdc Cutter,Pdc Drill Bit,Diamond Drill Bit,Saw Blade,Polishing & Grinding Tool
4. why should you buy from us not from other suppliers?
1>. high-tech enterprise specialized in the design
2>. development and production of diamond tools
3>. providing related technologies and services for the modernization of mining and drilling
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Japanese,Russian
