Hengda Топ TUV утвержденный IP68 водонепроницаемый солнечная панель распределительная коробка


Поделиться:


Цена:3,00 $ - 4,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-16-2025 4.15 $* 4.66 $*
Jul-16-2025 3.95 $* 3.36 $*
Jun-16-2025 4.68 $* 4.8 $*
May-16-2025 4.11 $* 4.28 $*
Apr-16-2025 3.19 $* 3.15 $*
Mar-16-2025 4.52 $* 4.48 $*
Feb-16-2025 4.76 $* 4.86 $*
Jan-16-2025 4.91 $* 4.75 $*

Характеристики



Product Description


Brief description

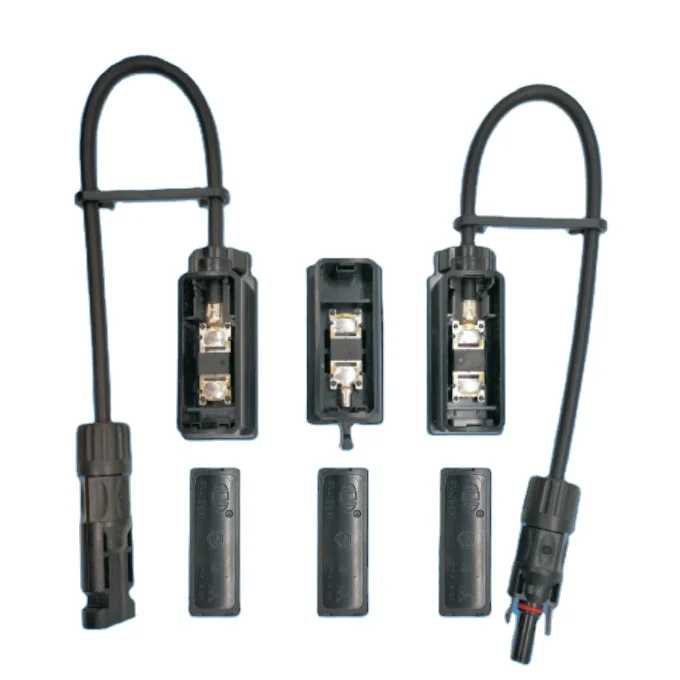

Hengda TOP TUV Approved IP68 waterproof solar panel junction box for PV-module
Solar Connector, Due to highly robustness,UV-resistance,the touch protection a high grade connection is guaranteed for many years

Rated voltage 1000 V
Rated current 16A
Contact resistance ≤5mΩ
Dia of pin or socket 3mm /4mm
Protection degree(mated,junction box closed/unmated) IP65/IP2X
Operating temperature -40 C to +85C

Insulation material PPO
Contact material Copper,silver plated
The junction box's inner shoulder be filled with glue under working

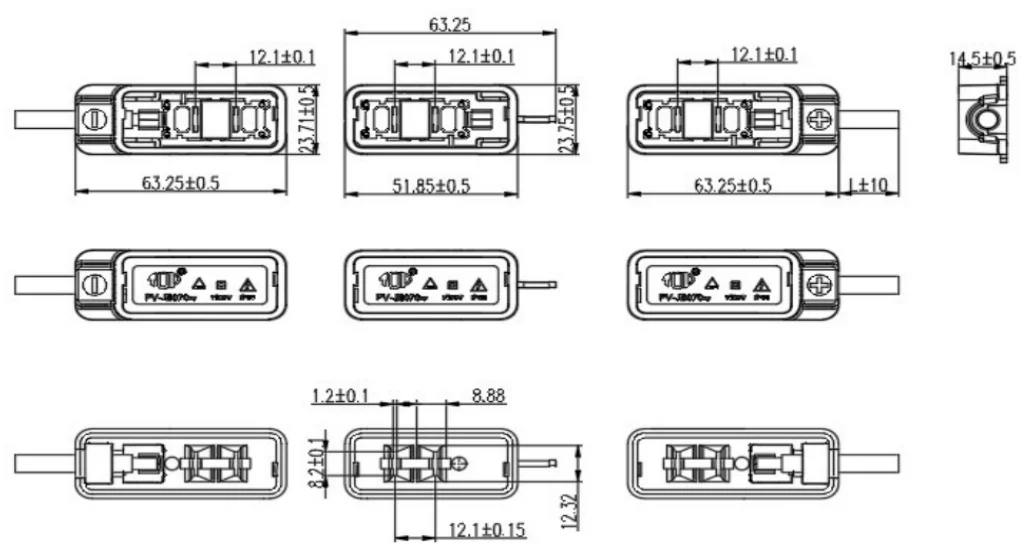

Detail dimention

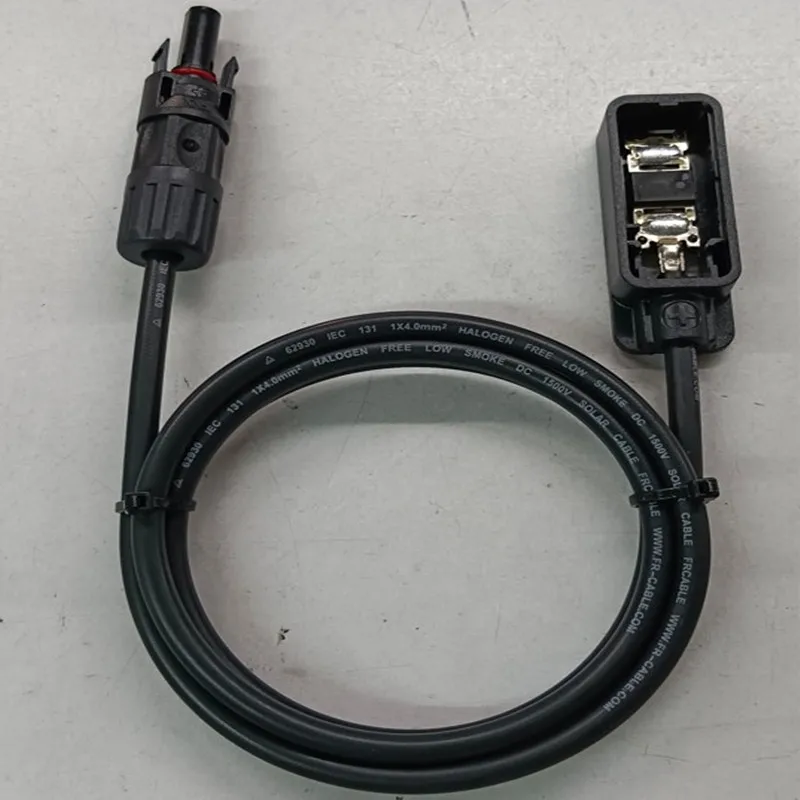

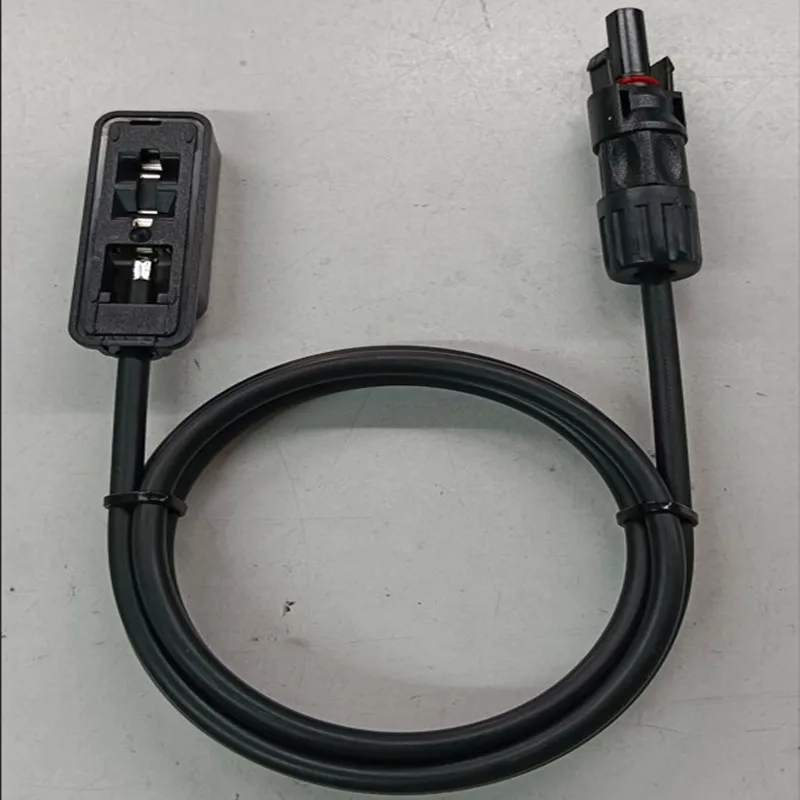

Solar Junction Box with 0.9m cable





Specification


Place of Origin
China
Use and application
For solar module connector
Brand Name
TOP
Model Number
PV-JB070
Material
PC9330
Color
Black


Recommend Products

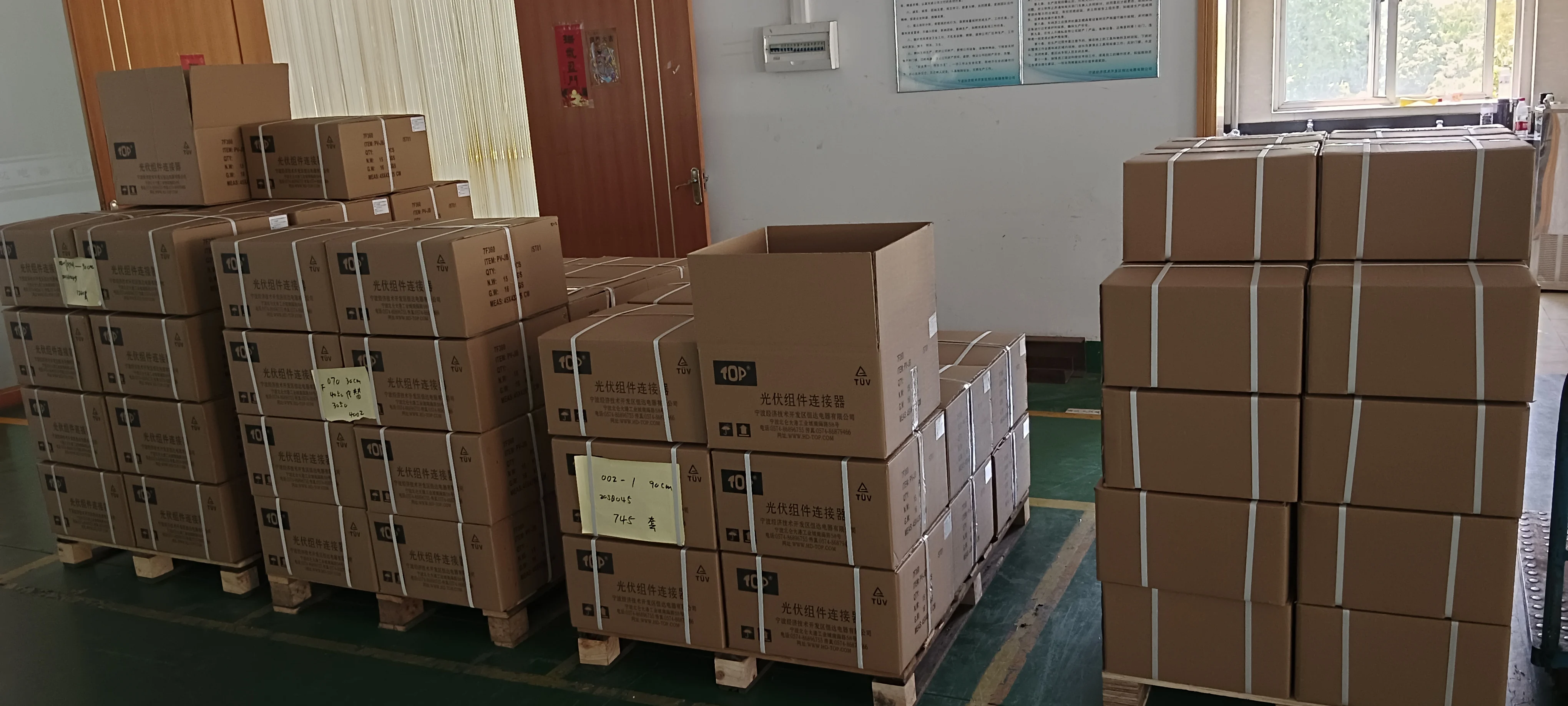

Packing & Delivery




 Packing and delivery
Packing can be customized.
Delivery time: 7-15days for 10000pcs below.
Air shipping, sea shipping for your choice


Certifications

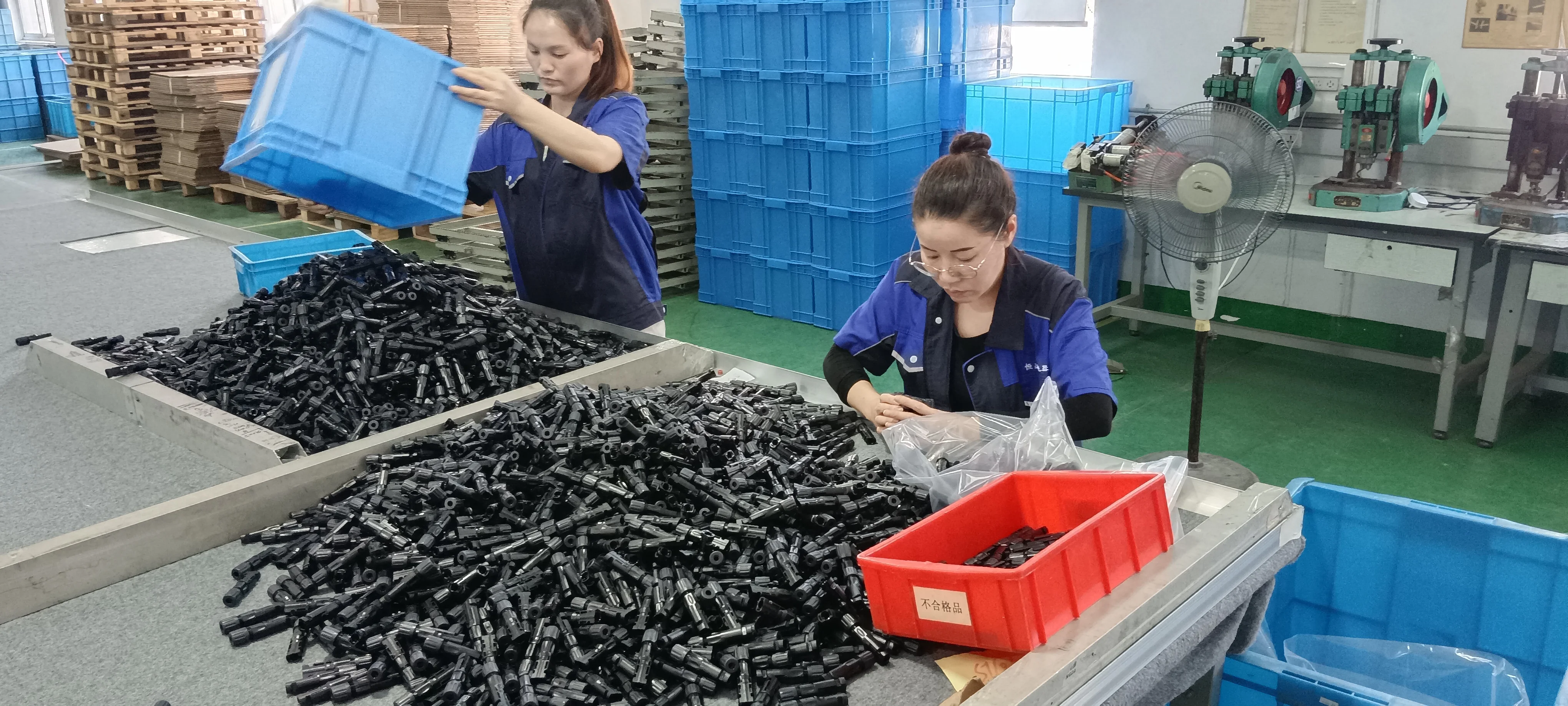

Company Profile








Founded in 1996, Ningbo Development Zone Hengda Electrical Co., Ltd. is a provincial hi-tech enterprise and specialized in the R&D, manufacture and sales service of lighting fittings and solar energy PV module connectors. Our company is situated in Beilun Dagang Industrial Town of Ningbo Development Zone which enjoys flourishing import and export trade business, convenient transportation and harbor advantages. Our company covers an area of 15mu (about 10,005 square meters) and our building area is over 10,000 square meters with registered capital of 1.68 million USD and total investment of 3.68 million USD.

Relying on our experience for a dozen of years in lighting fitting production management and economic strength, we produce both a full variety of new energy-saving lighting fittings and solar energy PV module connectors. Our annual output of lighting fittings is over 80,000,000 pieces with product certifications of CQC, UL, VDE, CE, CSA and RoHS.

Solar energy PV module industry grows rapidly along with the ever-worsening global energy shortage. Aiming at this industry, Hengda has employed talented personnel, introduced advanced equipment and technology and began to research and develop solar energy PV module junction boxes and connectors since 2004. Hengda had invested over five percent of the annual sales amount in the R&D of new products for the past four years and successfully developed more than ten varieties of solar energy PV module junction boxes and connectors. By estimate, we will produce more than 1.5 million sets of solar energy PV module connectors in 2008. Our products have been identified by German TUV testing and are up to the safety requirements of European electric apparatus of the second category. Meanwhile, Hengda is concentrating on developing and promoting our proprietary brand of "TOP," which has won considerably domestic market share and a stable client base. Our products sell well in the EU, Korea, Taiwan Area and other countries and regions.

Innovation goes on as it never ends. Based on the development and design concept of "making the unique and the best products", Hengda tries to grasp the market trend and targets at the market potential to launch new products relying on current technical achievements. Hengda now is developing amorphous silicon solar modules and junction boxes and connectors used for glass curtain walls to keep pace with new technology advancement and to meet market demands.

Moreover, Hengda has obtained the certificates of ISO9001:2000 Quality Management System and ISO14001 Environmental Management System, and built a complete internal management system by observing the systems rigorously to assure product quality and their technical level.


FAQ


Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?
PV Solar Connectors, Solar junction box, PV Fuse Holder,lamp holders, terminal block, etc. We're the Manufacturer with
more than 25 years experience.

Q2: How can I get the Quotation of the products ?
Send your Message to us by E-mail / Trade Manager,We'll reply you within 2 hours in the Working Time.

Q3: How does your company do regarding Quality Control?

1)All raw material we selected the high quality one.
2)Professional & Skillful workers care every details in handling the producing.
3)Quality Control Department specially responsible for quality checking in each process.

Q4: Do you provide OEM Project Service?
OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects.
What's more, our R&D team will give you the professional suggestions.

Q5: How Could I get the Sample?
We are honored to offer you samples,Samples is free provided, but need pay the courier freight.
If you have a courier account, you can send your courier to collect samples.

Q6: How long is the delivery time?
1) For Sample: 1-3 Days ;
2) For small Orders: 3-10 Days;
3) For mass Orders: 10-18 Days.
