4 2 в супер конденсатор для хранения солнечной энергии 42000f21000f


Поделиться:


Цена:60,00 $ - 88,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 71.7 $* 75.56 $*
Aug-16-2025 71.62 $* 75.57 $*
Jul-16-2025 59.14 $* 62.64 $*
Jun-16-2025 70.44 $* 74.66 $*
May-16-2025 61.73 $* 64.11 $*
Apr-16-2025 68.42 $* 71.38 $*
Mar-16-2025 68.37 $* 71.80 $*
Feb-16-2025 67.3 $* 70.34 $*
Jan-16-2025 67.60 $* 70.86 $*

Характеристики



Product Description

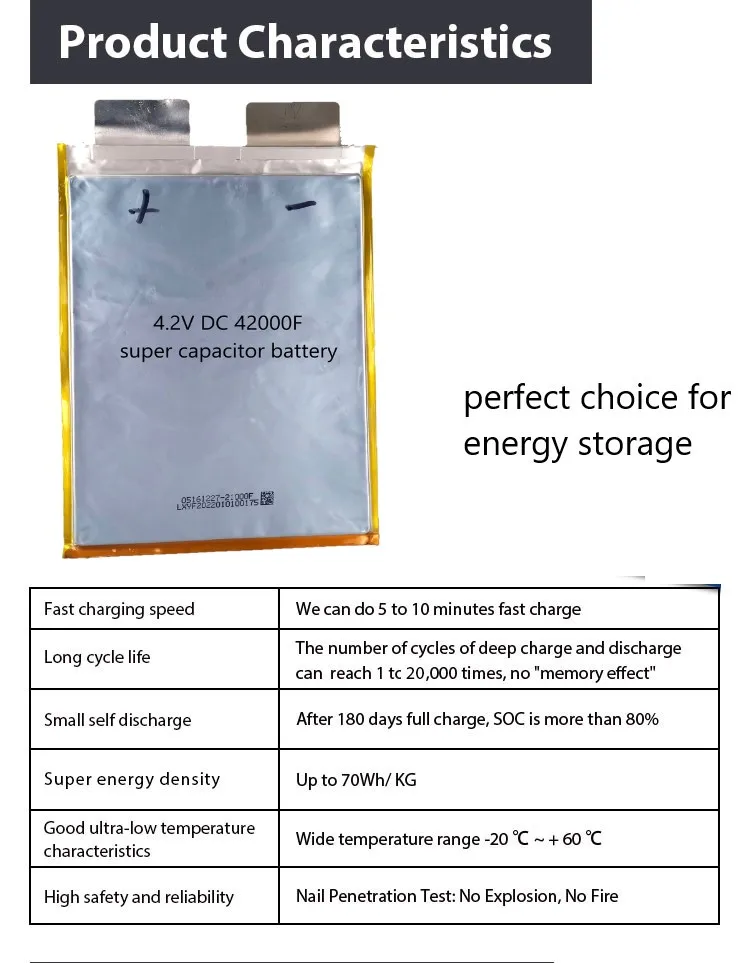

advantage of  super capacitor battery

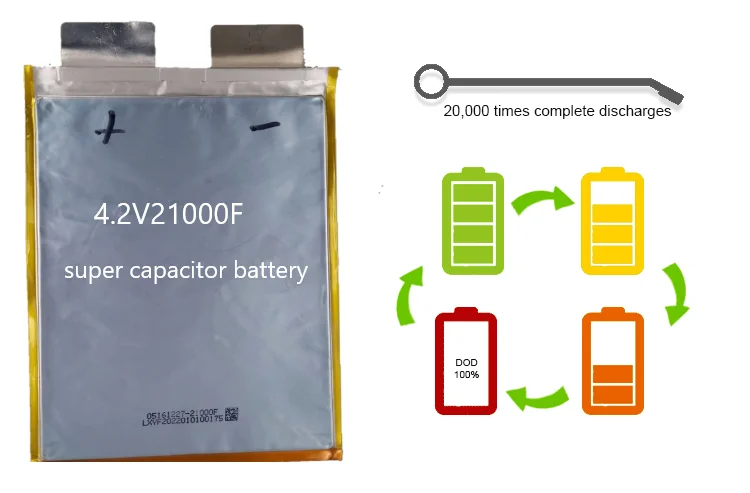

1) The cycle life shall not be less than 20000 times. It's OK after ten years.
2) Safe and reliable: not easy to catch fire or explode. Much safer than chemical batteries.
3) The energy density is 75-220wh/kg. Small units are powerful.
4) Fast charging: charge 80% in 5-15 minutes.
5) Operating temperature range from -40 ℃ to 70 ℃. Suitable for harsh conditions.
6) Cost effective: no replacement for many years. One time investment

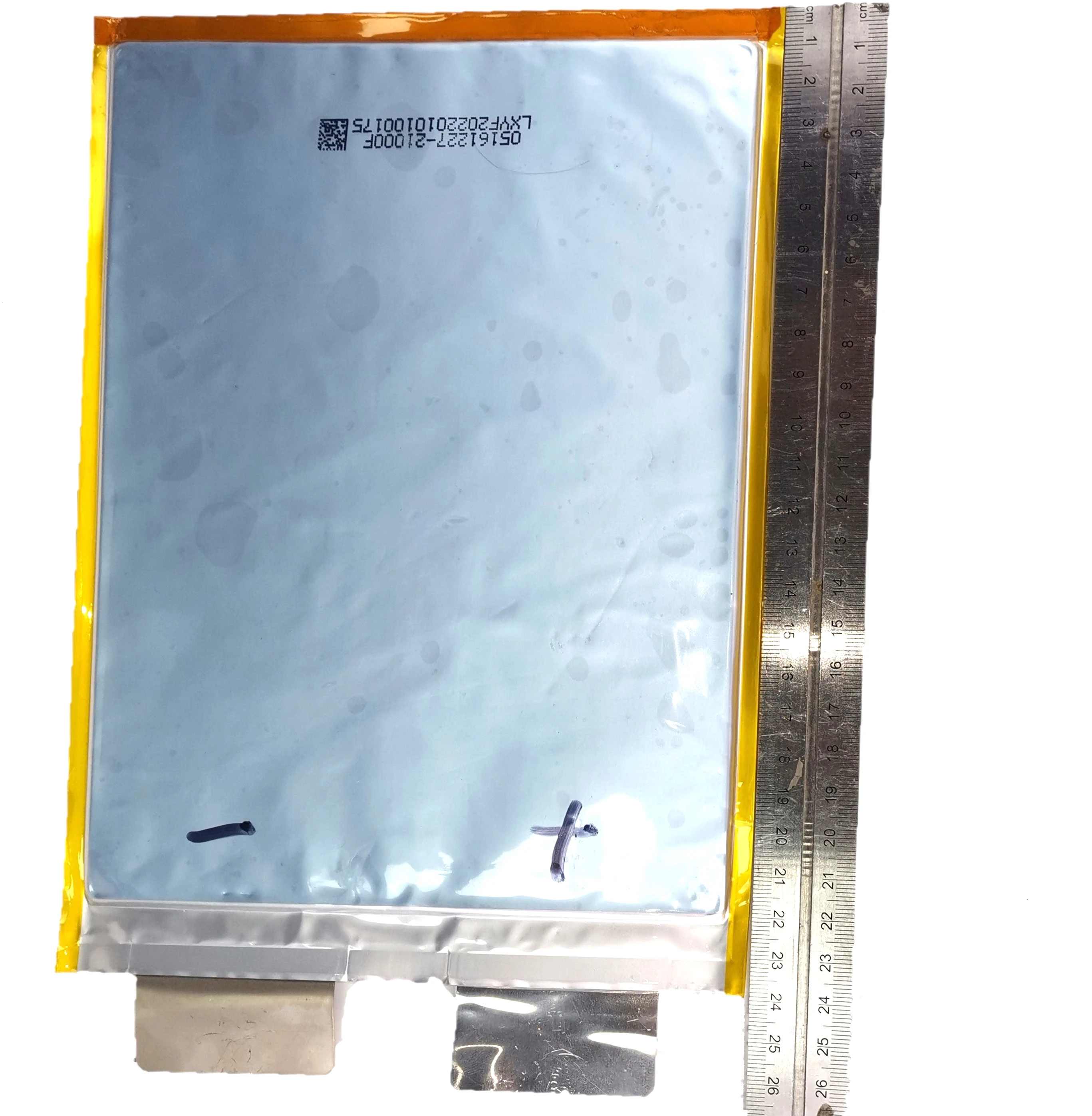

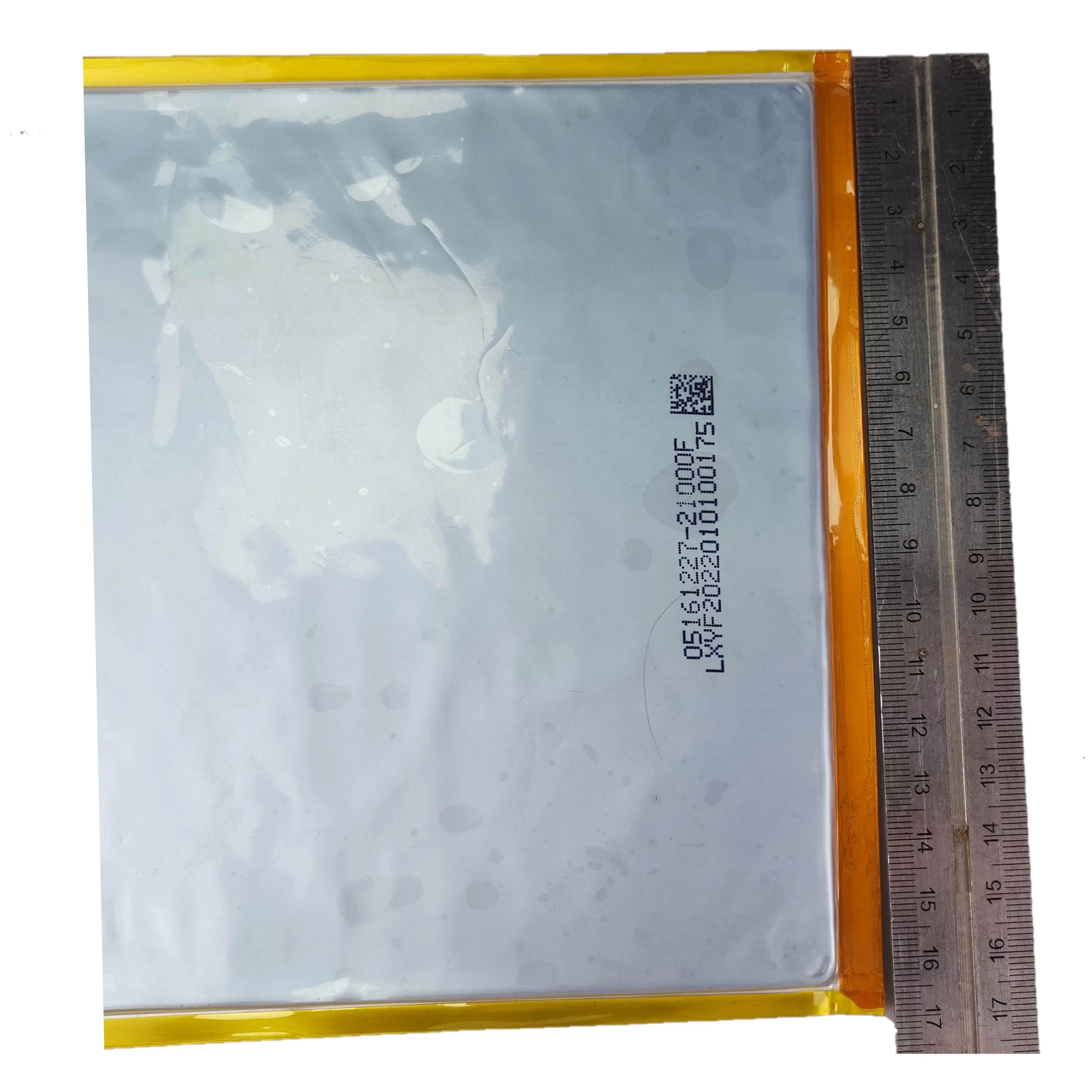

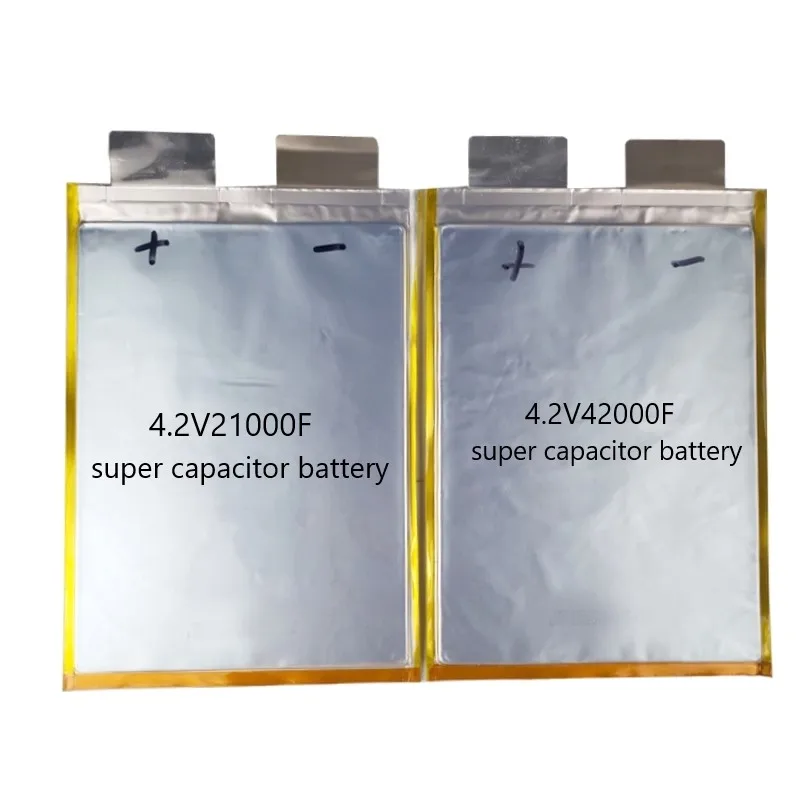

Details Images




Other technical information


Rate charge discharge performance test


Low temperature discharge performance test


Temperature rise performance test


Specifications


Series
Merits
Values
Values
Values
1
Rated Capacity
9.9Ah +5%
19.8 Ah +5%
29.7Ah +5%
21000F+5%
42000F+5%
63000F+5%
2
Upper limit voltage
4.2V
4.2V
4.2V
3
Lower limit voltage
2.5V
2.5V
2.5V
4
DC internal resistance (10ms)
≤1mΩ
≤0.8mΩ
≤0.6mΩ
5
Standard charging current
≤30A(3C)
≤60A(3C)
≤90A(3C)
6
Fast charging current
≤100A(10C)
≤200A(10C)
≤300A(10C)
7
Rated discharge current
≤100A(10C)
≤200A(10C)
≤300A(10C)
8
Maximum continuous discharge current
≤200A(20C)
≤400A(20C)
≤600A(20C)
9
Maximum discharge duration
10s
10s
10s
10
Maximum temperature rise
55±5℃
55±5℃
55±5℃
11
safety
Refer to GB / T 31485-2015 "Safety requirements and test methods for power batteries for electric vehicles"
Refer to GB / T 31485-2015 "Safety requirements and test methods for power batteries for electric vehicles"
Refer to GB / T 31485-2015 "Safety requirements and test methods for power batteries for electric vehicles"
12
Charge and discharge temperature range
-40~65℃
-40~65℃
-40~65℃
13
Storage temperature range
-40~55℃
-40~55℃
-40~55℃
14
Fast charge cycle life
≥ 10000 times (10c)
≥ 10000 times (10c)
≥ 10000 times (10c)
15
Slow charge cycle life
≥ 20000 times (1c)
≥ 20000 times (1c)
≥ 20000 times (1c)
16
weight
≤340g
≤650g
≤950g
17
Dimensions (diameter D × height H)
300×175*60
300×175*120
300×175*180


Our Advantages






packaging&shipping




Company Profile




Dust-free workshop
Colleagues working in dust-proof operation box in dust-free car
Electrode coating machine
Coating machine is producing electrode
Finished product test
Colleagues are testing the product performance


Electrode roll forming workshop
Super capacitor electrodes are formed by pressing in this workshop
Business colleagues
Corner of the office
A corner of a dust-free factory
A corner of a dust-free factory


FAQ


Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 1-2 years warranty to our formal products
