Линду оптические очки ночного видения PVS-31 50 градусов бинокулярный корпус NVG комплект для

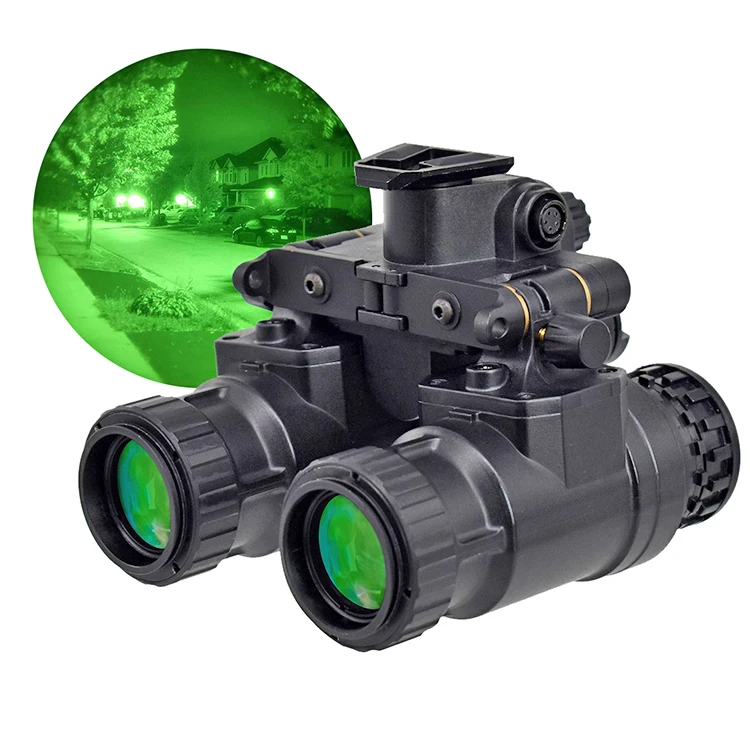

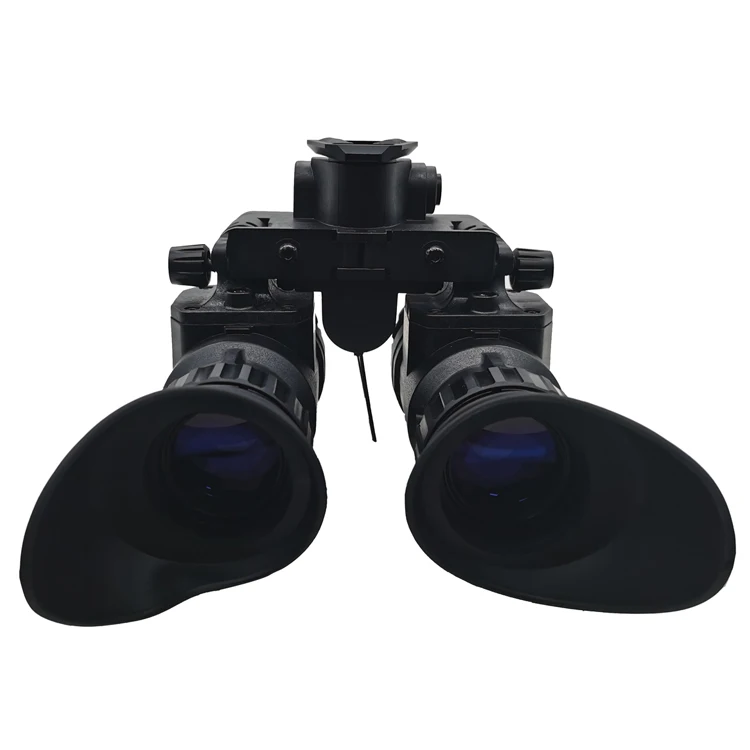

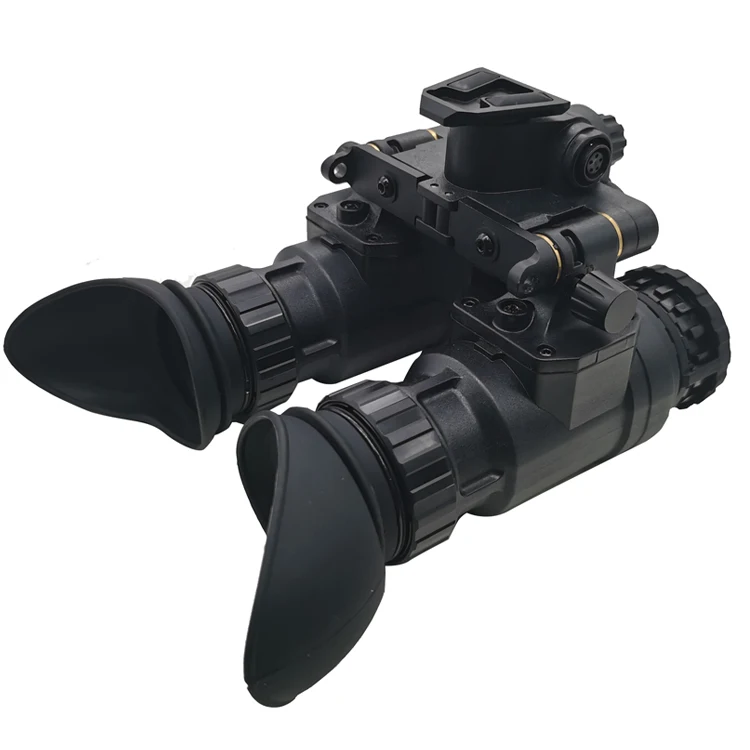

Our night vision goggles binoculars design in FOV 50 degree better than other NVB, our new design is compact, lightweight dual night vision binoculars.They utilize two high performance image intensifier tubes to provide extremely clear and crisp images under the darkest conditions.A built-in IR illuminator lets the users easily read a map and function in a total darkness environment.This model is designed to handle every budget and mission requirement and is a high performance choice!

This device uses 36.7x31mm(18mm) tube. Such as model MX-10160 can be used.

 1. Light weight 480g with tubes;

2. IP65 waterproof standard (IP67 optional);

3. Automatic shut off when flipped side, save power when not use;

4. Build-in IR light;

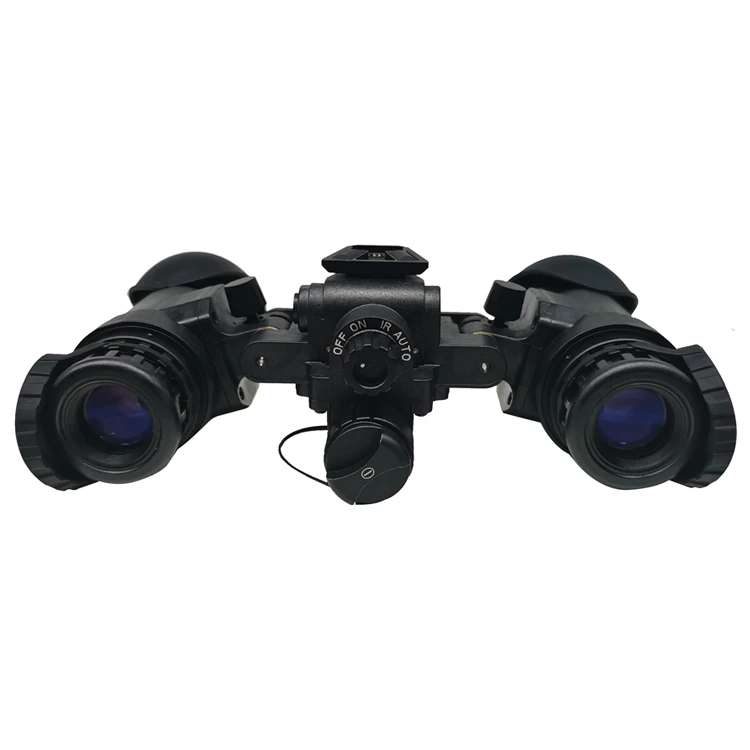

5. Power switch offer ON/IR/AUTO working mode;

6. Strong light auto shut off;

7. Eyepiece lens and objective lens coated with demist coating;

8. Offer sacrificial windows(optional);

9. IR LED indicator and low battery LED indicator;

10. Offer 3X and 5X magnifier lens(optional);

11. Large IPD range;

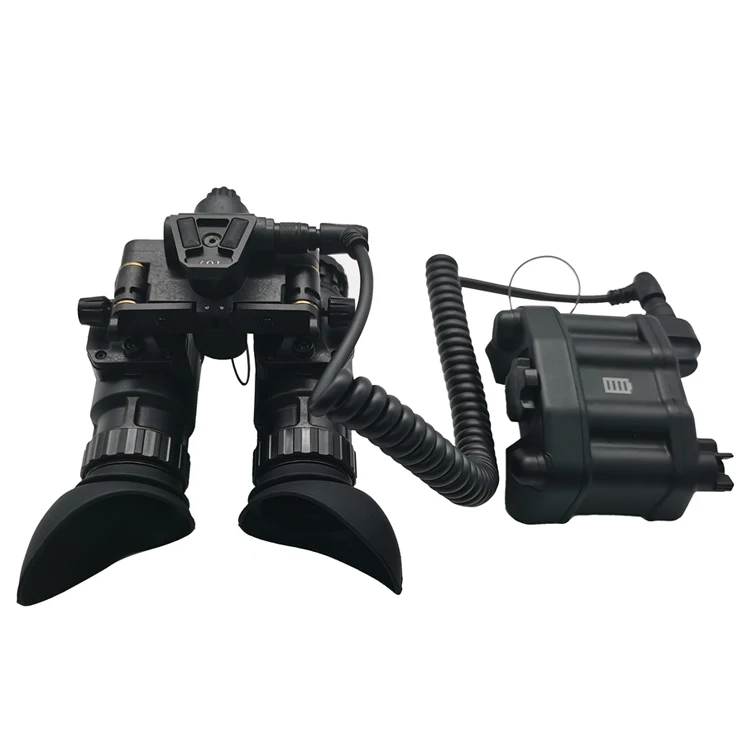

12. Battery packs can connect;

13. Manual gain control version is optional;

Nanyang LINDU OPTICS Tech Co., Ltd created based on engineers who are more than 15 years experience on night vision area, we focus on High end photoelectric and thermal imaging research and development (R&D), production and sales, After years of development, the company has its own core technology advantages on night vision area. LINDU OPTICS has powerful R&D team, own all the products full independent intellectual property rights, we have unique technical advantages in high-tech electronics, software, optical imaging, material structure, optical coating, vacuum technology and other fields.

1.Everything is done, but no power?

 A. Please checks whether the battery is loaded.

 B. checks whether there is electricity in the battery.

 C. confirms that the ambient light is not too strong.

2.Why the target Image is not clear?

A. check the eyepiece, whether the objective lens is dirty.

B. check the lens cover open or not ?if at night time.

C. confirm whether the eyepiece is properly adjusted (refer to eyepiece  adjustment operation).

D. confirm the focusing of the objective lens ,whether finished adjust. (referring objective lens  focusing operation).

E. confirms whether infrared light  is enabled when the  environments all back.

3. Automatic detection not working?

A. automatic mode, when glare automatic protection does not work. Please check if the environmental testing department is blocked.

B. flip, the night vision system does not automatically turn off or install on the helmet. When the system is in normal observation position, the system cannot start normally. Please check the position of the helmet mount is fixed with the product. (reference headwear installation)
