Мини-погрузчик с бортовым поворотом по
- Категория: Earth-moving Machinery >>>
- Поставщик: Linyi,Yunfan,Comprehensive,Agricultural,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 8330.26 $* | 8747.77 $* |
| Aug-19-2025 | 8260.76 $* | 8673.58 $* |
| Jul-19-2025 | 6930.8 $* | 7277.50 $* |
| Jun-19-2025 | 8120.36 $* | 8526.81 $* |
| May-19-2025 | 7070.75 $* | 7424.66 $* |
| Apr-19-2025 | 7980.67 $* | 8379.69 $* |
| Mar-19-2025 | 7910.72 $* | 8306.44 $* |
| Feb-19-2025 | 7840.82 $* | 8232.62 $* |
| Jan-19-2025 | 7770.42 $* | 8159.99 $* |
Характеристики
Product Description

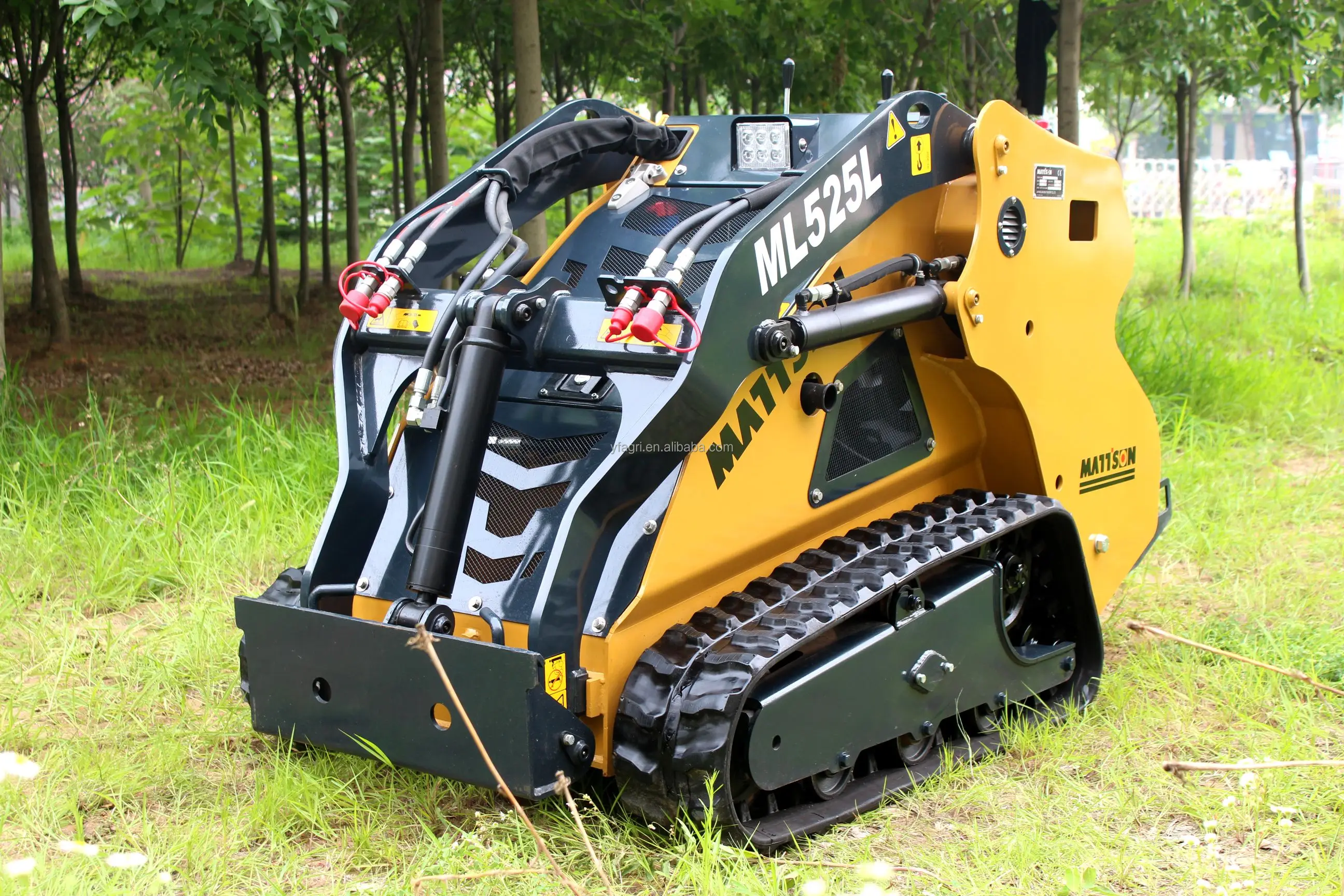

The ML525L is a platform, rubber track mini skid steer unit designed for light-to medium-duty
construction work. The ML525L has a quick attach mount plate which makes it easy for an operator to
connect different attachments. The unit is designed for operation in temperatures typically experienced
in earth moving and construction work environments. Provisions may be required to operate in extreme
temperatures. Contact your MATTSON dealer. Use in any other way is considered contrary to the
intended use.
The ML525L should be operated, serviced, and repaired only by persons familiar with its particular
characteristics and acquainted with the relevant safety procedures.
construction work. The ML525L has a quick attach mount plate which makes it easy for an operator to
connect different attachments. The unit is designed for operation in temperatures typically experienced
in earth moving and construction work environments. Provisions may be required to operate in extreme
temperatures. Contact your MATTSON dealer. Use in any other way is considered contrary to the
intended use.
The ML525L should be operated, serviced, and repaired only by persons familiar with its particular
characteristics and acquainted with the relevant safety procedures.
This equipment was designed and built in accordance with applicable standards and regulations.
Modification of equipment could mean that it will no longer meet regulations and may not function properly
or in accordance with the operating instructions. Modification of equipment should only be made by
competent personnel possessing knowledge of applicable standards, regulations, equipment design
functionality/requirements and any required specialized testing.
Modification of equipment could mean that it will no longer meet regulations and may not function properly
or in accordance with the operating instructions. Modification of equipment should only be made by
competent personnel possessing knowledge of applicable standards, regulations, equipment design
functionality/requirements and any required specialized testing.
Product Presentation
PERFORMANCE
Operating Capacity (35%）--238 kg
Operating Capacity (50%)--340kg
TippingCapacity--680kg
Weight(no attachment)--1090kg
Travel Speed--5.6 km/h
Operating Capacity (50%)--340kg
TippingCapacity--680kg
Weight(no attachment)--1090kg
Travel Speed--5.6 km/h
ENGINE/ELECTRICAL
Make/Model ................................... Kubota //D1105-EF02
Fuel/Cooling................................... Diesel/Liquid
Horsepower(SAE Gross) ............... 18.2kW
MaximumGovernedRPM .............. 3000RPM
Torque @ 2200RPM(SAE Net) ..... 71.5Nm
Number ofCylinders .......................... 3
Displacement ................................. 1.1L
Bore/Stroke .................................... 78mm/78.4mm
Fuel Consumption .......................... 6.1 L/h
Lubrication ..................................... Gear PumpPressure
CrankcaseVentilation .................... Closed
Air Cleaner ..................................... Dry replaceable cartridge with safety element
Ignition ........................................... Diesel-Compression
Engine Coolant............................... Propylene glycol/watermix (53%-47%)
with freeze protection to -37°C
StartingAid .................................... Glowplugs
Alternator ....................................... Belt Driven；40amps；Open
Battery ........................................... 12V；45Ah
Starter ............................................ 12 volt；Gear Reduction Type；1.4 kW
Fuel/Cooling................................... Diesel/Liquid
Horsepower(SAE Gross) ............... 18.2kW
MaximumGovernedRPM .............. 3000RPM
Torque @ 2200RPM(SAE Net) ..... 71.5Nm
Number ofCylinders .......................... 3
Displacement ................................. 1.1L
Bore/Stroke .................................... 78mm/78.4mm
Fuel Consumption .......................... 6.1 L/h
Lubrication ..................................... Gear PumpPressure
CrankcaseVentilation .................... Closed
Air Cleaner ..................................... Dry replaceable cartridge with safety element
Ignition ........................................... Diesel-Compression
Engine Coolant............................... Propylene glycol/watermix (53%-47%)
with freeze protection to -37°C
StartingAid .................................... Glowplugs
Alternator ....................................... Belt Driven；40amps；Open
Battery ........................................... 12V；45Ah
Starter ............................................ 12 volt；Gear Reduction Type；1.4 kW
DRIVE SYSTEM
Main Drive .............. Fully hydraulic rubber track drive
Transmission.......... Direct drive ofhydraulicmotortomain undercarriage drive sprocket
Tracks .................... 200mmwide
Rollers…………….. 3 Each side
Pressure ………….. 25.4 kPa
Transmission.......... Direct drive ofhydraulicmotortomain undercarriage drive sprocket
Tracks .................... 200mmwide
Rollers…………….. 3 Each side
Pressure ………….. 25.4 kPa
CAPACITIES
CoolingSystem..................................... 5.2 L
Fuel Tank ................................................ 35 L
Engine Oil with Filter .............................. 5.1L
Hydraulic Reservoir ............................ …34 L
Hydraulic System ............................... ….40 L
Fuel Tank ................................................ 35 L
Engine Oil with Filter .............................. 5.1L
Hydraulic Reservoir ............................ …34 L
Hydraulic System ............................... ….40 L
CONTROLS
VehicleSteering ................... Direction andspeedcontrolledby two handle
Lift & Tilt ........................ Controlledbyone handlever
FrontAuxiliary (Std.) ...... Controlledbyone handlever
AuxiliaryPressureRelease .. Fore andaft movement ofhandleverafterengine has been shut off.
Engine ................................. Handleverthrottle: Key-type starter switch andshutdown
StartingAid .......................... Glow Plugs – Activated by key switch
Lift & Tilt ........................ Controlledbyone handlever
FrontAuxiliary (Std.) ...... Controlledbyone handlever
AuxiliaryPressureRelease .. Fore andaft movement ofhandleverafterengine has been shut off.
Engine ................................. Handleverthrottle: Key-type starter switch andshutdown
StartingAid .......................... Glow Plugs – Activated by key switch
Related Products
Company Introduction
LINYI YUNFAN COMPREHENSIVE AGRICULTURAL DEVELOPMENT CO.,LTD was established in year 2014. We specialized agricultural related items such as farm tractors, plough, cultivator,combined harvester and other handmade items made from farmers. our products are sold both domestic and abroad.
Packing&Shipping
FAQ
Q1. What are your terms of packing?
A: Generally, we pack our goods in the wood frame into 2 levels to maximize space
Q2. How do you ensure your quality?
We have 2 QC managers whom work on this field more than 15 years, they can test the tractors parts by parts, our working attitude
is carefully, strictly and seriously ;
Q3. What are your terms of payment?
A: T/T 100% as the deposit for 1-2 unit and 50/50 for the wholesale. We'll show you the photos of the products and packages before
you pay the balance.
Q4. What are your terms of delivery?
A: FOB, CIF, CNF
Q5. How about your delivery time?
A: Generally, it will take 7-15 days after receiving your advance payment. The specific delivery time depends on the items and the
quantity of your order.
Q6: How do you make our business long-term and a good relationship?
1. We keep good quality and competitive price to ensure our customers benefit
2. We respect every customer as our friend and we sincerely do business and make friends with each other.
A: Generally, we pack our goods in the wood frame into 2 levels to maximize space
Q2. How do you ensure your quality?
We have 2 QC managers whom work on this field more than 15 years, they can test the tractors parts by parts, our working attitude
is carefully, strictly and seriously ;
Q3. What are your terms of payment?
A: T/T 100% as the deposit for 1-2 unit and 50/50 for the wholesale. We'll show you the photos of the products and packages before
you pay the balance.
Q4. What are your terms of delivery?
A: FOB, CIF, CNF
Q5. How about your delivery time?
A: Generally, it will take 7-15 days after receiving your advance payment. The specific delivery time depends on the items and the
quantity of your order.
Q6: How do you make our business long-term and a good relationship?
1. We keep good quality and competitive price to ensure our customers benefit
2. We respect every customer as our friend and we sincerely do business and make friends with each other.
