Высокочастотный перекрестный ламинированный станок для
- Категория: Wood Based Panels Machinery >>>
- Поставщик: Shijiazhuang,Duotian,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.3 $* | 0.27 $* |
| Aug-17-2025 | 0.88 $* | 0.55 $* |
| Jul-17-2025 | 0.89 $* | 0.86 $* |
| Jun-17-2025 | 0.43 $* | 0.51 $* |
| May-17-2025 | 0.30 $* | 0.86 $* |
| Apr-17-2025 | 0.70 $* | 0.79 $* |
| Mar-17-2025 | 0.4 $* | 0.96 $* |
| Feb-17-2025 | 0.43 $* | 0.84 $* |
| Jan-17-2025 | 0.39 $* | 0.55 $* |
Характеристики
Product Description
High frequency cross laminated timber press machine is best for furniture board edge glue joining, right angle board joining, laminated wood joining, cabinet board joining, door edge banding, “L” type door pocket line joining.
Detailed Images

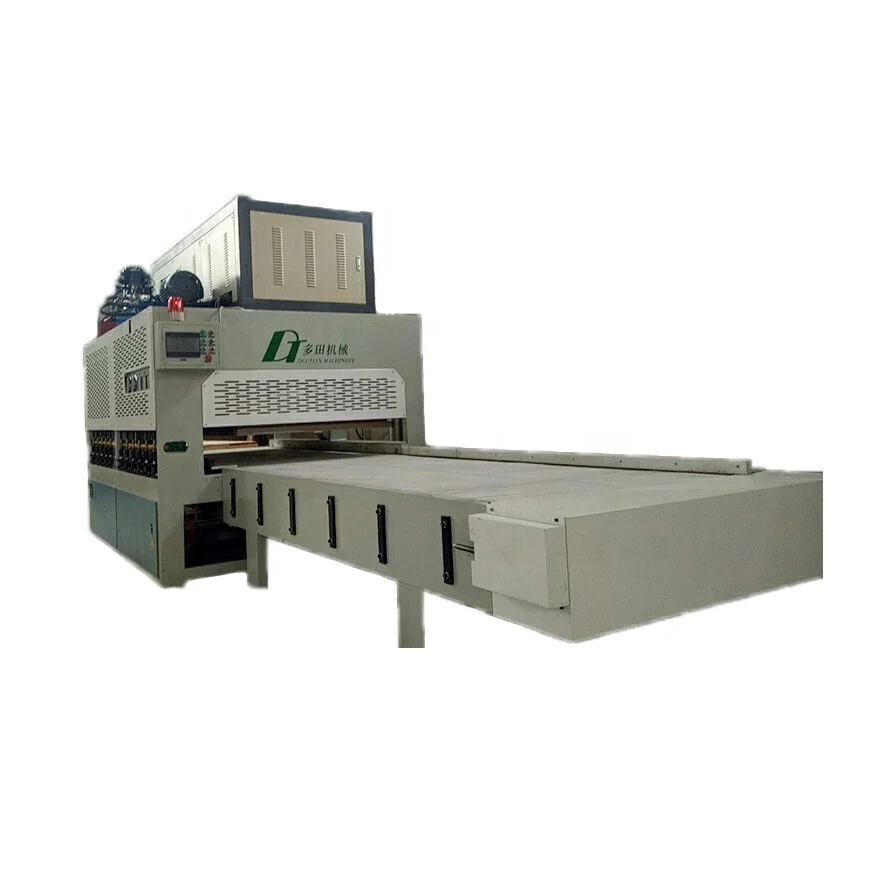

Features - High frequency cross laminated timber press machine
Workers can place wood pieces in right position, avoiding dislocation problem and damage cylinder.
Machine working table processed by non-cohesive material. Glue is easy to remove and assure panel quality.
Top working table designed with lifting device. Make sure panel straight and flatness.Save more wood material for next sanding
process.
process.
Locate high frequency generator and hydraulic system on the top of machine, saving factory space.
High efficiency: HF heating 1-2minutes finish one standard panel(8x4 feet, 20mm thick ).
Working table size can be custom made as customer requirements.
Low power costs: HF power only heat glue line, save the power. (0.5-1 kwh per board)
Labor saving: Automatic control. One button can finish whole cycle.
No pollution: HF power only needs electricity, dust free and clean.
Specs - High frequency cross laminated timber press machine
Model | GPB-56-DT-L | GPB-65-DT-L | GPB-80-DT-L | GPB-102-DT-L | |||
Control | PLC, HMI Screen | ||||||
Working Table | 2500*1300mm | 3000*1300mm | 4200*1300mm | 5200*1300mm | |||
Thickness | 10-80mm | ||||||
Vertical Pressure | 20 Ton | 20 Ton | 20 Ton | 30 Ton | |||
Side Pressure | 36 Ton | 45 Ton | 60 Ton | 72 Ton | |||
HF Frequency | 6.78MHz | ||||||
HF Power | 20kw | 30kw | 40kw | 50kw | |||
Feeding | Automatic conveyor belts | ||||||
Open Type | Vertical lift | ||||||
Company Introduction
Shijiazhuang Duotian Machinery Co., Ltd. is a professional manufacture specialized in developing, designing and producing high frequency dielectric heating and hydraulic pneumatic equipment. The main products are: HF generator, HF wood bending press machine, HF hot press machine, HF precision frame assembly machine, HF wood angle jointing machine, HF board jointing machine, HF board and frame assembly machine, HF musical instrument gluing equipment , HF vacuum wood dryer, and other special HF heating equipments.
