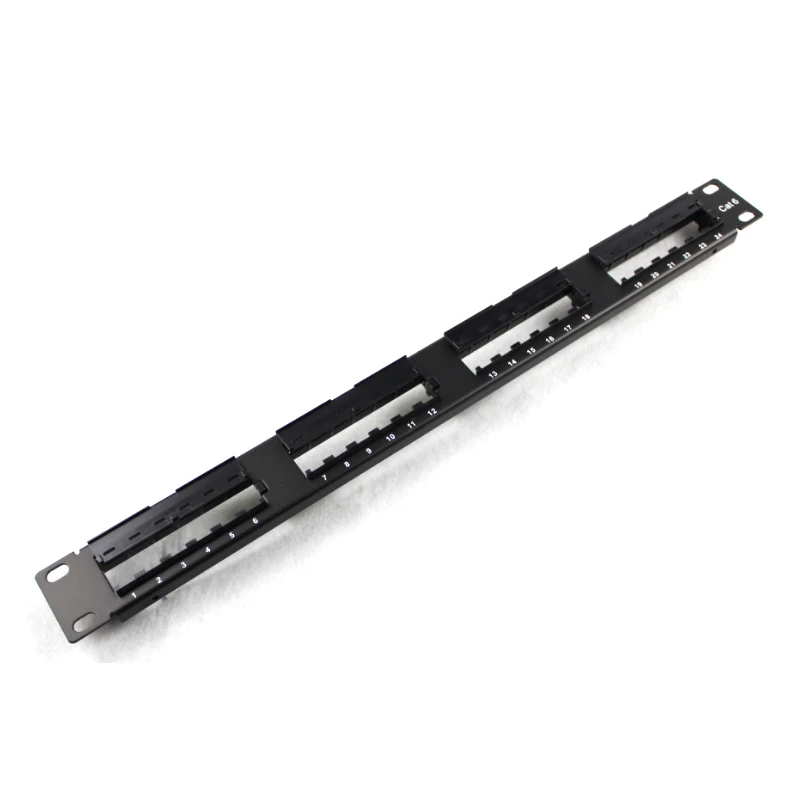

Сетевая патч-панель UTP RJ45 Cat6 24 порта совместимая с кабельным соединением 1U

1. Product Name: cat6 patch panel

2. Product Type:  24 port patch panels

3. Specifications: 19′′ installation size, modular design, with 24 super five class modules

4. Material: injection molded from high quality cold rolled steel

5. Color: Black

6.Main technical parameters

*IDC: Phosphor bronze, silver plated (20~50uiLZh), suitable for cables of 22, 24 and 26AWG (0.64, 0.5 and 0.4mm), with a life of not less than 250 times.

*8-line pin: phosphor bronze, gold-plated (20~50uiLZh), plug and socket can be re-plugged no less than 750 times

* Contact resistance: no more than 2.5mΩ under normal atmospheric pressure (without body resistance)

*Insulation resistance: not less than 1000MΩ under normal atmospheric pressure conditions

*Electrical strength: DC 1000V (AC, 700V) No breakdown and arcing in 1 minute

*Standard: Designed and manufactured according to international standard ISO/IEC11801  TIA/EIA568

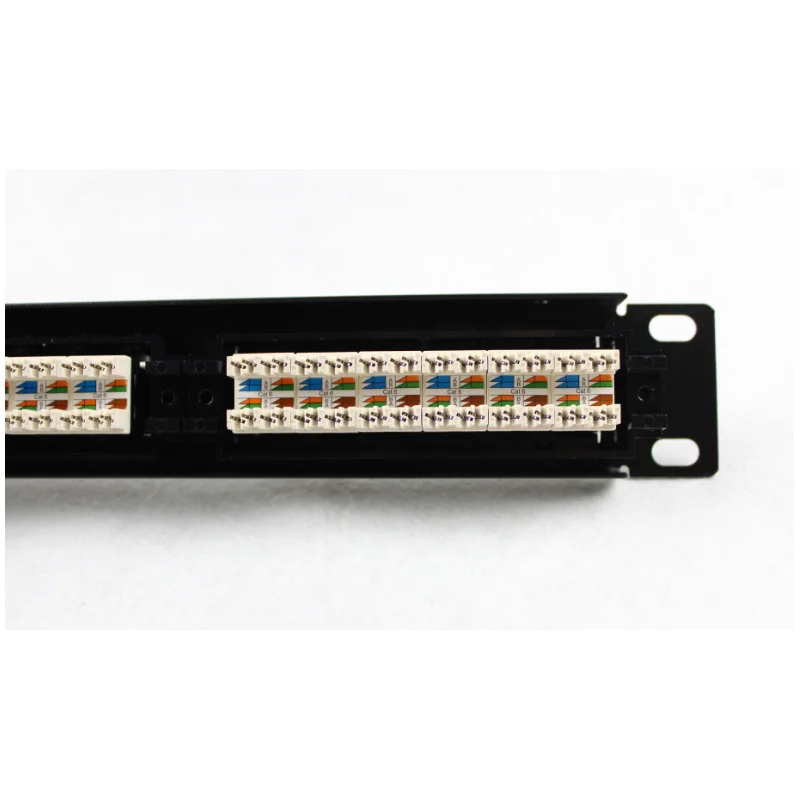

1. The rear-mounted cable management tray can effectively guide the cable to the termination point to avoid stress on the cable and module termination during the installation process;

2. It comes with 24 six gold-plated modules and 24 dustproof covers, which can be installed freely according to requirements. It is easy to install and dismantle without worrying about rework;

3. Each module is PC flame retardant plastic, gold-plated phosphor bronze material, easy to FLUKE test;
