Планетарный редуктор планетарной передачи серии
- Категория: Speed Reducers >>>
- Поставщик: Changsha,Chushitian,Precision,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 60.67 $* | 63.5 $* |
| Aug-20-2025 | 59.68 $* | 62.5 $* |
| Jul-20-2025 | 50.35 $* | 53.44 $* |
| Jun-20-2025 | 58.35 $* | 61.25 $* |
| May-20-2025 | 51.68 $* | 54.80 $* |
| Apr-20-2025 | 57.78 $* | 60.43 $* |
| Mar-20-2025 | 57.51 $* | 60.30 $* |
| Feb-20-2025 | 56.17 $* | 59.26 $* |
| Jan-20-2025 | 56.55 $* | 59.32 $* |
Характеристики
Product Overview

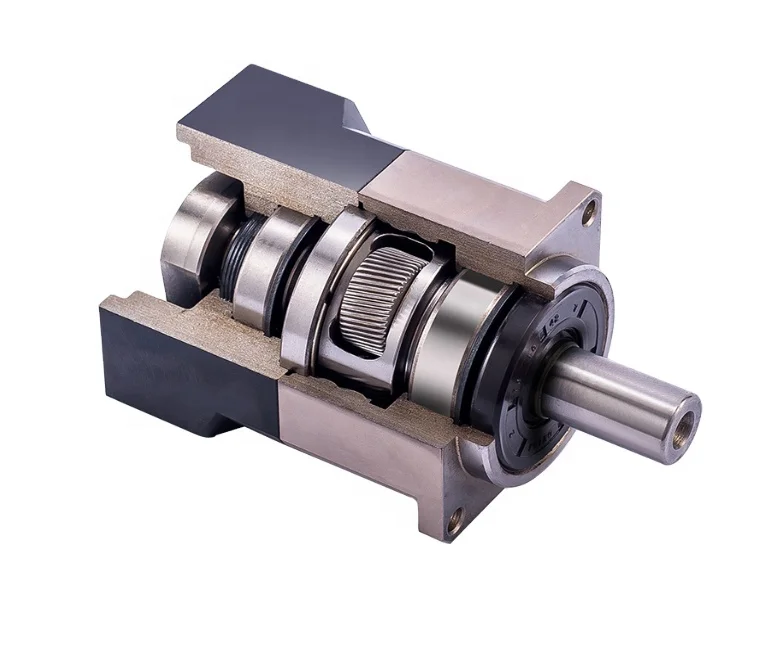

WAB series --- Helical Gear Planetary Gearbox
Feature
a. Planetary boom and output shaft are intergrated structure designed to ensure maximum torsional rigidity.
b. Planetary gear with full needle design, increases contact area to improve rigidity and output torque
c. The gears are carburized and quenched to HRC62 with low carbon steel surface for optimum wear and impact toughness
d. Gears refer to oversea imported software-assisted design to obtain the best booth shape to reduce noise
e. The input end is connected with motor shaft in a double-tight method to obtain the maximum clamping force and zero backlash
transmission.
a. Planetary boom and output shaft are intergrated structure designed to ensure maximum torsional rigidity.
b. Planetary gear with full needle design, increases contact area to improve rigidity and output torque
c. The gears are carburized and quenched to HRC62 with low carbon steel surface for optimum wear and impact toughness
d. Gears refer to oversea imported software-assisted design to obtain the best booth shape to reduce noise
e. The input end is connected with motor shaft in a double-tight method to obtain the maximum clamping force and zero backlash
transmission.
FEATURES AT A GLANCE
Advantage
High input speed: maxium 10000rpm
Low backlash: 1-stage, P<2arcmin; 2-stage, P<3arcmin
Low noise: exquisite design, precision manufacturing, noise below 63dB(A)
High ratio: modular design, planetary gearboxes can be conbined to reach high speed ratio
High transmission efficiency: >97%
High input speed: maxium 10000rpm
Low backlash: 1-stage, P<2arcmin; 2-stage, P<3arcmin
Low noise: exquisite design, precision manufacturing, noise below 63dB(A)
High ratio: modular design, planetary gearboxes can be conbined to reach high speed ratio
High transmission efficiency: >97%

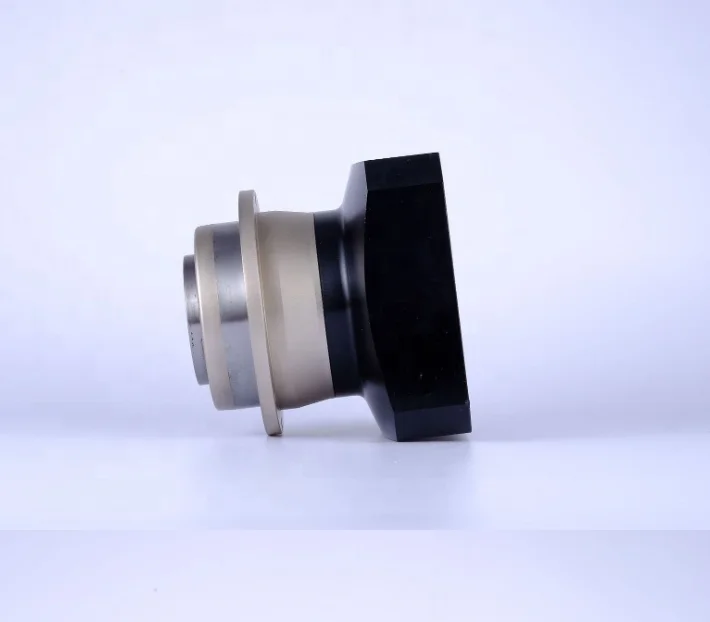

Right elevation

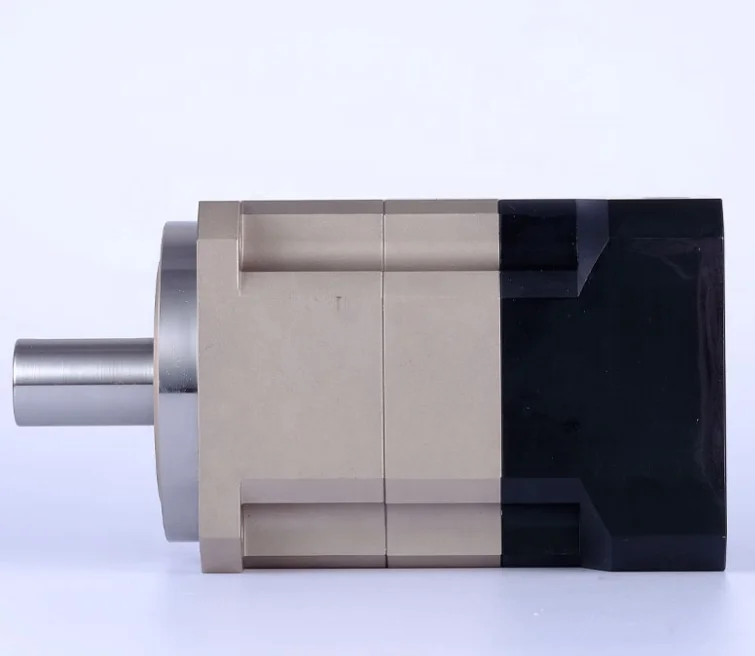

Left elevation

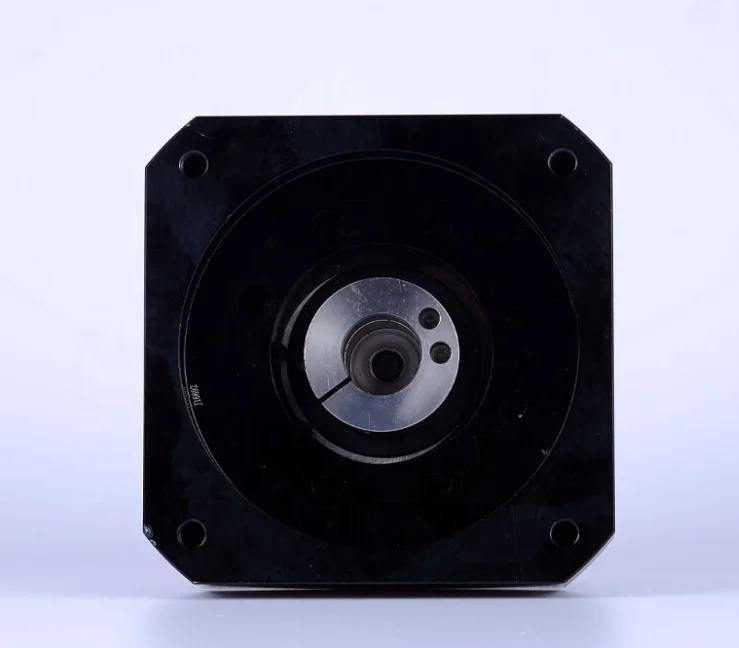

Front elevation
PRODUCT SPECIFICATIONS
No | Size: | 42 / 60 / 90 / 115 / 142 / 180 / 220 (mm) | ||
1 | Ratio: | 3~100 | ||
2 | Maximum input speed: | 10000 rpm | ||
3 | Backlash: | stage 1 (ratio 3-10): P1≤ 3 arcmin P2≤ 5 arcmin | ||
4 | Life span: | 20000h | ||
5 | IP Grade: | IP65 | ||
6 | Noise level: | ≤ 63dB | ||
7 | stage 2 (ratio 15-100): | P1≤ 5 arcmin P2≤ 8 arcmin | ||
8 |
