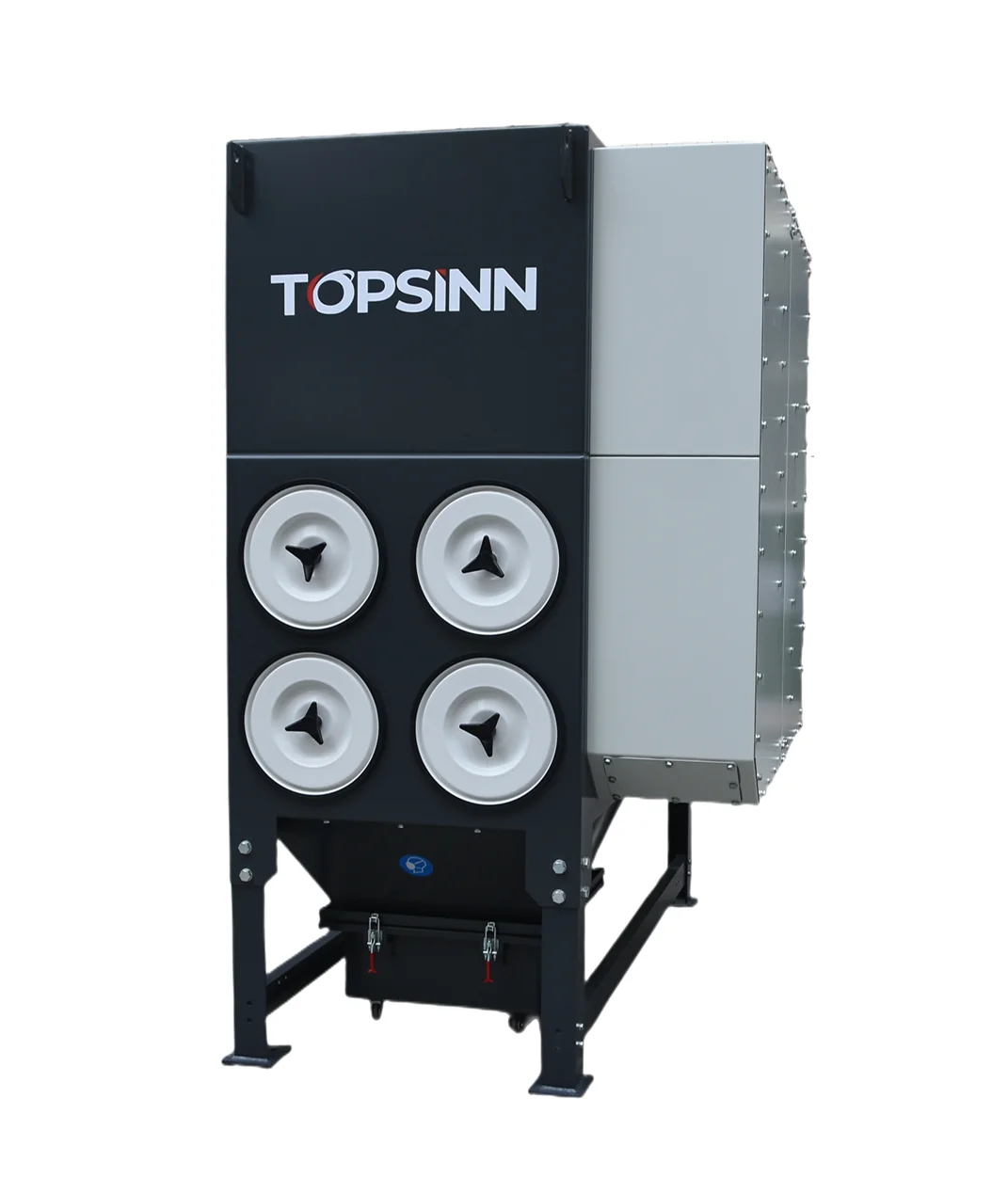

Dust Collector Bag Filter Cages Fume Extractor for Eyelash Extension Laser Fume Extractor

TODC-4L-5.5KW	TODC-6L-7.5KW	TODC-8L-11KW	TODC-12L-15KW
It's used for 3015/4020	It's used for 4020/6020	It's used for 8020	More than 8 meters length of laser cutting machine

Model	TODC-4L	TODC-6L	TODC-8L	TODC-12L

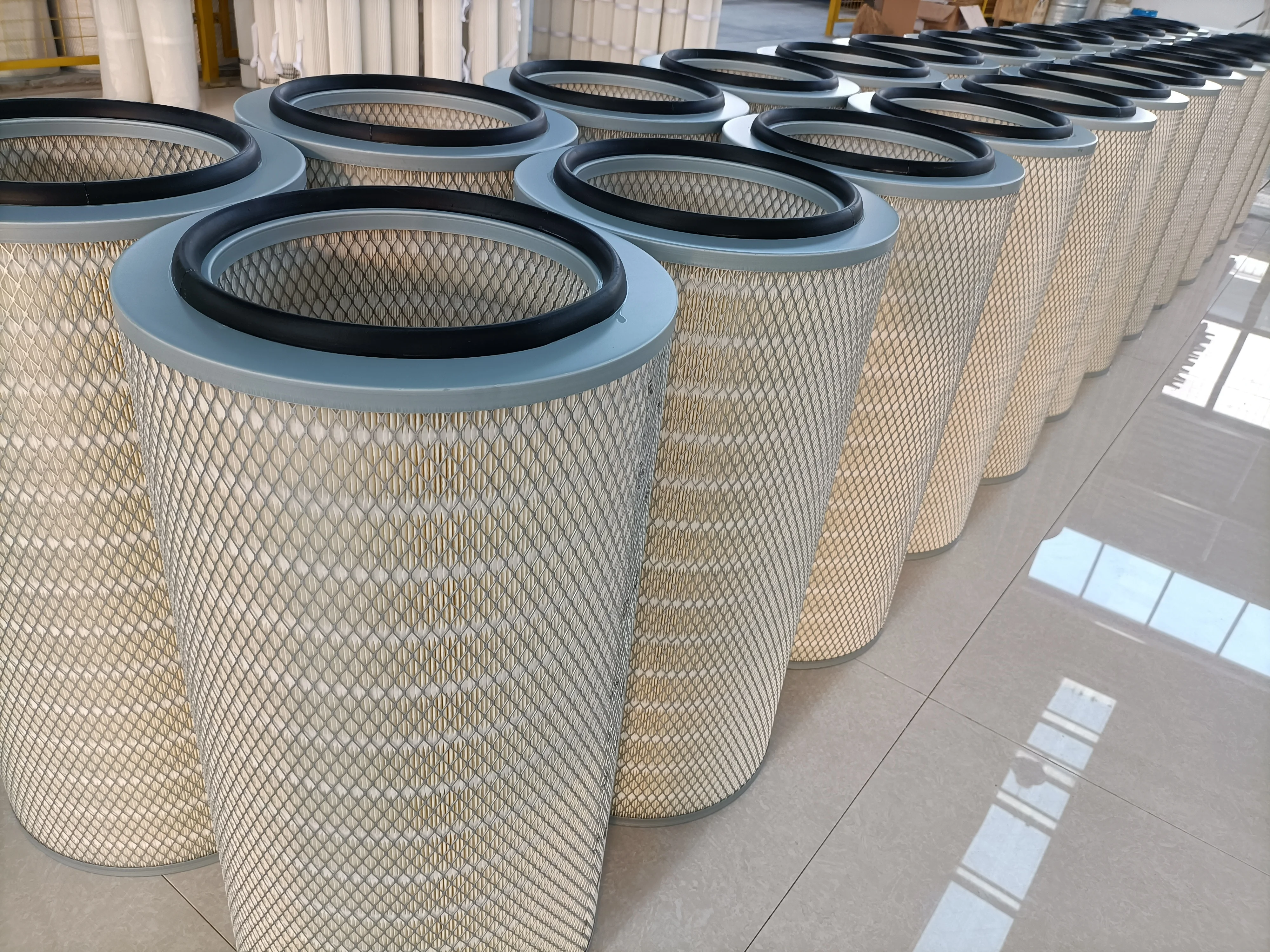

Filter Cartridge Material	HV/Ahlstrom/TORAY, F9
Number of Filter	4	6	8	12
Air Volume	4000m³/h	6000m³/h	9000m³/h	10000m³/h
Air Pressure(Mpa)	3000	3600	5000	5000
Filtration Efficiency	99.99%	99.99%	99.99%	99.99%
Filtering Area	80M²	120M²	160M²	240M²
Air Blower	5.5KW SIEMENS	7.5KW SIEMENS	11KW SIEMENS	15KW SIEMENS
Collector Capacity	45L	50L	90L	120L
Power Requirements	THREE PHASE,FOUR WIRE,380V
Air Pressure Request	0.6-0.7Mpa,Compressed Air Without Oil and Water
Unit Weight	700kg	900kg	1200kg	1800kg
Outline Dimension(mm)	A:2198 B:1348 C:1060 D:303	A:2837 B:1423 C:1180 D:383	A:2575 B:2215 C:1016 D:453	A:2751 B:2215 C:1516 D:553
Emission Concentration(mg/m3)	＜10	＜10	＜10	＜10

222

1.Lifting Ear 2.Filter Barrel Cover 3.Ash Barrel 4.Control Panel 5.Maintenance Door

6.Air Inlet 7.Large Particle Dust Port 8.Fan Air Outlet 9.Power Cord Inlet 10.Compressed Airir
