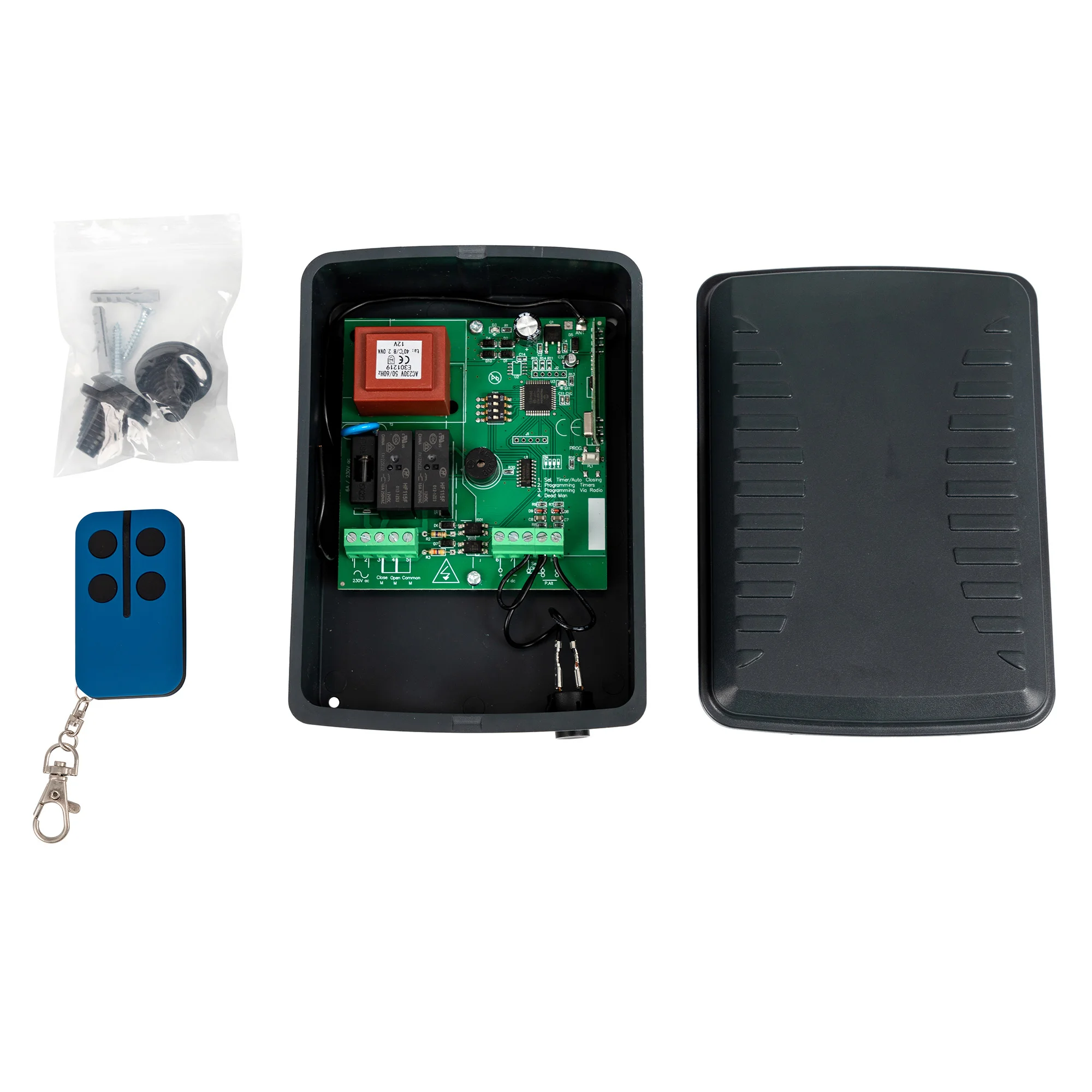

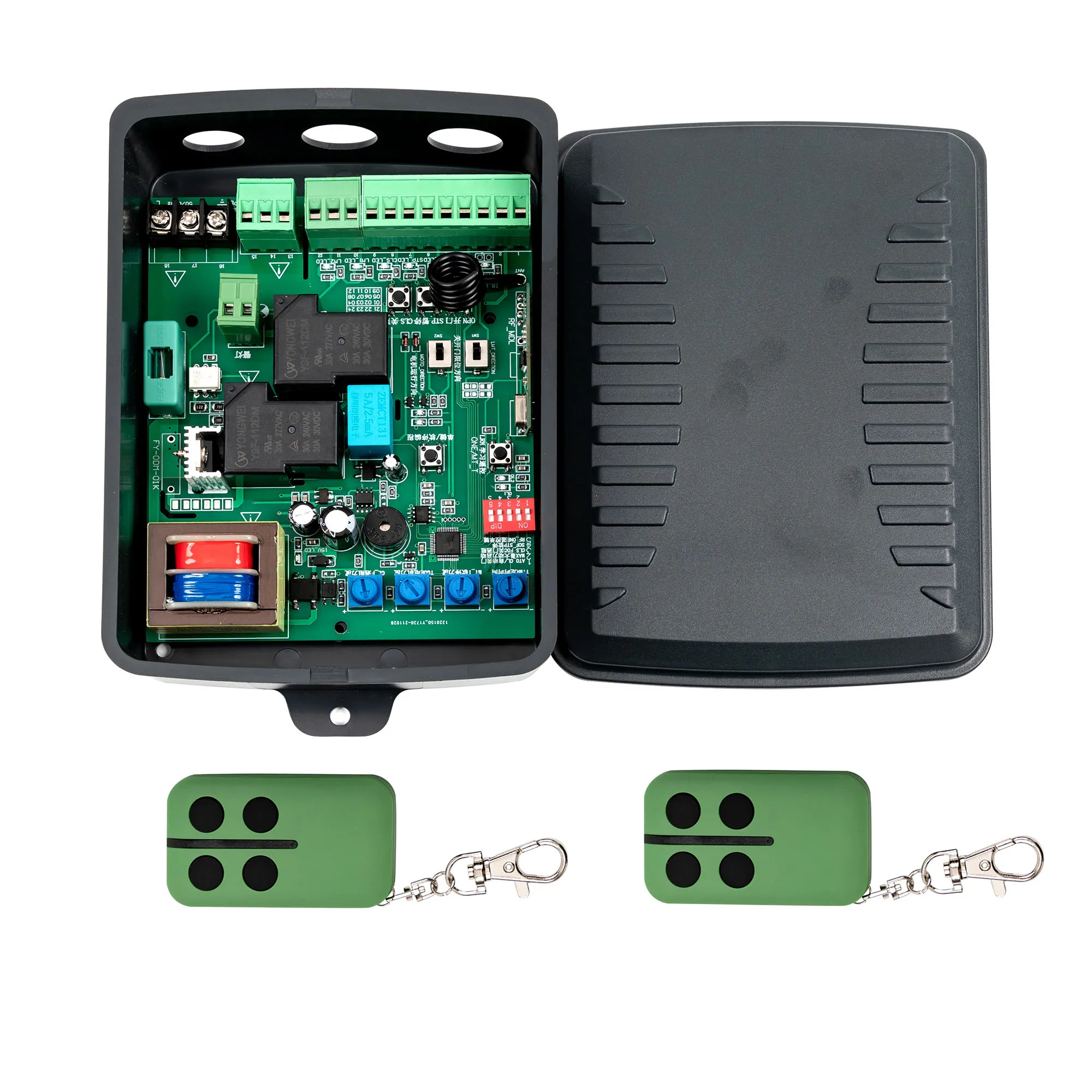

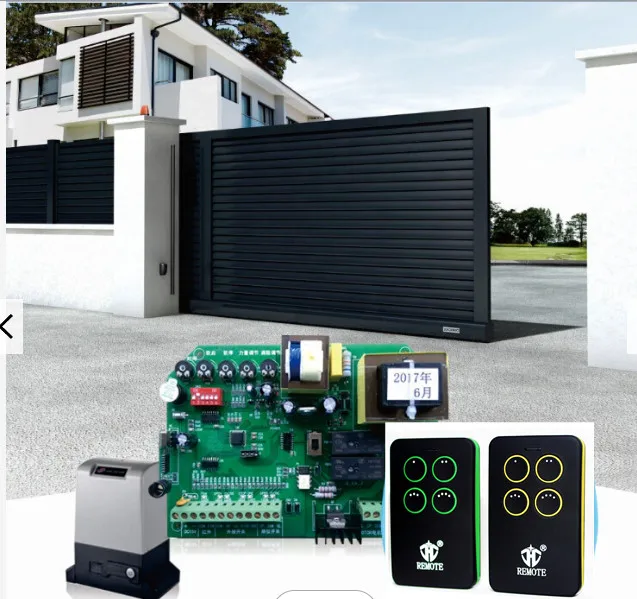

Автоматическая доска управления открывалкой



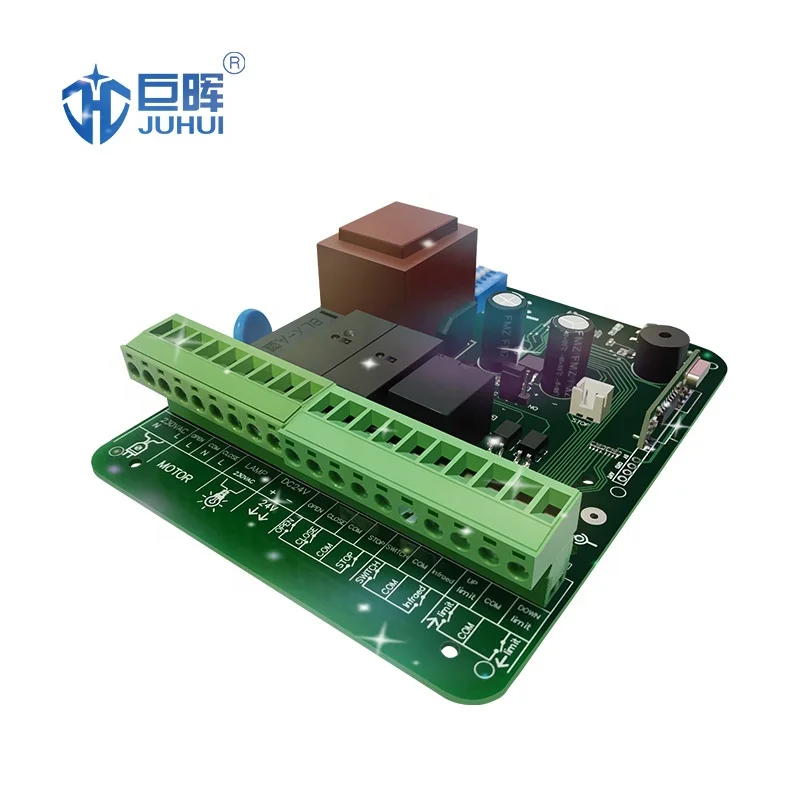

1.+15V                   2.GND

3.infrared photocell
Connect the positive line of infrared transmitting and receiving power
to +15V, and the negative line to GND, and connect the input line of
infrared receiving to IR_IN. If the infrared function is not used, connect
IR_IN to GND.
4.ONE                 5.GND
The manual button switches connected into ONE single bond and

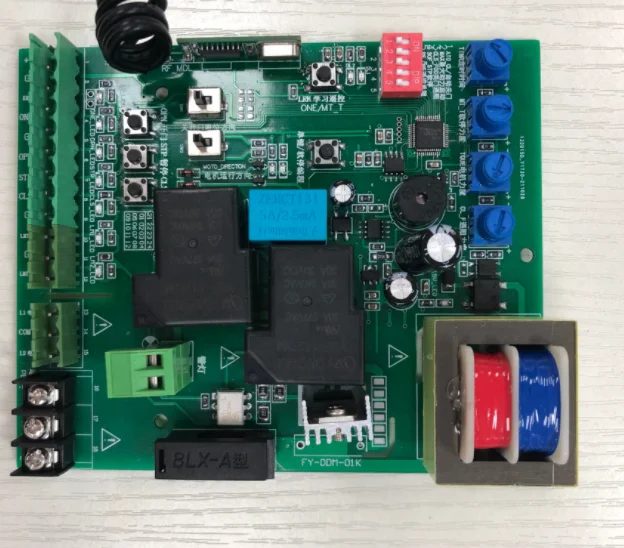

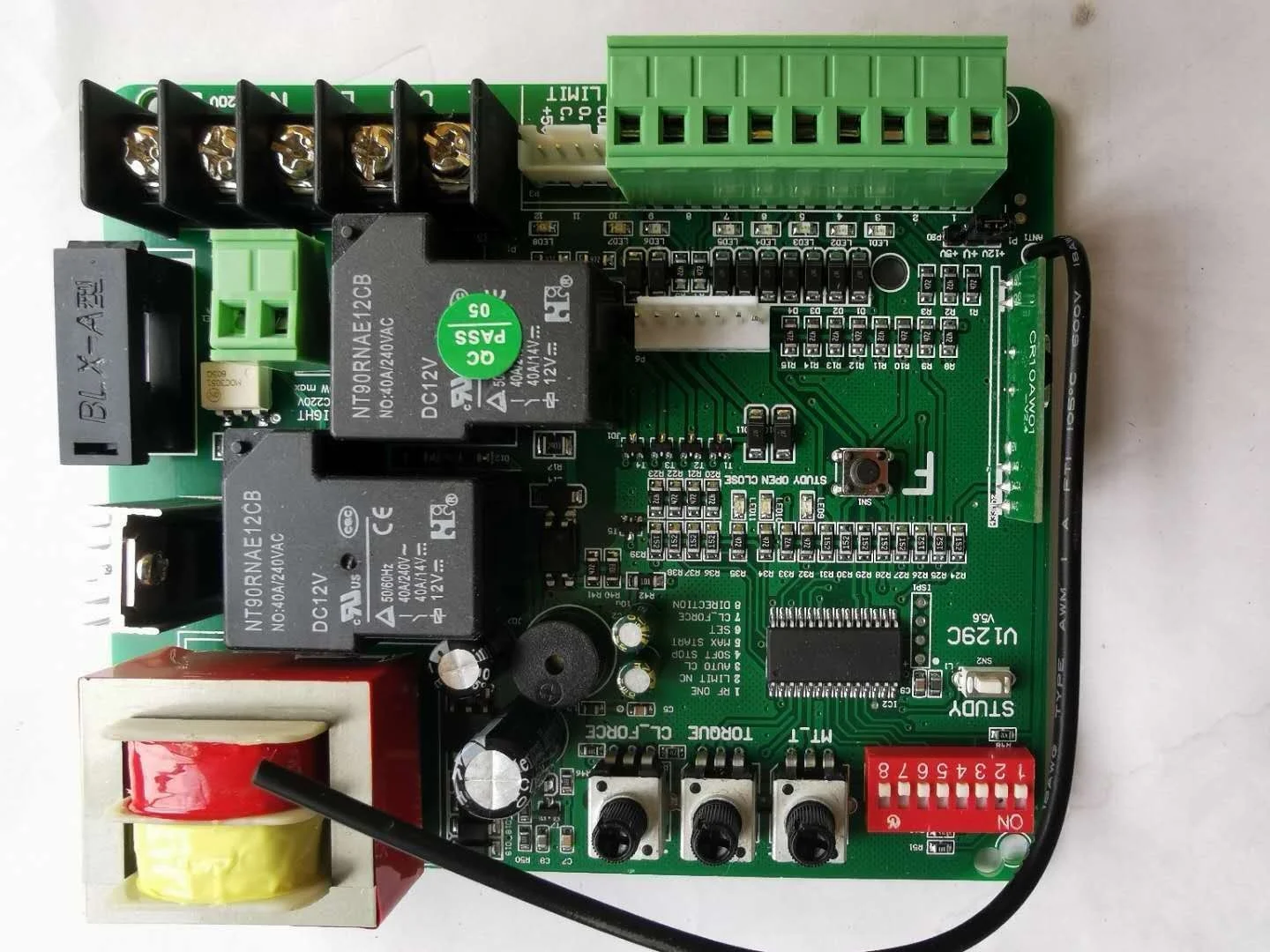

GND, this button is connected to the ONE on the PCB/MT_T (the switch
on the plate is very convenient when debugging) , the drive to do a
single bond circulation at ordinary times, stop, shut, stop, open loop
motor function, you need to use slow stop function, can be slow stop
learning function keys, long press this button 3 seconds to enter slow
stop learning.
6.OPEN         7.STOP        8.CLOSE             9.GND
Connect the OPEN, STOP and close key wires to the corresponding
OPEN, STP, CLS and GND lines. The three keys are also connected to
the OPEN, STOP and CLS key switches on the PCB board (the switch
on the board is very easy to operate during debugging). The three
keys can control the start, STOP and close of the motor respectively.
10.UP LIMIT           11.GND                        12.DOWN LIMIT
Open or close travel travel switch and public line are respectively
connected to the corresponding identification interface (LMT1,GND,
LMT2).
13.UP MOTO         14.MOTO COM          15.DOWN MOTO
The winding coil L1, the common wire COM and the winding coil L2
of the motor are respectively connected to the interface of the motor
identification.
16.PE              17.AC220V,50/60Hz            18.L
Connect the 220v live wire, zero wire and ground wire to L (live wire), N
(zero wire) and PE (ground wire) respectively
