Многогранный станок с ЧПУ для гравировки
- Категория: Stone Machinery >>>
- Поставщик: Jinan,Grandio,Cnc,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 3213.81 $* | 3374.99 $* |
| Aug-16-2025 | 3186.5 $* | 3345.10 $* |
| Jul-16-2025 | 2673.17 $* | 2807.71 $* |
| Jun-16-2025 | 3132.46 $* | 3289.12 $* |
| May-16-2025 | 2727.71 $* | 2863.37 $* |
| Apr-16-2025 | 3078.3 $* | 3232.32 $* |
| Mar-16-2025 | 3051.49 $* | 3204.43 $* |
| Feb-16-2025 | 3024.59 $* | 3175.1 $* |
| Jan-16-2025 | 2997.81 $* | 3147.82 $* |
Характеристики

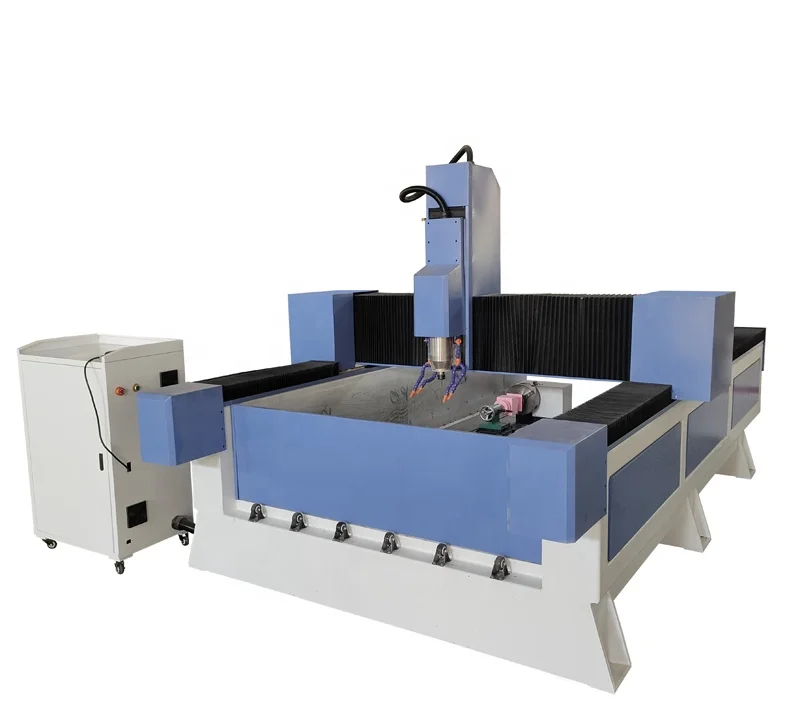

Product Overview
FEATURES AT A GLANCE
1. The bed is welded with thickened large pipe.
2. The guide rail adopts imported linear square gauge.
3. Specially designed z-axis structure.
4. Double sheathed high flexible shielded cable and CNC special cable are adopted.
5. Y-axis adopts double motor drive to ensure smooth operation.
6. The system adopts numerical control system, efficient automatic processing, greatly saving time and investment cost for you, improving production efficiency.
7. All the limits are original from OMRON of Japan to improve the accuracy of returning to the origin.
2. The guide rail adopts imported linear square gauge.
3. Specially designed z-axis structure.
4. Double sheathed high flexible shielded cable and CNC special cable are adopted.
5. Y-axis adopts double motor drive to ensure smooth operation.
6. The system adopts numerical control system, efficient automatic processing, greatly saving time and investment cost for you, improving production efficiency.
7. All the limits are original from OMRON of Japan to improve the accuracy of returning to the origin.
PRODUCT SPECIFICATIONS
Mode | GD-1325 | ||||||
X,Y,Z Working Area | 1300*2500*200mm | ||||||
Table Structure | Welded Structure | ||||||
X Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings | ||||||
Z Structure | Hiwin Rail Linear Bearings and Ball Screw | ||||||
Spindle | 6KW water cooling.24000rpm/min | ||||||
Driver motor | China Stepper motor and leadshine driver | ||||||
Inverter | Fuling or Sunfar | ||||||
Control system | DSP System (options: Ncstudio/Mach3 PC Software) | ||||||
Max. Engraving Speed | 3000mm/min | ||||||
Working Voltage | 380V/3PH/50HZ | ||||||
Command Code | G code | ||||||
Software Compatibly | Artcam/Artengraver/Type3/V9/JD paint | ||||||
X,Y Resolution | <0.03mm | ||||||
PRODUCT CONFIGURATION
Helical gear racks
The CNC router uses precision helical gear racks on the X and Y axis. The rack is installed upside down to help prevent dust and debris from accumulating on the drive system,thereby ensuring smooth movement and long-term reliability. The precision gearbox is directly connected to the stepper motor.
Special spindle for stone
Used a high-power 5.5kw main shaft for stone, with a maximum speed of 24.000 rpm. The four bearing rotors work at the same time,with large torque, strong power, dustproof and waterproof, and long service life. Hard and soft stone and other materials can be handled in one machine.

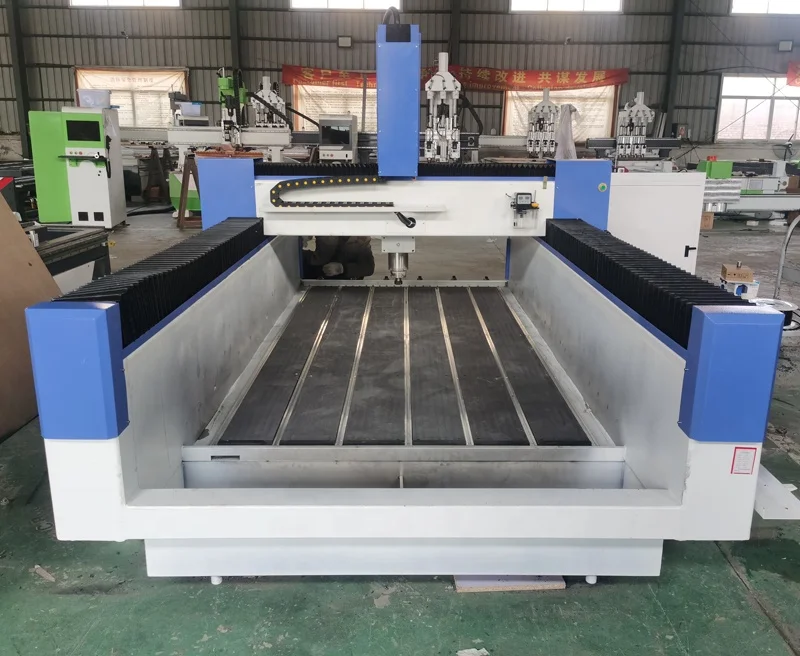

Thickened fuselage design
Design of heavy T-shaped bed
Large load bearing, stable, no shaking.
It can effectively reduce the resonance and avoid knife breakage.
Large load bearing, stable, no shaking.
It can effectively reduce the resonance and avoid knife breakage.
Motor
With high -performance 1.5kw servo motor, the Machine can work in high precision.The servo motor runs smoothly. Strong power and
fast mechanical operation.
fast mechanical operation.
Sample products
Shipping
The wooden box is sealed and packaged for safe transportation and effectively prevent bumps.
Because the machinery is relatively heavy, shipping is generally chosen.
Shipping and payment methods can be negotiated with customer service.
Because the machinery is relatively heavy, shipping is generally chosen.
Shipping and payment methods can be negotiated with customer service.
