Машина для изготовления одноразовых простыней линия


Поделиться:


Цена:5 000,00 $ - 85 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 5950.33 $* 6248.71 $*
Aug-15-2025 5900.43 $* 6195.89 $*
Jul-15-2025 4950.21 $* 5198.60 $*
Jun-15-2025 5800.3 $* 6090.3 $*
May-15-2025 5050.37 $* 5303.63 $*
Apr-15-2025 5700.97 $* 5985.13 $*
Mar-15-2025 5650.35 $* 5933.80 $*
Feb-15-2025 5600.32 $* 5880.3 $*
Jan-15-2025 5550.58 $* 5828.30 $*

Характеристики





Disposable Nonwoven Elastic Bedsheet Making Machine For Hotel And Hospital





Introduction:


The bedsheet making machine, there are elastic bands at both ends, which cover the bed to prevent the sheet from falling off easily. This kind of sheet is suitable for hospitals, hotels and family SPA. And with below features:


1.Equipment requirements: The equipment can handle spun-bonded non-woven fabrics, SMS non-woven fabrics, coated fabrics, etc.
2.The working principle of the equipment: the longitudinal cutting length is automatically folded and the horizontal cutting is automatically folded, and the whole line is automatically completed.
3.Raw material below Width 2540mm
4.The folding width can be adjusted to 800mm-2000mm longitudinally, and the cutting length of the product can be adjusted to 1500-2200mm.
5.Horizontal folding: 1/2, 1/4, 1/6, 1/8
6.This machine adopts air cylinder to feed material, without manual feeding, it can automatically lift the material and control the tension.
7.All drives use servo motors, high precision
8.Touch screen control, only need to input data to change specifications, easy to operate.
9.Electronically controlled touch screen man-machine interface operation, built-in production time, counting, length control, etc.
10.Rugged and non-polluting;
11.The wire specifications are reasonable, beautiful and easy to operate.
12.The output of the finished product is stable, and the finished product is folded neatly and beautifully.

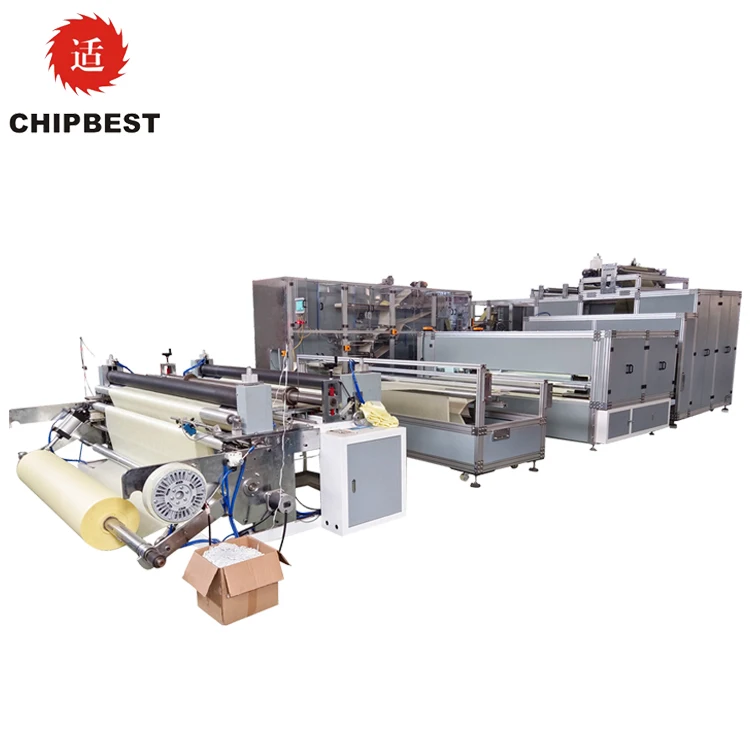

Picture Of Bedsheet Making Machine :


-1


Technical Parameters :


































Mechanical model



JS-CZJ Bedsheet Making Machine



Machine size



10m*5.20m*3m (L*W*H)



Production speed



20-40M /MIN



Voltage



380V 50HZ



Net weight



5000KG



power



13KW



Finished product size



Length:1500-2200MM,width:800-2000MM



























Machine Structure :


The bed sheet making machine is welded together by channel steel, strong and firm, and the surface is painted. Taking into account the stability and firmness of the machine, the machine adopts the combination of aluminum alloy frame and iron frame and stainless steel material, which has a beautiful appearance and will not be permanently rusted.





Electrical Control System :



  • The Disposable Nonwoven Elastic Bedsheet Making Machine is with PLC control system, touch screen man-machine interface operation, simple operation, humanized design.

  • Adjust the speed through the man-machine interface to complete the size of the finished product and the number of stacks.

  • There are Chinese and English operation interface, easy to operate


Maintenance :


1.The equipment has a one-year warranty from the date of purchase.


2. Warranty items: machine transmission and electronic control system





Warranty :


If some parts are damaged, the user can disassemble and send the manufacturer to repair. Our engineers can provide door-to-door service at the customer's request, but the customer is responsible for accommodation, round-trip air tickets and other expenses.


In the following cases, our factory will not be responsible for the warranty and perform chargeable repairs:


1. Man-made damage, such as damage caused by the machine falling.


2. Users without the manufacturer's consent to repair or disassemble by themselves.


3. Users who do not replace accessories.


4. Electrical damage caused by unstable production voltage of customers.

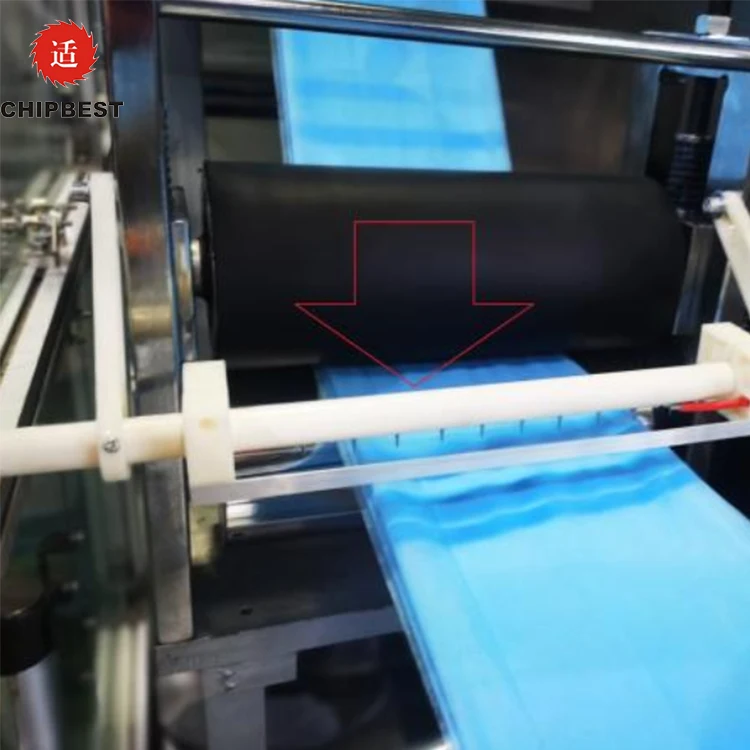

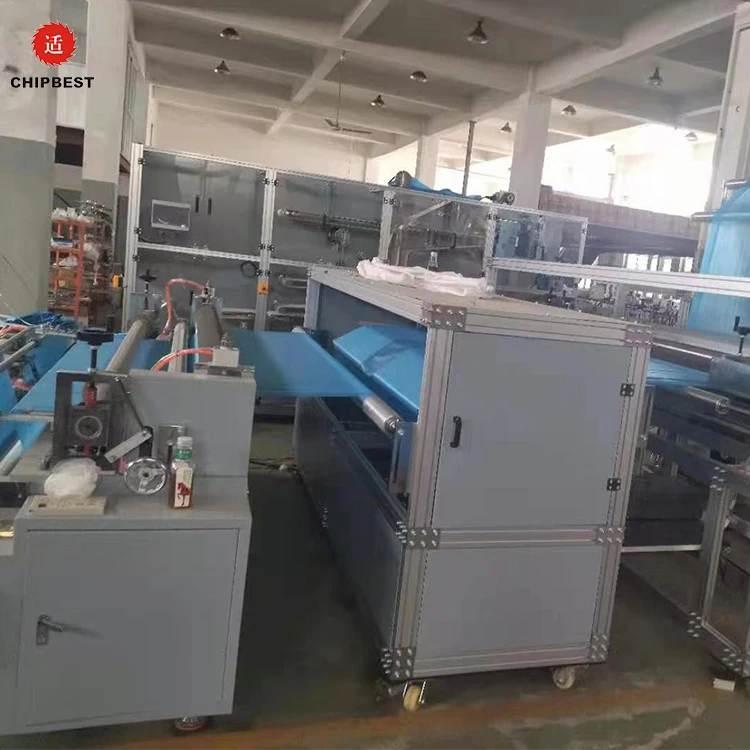

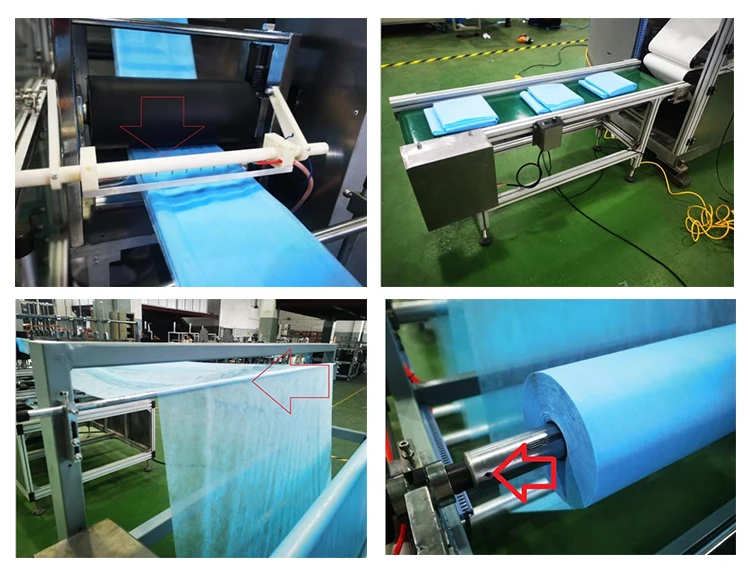

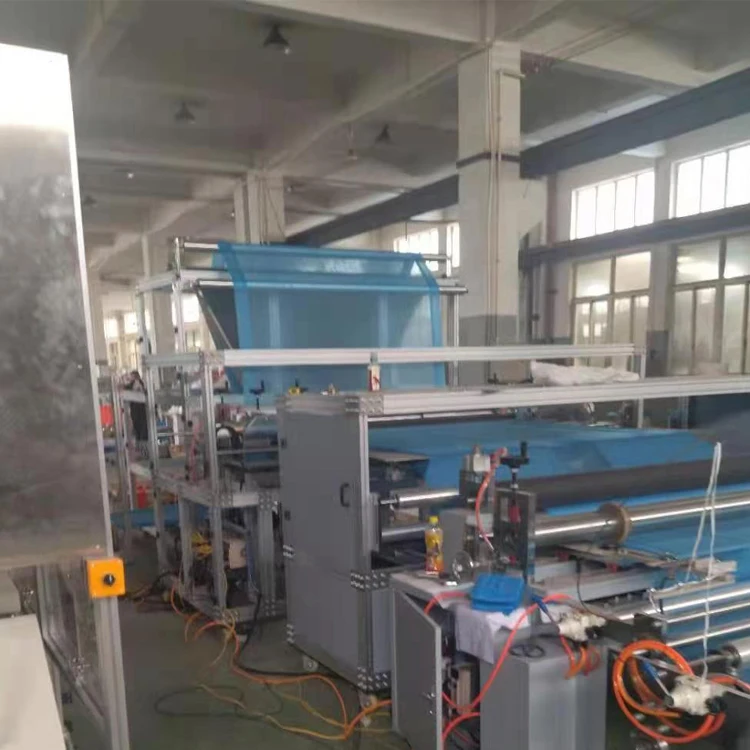

Detailed Photos about Bedsheet Making Machine :


-3


-7


-4
