Характеристики
Product Description

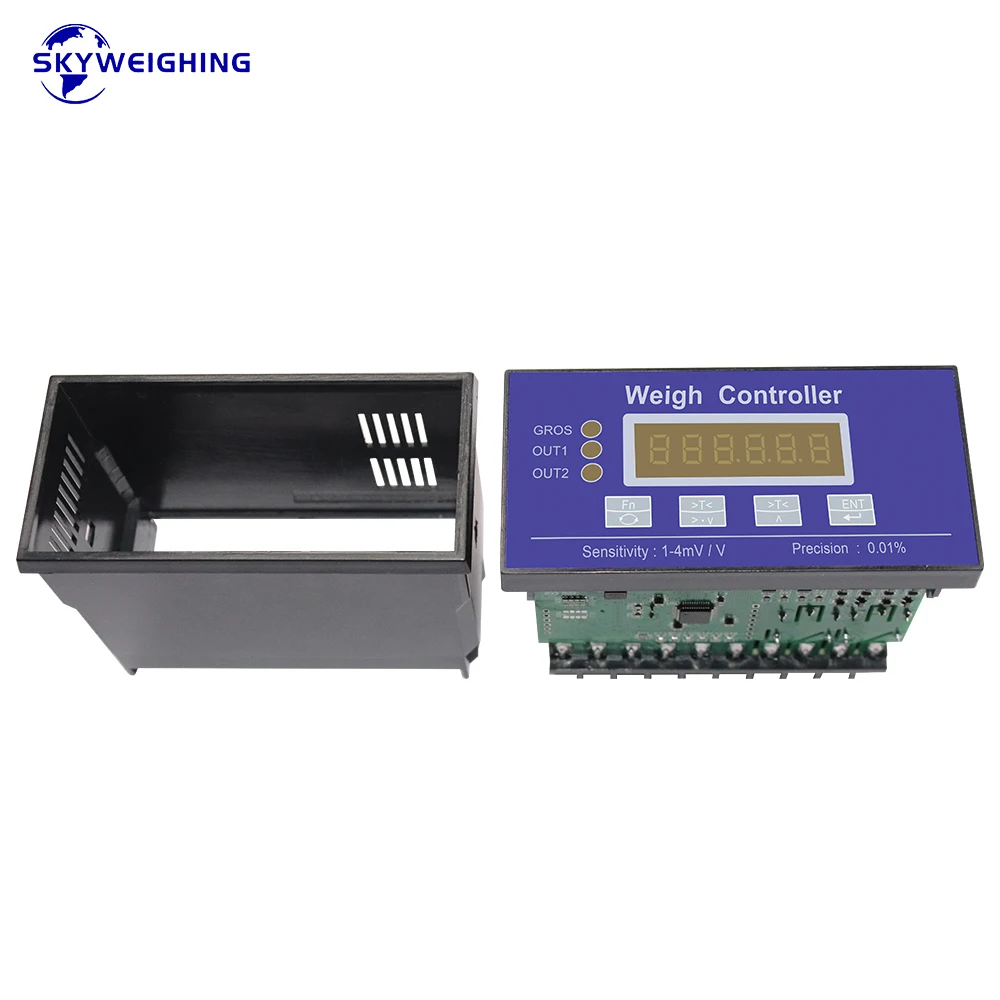

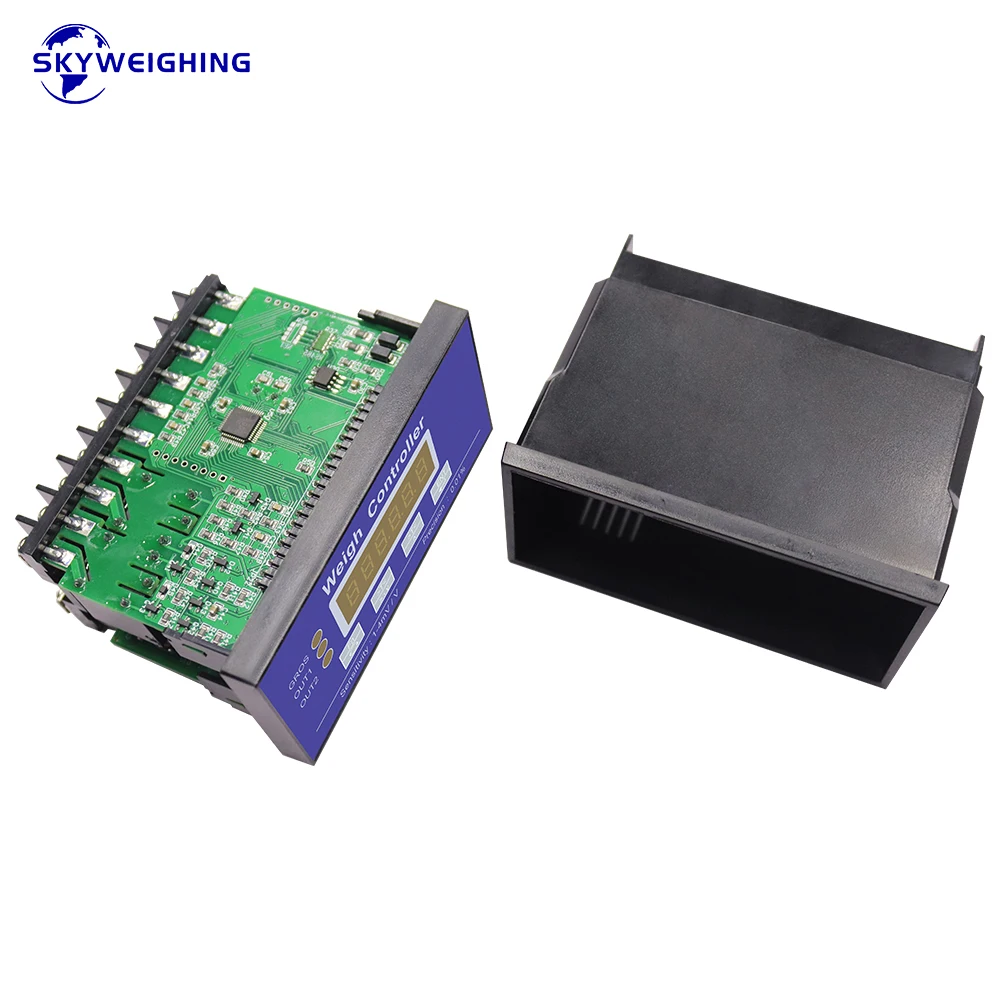

AO 4 -20mV 2 DO relay Digital Weight Indicator Weighing Control Module
Thank you for choosing our products. Before using this product
This product uses 24 bit ∑-△ADC chip,and the analog signal of bridge load cell is converted into digital signal. It also have 2 DI and 2 Relay out,and one 0-10V output,In addition to the weighing signal transmission function, it can also output the upper and lower limit alarm
Suitable for 21-26vdc power supply system.24 V power supply is recommended.
This product also has the function of sensor circuit detection, that is, when the sensor is not connected or the sensor is faulty (including the wiring falling off, etc.), the corresponding alarm will be given [effective when only one sensor is connected to each channel]
Product features：
It can prevent RFI / EMI interference and has strong EMC characteristics；
2.21-26v DC supply；
3.High speed 24 bit ∑-△ADC sampling, more than 500Hz sampling, control output and sampling interval synchronization；
4.Complete sensor fault detection function, such as signal overrun, module sampling fault, sensor line connection fault, etc.
Complete communication interface，Standard RS 232 and 485.Optional Ethernet,0-10V out etc
Specification
item | value |
Warranty | 3 years |
Customized support | OEM, ODM |
Place of Origin | China |
Guangdong | |
Brand Name | neutral |
Model Number | WCY0101 |
Power waste | < 5W |
Dimensions: | 96*48*70mm |
Weight: | About 0.2kg |
Working voltage : | 21-26V DC.Sensor voltage 5V |
Nonlinearity: | 0.005%FS |
Communication: | rs 232,rs 485.Optional with Ethernet or 0-10V |
DI/DO: | 2 DI: Low level active;2 DO for relay |
Sampling frequency : | 500Hz |
Measurement signal: | -20mV~20mV,Each can drive 6 load cells with 350 ohm |
Resolution : | 1/500000 |
