Характеристики
Product Description

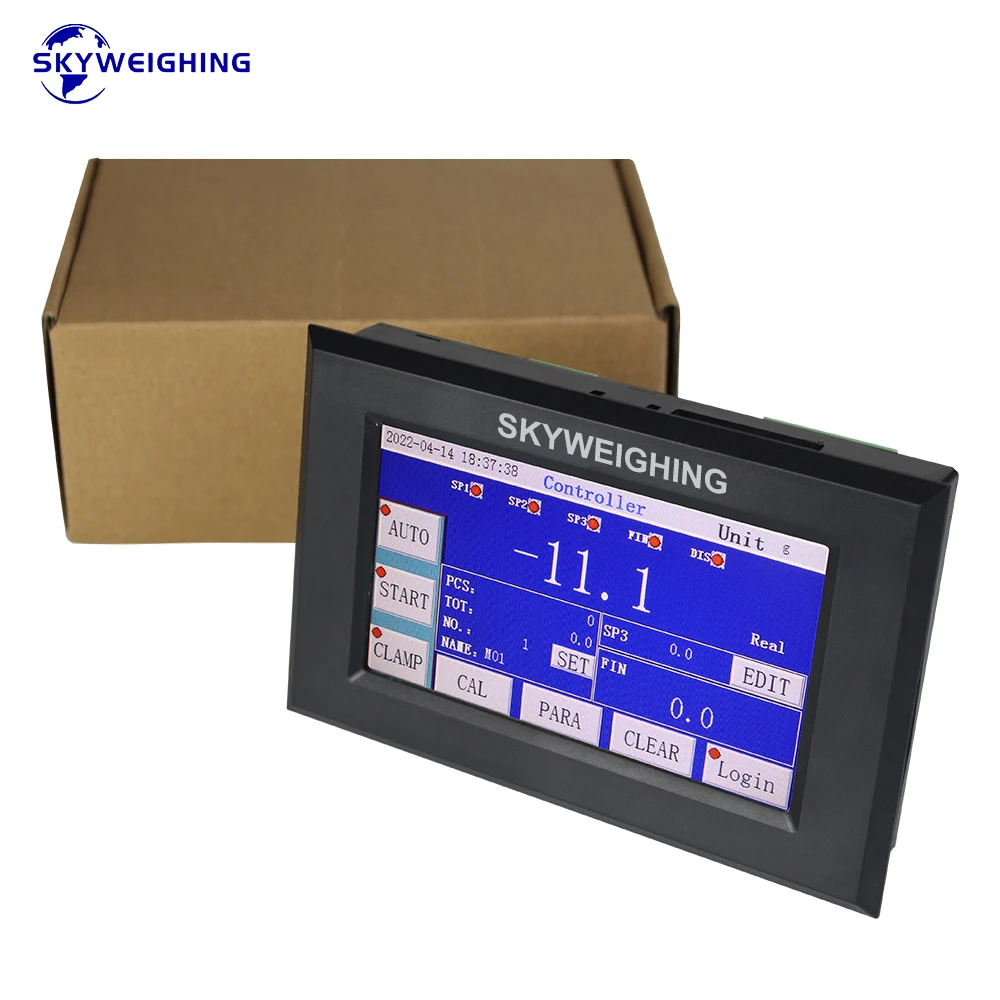

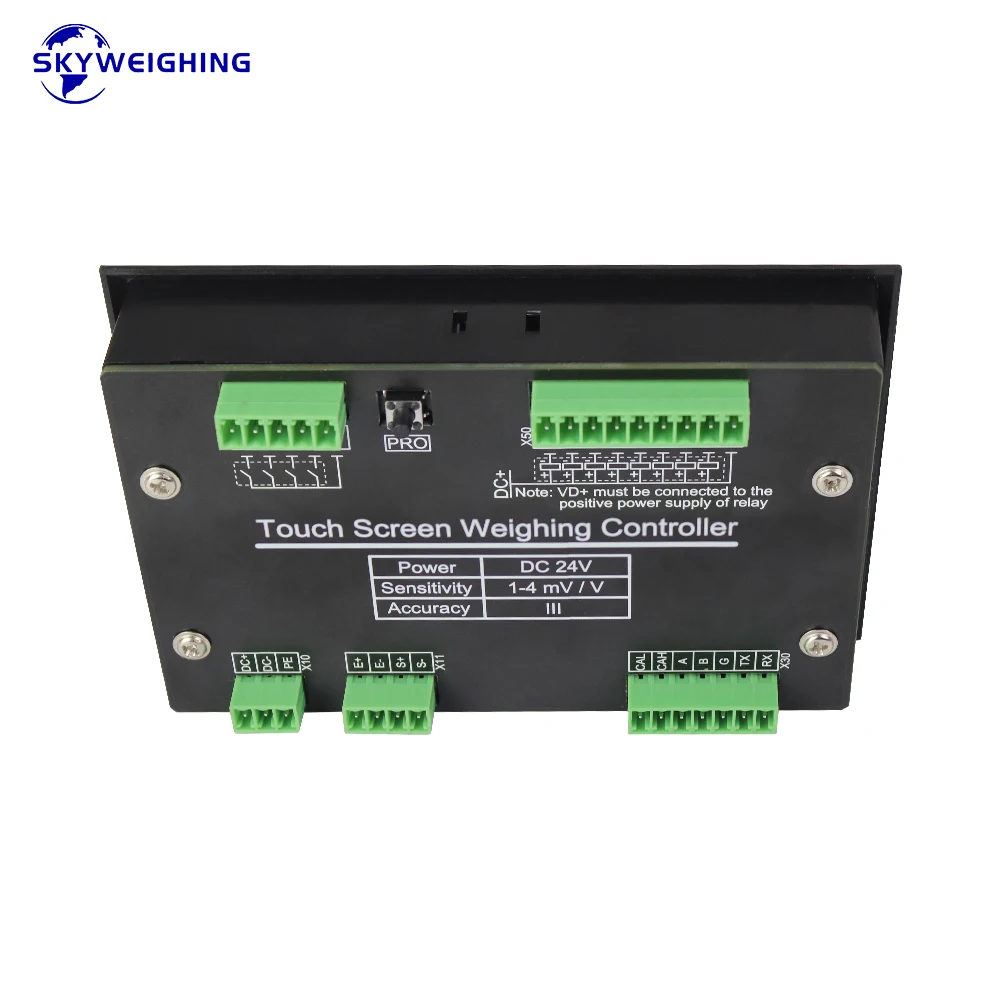

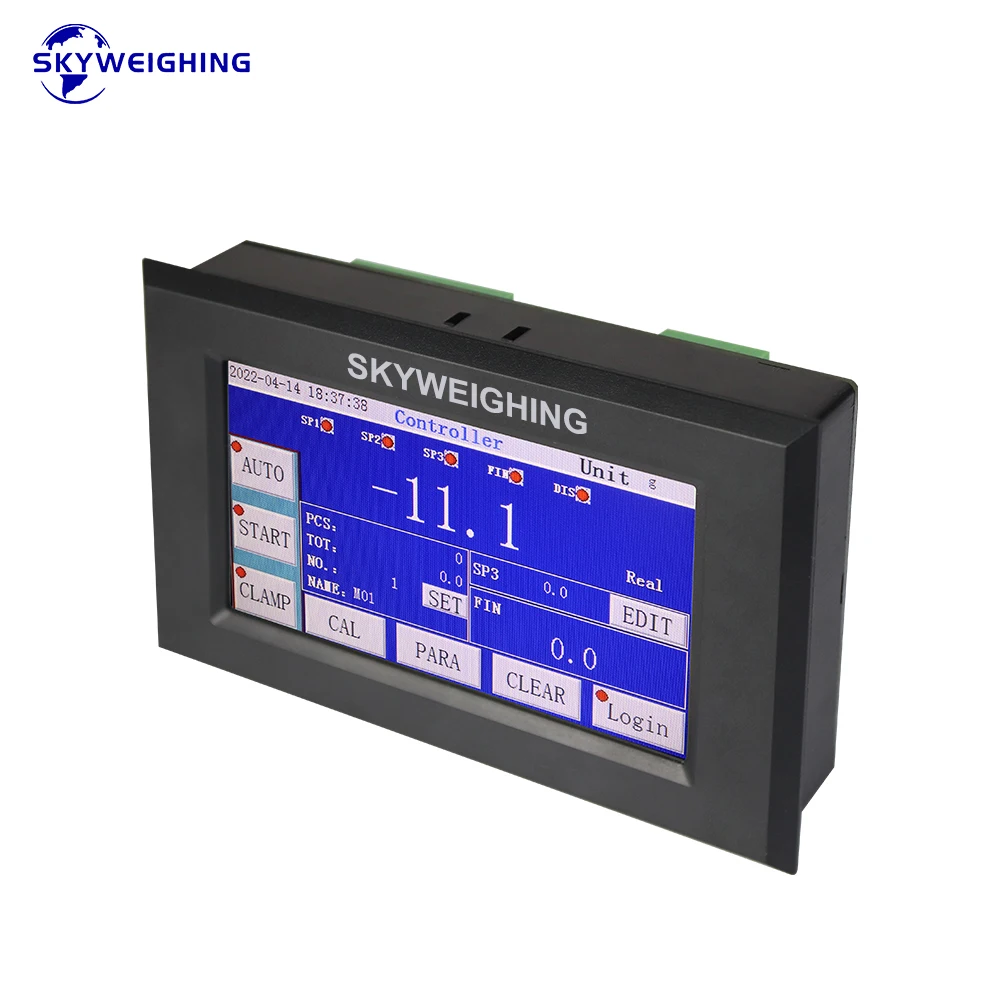

High Accuracy Automatic Check Weigher Machine Weight Controller Check weigher Weighing Scales
Specification
item | value |
Warranty | 3 years |
Customized support | OEM, ODM |
Place of Origin | China |
Guangdong | |
Model Number | WCC305 |
Power waste | < 10W |
Cut hole size : | 130.5*83mm |
Dimensions : | 135.9*88.5*24.5 mm |
Weight : | About 0.7kg |
Working voltage : | 21-26V DC , Sensor voltage 5V |
Nonlinearity: | 0.005%FS |
Communication: | rs 232,rs 485 ( Optional with CAN ) |
DI/DO : | 4 DI,8 DO,Low level active |
Accuracy: | III level |
Function optional : | bagging / filling / Batching / force measuring / Auto check weigher |
Thank you for choosing our products. Before using this product
This product integrates the control part and touch screen
operation part, with friendly interface and convenient operation.
This product uses 24 bit ∑-△ADC chip,and the analog signal of
bridge load cell is converted into digital signal. It also have 8 DI and 20
DO,up to 4 sensor inputs,In addition to the weighing signal
transmission function, it can also achieve a large number of control
functions
operation part, with friendly interface and convenient operation.
This product uses 24 bit ∑-△ADC chip,and the analog signal of
bridge load cell is converted into digital signal. It also have 8 DI and 20
DO,up to 4 sensor inputs,In addition to the weighing signal
transmission function, it can also achieve a large number of control
functions
This product also has the function of sensor circuit detection, that
is, when the sensor is not connected or the sensor is faulty (including
the wiring falling off, etc.), the corresponding alarm will be given
[effective when only one sensor is connected to each channel].
is, when the sensor is not connected or the sensor is faulty (including
the wiring falling off, etc.), the corresponding alarm will be given
[effective when only one sensor is connected to each channel].
Product features：
1. Signal acquisition, control and touch screen operation are
integrated, and the operation is convenient and fast；
2. It can prevent RFI / EMI interference and has strong EMC
characteristics；
3. 18-30v DC supply；
4. High speed 24 bit ∑-△ADC sampling, each channel more than
500Hz sampling, control output and sampling interval
synchronization；
5. Complete sensor fault detection function, such as signal overrun,
module sampling fault, sensor line connection fault, etc；
6. Complete communication interface ， Standard RS 232 and
485.Optional Ethernet, etc；
7. Mass storage, which can store more than 300000 pieces of data
1. Signal acquisition, control and touch screen operation are
integrated, and the operation is convenient and fast；
2. It can prevent RFI / EMI interference and has strong EMC
characteristics；
3. 18-30v DC supply；
4. High speed 24 bit ∑-△ADC sampling, each channel more than
500Hz sampling, control output and sampling interval
synchronization；
5. Complete sensor fault detection function, such as signal overrun,
module sampling fault, sensor line connection fault, etc；
6. Complete communication interface ， Standard RS 232 and
485.Optional Ethernet, etc；
7. Mass storage, which can store more than 300000 pieces of data
