Характеристики
Product Description
Modular clean room panel Turnkey Solution Turnkey Clean room project engineering
Dongguan Yichang Refrigernation Technology Ltdhave 30 years experience in doing modular Cleanroom turnkey project with a experienced disign team and construction team .Combined with our own quality Cleanroom material and equipment factory. We can design and construct your Cleanroom conform to cGMP ,WHO,ISO requirement.
We offer cleanrooms compliant with FS209E levels 100 -100,000 and ISO 14644 levels 5 - 8. Our services range from consultation, design, manufacture, installation, and any combination thereof. We also offer cleanroom equipment and accessories, making us your one stop shop to execute cleanly. See below for additional cleanroom-related information, as well as a gallery of our past projects.
Clean Room Fabrication (Architecture), including: clean room partition wall system; clean room suspended ceiling system.
-Resistant to chemical, attack abrasion and scratches
-Panel come with steel frame four sides to avoid contamination
-High quality insulation core materials
-Pre-embedded reinforcement for the opening of light fixture and air filters.
-Pre-embedded conduit for wiring.
-Advanced design makes all connection smooth, flush and cleanable
-Easy and fast installation system
-Finishing Surface can be flush connection as required.
-Strong walkable ceiling/ false ceiling
-Resistant to chemical, attack abrasion and scratches
-Panel come with steel frame four sides to avoid contamination
-High quality insulation core materials
-Pre-embedded reinforcement for the opening of light fixture and air filters.
-Pre-embedded conduit for wiring.
-Advanced design makes all connection smooth, flush and cleanable
-Easy and fast installation system
-Finishing Surface can be flush connection as required.
-Strong walkable ceiling/ false ceiling
Specification
Cleanroom Standard | ||||||||||||||||||
ISO14644-1 | FED STD209E | CLASS | ||||||||||||||||
ISO Class | ENGLISH | Metric | 0.1UM | 0.2um | 0.3um | 0.5um | 0.5um | 0.5um | ||||||||||
m3 | m3 | m3 | ft3 | m3 | m3 | |||||||||||||
1 | ISO1 | 10 | 2 | |||||||||||||||
2 | ISO2 | 100 | 24 | 10 | 4 | |||||||||||||
3 | 1 | M1.5 | ISO3 | 1000 | 237 | 102 | 35 | |||||||||||
4 | 10 | M2.5 | ISO4 | 10000 | 2370 | 1020 | 10 | 352 | ||||||||||
5 | 100 | M3.5 | ISO5 | 100000 | 23700 | 10200 | 100 | 3520 | 29 | |||||||||
6 | 1000 | M4.5 | ISO6 | 1000000 | 237000 | 102000 | 1000 | 35200 | 293 | |||||||||
7 | 10000 | M5.5 | ISO7 | 10000 | 352000 | 2930 | ||||||||||||
8 | 100000 | M6.5 | ISO8 | 100000 | 3520000 | 29300 | ||||||||||||
9 | ISO9 | 1000000 | 3520000 | 293000 | ||||||||||||||
-Machine –made economical sandwich panel
-Hand-made modular sandwich panel
-Skin:
- Pre-painted galvanized steel (PPGI) skin
-304S.S skin
-HPL(Melamine high pressure laminate) skin
-Core insulation material:
-EPS(Expanded polystyrene)
-PUF (Polyurethane foam)
-Rock Wool (mineral wool)
-Paper or aluminum honeycomb
-With magnesium gypsum board
-Hand-made modular sandwich panel
-Skin:
- Pre-painted galvanized steel (PPGI) skin
-304S.S skin
-HPL(Melamine high pressure laminate) skin
-Core insulation material:
-EPS(Expanded polystyrene)
-PUF (Polyurethane foam)
-Rock Wool (mineral wool)
-Paper or aluminum honeycomb
-With magnesium gypsum board
sandwich panel | double side steel +silicon rock filler | double side steel +rock wool filler | double sidec steel+EPS filler | double side steel+magnesium oxide board | |||
fire proofing grade | A | A | B | A | |||
Function | Wall and Ceiling panel | ||||||
Size | 1150mm width, height customized | ||||||
Thickness | 12mm, 50mm, 75mm, 100mm | ||||||
Installation | 1. we send engineer to customer side 2. constract out to construction team 3. customer send technicistto our company for free studying | ||||||
Cleanroom lighting
* Adopt bevel aviation 6063 aluminum frame top suction design
* Surface nano spray treatment
* Aanti-corrosion, dustproof, waterproof, rust prevention and other characteristics.
* Easy installation, reduce installation and maintenance costs.
* Life up to more than 50,000 hours.
* Surface nano spray treatment
* Aanti-corrosion, dustproof, waterproof, rust prevention and other characteristics.
* Easy installation, reduce installation and maintenance costs.
* Life up to more than 50,000 hours.
Cleanroom window
-Flush type double glass window
-Alu frame double glass window
-Single glass window
Alu profile coving, corner, hangling and connection system
-Alu frame double glass window
-Single glass window
Alu profile coving, corner, hangling and connection system
-Alu frame panel doors
-Flush type steel skin doors
-HPL skin doors
-Stainless steel doors
-Auto sliding door
-Emergency door
-Flush type steel skin doors
-HPL skin doors
-Stainless steel doors
-Auto sliding door
-Emergency door
HVAC System for modular clean room turnkey for factory
•HVAC design and room data: according to ISO14644-1 and CFR209E cleanliness class
Chiller system:
- Air cooling chiller
-Water cooling chiller
Air handling unit (AHU)
•Humidifier or dehumidifier
•Air supply ducts
•HEPA filter box
•Air return and air exhaust ducts
•Diffuser, grills , valves, damper and louver, fan etc
Flooring system for Modular Portable Clean Room 100 class clean room house Prefabricated
•HVAC design and room data: according to ISO14644-1 and CFR209E cleanliness class
Chiller system:
- Air cooling chiller
-Water cooling chiller
Air handling unit (AHU)
•Humidifier or dehumidifier
•Air supply ducts
•HEPA filter box
•Air return and air exhaust ducts
•Diffuser, grills , valves, damper and louver, fan etc
Flooring system for Modular Portable Clean Room 100 class clean room house Prefabricated
Clean Room Accessory Equipment:
Automatic control, electronic interlocking, double door lock when blowing, infrared induction automatic blowing. Stainless steel
semi-glass door automatic door closers, transparent windows, inner low plate made of stainless steel; software test controller,
LED display and set blowing time, the range of 0~99 seconds adjustable, the internal use of round involute duct, high wind speed,
low noise.
semi-glass door automatic door closers, transparent windows, inner low plate made of stainless steel; software test controller,
LED display and set blowing time, the range of 0~99 seconds adjustable, the internal use of round involute duct, high wind speed,
low noise.
The FFU fan filter unit is a self-contained fan filter unit suitable for laminar and non-laminar clean room environments. It has a
high degree of flexibility and is suitable for various ceiling keels and ceiling systems. According to different design
requirements, it can be easily upgraded and integrated into any kind of keel structure to achieve cleanliness of class 100, class 10, or even class 1.
high degree of flexibility and is suitable for various ceiling keels and ceiling systems. According to different design
requirements, it can be easily upgraded and integrated into any kind of keel structure to achieve cleanliness of class 100, class 10, or even class 1.
Static pass through box
Dynamic pass through box
Pass Box
1. Made of all 304 stainless steel wire drawing, beautiful and effective to avoid rust;
2. The four-corner arc design in the cavity and has no dead corners;
3. The double door adopts the built-in type, which is embedded in the box body, and the outer surface is flat;
4. Equipped with PAO inspection port, which can inspect the integrity of the high-efficiency filter;
5. Self-cleaning time is adjustable, with alarm function;
6. The double door adopts double-layer tempered glass, the surface is flat, not easy to accumulate dust, and easy to clean;
2. The four-corner arc design in the cavity and has no dead corners;
3. The double door adopts the built-in type, which is embedded in the box body, and the outer surface is flat;
4. Equipped with PAO inspection port, which can inspect the integrity of the high-efficiency filter;
5. Self-cleaning time is adjustable, with alarm function;
6. The double door adopts double-layer tempered glass, the surface is flat, not easy to accumulate dust, and easy to clean;
Installation diagram

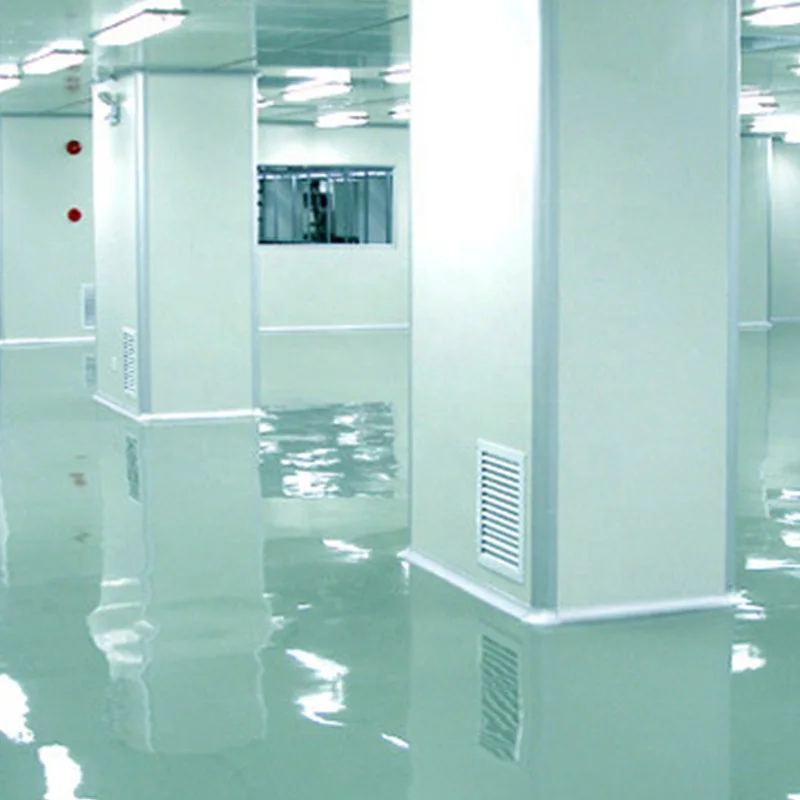

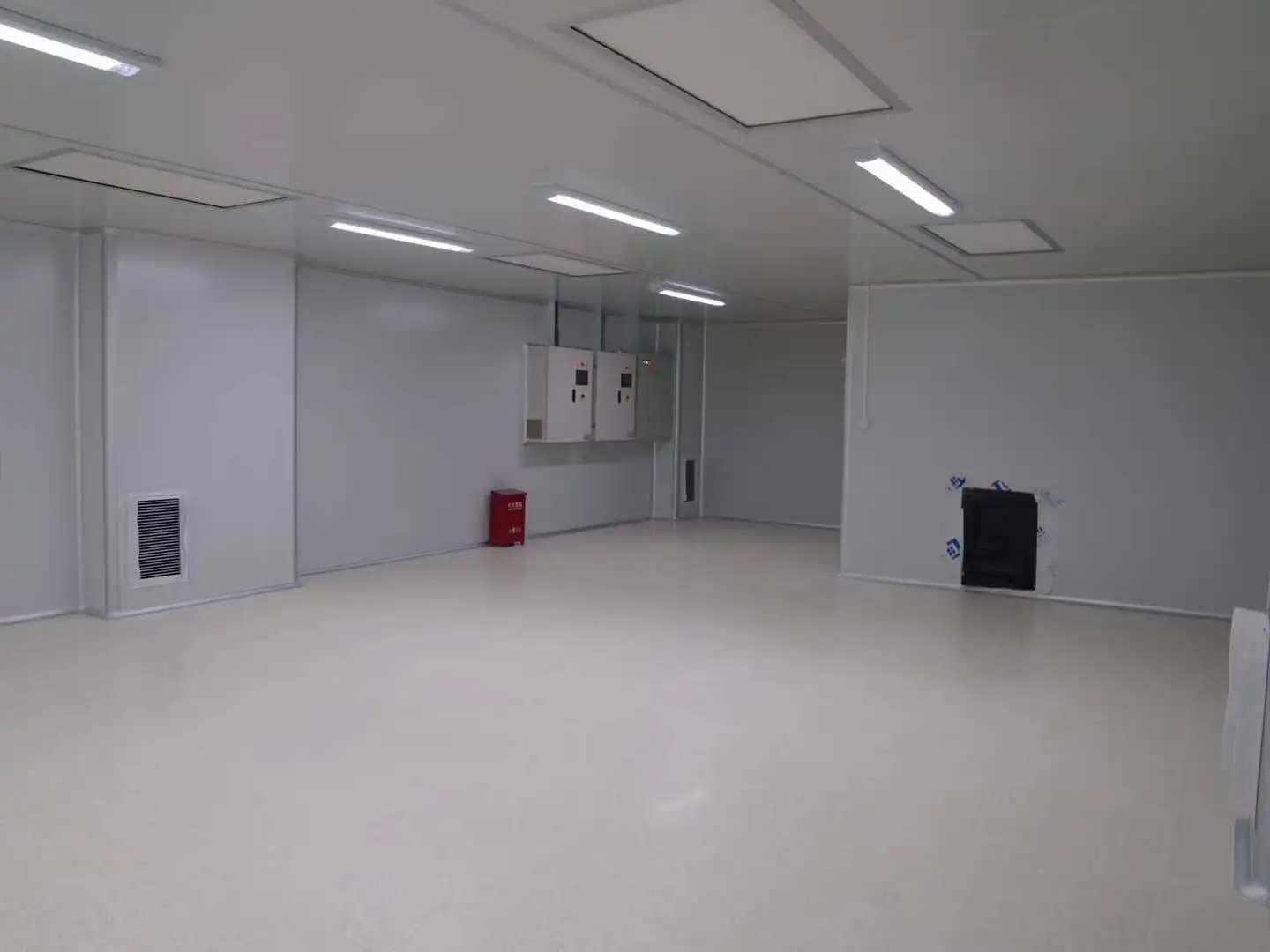

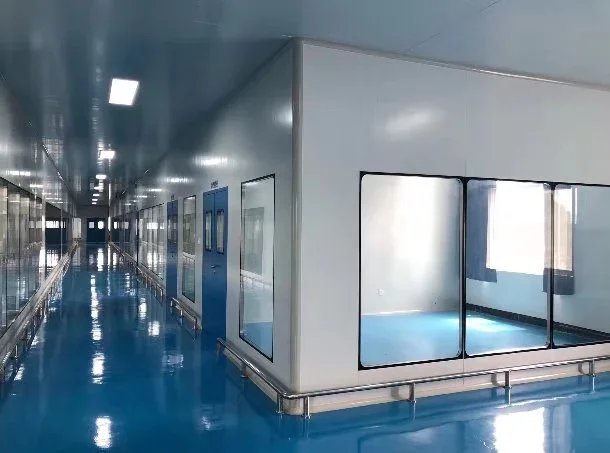

Project image
You may interested product
Certification
Company Profile
YICHANG - clean workshop, clean laboratory, medical clean products comprehensive supporting manufacturers. In order to provide quality and competitive products and services, YC has invested in two production workshops and R&D centers located in Dongguan city , and an assembly base located in Guzhen City, Zhongshan City. In order to maintain the competitiveness of the industry, YC has established a research and development base in cooperation with "Sun Yat-sen University", "Jinan University" and other colleges and universities.
Packing & Delivery
carton/plywood case
