Мини 4x4 Компактный трактор с экскаватором-погрузчиком и фронтальным погрузчиком объемом 1
- Категория: Loaders >>>
- Поставщик: Shandong,Laigong,International,Business,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 27527.53 $* | 28078.55 $* |
| Jul-16-2025 | 22325.11 $* | 22772.16 $* |
| Jun-16-2025 | 27094.40 $* | 27636.87 $* |
| May-16-2025 | 26877.9 $* | 27415.56 $* |
| Apr-16-2025 | 21458.93 $* | 21887.72 $* |
| Mar-16-2025 | 26444.75 $* | 26973.38 $* |
| Feb-16-2025 | 26227.59 $* | 26752.45 $* |
| Jan-16-2025 | 26010.72 $* | 26530.2 $* |
Характеристики

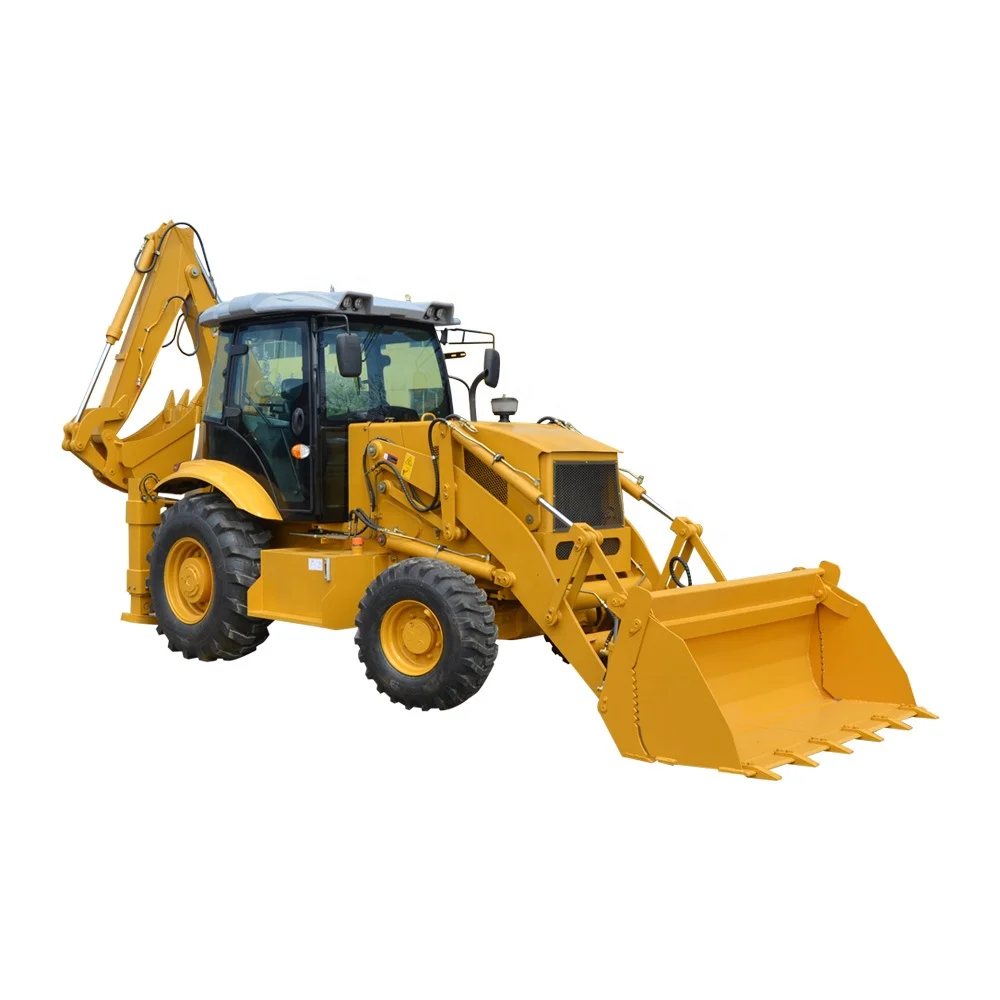

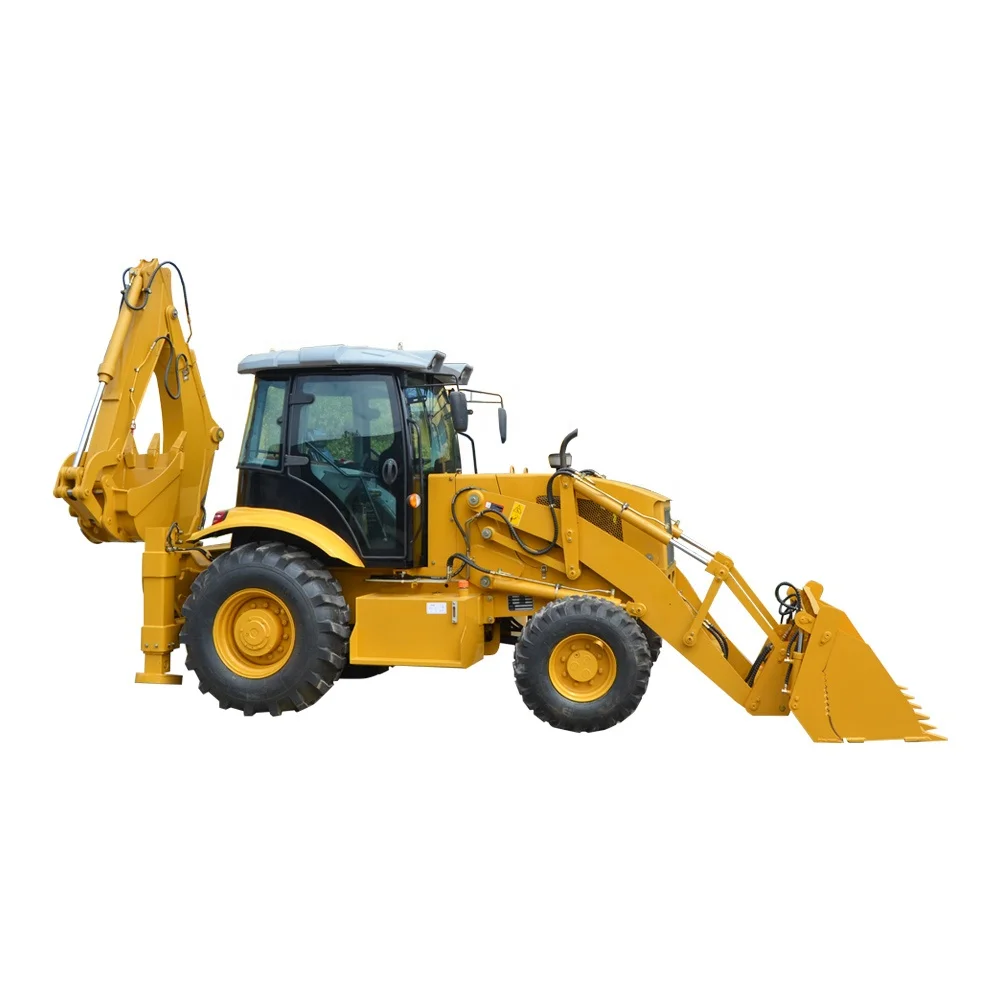

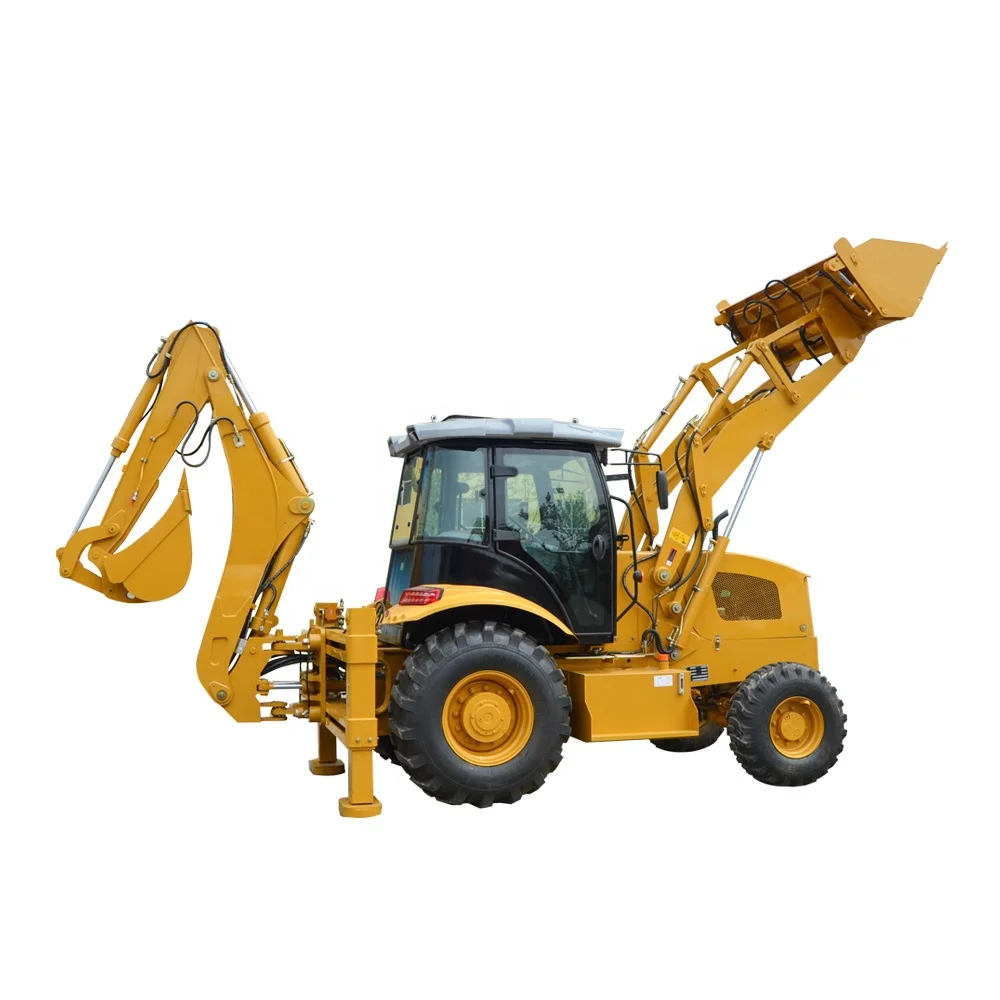

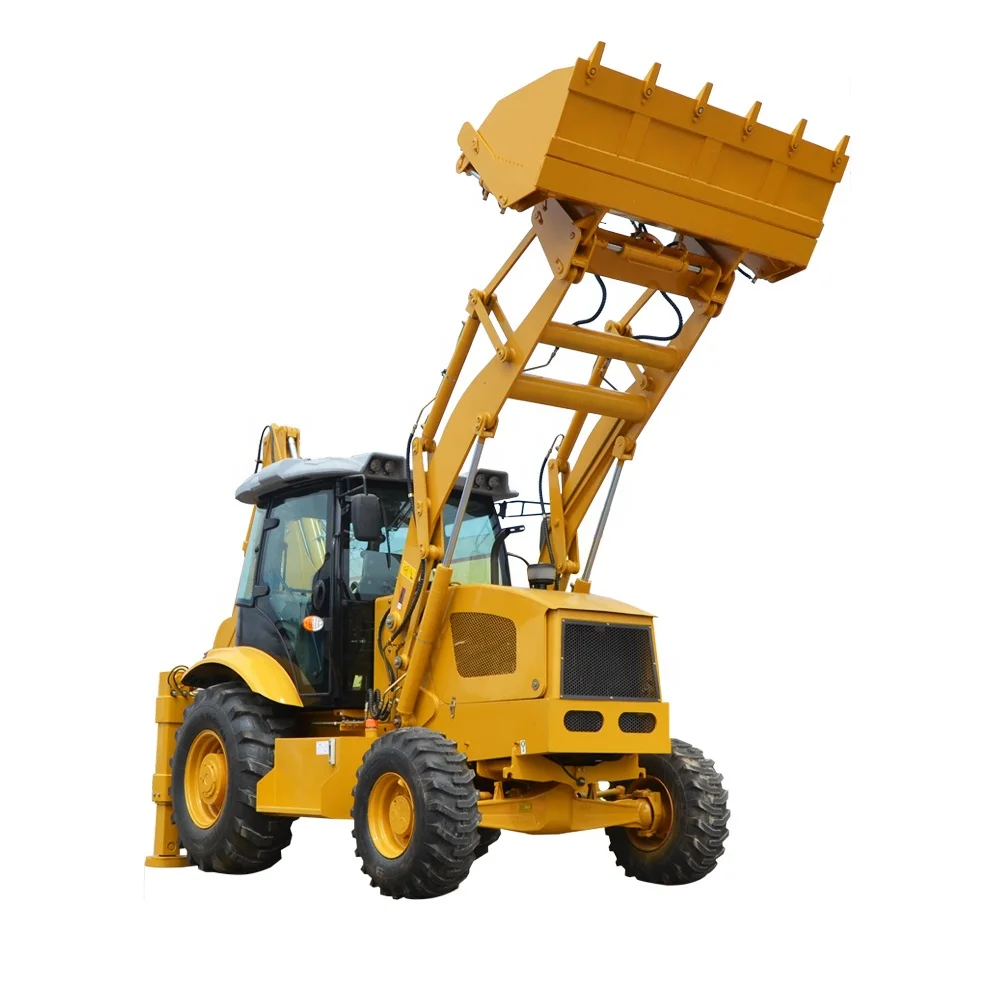

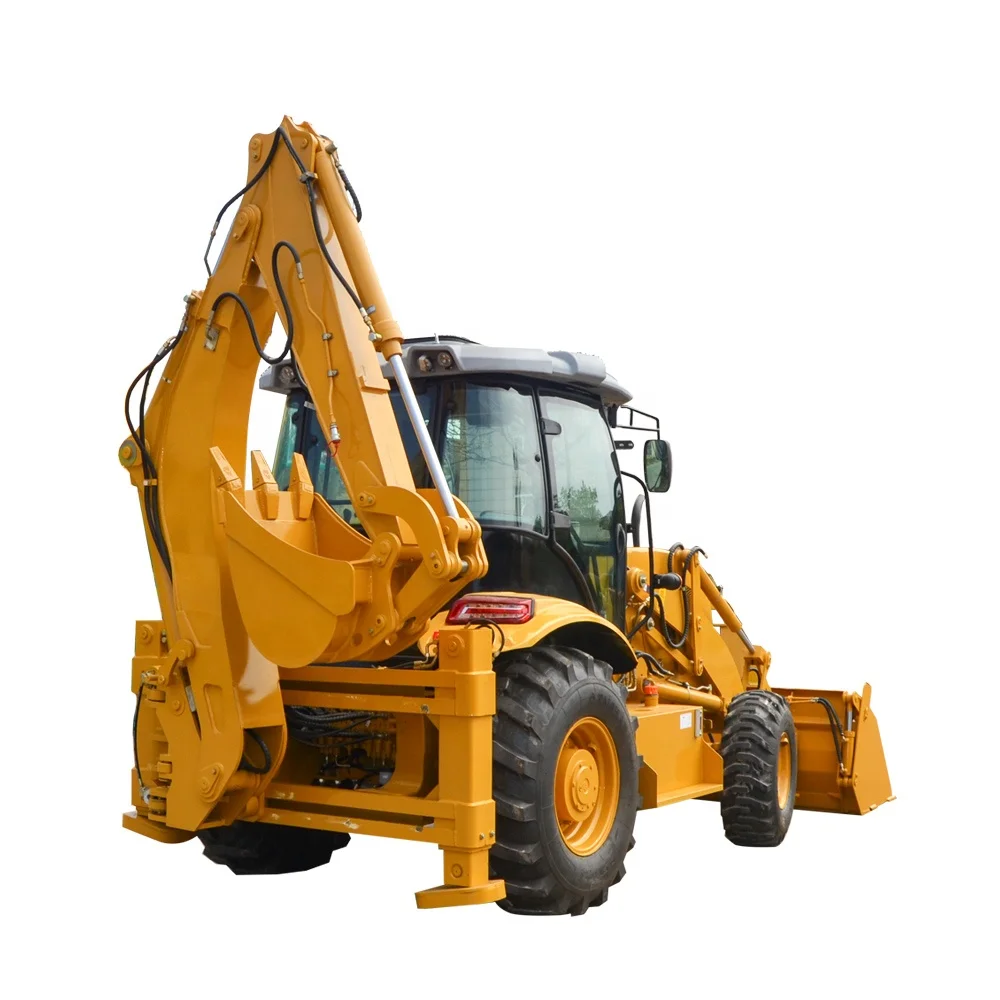

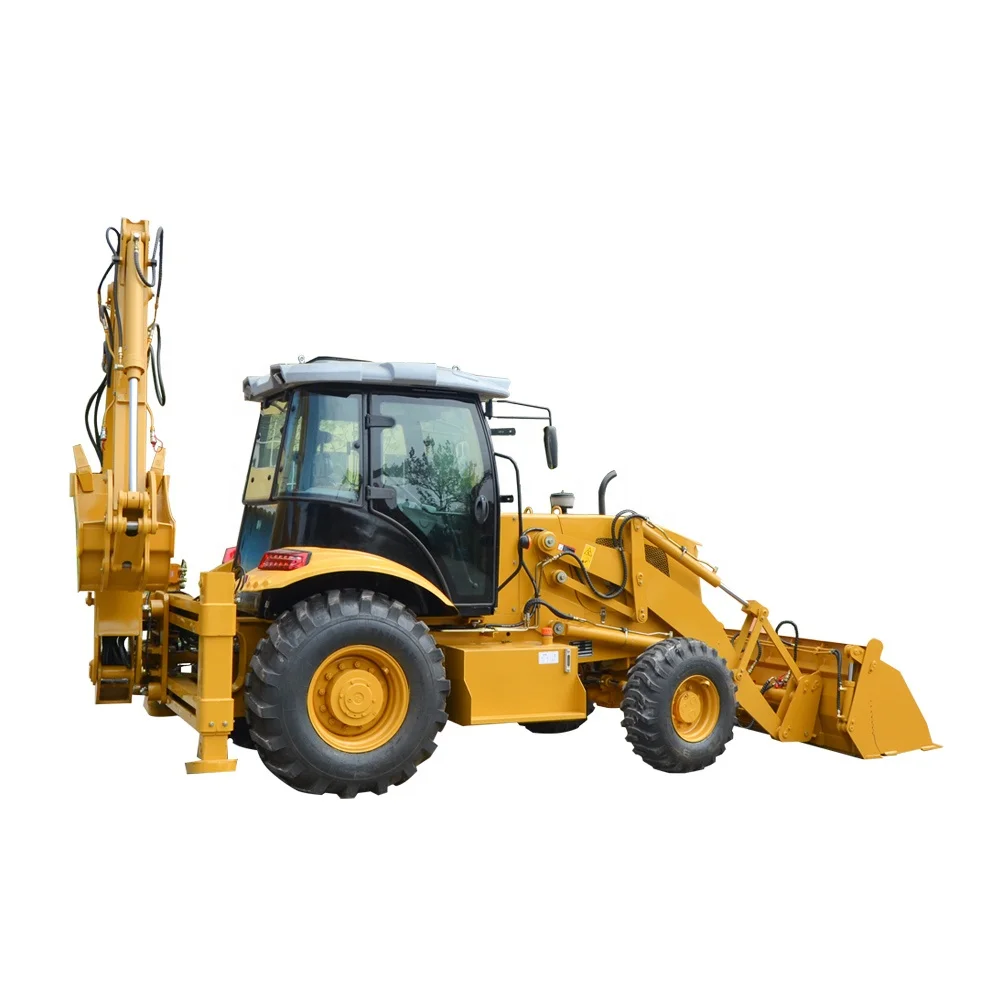

LAIGONG WZ40-28 is a new design of cost-effective small multi-function machinery,widely used in urban and rural highway construction and maintenance,cablecasting ,electricity and the airport project,municipal,a mountain stone and other building construction engineering.
Product Paramenters
The Performance Parameter of Backhoe Loader WZ40-28 | ||
The Performance Parameter of Backhoe Loader WZ40-28Overall Operating Weight | 7000KG | |
Transport Dimension | ||
L*W*H mm | 7800*2100*3200 | |
Wheel base | 2250mm | |
Min. Ground Clearance | 350mm | |
Bucket Capacity | 1.3m3 | |
Breakout Force | 38KN | |
Loading Lifting Capacity | 2800KG | |
Bucket Dumping Height | 3600mm | |
Bucket Dumping Distance | 1062mm | |
Digging Depth | 52mm | |
Backhoe Capacity（Width） | 0.35m3(620mm) | |
Max. Digging Depth | 4100mm | |
Swing Angle of backhoe | 190o | |
Max. Pulling Force | 39KN | |
Engine | ||
Model | YUCHAI 4105Turbo | |
Type | In Line，Direct injection，Four-Stroke，Water Cooling | |
Rated Power | 85KW | |
Steering System | ||
Steering Angle | ±36 o | |
Pressure of the system | 12Mpa | |
Axle | ||
Model | Big Wheel Hub Reducer | |
Final Reducer | Single Stage Final Reducer | |
Torque Converter | ||
Model | YJ280 | |
Type | Single-stage Three Elements | |
Cooling Method | Oil-cooling Pressure Circulation | |
Gearbox | ||
Type | Fixed Shaft Power Transmission | |
Gears | Two Gears Ahead, Two Gears Astern | |
Max.Speed | 30Km/h | |
Optional Gears | Four Gears Ahead, Four Gears Astern | |
Max.Speed | 45Km/h | |
Tyre | ||
Model | 16/70-24 | |
Pressure of Front wheel | 0.22 Mpa | |
Pressure of Back Wheel | 0.22 Mpa | |
Brake System | ||
Service Brake | Air Over Oil Caliper Brake | |
External Type | ||
Self-regulation | ||
Self-balance | ||
Main Categories
Company Profile
Customer Case
Transportation
FAQ
1.How long is your lead time?
15-20days after receiving the deposit
2.How is the warranty?
Our warranty time is 6 months from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of LAIGONG?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.Our factory is passed ISO9000 and ISO4000 test.
6.What kind of service can we get from LAIGONG?
If there is any using problem, we can provide online or video guidance.If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site. Our service department has no holiday, always stand by for you and respond within 5 hours.
7.Why do you choose LAIGONG?
LAIGONG Equipment established in 2018, In the earlier period, we only designed and manufactured the chassis frames, since 2011, we have started to assemble the loaders, we had gained lot of experience during these 5 years and summarized that the frame's quality decide the loader's quality, so our products are more practical and more reliable.
15-20days after receiving the deposit
2.How is the warranty?
Our warranty time is 6 months from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of LAIGONG?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.Our factory is passed ISO9000 and ISO4000 test.
6.What kind of service can we get from LAIGONG?
If there is any using problem, we can provide online or video guidance.If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site. Our service department has no holiday, always stand by for you and respond within 5 hours.
7.Why do you choose LAIGONG?
LAIGONG Equipment established in 2018, In the earlier period, we only designed and manufactured the chassis frames, since 2011, we have started to assemble the loaders, we had gained lot of experience during these 5 years and summarized that the frame's quality decide the loader's quality, so our products are more practical and more reliable.
