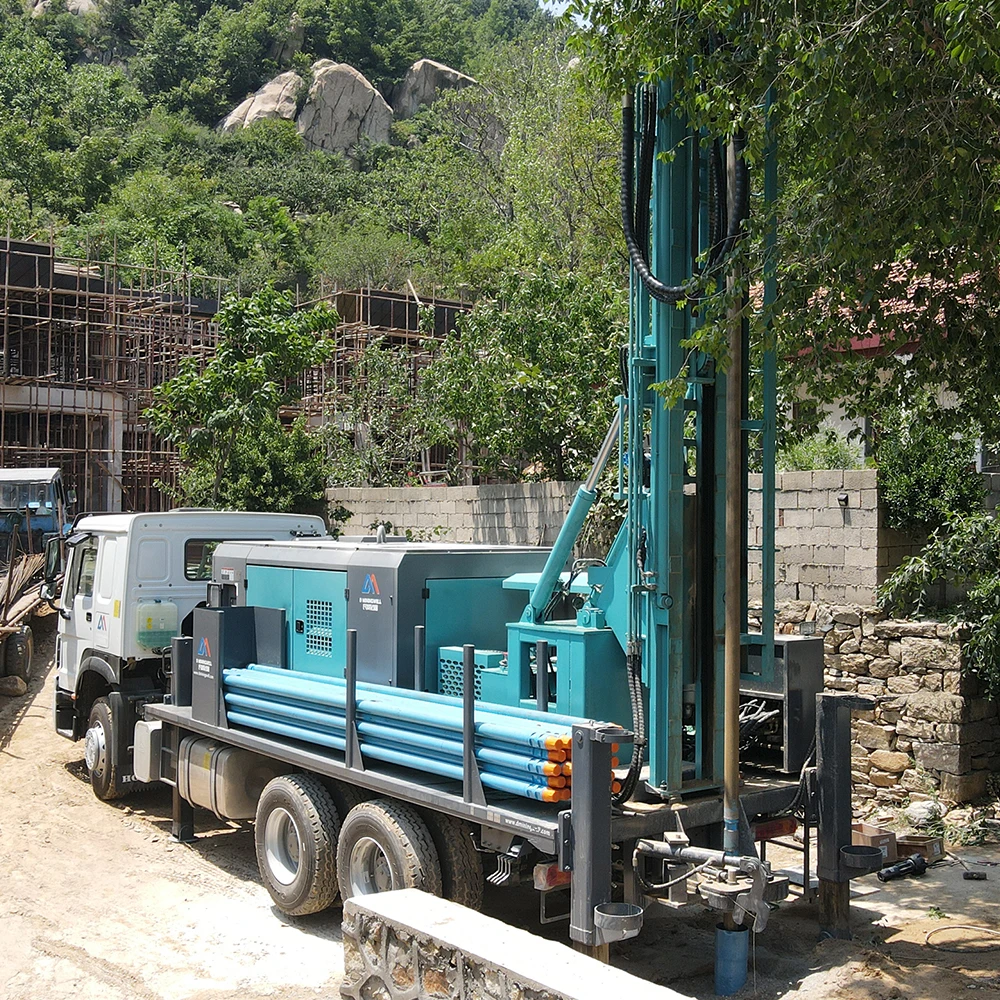

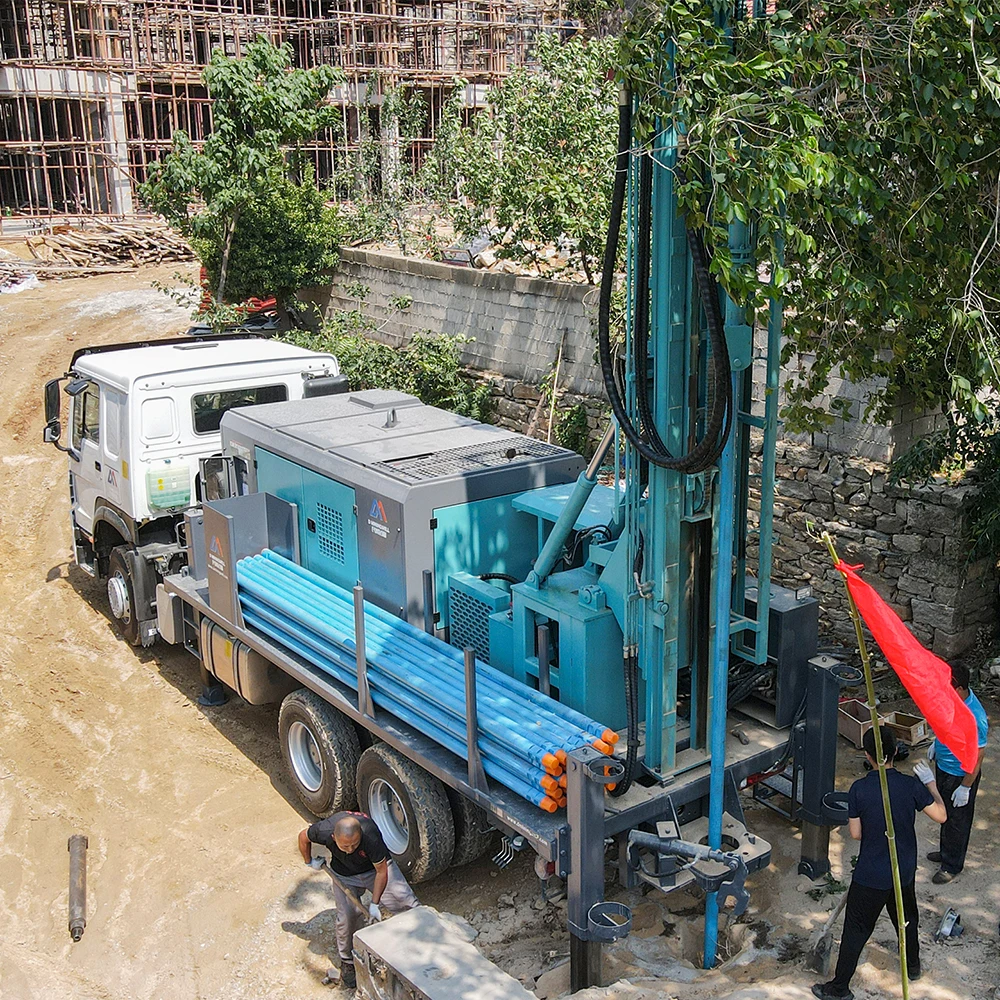

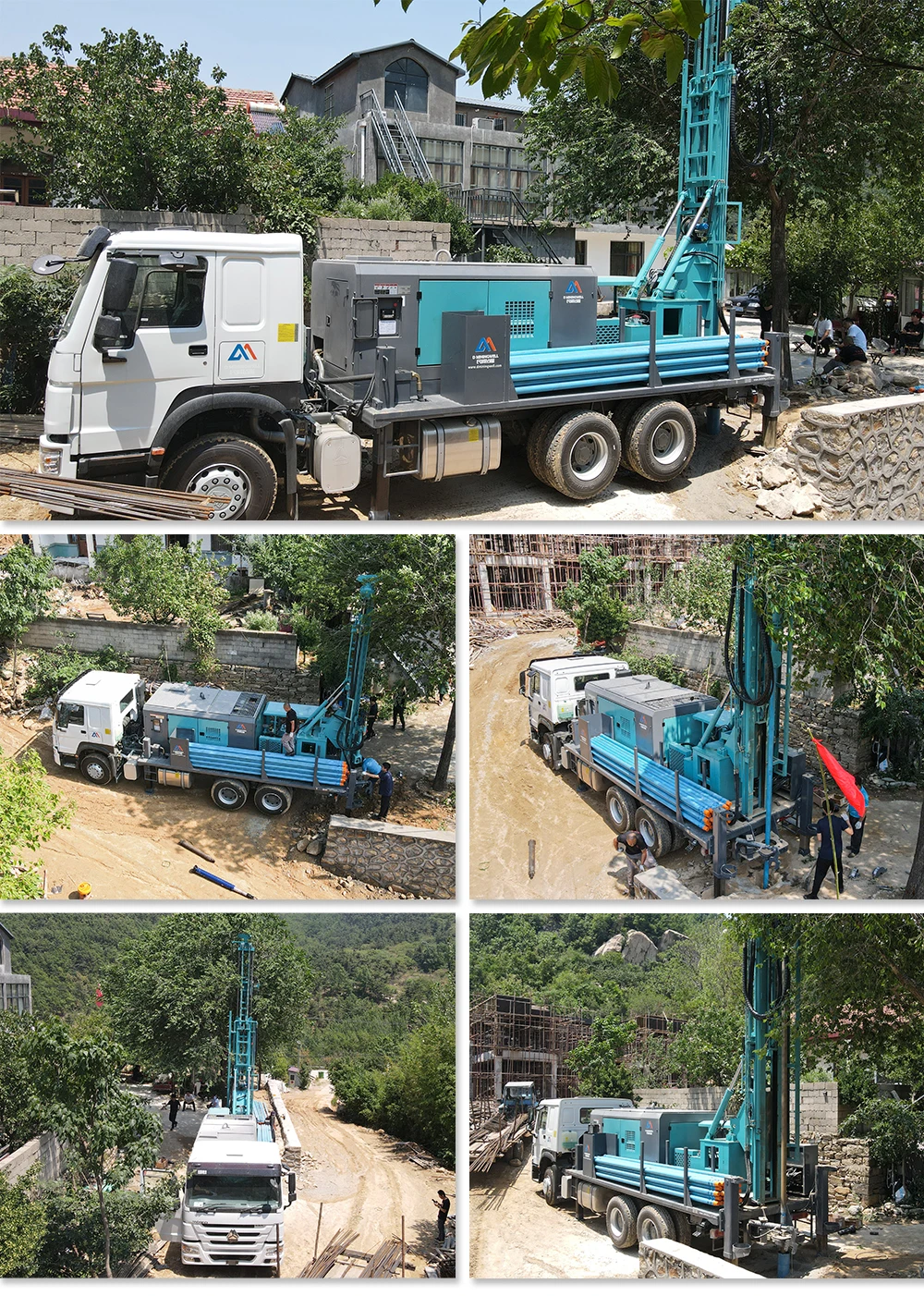

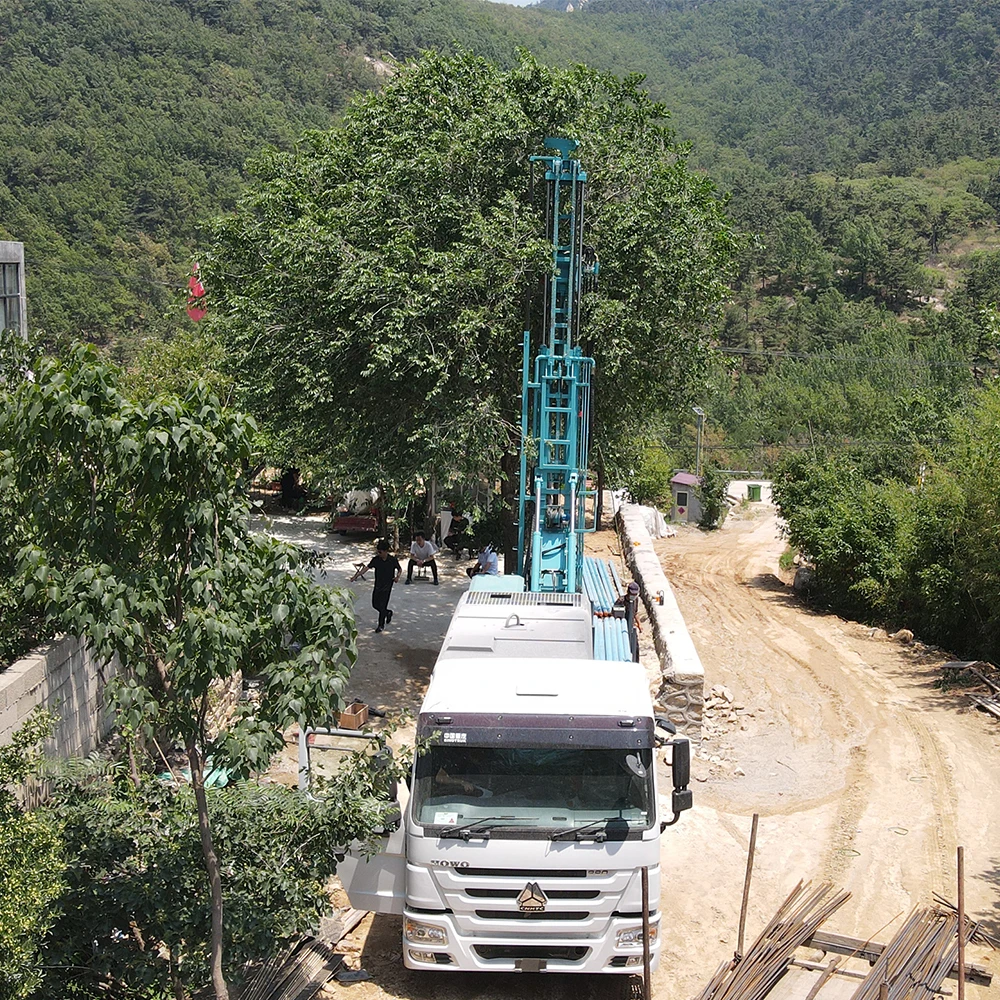

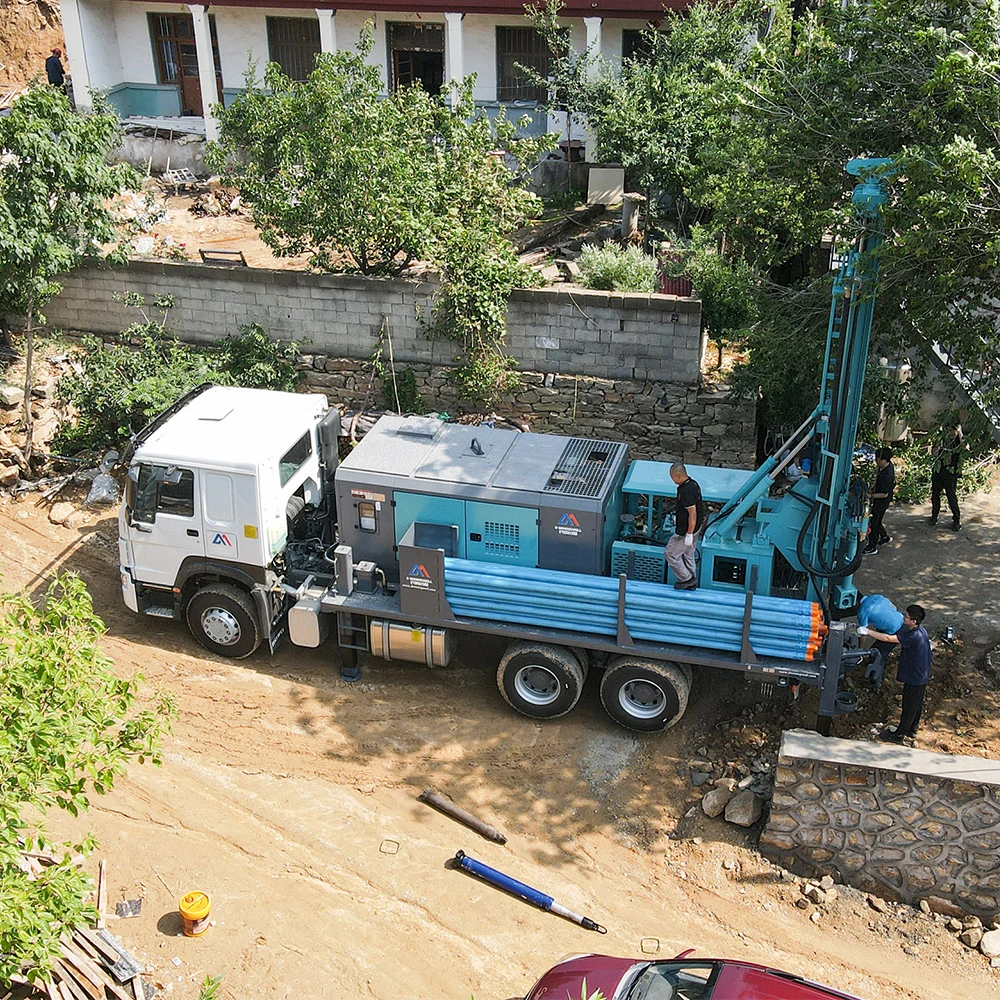

The MWT-350 vehicle -mounted water well drilling rig

uses a new SINO HOWO truck. chassis and is equipped with a 25 bar two-stage compression high-pressure air compressor. Its lifting force can reach 22 tons, and it can drill water wells with a maximum depth of 350 meters.







Specifications
Model	MWT250
Dimension	12000*2500*4100mm
	12000*2500*4100mm
Drilling diameter	140-254mm
Equipped Engine	Yuchai 70kW or PTO
Drilling depth	250m
Feed Stroke	3.3m
Drill rod diameter	76mm, 89mm, 102mm
Drill rod length	1.5m, 2.0m, 3.0m,6m
Swing speed	45-70(rpm)
Swing torque	3300-4500(N.m)
Rig lifting force	14T



 Main features:

1. PTO system to save power

2. The truck body loads a high-pressure screw air compressor and a mud pump at the same time.

One car solves all equipment transport problems.

3.The air compressor and mud pump can be placed on a car chassis.

4.Patent design hydraulic drive power head, large torque and large aperture
