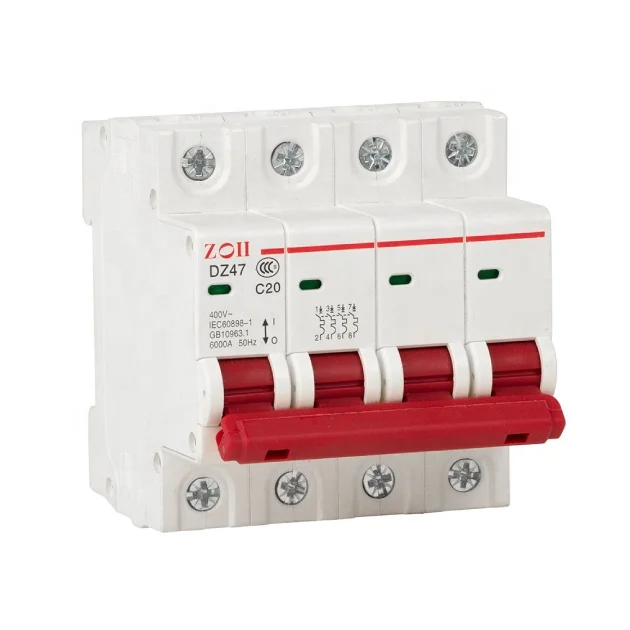

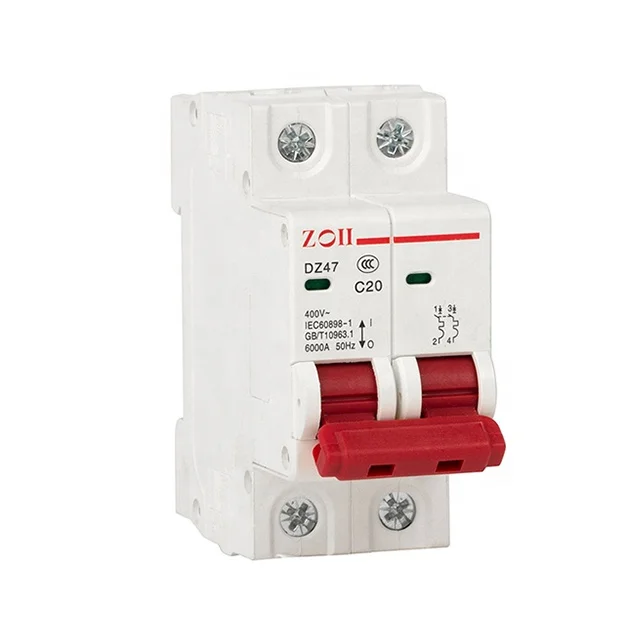

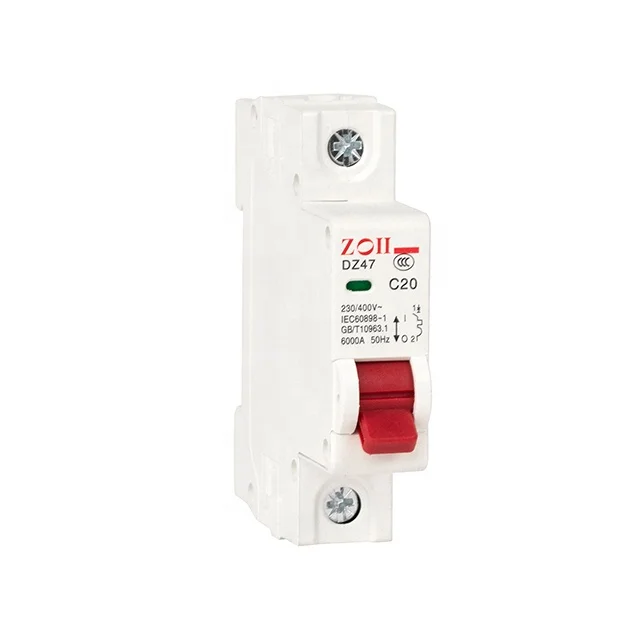

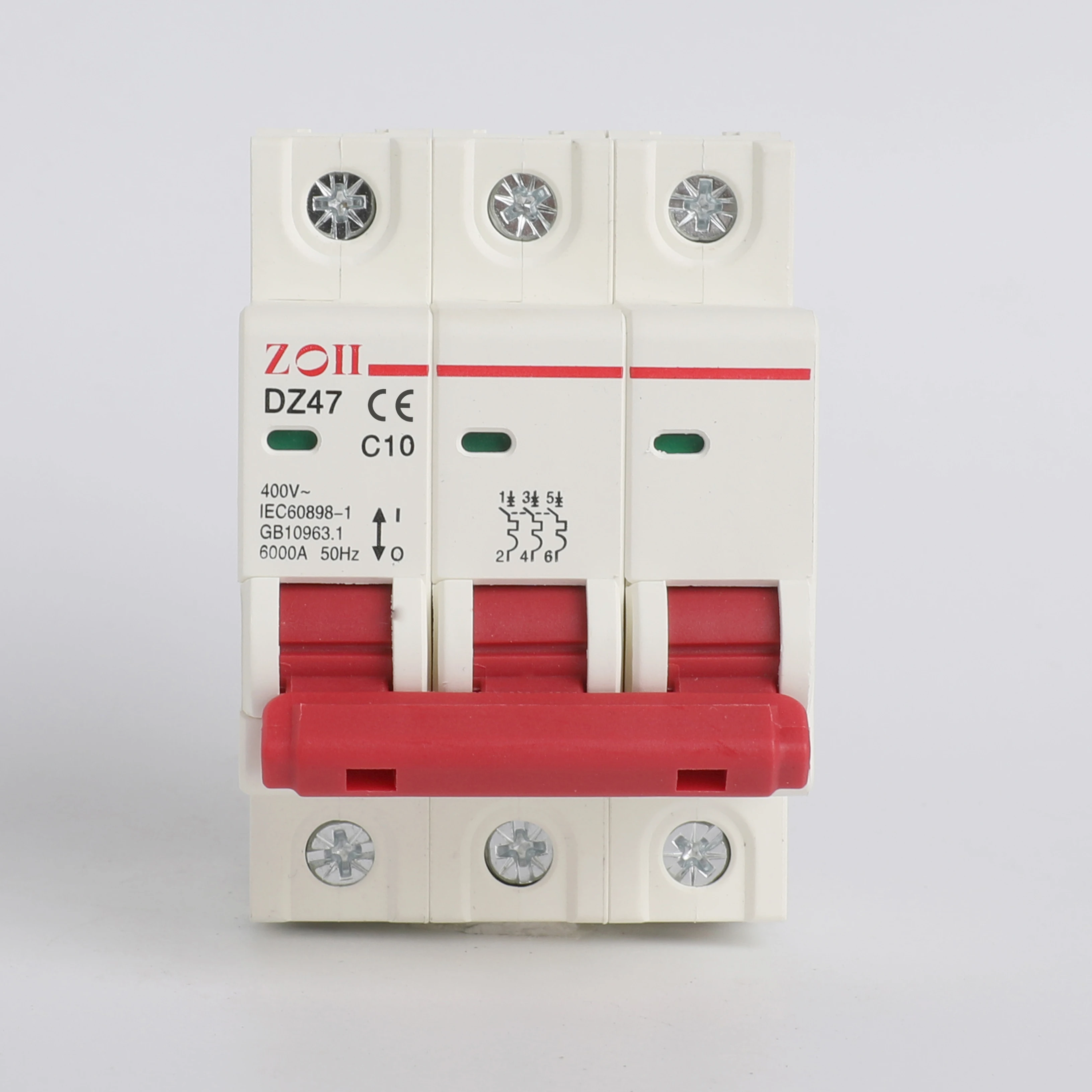

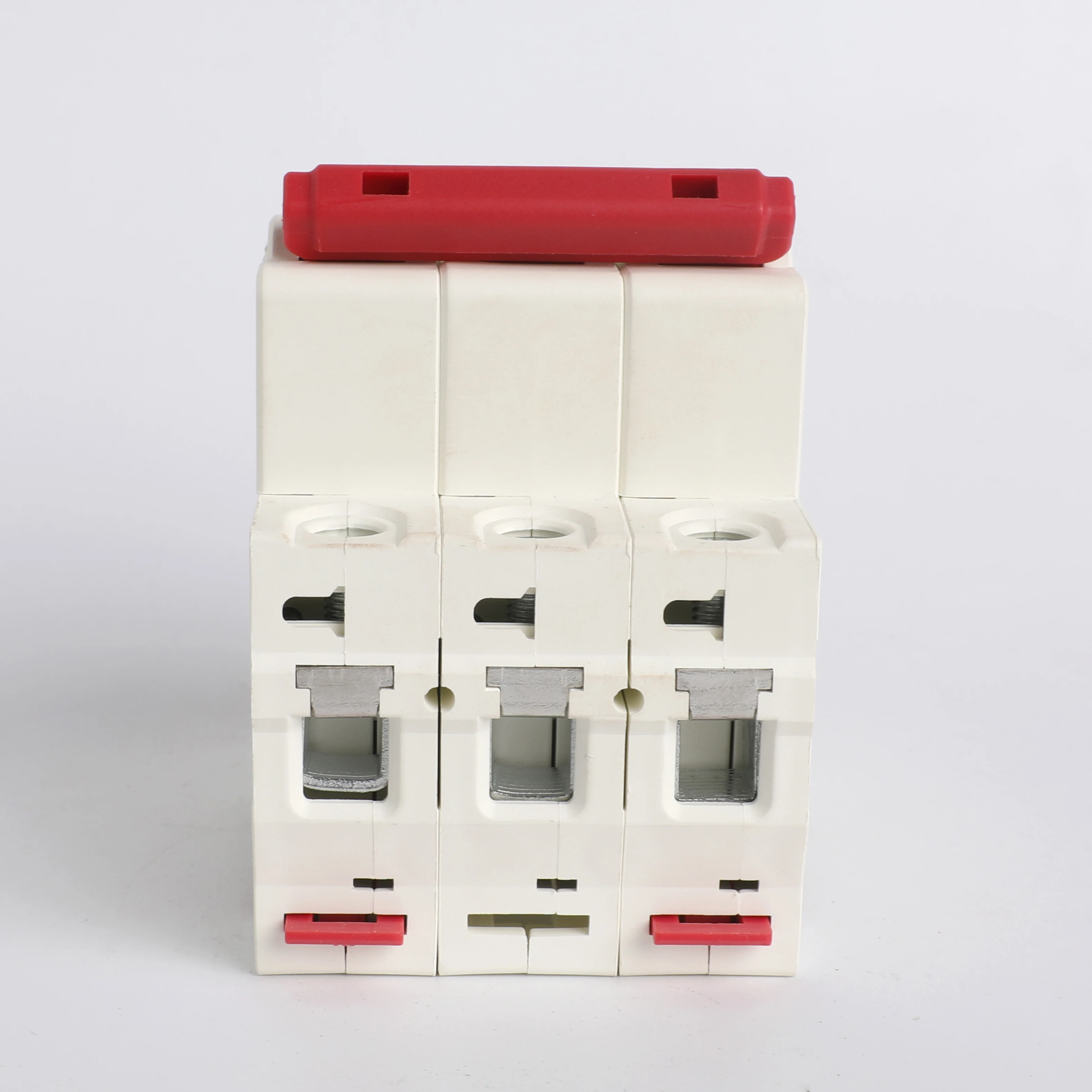

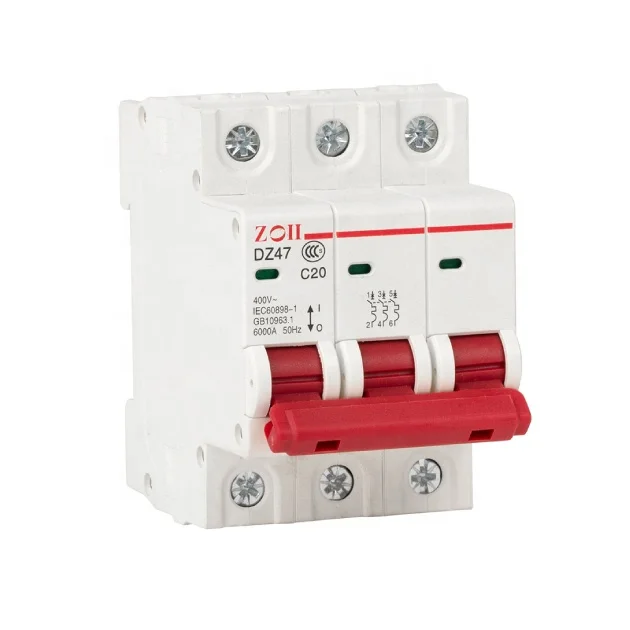

Zoii Электрический DZ47-63 1P 2P 3P 4P Мини автоматический выключатель MCB переменного тока утечки земли автомат защити цепи всех
- Категория: Circuit Breakers >>>
- Поставщик: Zhejiang,Zhiyi,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.25 $* | 0.38 $* |
| Aug-18-2025 | 0.22 $* | 0.95 $* |
| Jul-18-2025 | 0.16 $* | 0.66 $* |
| Jun-18-2025 | 0.13 $* | 0.48 $* |
| May-18-2025 | 0.13 $* | 0.95 $* |
| Apr-18-2025 | 0.87 $* | 0.60 $* |
| Mar-18-2025 | 0.64 $* | 0.28 $* |
| Feb-18-2025 | 0.85 $* | 0.42 $* |
| Jan-18-2025 | 0.67 $* | 0.9 $* |
Характеристики
Related Products
Specification
Design according to | IEC/en 60898-1 |
Characteristic | B,C,D |
Rated voltage | AC 230 / 400V |
DC 48V Single-pole, 2 pole in series: 96VDC | |
Rated frequency | 50/60Hz |
Rated current | 6,10,16,20,25,32,40,50,63A |
Rated current interrupting rating | B,C,D curve----6000A |
Number of poles | 1,1P+N, 2, 3, 3P+N, 4 |
Endurance | ≥ 20,000 operations |
Power inlet mode | Upcoming |
Allowable ambient temperature range | -40ºC~75ºC |
Per pole width dimension | 13mm |
Installation method | IEC standard rail 35mm |
Enclosure protection grade | IP20 |
Dual function terminals on both sides | Open type / lift type |
Terminal protection | Finger and hand safe |
Terminal wiring capacity | 1-25 mm² |
Busbar thickness | 0.8-2 mm |
Installation angle | function is independent of position |
Terminal screw tightening torque | 2-2.5 Nm |
Company Profile
Certifications
FAQ
Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very competitive.
Q2: What is your main products?
A2: Solar Power system accessories ,The wide range products under manufacturing covers such as AC&DC Surge Protective
Device(SPD),AC&DC Miniature Circuit Breaker(MCB),AC&DC Moulded Case Circuit Breaker(MCCB),Voltage & Current Protector,DC FUSE,PV connector ,combiner box etc.
Q3: Do you provide samples ? is it free or extra ?
A3: Yes, we could offer the sample for free charge.
Q4: How does your factory do regarding quality control?
A4: All the products will be 100% checked before the shipment.
Q5:How's the delivery?Because I really need them is urgently?
A5: Samples cost 1-2 days. Bulk order cost 12-15 days.
A1: We are a factory, we can guarantee our price is first-hand, very competitive.
Q2: What is your main products?
A2: Solar Power system accessories ,The wide range products under manufacturing covers such as AC&DC Surge Protective
Device(SPD),AC&DC Miniature Circuit Breaker(MCB),AC&DC Moulded Case Circuit Breaker(MCCB),Voltage & Current Protector,DC FUSE,PV connector ,combiner box etc.
Q3: Do you provide samples ? is it free or extra ?
A3: Yes, we could offer the sample for free charge.
Q4: How does your factory do regarding quality control?
A4: All the products will be 100% checked before the shipment.
Q5:How's the delivery?Because I really need them is urgently?
A5: Samples cost 1-2 days. Bulk order cost 12-15 days.
