Характеристики
Products Description

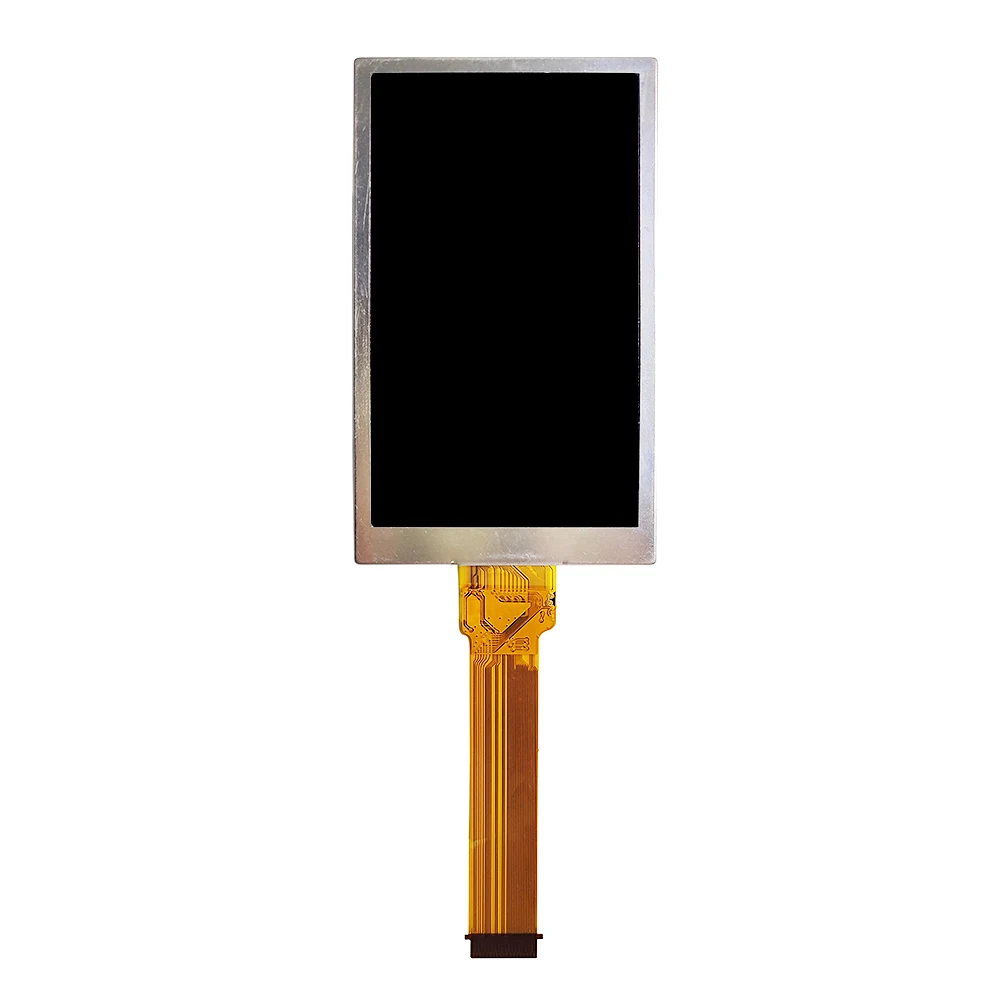

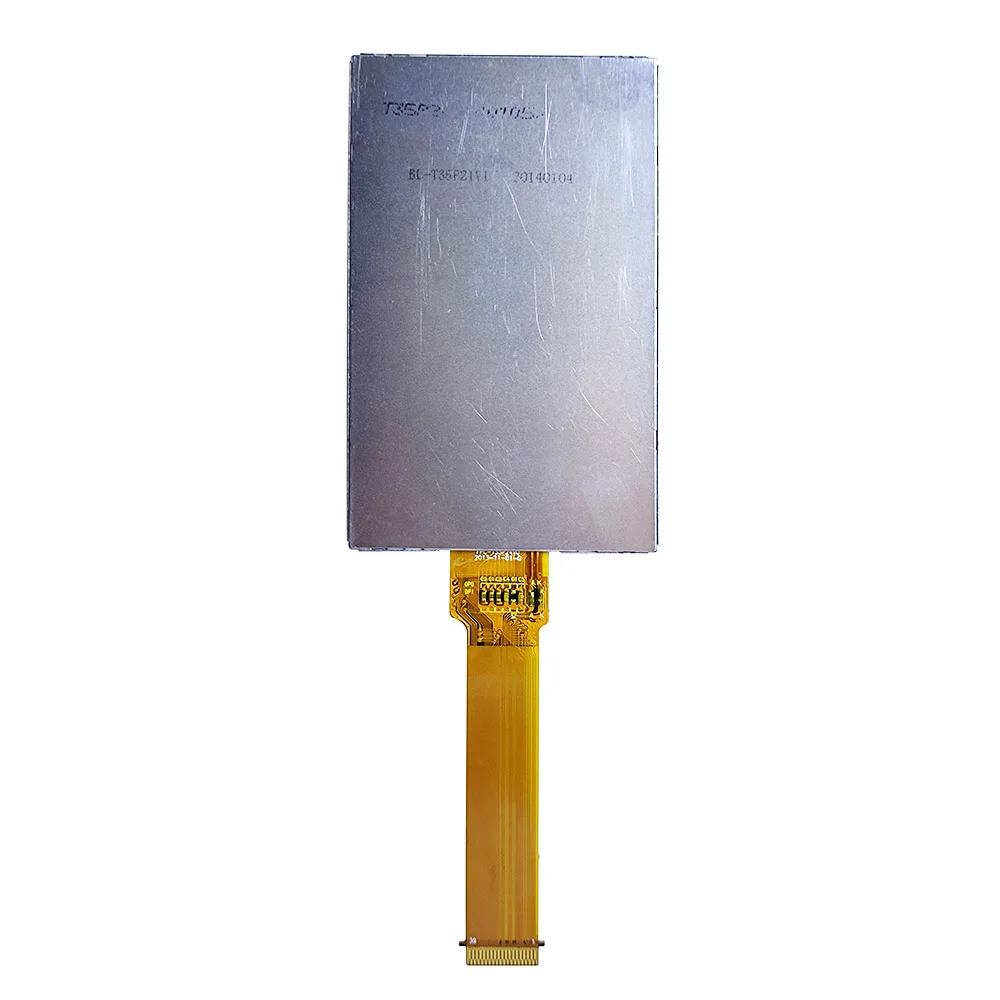

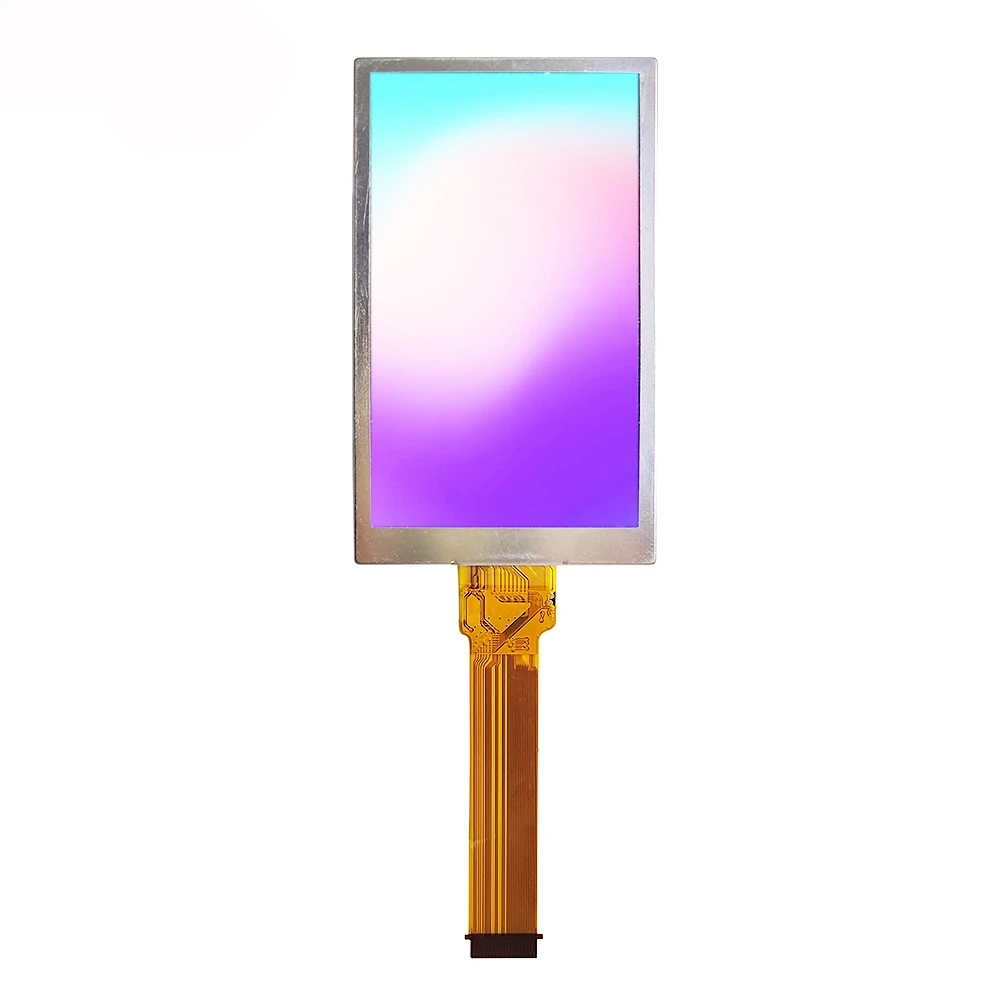

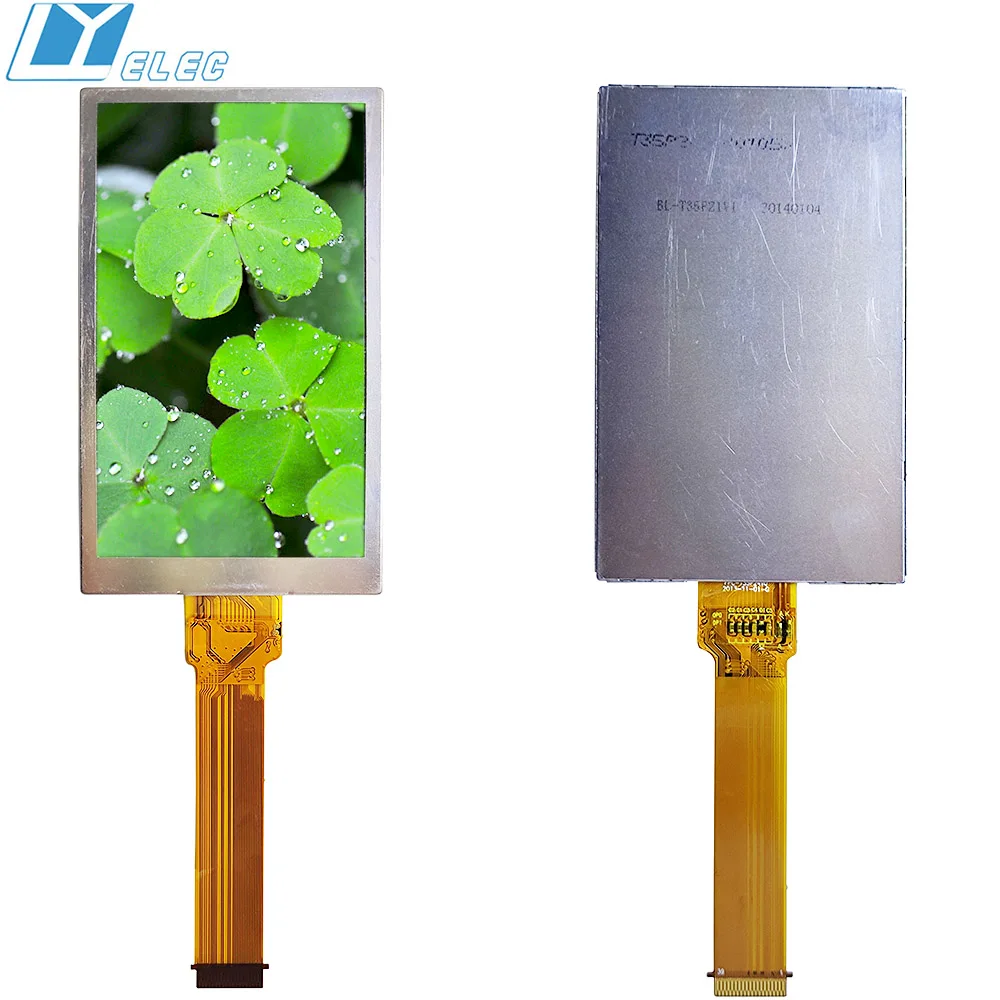

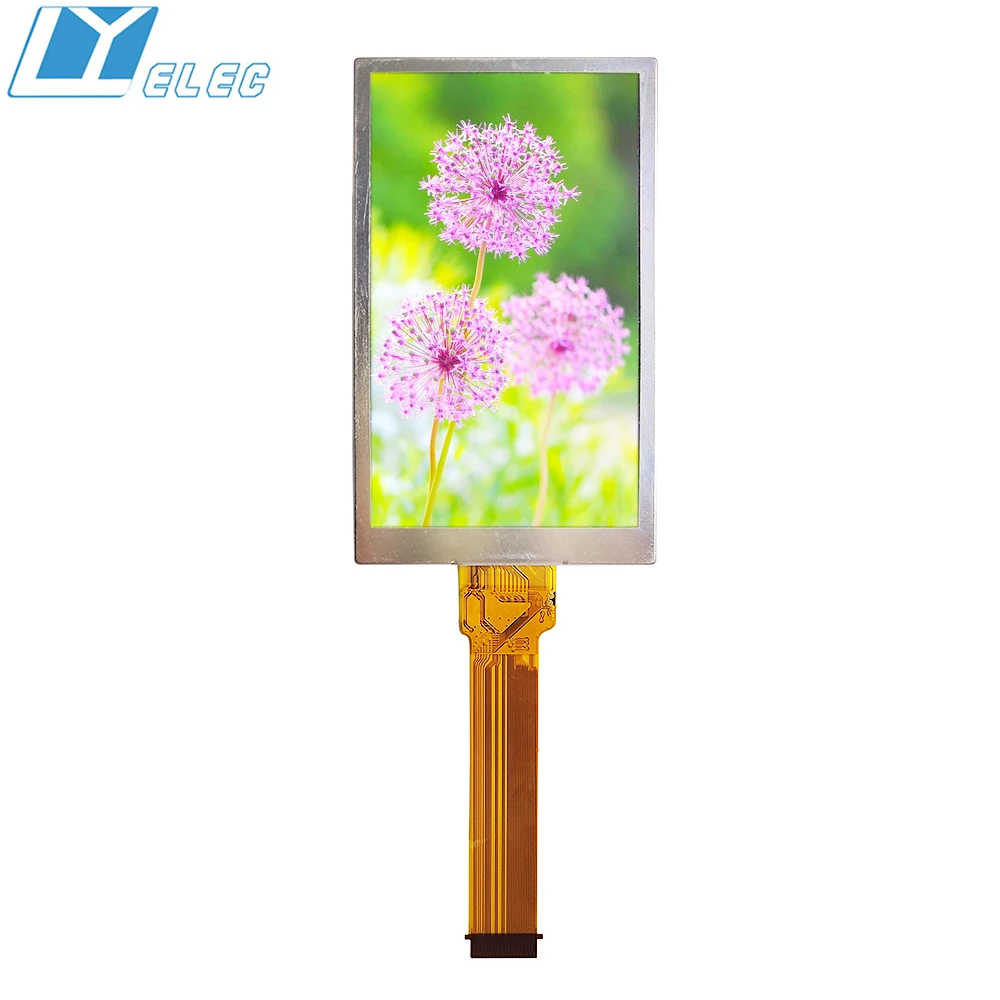

3.5 inch 960x240 High Definition 39 Pin FPC Connector 8bit RGB 3.5"TFT LCD Display Module
Details Images
Product Overviews

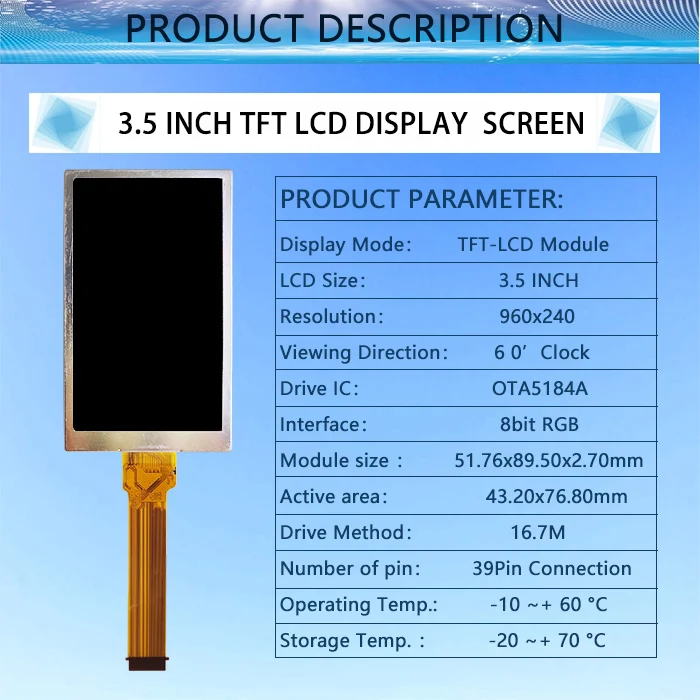

Product Specification
NO. | Item | Contents | Unit |
1 | Display Mode | TFT LCD Module | - |
2 | LCD Size | 3.5 inch | inch |
3 | Resolution | 960x240 | - |
4 | Viewing Direction | 6 o' Clock | - |
5 | Driver IC | OTA5184A | - |
6 | Interface | 8bit RGB | - |
7 | Module Size | 51.76x89.50x2.70 | mm |
8 | Active Area | 43.20x76.80 | mm |
9 | Drive Method | 16.7M | - |
10 | Number of Pin | 39Pin Connection | - |
11 | Operating Temperature | -10~+60℃ | ℃ |
12 | Storage Temperature | -20~+70℃ | ℃ |
Pin Definition
Mechanical Drawing
Related Products
Size | Model No. | Resolution | Driver IC | Interface | Pin |
0.96" | 80x160 | ST7735S | 4 Line SPI | 13 Pin | |
0.96" | 80x160 | ST7735S | 4 Line SPI | 8 Pin | |
0.99" | 40x160 | GC9D01 | SPI4 LINE | 10 Pin | |
0.99" | 40x160 | GC9D01 | SPI4 LINE | 10 Pin | |
1.06" | 96x160 | GC9107 | 4 LINE SPI | 13 Pin | |
1.14" | 135x240 | ST7789V | 4 Line SPI | 13 Pin | |
1.14" | 135x240 | ST7789V2 | 4 Line SPI | 8 Pin | |
1.28" | 240x240 | GC9A01 | 4 Line SPI | 12 Pin | |
1.3" | 240x240 | ST7789VW | 4 Line SPI | 12 Pin | |
1.3" | 240x240 | ST7789V2 | 4 Line SPI | 18 Pin | |
1.3" | 240x240 | ST7789VW | 8Bit 8080 MCU & 4 Line SPI | 24 Pin | |
1.3" | 240x240 | ST7789VW | 4 Line SPI | 12 Pin | |
1.54" | 240x240 | ST7789V | 8Bit MCU & 4L SPI | 22 Pin | |
1.69" | 240x280 | ST7789+CTC | SPI4W1L | 12 Pin | |
1.69" | 240x280 | ST7789+CTC | SPI4W1L | 12 Pin | |
1.77" | 128x160 | ST7735S+CTC | SPI4W1L | 10 Pin | |
1.77" | 128x160 | ST7735S | SPI-4wire | 14 Pin | |
1.77" | 128x160 | ST7735S | SPI | 14 Pin | |
1.77" | 128x160 | ST7735 | 4 Line SPI | 14 Pin | |
1.77" | 128x160 | ST7735S | 80-system 8bits Parallel bus | 20 Pin | |
2.0" | 240x320 | ST7789V | 8080 MCU 8bits | 22 Pin | |
2.0" | 240x320 | ST7789V | SPI | 12 Pin | |
2.1"with TP | 480x480 | ST7701S | 3SPI+18RGB | 40 Pin | |
2.1"with TP +HDM | 480x480 | ST7701S | 3SPI+18RGB | 40 Pin | |
2.1" | 480x480 | ST7701S | 3SPI+18RGB | 40 Pin | |
2.4" | 240X320 | ILI9341V | MCU | 18 Pin | |
2.4" | 240x320 | ST7789V2 | SPI/4W | 12 Pin | |
2.4" | 240x320 | ST7789V | MCU 8 bit/SPI4 | 22 Pin | |
2.8" | 240X320 | ST7789 | SPI4 | 10 Pin | |
2.8" | 240x320 | 9307 | MCU16/8/SPI | 40 Pin | |
2.8" | 240x320 | 7789V | MCU16 | 30 Pin | |
2.8" | 240x320 | 7789V2 | RGB/MCU16/SPI | 47 Pin | |
3.0" | 240x320 | - | 4 Line SPI | 51 Pin | |
3.5" | 320x480 | ILI9488 | 8 or 16BIT,3/4SPI | 40 Pin | |
3.95" | 480x480 | ST7701S | RGB | 30 Pin | |
3.97" | 480X800 | ST7701S | MIPI 2 LINE | 25 Pin | |
4.3" | 480x272 | ST7282 | Serial RGB 24 bit | 40 Pin | |
4.3" | 480X800 | ST7701S | MIPI 2 LINE | 13 Pin | |
4.3” | 480x800 | ST7701S | SPI+RGB24Bit | 45 Pin |
