G3PE-225B DC12-24 реле> твердотельные реле по хорошей цене
US $5.00-$46.00
Изоляционный усилитель 4 ~ 20 мА сигнальный изолятор преобразователь сигнала 010
- Категория: Other Electrical Equipment >>>
- Поставщик: Chongqing,Qianlixing,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 19.90 $* | 20.51 $* |
| Aug-15-2025 | 19.4 $* | 20.70 $* |
| Jul-15-2025 | 16.85 $* | 17.8 $* |
| Jun-15-2025 | 19.86 $* | 20.7 $* |
| May-15-2025 | 16.26 $* | 17.27 $* |
| Apr-15-2025 | 18.40 $* | 19.29 $* |
| Mar-15-2025 | 18.83 $* | 19.87 $* |
| Feb-15-2025 | 18.44 $* | 19.88 $* |
| Jan-15-2025 | 18.92 $* | 19.50 $* |
Характеристики
Product Description
Specification

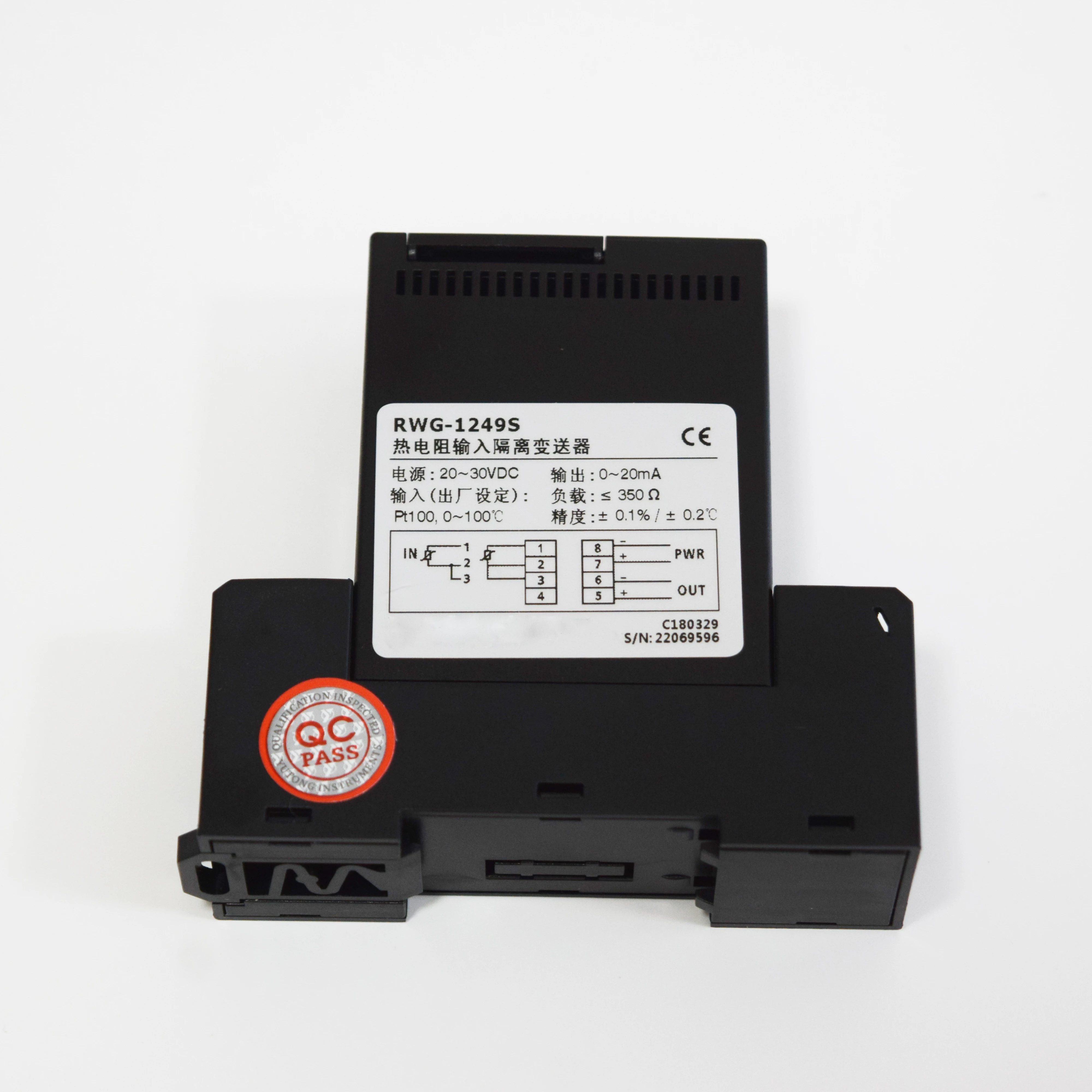

RWG-1249S | |
Input | Pt100,0~100°C |
Output | 4-20mA,0-20mA,0-5V,1-5V,0-10V |
Output load | ≥100KΩ |
Output ripple | <10mV p-p |
Supply voltage range | 20~30VDC |
Rated supply voltage | 24VDC |
Aximum current consumption | <25mA |
Configure the connection | MiniUSB 8P Socket |
Configure the connection | ±0.05%/10°C Max |
Effect Cold Junction Compensation | Thermocouple input, cold junction temperature compensation ±0.5~2°C (compensation range -15~+75°C) |
Error Power Variation Effects | ≤±0.05%FS |
Response time | 0.7~2s (10~90%) can be set, factory default setting ≤1s |
Isolation capability | 1500V, 1 minute (between input - output - power supply) |
Insulation resistance | ≥100MΩ |
Electromagnetic Compatibility (EMC) | Compliant with IEC 61326-1 (GB/T 18268), IEC 61326-3-1 |
Ambient temperature range | -20~+60°C (continuous operation); -40~+80°C (storage or transportation) |
Ambient humidity range | 5~95%RH (non-condensing) |
LED indication | Green LED (when the power supply is normal, the power indicator light is on) |
Power protection | Power reverse connection protection, power-on impact protection, start-up delay>20mS |
Shell material | PC+PPT, flame retardant grade UL94 V-1 |
rotection class | IP20 |
Dimensions and weight | 25*80*80mm, 70g |
Certification | CE certified, in compliance with EN 55032:2015+A11:2020; EN 55035:2017+A11:2020 standards |
Company Profile
Certificate
Company Profile
Chongqing Qianlixing Instrument co., LTD,established in 2000, is a supplier of metal detector, pressure regulator,laser range finder,pressure gauge and other instrument and apparatus.We have exported more than 100countries like USA, Mexico, Canada, Spain, Russia, Singapore, Thailand, India etc.We provide our customers with the world's most cost-effective instrument products,provide one-stop instrument solutions, quality products and services.
(1)Good quality control (2) The price is very competitive (3)Technologically advanced products (4) The most professional instrument technical team (5) Smooth communication (6)valid OEM&ODM service
Packaging&Shipping
FAQ
1. Who are we?
We are based in Chongqing, China, start from 2018,sell to Domestic Market(00.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.What can you buy from us?
Thermal resistance, thermocouple, signal isolator, industrial metal detector, laser rangefinder, total station instrument, pressure gauge, RTK GPS etc.
4. Why should you buy from us not from other suppliers?
Product diversification Service diversification Lower price Quality control facilitation We provide our customers with the world's most cost-effective instrument products,provide one-stop instrument solutions, quality products and services.
5. What services can we provide?
Accepted Delivery Terms: EXW,DDP,FOB；
Accepted Payment Currency:USD;
Accepted Payment Type:Credit card,T/T,Paypal,Google Pay,Apple PayWestern Union;
Language Spoken:All
