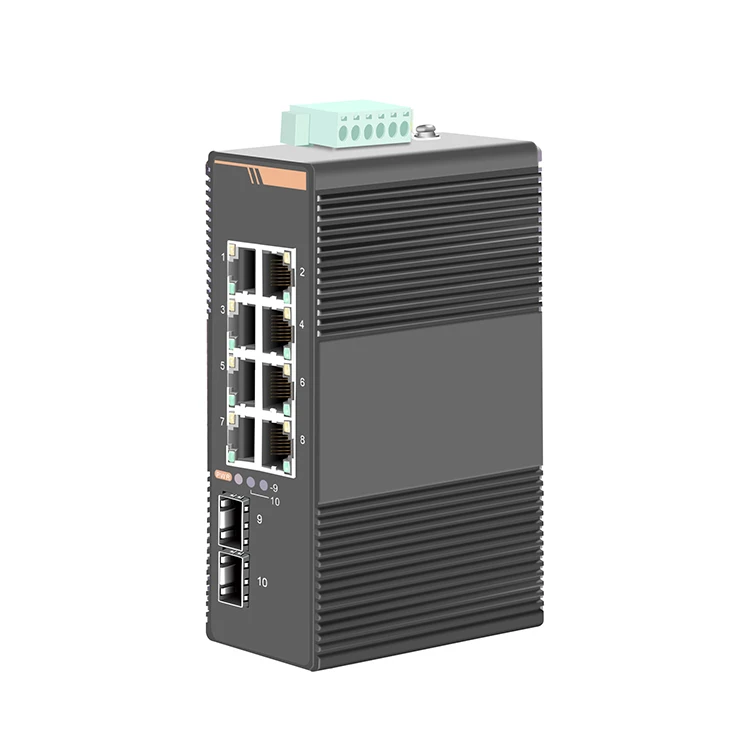

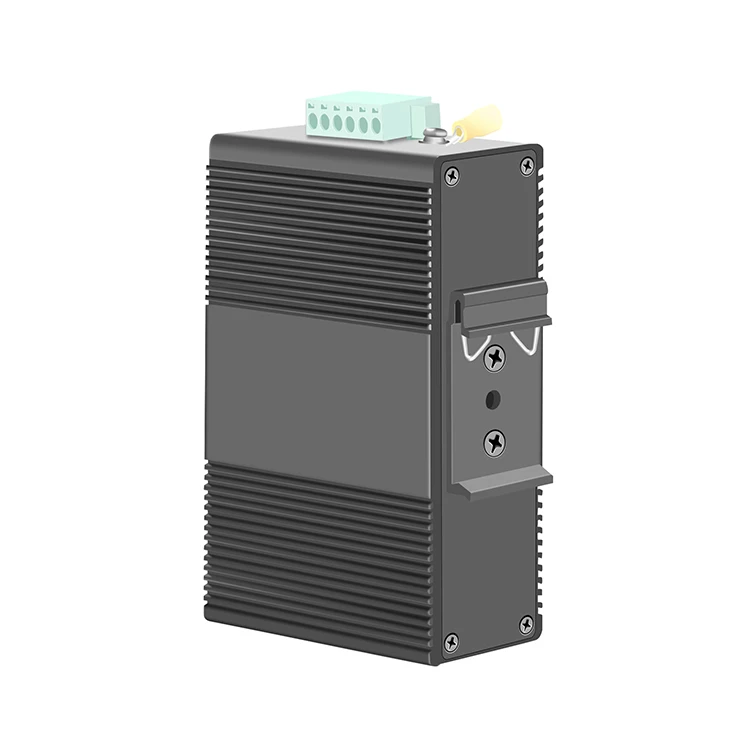

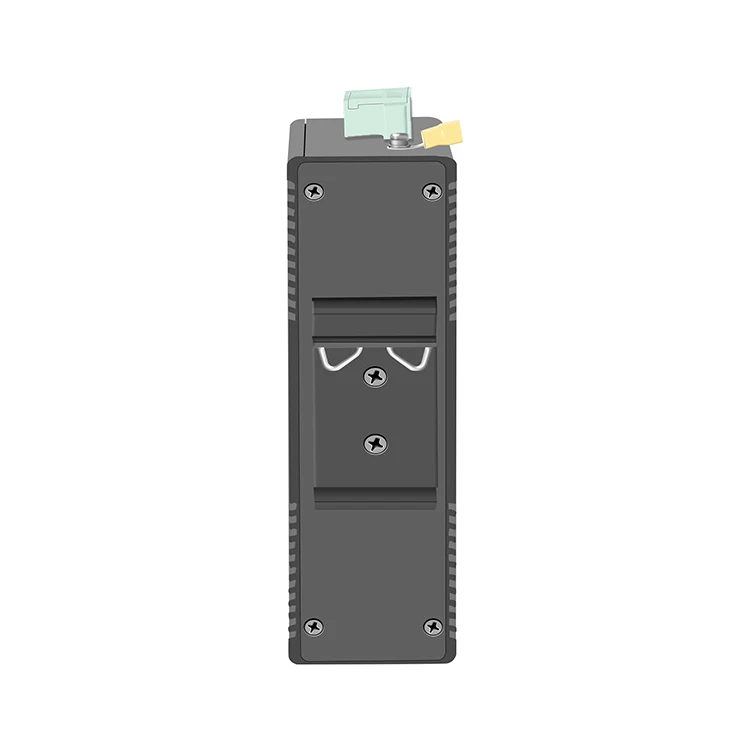

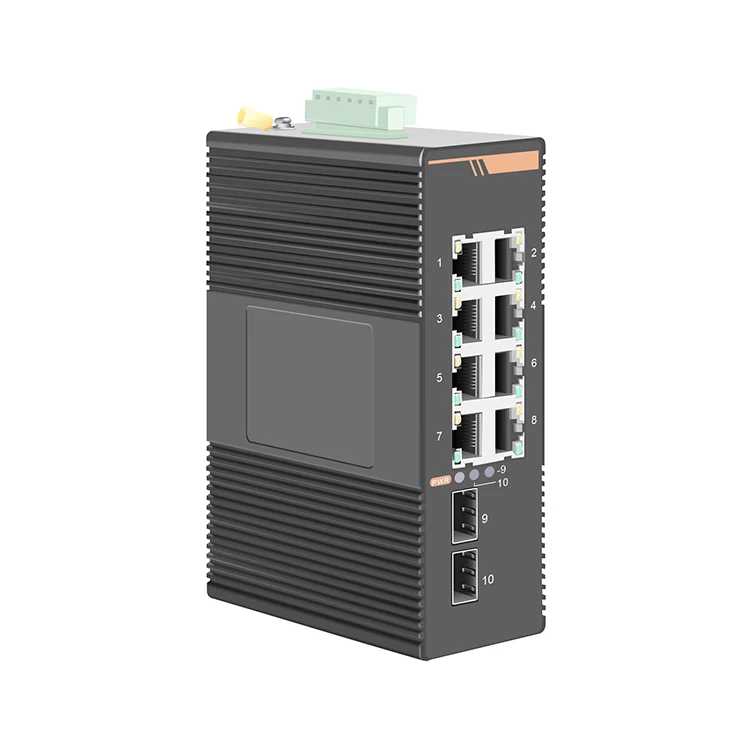

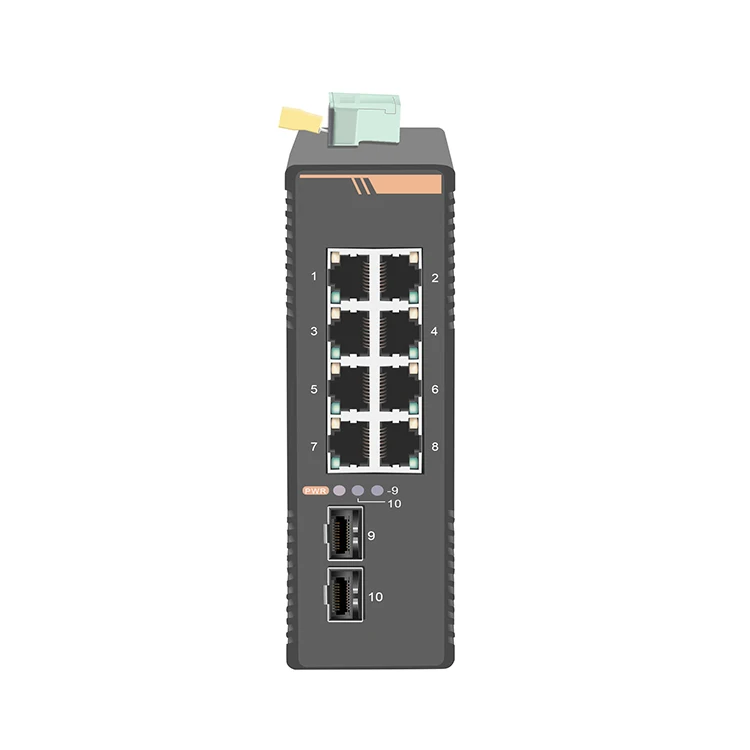

12VDC вход 24VDC Вход Промышленный 8-портовый Ethernet-коммутатор питания через
- Категория: Network Switches >>>
- Поставщик: Shenzhen,Xunwei,Communication,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 95.63 $* | 100.2 $* |
| Aug-19-2025 | 94.36 $* | 99.0 $* |
| Jul-19-2025 | 79.55 $* | 83.97 $* |
| Jun-19-2025 | 93.41 $* | 98.67 $* |
| May-19-2025 | 81.27 $* | 85.32 $* |
| Apr-19-2025 | 91.38 $* | 96.79 $* |
| Mar-19-2025 | 90.40 $* | 95.54 $* |
| Feb-19-2025 | 90.39 $* | 95.76 $* |
| Jan-19-2025 | 89.47 $* | 93.30 $* |
Характеристики
Layer 2 Managed Industrial POE Switch 12vdc 24vdc 48vdc input
8 port 10/100/1000Mbps POE + 2 Port Fiber SFP.
support 12vdc , 24vdc, 48vdc input
Features
•Data control: support 802.3x full duplex flow control, support network storm suppression
•Redundant network: support STP/RSTP/MSTP, support ERPS (self-healing time <20ms)
•Support IPv6, static routing
•Support DHCP Server, DHCP replay, Qos
•Multicast management: Support IGMP Snooping ，IGMP V1/V2/V3；Support GMRP , static multicast
•Support port-based VLAN Port, IEEE 802.1Q VLAN and GVRP protocol, simple network planning
•QoS: Support QoS (IEEE 802.1p/1Q) and TOS/ Diffserv to increase network stability
•Security management: support ACL access control list, support 802.1x, support user classification management
• Management function: support Web, SNMP management mode
•Monitoring maintenance: support port mirroring, interface status monitoring, log management
•Alarm function: support power supply, port, abnormal state relay output
•Support 1588 clock protocal
•Data control: support 802.3x full duplex flow control, support network storm suppression
•Redundant network: support STP/RSTP/MSTP, support ERPS (self-healing time <20ms)
•Support IPv6, static routing
•Support DHCP Server, DHCP replay, Qos
•Multicast management: Support IGMP Snooping ，IGMP V1/V2/V3；Support GMRP , static multicast
•Support port-based VLAN Port, IEEE 802.1Q VLAN and GVRP protocol, simple network planning
•QoS: Support QoS (IEEE 802.1p/1Q) and TOS/ Diffserv to increase network stability
•Security management: support ACL access control list, support 802.1x, support user classification management
• Management function: support Web, SNMP management mode
•Monitoring maintenance: support port mirroring, interface status monitoring, log management
•Alarm function: support power supply, port, abnormal state relay output
•Support 1588 clock protocal
Specification
Model | XW-IES8GP2GF-SFP |
Product Name | 8 port 10/100/1000M +2 port SFP industrial POE Switch |
PoE power | each port 15W/25W/30W |
Uplink Ports | 2 port SFP slot 1G |
Input Voltage | DC 12~57V |
Device Performance | Surge 6KV, ESD 15KV |
PoE Protocol | IEEE802.3af/IEEE802.3at |
Throughput | 14.88Mpps |
Packet Buffer | 2M |
MAC Address | 4K |
Jumbo Frame | 4096bytes |
Fiber Media | Multi-mode: 2km; Single-mode: 20/40/60/80KM |
Switching Capacity | 20Gbps |
Transfer Mode | Store and forward |
MTBF | 100,000 hours |
Protection | Lightening protection, IP40 protection |
Power Supply | Input Voltage: DC12-57V /Terminal block |
Shell | IP40 protect grade, metal shell |
Installation | DIN-Rail or Wall mounts |
Warranty | 5 years |
Network Protocols | IEEE802.3 IEEE802.3i IEEE802.3u IEEE802.3ab IEEE802.3z |
PoE Specification | PoE ports: 1-8 ports support PoE Each PoE Port: Max. 30 Watts Power Pin Assignment:1/2+;3/6- Output Voltage: DC48V |
Industry Standard | EMI: FCC Part 15, CISPR (EN55022) class A EMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge) |
Working Environment | Working temperature: -40~75℃ ; Storage temperature: -40~85℃ Relative Humidity: 5%~95 %( no condensation) |
Weight & Size | ProductDimension(L*W*H): 160*135*44mm PackageDimension(L*W*H): 242* 207*86mm N.W: 0.73kg G.W: 0.90kg |
