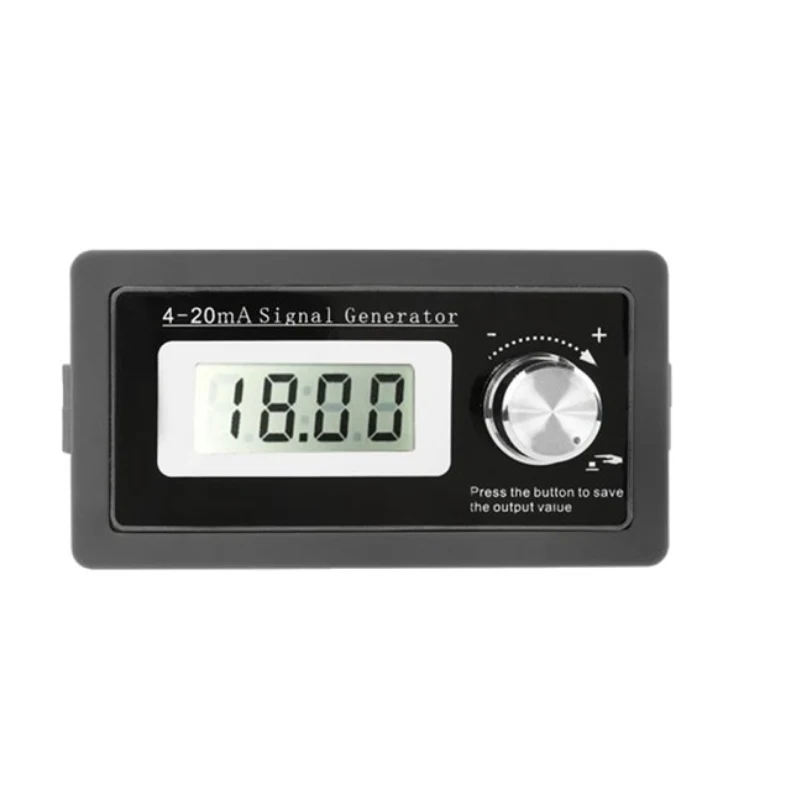

Высокоточный генератор тока 4-20 мА 2 провода 3 4 передатчик может имитировать и отлаживать пассивный
- Категория: >>>
- Поставщик: Shenzhen,Hanheng,Technology,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.17 $* | 0.81 $* |
| Aug-20-2025 | 0.90 $* | 0.48 $* |
| Jul-20-2025 | 0.28 $* | 0.57 $* |
| Jun-20-2025 | 0.19 $* | 0.72 $* |
| May-20-2025 | 0.32 $* | 0.61 $* |
| Apr-20-2025 | 0.98 $* | 0.96 $* |
| Mar-20-2025 | 0.4 $* | 0.38 $* |
| Feb-20-2025 | 0.25 $* | 0.90 $* |
| Jan-20-2025 | 0.80 $* | 0.77 $* |
Характеристики
Product Description
Feature
LCD display (with backlight); 9-segment programmable automatic cycle output (it can simulate the actual environment dynamic test,
each segment can be set t running time/A starting current/b ending current); Digital rotary encoder adjustment (using
potentiometers are easily affected by temperature and humidity, and the resistance value will change); It can be connected
positively and negatively (two-wire system, no matter how it is connected, it can work normally without burning the instrument);
High accuracy and good linearity (display accuracy "0.05" with two decimal places, actual output accuracy 0.5%); Passive/active,
fully compatible with two/three/four wire systems It can be set to 1.8 circles in manual coarse adjustment mode or 18 circles in
fine adjustment mode; The user can calibrate the output current, and the display accuracy can reach 0.01mA; This product uses DAC
to directly control the current, non-PWM output, to minimize the ripple, and the equipment runs more stable; Imported chips,
ultra-low power consumption, no heat, and more stable output; The shell is complete and beautiful, easy to install;
Parameter
Output current: 3mA~21mA; Power supply voltage: 15V~30V; Sampling resistance: 10 ohm ~ 500 ohm; Display accuracy: 0.05; Output

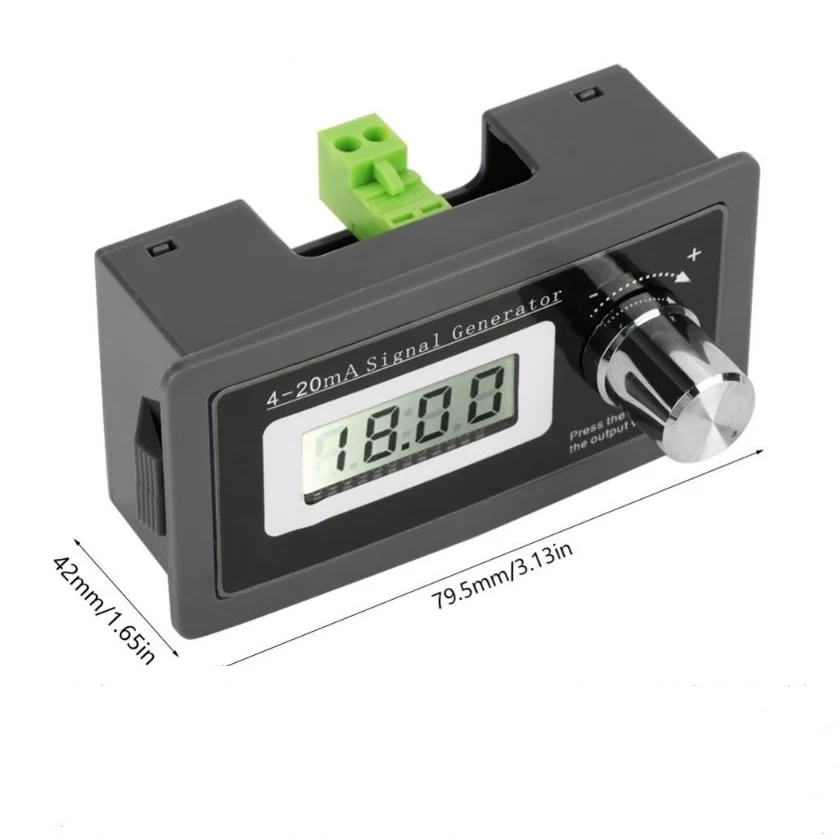

accuracy: 0.5%; Dimensions (front): 79.5X42mm Dimensions (rear): 72.5X39.5mm Installation panel/chassis opening size: 77X40mm
LCD display (with backlight); 9-segment programmable automatic cycle output (it can simulate the actual environment dynamic test,
each segment can be set t running time/A starting current/b ending current); Digital rotary encoder adjustment (using
potentiometers are easily affected by temperature and humidity, and the resistance value will change); It can be connected
positively and negatively (two-wire system, no matter how it is connected, it can work normally without burning the instrument);
High accuracy and good linearity (display accuracy "0.05" with two decimal places, actual output accuracy 0.5%); Passive/active,
fully compatible with two/three/four wire systems It can be set to 1.8 circles in manual coarse adjustment mode or 18 circles in
fine adjustment mode; The user can calibrate the output current, and the display accuracy can reach 0.01mA; This product uses DAC
to directly control the current, non-PWM output, to minimize the ripple, and the equipment runs more stable; Imported chips,
ultra-low power consumption, no heat, and more stable output; The shell is complete and beautiful, easy to install;
Parameter
Output current: 3mA~21mA; Power supply voltage: 15V~30V; Sampling resistance: 10 ohm ~ 500 ohm; Display accuracy: 0.05; Output
accuracy: 0.5%; Dimensions (front): 79.5X42mm Dimensions (rear): 72.5X39.5mm Installation panel/chassis opening size: 77X40mm
Specification
item | value |
Place of Origin | China |
Guangdong | |
Model Number | LCD display |
Type: | electronic module |
Shipping by | Buyer's choice |
The best price | Please contact us |
Packing & Delivery
Individual Static Bag + Standard safe exporting packing With protective foam packaging
