LEAO Flatbed Container Carrier Semi Trailers
Liangshan LEAO Machinery factory has nearly 15 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and more efficient. We can provide high quality products and competitive prices. Please contact me if necessary.
Liangshan LEAO Machinery factory has nearly 15 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and more efficient. We can provide high quality products and competitive prices. Please contact me if necessary.
Specification
LEAO 20FT/40FT/45FT Container Chassis Flatbed Semi Trailer
LEAO Flatbed Semi-trailer is specially used for the transportation of various containers, and it can also use its platform to transport ordinary bulk cargo. It has sufficient strength and is mainly used in transportation systems such as ships, ports, routes, highways, transfer stations, bridges, tunnels and other transportation systems.
The 40ft Flatbed Container Trailer can carry 40ft and two 20ft containers. Flatbed trailer capacities range from 20 to 80 tons and are available in 2, 3 and 4 axles. Customers can change the number of locks according to your own needs.
LEAO Flatbed Semi-trailer is specially used for the transportation of various containers, and it can also use its platform to transport ordinary bulk cargo. It has sufficient strength and is mainly used in transportation systems such as ships, ports, routes, highways, transfer stations, bridges, tunnels and other transportation systems.
The 40ft Flatbed Container Trailer can carry 40ft and two 20ft containers. Flatbed trailer capacities range from 20 to 80 tons and are available in 2, 3 and 4 axles. Customers can change the number of locks according to your own needs.
LEAO 40Ton Flatbed Trailer 20/40/45/48ft Container Flatbed Semi-trailer Chassis | ||||||
Product name | 20 FT Flatbed Semi-trailer | 40 FT Flatbed Semi-trailer | 45 FT Flatbed Semi-trailer | |||
Product Size | 7000*2500*1570mm | 12400* 2500*1570mm | 13950*2500*1600mm | |||
Axle | 2 /3 Axles*13Ton FUWA/BPW/Leao/other | 2 /3 Axles*13Ton FUWA/BPW/Leao/other | 2 /3 Axles*13Ton FUWA/BPW/Leao/other | |||
Application | 1*20 ft Container or cargo Loading Loading | 1*40ft/2*20 ft Container/Cargo Loading | 1*40ft/1*45/2*20 ft Container / Cargo Loading | |||
Capacity | 20-60 Tons | 30-80 Tons | 30-80 Tons | |||
Main Beam Material | Q345/T700 | Q345/T700 | Q345/T700 | |||
Upper Plate Thickness | 12mm | 16mm | 16mm | |||
Middle Plate Thickness | 6mm | 10mm | 10mm | |||
Lower Plate Thickness | 14mm | 18mm | 18mm | |||
Height | 500mm | |||||
Platform Thickness | 3mm thick patterned steel plate | |||||
Leaf Spring | 90mm*13mm*10/90mm*16mm*10 | |||||
Kin Pin | 50#(2")/90#(3.5") JOST/Other Brand | |||||
Landing Gear | 28 Tons Two Speed,JOST/Other Brand | |||||
Twist Lock | 4 Sets | 8 Sets | 8 Sets | |||
Suspension System | Mechanical or Air Suspension | |||||
Tire | 12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other | |||||
Rim | 9.00*22.5 (8/12 Pieces) Steel/Aluminum | |||||
Tool Box | Steel or Aluminum | |||||
Painting | Electrophoresis paint | |||||
If you want to know more details,please contact us directly | ||||||
Product Display
1.The Flatbed Trailer is the main product of our company. It use high stength full thickness Steel, titanium content of 0.98‰, which ensure Beam and frame’s toughness and strength. The strong Loading Capacity, 30-100 Tons Loading Range.
2.The girder adopts submerged arc welding, the whole vehicle shot blasting and derusting, and the bottom plate is 3mm thick pattern.
3.This kind of flat semi-trailer can be equipped with removable breast boards, columns, number of locks, etc. according to customer requirements.
4.The whole frame of the flatbed trailer should be shot blasted to effectively eliminate welding residues. The vehicle body is electrophoretic coating, resistant to coating, and the coating effect can reach more than 10 years.
5.We adopt world famous brand of parts, like Fuwa axle, BPW axle, JOST landing gear, WABCO braking valve etc. The axles are equipped with WABCO emergency brake valves, and the double brake air chambers also widen the pads.
6.Our Trailer factory can also support other customized flatbed semi-trailers, superlink flatbed semi-trailers, and lumber flatbed semi-trailers.
Details Images
Usually 20 ft is 4 sets locks, 40 ft with 12 sets.
Customers can also change the number of locks according to their needs Customers can change the number of locks according to your own needs.
Customers can also change the number of locks according to their needs Customers can change the number of locks according to your own needs.
Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire abrasion.Meanwhile,Easy to disassemble and maintain.
T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.
Axle
BPW/FUWA/LEAO Axle optional.
Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity and high bending Strength.Axle maintenance-free could reach 3 Year/400,000 kilometers.
The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C.
Featured Tire
Double Coin / LingLong / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance.
Product Application

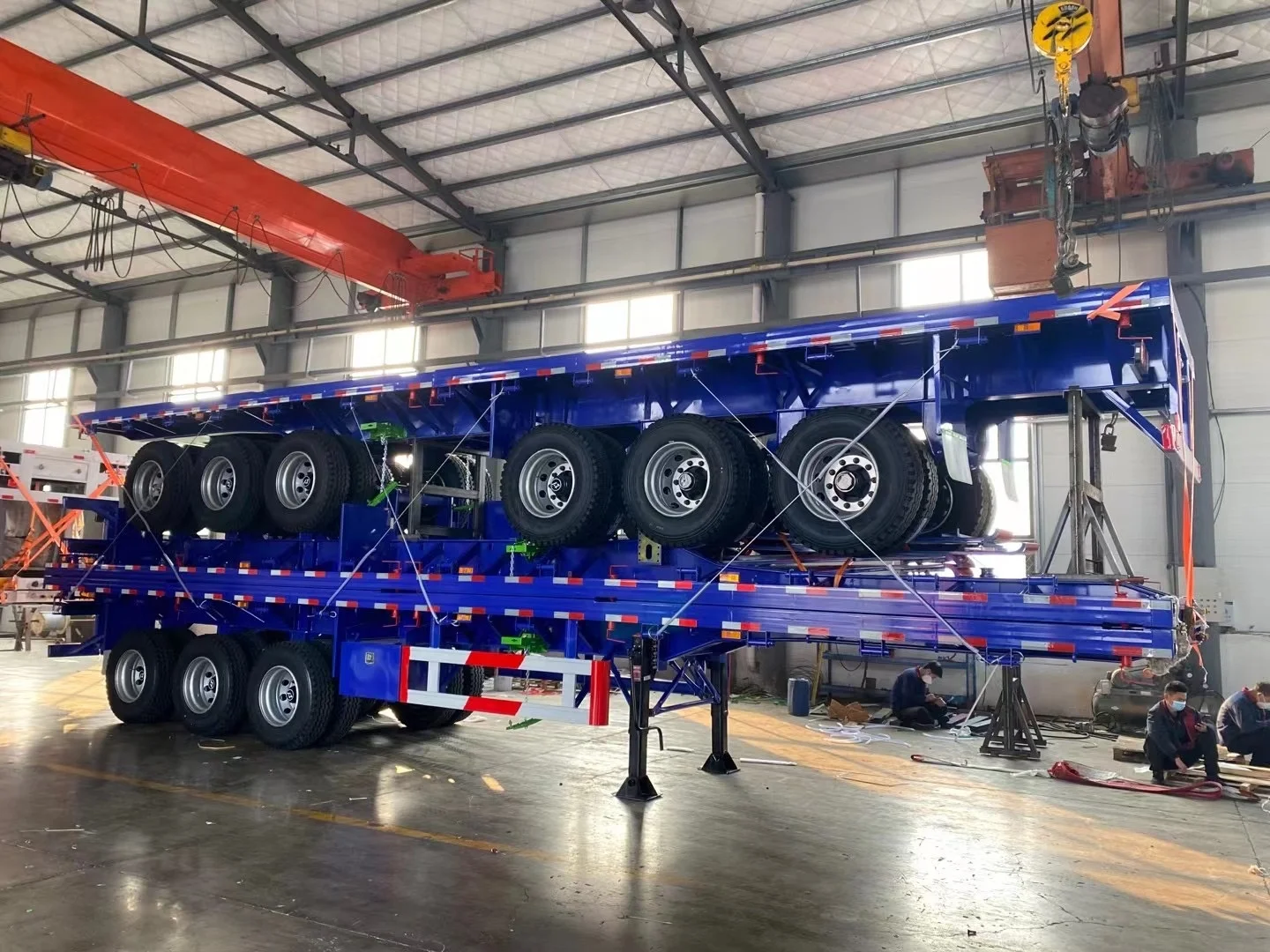

Production Process
Packaging & Shipping
Company Profile
Liangshan LEAO Machinery Co., Ltd. is the foreign trade sales branch of Shandong Tianhong Automobile Group, mainly responsible for the overseas market of Tianhong Group. The head office is an enterprise integrating automobile manufacturing, scientific research, design, trade, parts production and sales, and has 15 years of experience in the production of semi-trailers and trailer parts. The company is located in Liangshan County, China's special vehicle production base, and has passed IS09001-2000 certification and 3C certification.
LEAO's main container chassis trailers, lowbed trailers, cargo transport trailers, dump truck trailers, fuel tanker trailers, car transport trailers, animal transport fence trailers and axle spare parts sell well in Australia, Singapore, Japan, Sudan and other Middle East, Southeast Asia , Africa and more than 30 countries.The company has first-class CNC production equipment, mainly including CNC cutting machine, gantry automatic welding machine, large bending machine, shearing machine, vehicle pass-through shot blasting machine, automatic paint spraying room and isolation production and testing equipment. There are several professional engineers and more than 100 skilled workers. First-class technology, strict management, excellent team, make due contributions to the global transportation industry!
Beautiful Liangshan, honest LEAO, Tianhong Group wholeheartedly welcomes domestic and foreign customers to visit and guide.
