Характеристики
Products Description
LED series shadowless operating lamp can widely be used in diversified operation occasion to meet the demand of the illumination, and it is the ideal illumination instrument of the modern operating theater.
Schematic diagram of 700/500 LED
Type | 700/500 LED （Adjust color temperature ） |
Illuminance(Lux) | ≥160,000lux ≥140,000lux |
Colour temperature(k) | 3800±500K,4400±500K,5000±500K |
Colour reduction index(Ra) | 93 |
Total irradiance(W/m2） | 544W/m2 534W/m2 |
Size of light field (mm) | 250~300mm |
Service life of illuminant(h) | 50,000h |
Power supply voltage | AC110V-240V,50HZ-60HZ |
Lowest height of installation | 2900mm |
Total power consumption(W) | 80W 60W |
Total LED bulb quantity(pcs) | 180pcs*(18*6+12*6) |
Product Feature
0.1The 700/500 LED shadowless operating lamp is composed of 6 lobes with 8 levels of adjustable brightness and spot size, illumination ≤ 160,000 and illumination depth up to 1400mm, which can meet the lighting requirements of different operations.
02.The shadowless operating lamp is equipped with a one-button endoscope illumination mode that allows the surgeon to quickly switch from the general lighting mode.Provides soft lighting for environments and does not interfere with the doctor’s field of vision and observation of tissue during endoscopic surgery.
03.Through reliable beam synthesis control technology, the color temperature can be adjusted between 3800K-5000K under the condition of ensuring the color rendering index of 93.Surgeons can adjust the color temperature according to their own habits or different surgical sites to achieve the ideal tissue contrast and achieve the best tissue resolution.

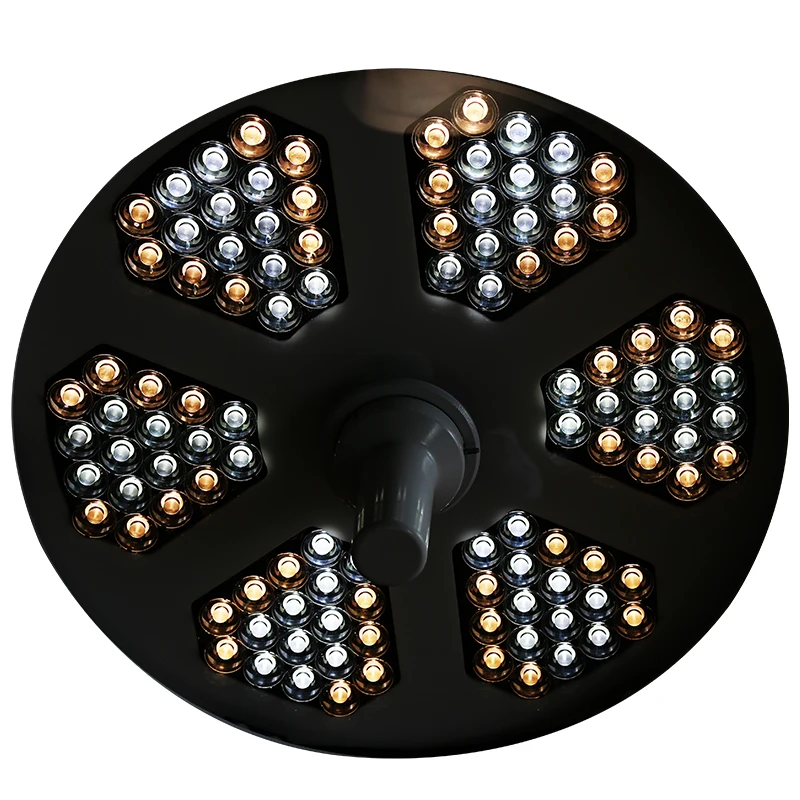

LED series shadowless operating lamp is compsed of six light bulbs.The single surgical lamp contains up to 108 LED light sources,achieving super-strong,uniform illumination at 1400mm depth.
Changing the light colour
1.The use of different coloured LEDs makes itpossible for the first time in surgery to change the light colours depending on theapplication.
2.The surgeon has the possibility to choose the optimum OR light according to the tissue type and the wound field texture.
3.Three different colour temperature values be set: 3800,4400,5000 Lux.The setting can be done either at the key pad on the lamp housing or by a turn of the ring at the sterilisable handle.
2.The surgeon has the possibility to choose the optimum OR light according to the tissue type and the wound field texture.
3.Three different colour temperature values be set: 3800,4400,5000 Lux.The setting can be done either at the key pad on the lamp housing or by a turn of the ring at the sterilisable handle.

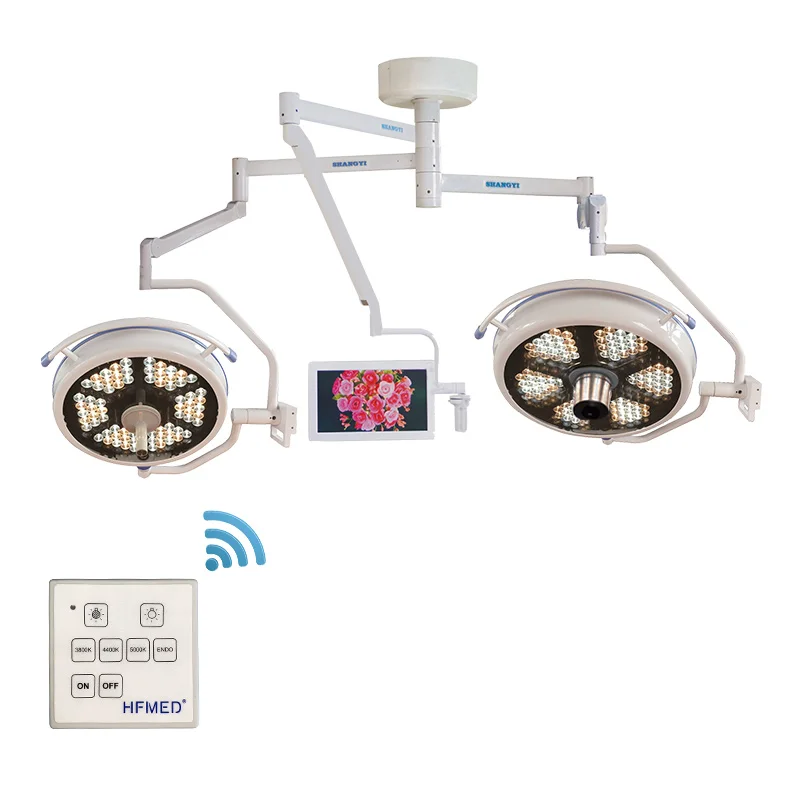

Key pad on the lamp housing
Several light functions can be adjusted electrioncally,such as:
*Switching ON and OFF
*Illumination in depth
*Laser pointer
*Elecronic light intensity control
*Endo-Light
*Changing the colour temperature:
3800K,4400K,5000K
*Switching ON and OFF
*Illumination in depth
*Laser pointer
*Elecronic light intensity control
*Endo-Light
*Changing the colour temperature:
3800K,4400K,5000K
Superiour colour rendition
With colour rendering index Ra above 96and R9 (red) above 90 the surgeon recognizes clearly the tiniest nuances of colour in tissue.The colour rending index for SC models is Ra=93.For recongnizingthe exact colour spectrum of wounld the exact rendition of the red colour range isessential.R9 (red) ≥90 means for the surgeon a visibly better recognition of details.Thecolour spectrum of the wound is rendered naturally with rich contrast.The OT-light clearly provides welcome relief for your eyes.
Endoscope:3000lux
The shadowless operating lamp is equipped with a one-button endoscope illumination mode that allows the surgeon to quickly switch from the general lighting mode.Provides soft lighting for environments and does not interfere with the doctor’s field of vision and observation of tissue during endoscopic surgery.

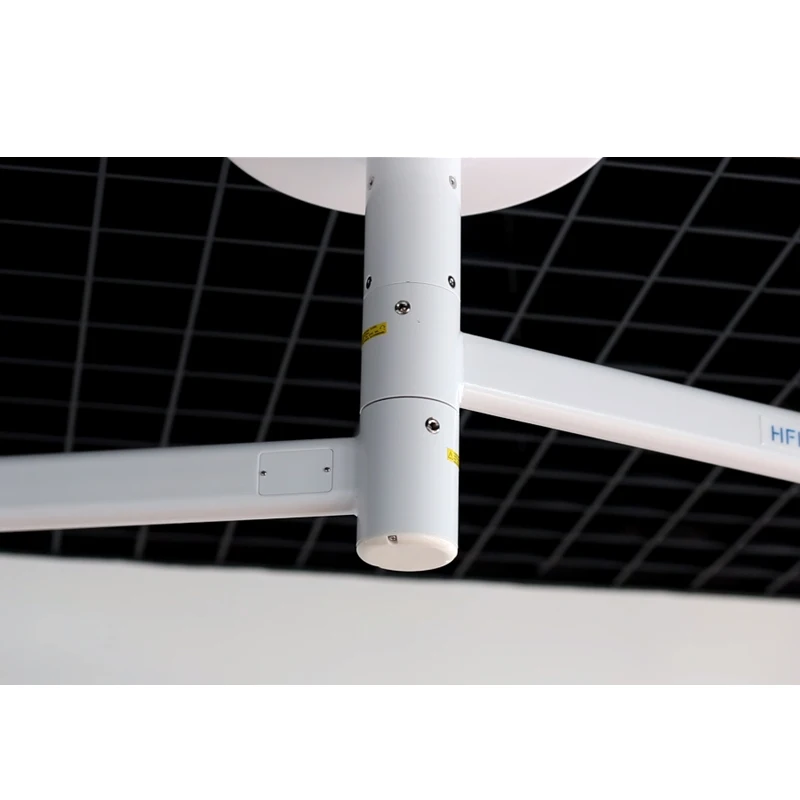

Installation Instructions
Product Display
Application: Stomatology Department,Cosmetology,Medical Operation and Ophthalmology Department.
