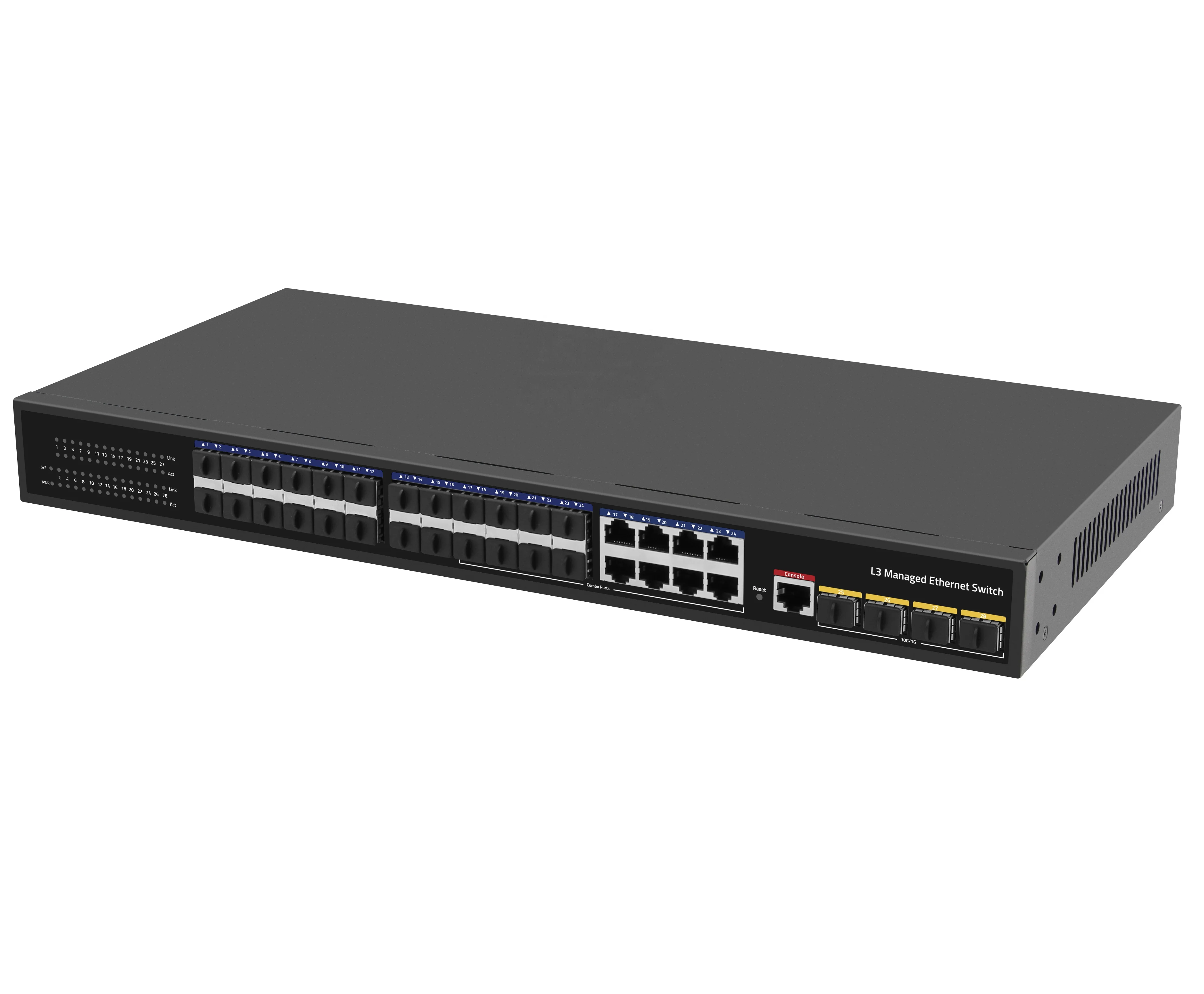

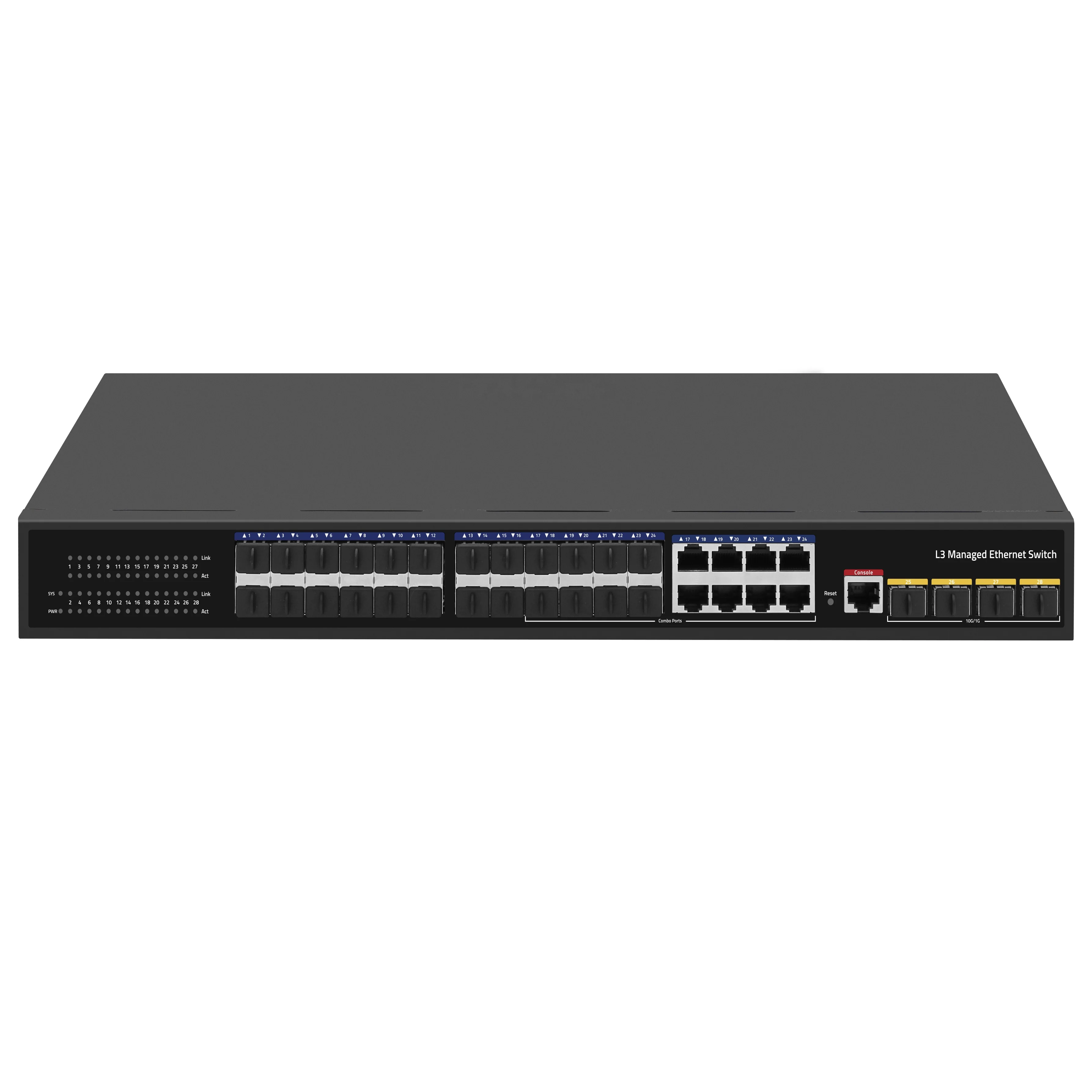

28 портов 10G Uplink 24 портами Gigabit слой 3 управляемый

I/O Interface

Power

AC 100-240V/50-60Hz

Ethernet

24* Gigabit SFP Ports

8* Gigabit Ethernet Ports(Combo)

4* 10G SFP+ Ports

1* Console Port

Performance

Bandwidth

128Gbps

Packet Forwarding Rate

95.23Mpps

DDR SDRAM

128MB

Flash Memory

16MB

Package Cache

12M

MAC Address

16K

Jumbo Frame

12Kbytes

VLANs

4096

Transfer Mode

Storage & Forwarding

MTBF

100000 Hours

Standard

Network Protocol

IEEE802.3 (Ethernet)

IEEE802.3u (Rapid Ethernet)

IEEE 802.3ab (Gigabit Ethernet)

IEEE 802.3z (Gigabit Ethernet Optical Fiber Standard)

IEEE 802.3ae(10G Ethernet)

IEEE802.3x (Flow Control)

IEEE 802.3az (Energy Efficient Ethernet)

IEEE 802.3ad(Link Aggregation)

IEEE 802.1AB LLDP/LLDP-MED(Link Layer Discovery Protocol)

IEEE 802.1D Spanning Tree Protocol(STP)

IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)

IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

IEEE 802.1Q (Visual LAN)

IEEE 802.1p (VLAN Label)

IEEE 802.1X (Client/Server Access Control and Authentication Protocol)

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD),

EN61000-4-4 (EFT),

EN61000-4-5 (Surge)
