Алюминиевый корпус 288 Вт 36VDC выходной источник питания водонепроницаемый ip66 Светодиодный драйвер для внутреннего
- Категория: Lighting Transformers >>>
- Поставщик: Zhuhai,Shengchang,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 95.63 $* | 100.80 $* |
| Aug-19-2025 | 94.38 $* | 99.31 $* |
| Jul-19-2025 | 79.57 $* | 83.2 $* |
| Jun-19-2025 | 93.61 $* | 98.44 $* |
| May-19-2025 | 81.95 $* | 85.30 $* |
| Apr-19-2025 | 91.76 $* | 96.29 $* |
| Mar-19-2025 | 90.11 $* | 95.76 $* |
| Feb-19-2025 | 90.5 $* | 95.37 $* |
| Jan-19-2025 | 89.90 $* | 93.5 $* |
Характеристики
Product Description

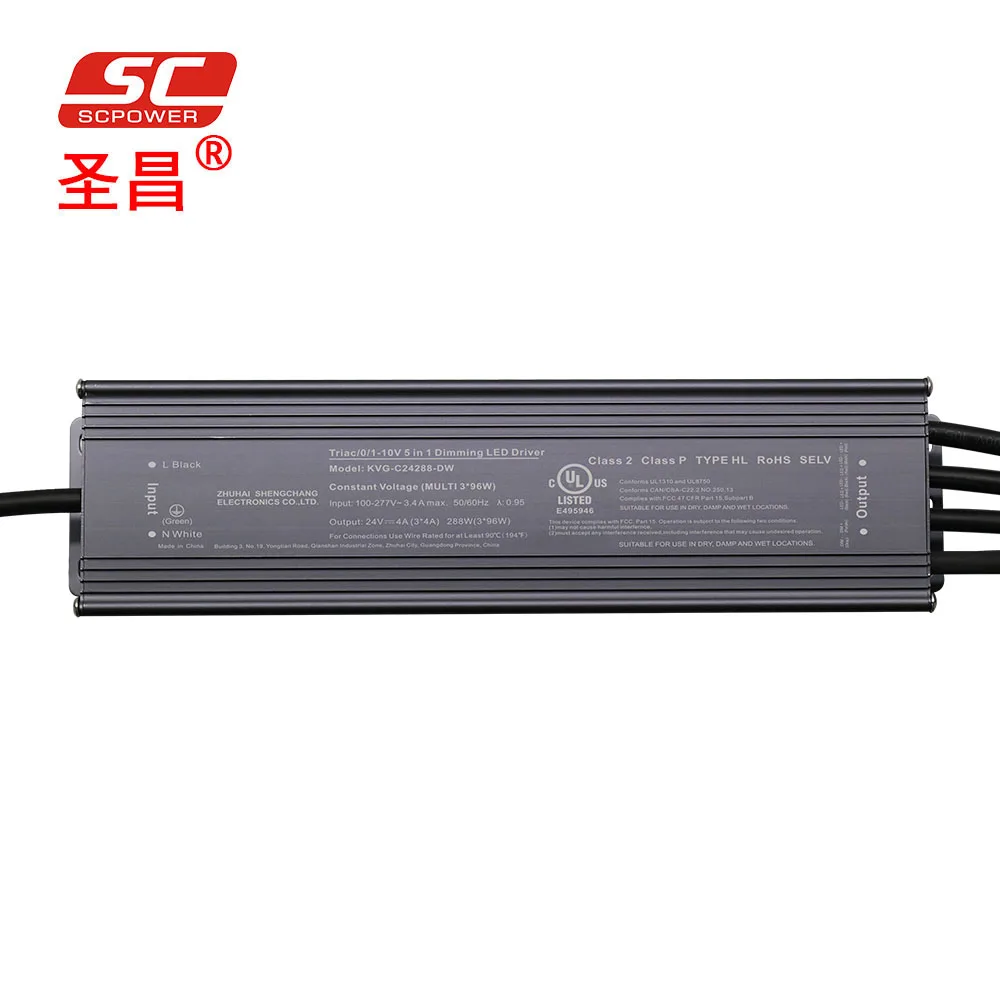

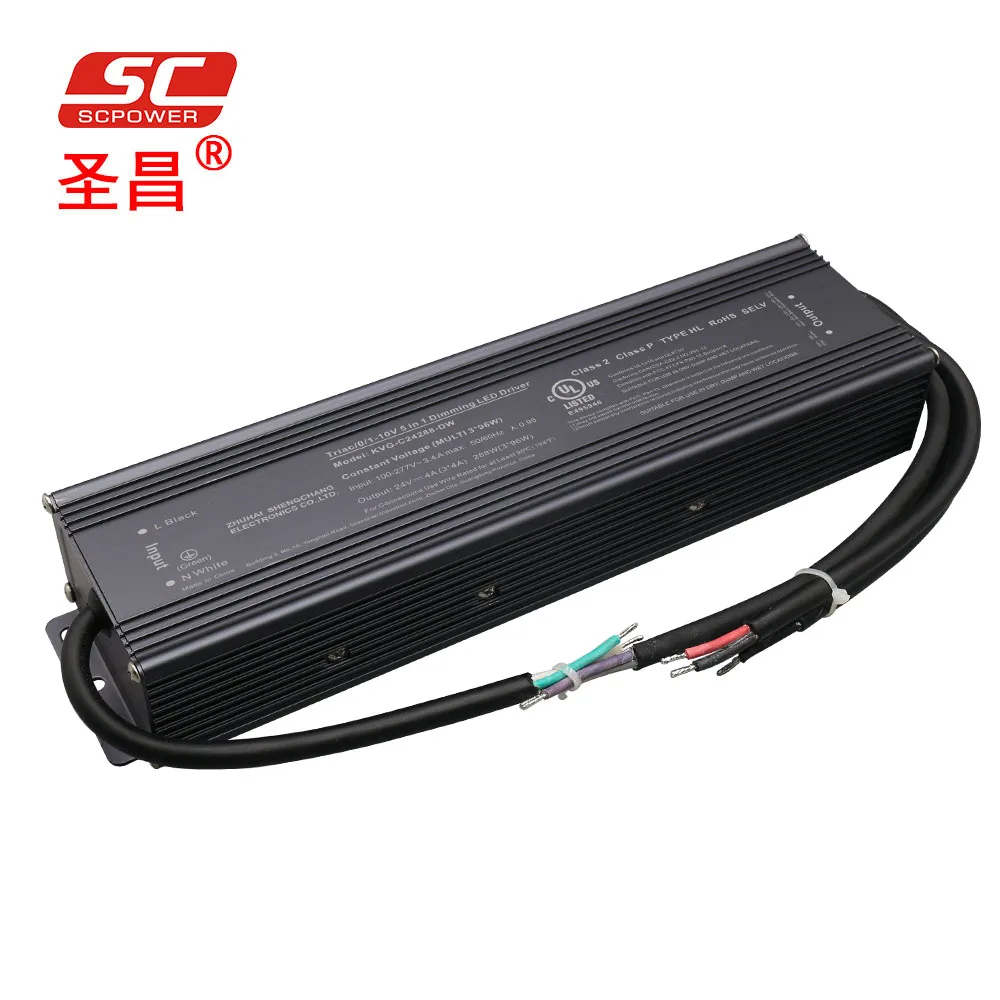

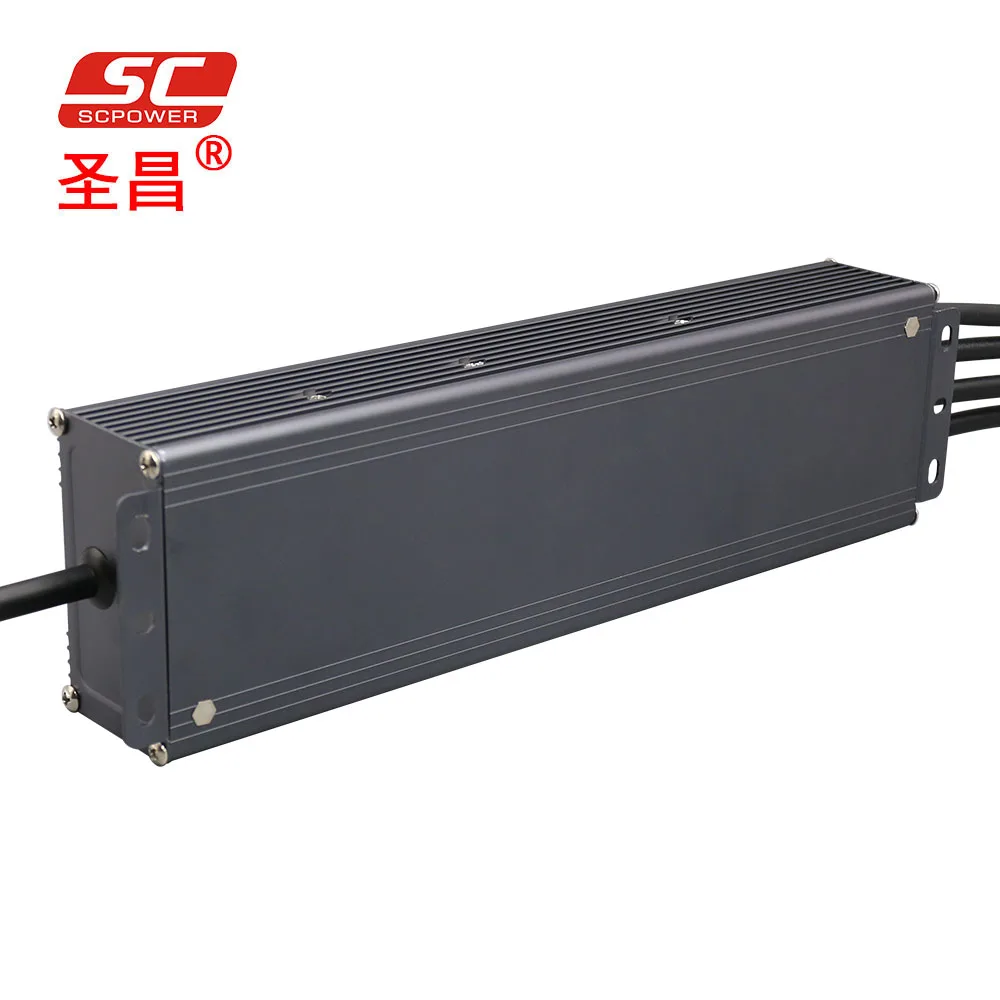

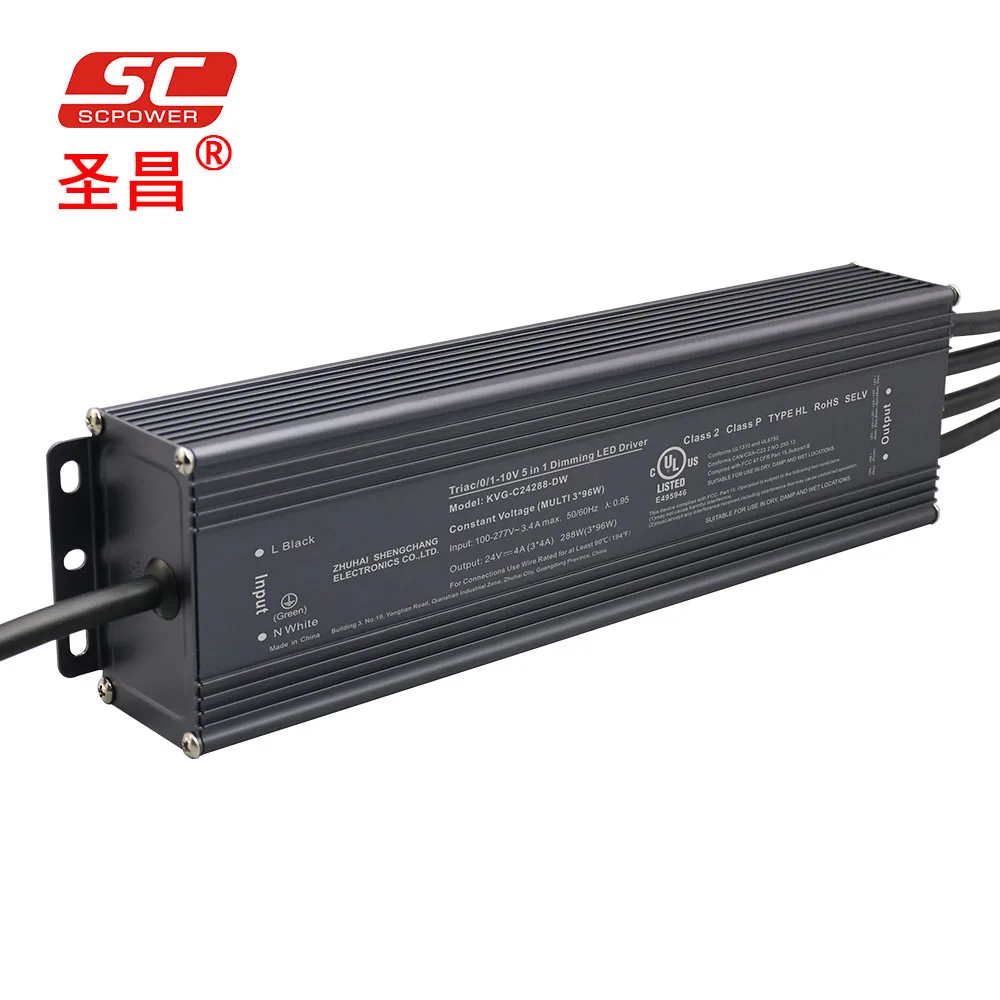

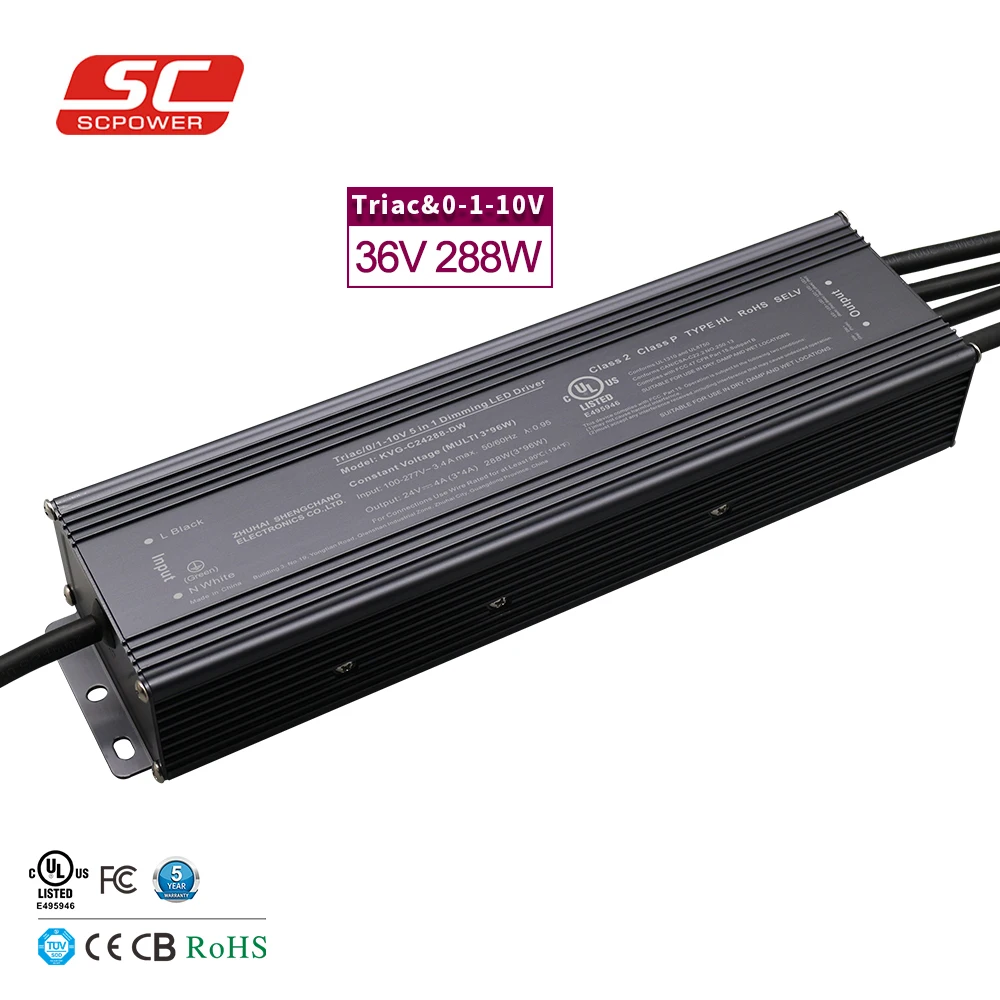

aluminum housing 288w 36VDC output power supply waterproof ip66 led driver for Indoor lighting
Features
·Output constant Voltage, class 2 muti-channels
·UL, cUL listed, Class 2, Type HL
·Range: 100-277VAC
·Built-in active PFC function
·Efficiency up to 91%
·Protections: short circuit/over load/ over temperature
·Cooling by free air convection
·Full protection aluminum housing, for dry ,damp and wet locations
·Dimming function:
·Phase dimming: work with forward phase /leading edge ,MLV and Reverse phase /trailing edge ,ELV,TRIAC dimmers
·0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
· Dimming range: 0-100%
· Suitable for LED lighting and moving sign applications
Specification
Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
Over Loading | ≤120% Hiccup mode ,recovers automatically after fault condition is removed | ||
Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
LED Drivers
Constant Voltage | Constant Current | Certification |
Triac / Phase-cut ELV MLV Dimmable | Triac / Phase-cut Dimming | ISO9001:2015 UL,cUL,ETL,cETL,FCC, ENEC,TUV,CB,CE, SAA,RoSH,CCC, DALI-1,DALI-2 certificated |
Triac & 0-10V 1-10V Dimmable | Triac & 0-10V 1-10V Dimming | |
0-10V 1-10V Dimmable | 0-10V 1-10V Dimming | |
DALI 1 Push Dimmable | DALI 1 Push Dimming | |
DALI 2 Push Dimmable | DALI 2 Push Dimming | |
DMX512 Dimmable | DMX512 Dimming | |
BLE Wireless Dimmable | BLE WirelessDimming | |
ZigBee Wireless Dimmable | ZigBee Wireless Dimming | |
WiFi Wireless Dimmable | WiFi Wireless Dimming | |
Non Dimmable | Non Dimming |
We are 13 years experience manufacturer in dimmable LED Power Supply since 2009!
Our main products including with Triac phase ELV MLV dimmable ,0/1-10V dimmable ,DALI&PUSH-DIM 2 in 1 dimmable ,DMX dimmable ,and wireless BLE ,zigbee wifi dimmable driver
Dimming ,CCT (TW) ,RGB ,RGBW ,RGBCW
from 5W to 600W C.V. 12VDC 24VDC 36VDC 48VDC ;3W to 200W C.C.
5 years warranty
Dimming range 0-100%
No noise , Flicker free
High frequency exemption level, High PF (PF>0.95)
Aluminum shell & plastic shell for output and indoor use (IP66 Waterproof ,IP20)
Slim ,linear led driver
All-round protection-Short circuit,over load, over-temperature
Sample Available,
Spot goods (warehouse area of 2,800 square meters total)
Click on Contact Us or write to.
Company Information
Certifications
Trade Shows
Related Products
FAQ
1. How about your goods’ quality?
100% burn-in tests, full-round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it?
3 years. If any wrong, we will replace in your next order, or refund.
3. What is your minimum order quantity?
The MOQ is 1pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer?
By air/sea/land, from Zhuhai jiuzhou port, Hongkong, Guangzhou.
6. How about your delivery time?
3-7 working days according the order.
7. Can you make OEM?
Of course, OEM ODM provided.
More information, please feel free to contact us.
